Canvas Chart

This page describes how to set up and configure the Canvas Chart component, a custom chart builder using HTML Canvas.

Set Up a Canvas Chart

To set up a Canvas Chart, click-and-drag the component into the workspace and configure the following:

1. Add a layer, select the chart type from the drop-down.
2. Assign the data source to use.
3. Define the X-Axis ID and Y-Axis ID to plot from your data source.
4. Add x axis and y axis labels, and set the Format for each axis.
5. Uncheck OffsetGridLines to position a line at the zero value of the y-axis.
6. Use highlight rules to create a color differential in your displayed values; e.g. between positive and negative values.
7. Map view states to Min and Max Viewstate to track the viewable range of the chart.

Refer to Canvas Chart properties, described in the next section, for details on additional properties.

Canvas Chart Properties

The following sections provides details on how to configure the properties of the Canvas Chart component.

Basics

Open the Basics properties on the right and configure the properties described in the following table.

Field	Description
Name	A name for the component provided by the user.
Selected	A View State Parameter to store the X-axis value at the selected position; for example time or date.
Focus	Refer to Linking for details.
Hover	A View State Parameter which stores the X-axis value contingent on where the hover bar is on the chart; e.g. time or date.
Transpose	Check to switch data from Y- to X-axis and X- to Y-axis. Tip: To create a Horizontal Bar Chart, create a standard Bar Chart and check Transpose. Note that there is no zoom support for Horizontal Bar Charts.
Sort By	Defines the sort order for the x-axis, by either the data source index or the x-axis values.
Show Error when no Data	Use this to display an error message when there is no data to be displayed. - When checked, an error message is displayed if there is no data. - When unchecked, no error message is displayed if there is no data. This is the default.
Add Patterns to Bars	Adds patterns to bars for accessibility and visual differentiation.

Layers

1. Select a Layer Type from the drop-down list; Line, Bar, Bubble, Violin, Box Plot, Waterfall or Candlestick chart.



   Configure the properties for the Layer; Basics, Axes, Highlight Rules, Actions, Labels as well as the settings specific to the selected layer type: Line, Bar, Bubble, BoxPlot, Violin, Waterfall, Candlestick.

2. Click + LAYER to add another layer.

Basics

Configure the properties, described in the following table.

Field	Description
Data Source	Data sources.
Name	Name used as the chart legend label.
Enabled	Toggles display of the data layer on the chart. Can be tied to a View State Parameter.
Legend Enabled	Toggles display of data legend.
Background Color / Background Opacity / Border Color / Border Opacity / Border Width	Set the color, opacity and width for Line, Bar or Bubble charts. - Opacity has a value between 0 (transparent) and 100 (full opacity). - Border Width is in pixels. - Line charts do not require Background Color or Background Opacity. Tio: Change layer order. Click-and-drag to rearrange the orders of the layer on the chart. The last layer is the top layer.

Axes

Configure the properties, described in the following table.

Field	Description
X-Axis ID	Select from the defined Axes.
X-Axis Data	Select from the Data source defined in Basics.
Y-Axis ID	Select from the defined Axes.
Y-Axis Data	Select from the Data Source defined in Basics.
Radius Data / Radius Scaling	These fields are only used by Bubble Charts. From the Data Source select the variable to define the attribute to use for bubble scaling, then adjust the scaling variable to define bubble size. Values less than zero are not displayed on the chart.
Min / Q1 / Median / Q3 / Max	These fields are used for Box Plots. Set the column variables in order from lowest Min to highest Max.
Open / Close / High / Low	These fields are only used by Candlestick charts. Select the data columns that correspond to each.

Interpolation

These fields are only relevant to Line layers. Configure the properties, described in the following table.

Field	Description
Interpolation	Select one of the following from the drop-down.
Line Tension	Inbuilt algorithm used to smooth curve from discrete data points for Cubic line charts; integer value.
SteppedLine	Switch between Stepped chart types; before and after.

Line

Configure the properties, described in the following table.

Field	Description
SpanGaps	Where there is missing data, check to connect isolated points.
Show Line	Check to display / hide line chart.
Fill	Select a fill option from the drop-down.
Fade to Transparent	Where a fill color is employed, a transparency gradient will be applied to the layer.
Dash Width / Dash Gap	Use these fields to convert from a solid to a dashed line.

Points

These fields are only relevant to Line Layers. Configure the properties, described in the following table.

Field	Description
Hit Radius / Background Color / Border Color / Border Opacity / Border Width / Radius / Background Opacity	These fields define the visual styling of line point. A PivotRadius of zero hides the point.
Style	Choose between cross, circle, crossRot, dash, line, rect, rectRounded, rectRot, star, triangle, downTriangle.
Hover Background Color / Hover Background Opacity / Hover Border Color / Hover Border Opacity / Hover Border Width / Hover Radius	These fields define visual style of line point rollover.

Bars

Configure the properties, described in the following table.

Field	Description
BarPercentage	Defines width of bars, and intra-bar space when percentage is selected.
Bar Thickness	Defines width of bars (in pixels) when manual bar thickness is selected.
Bar Width Type	Select either percentage or manual bar thickness.
Category Percentage	Defines width of bars, and intra-bar space when percentage is selected.
Max Bar Thickness	Defines the maximum width of bars (in pixels) when manual bar thickness is selected.
Hover Background Color / Hover Background Opacity / Hover Border Color / Hover Border Opacity / Hover Border Width	These fields define the visual style of bar rollover.

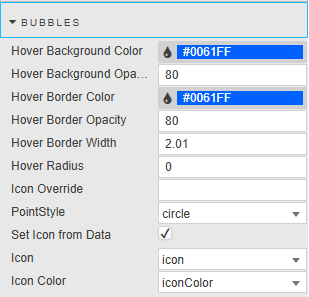

Bubbles

Configure the properties, as described in the following table.

Field	Description
Hover Background Color / Hover Background Opacity / Hover Border Color / Hover Border Opacity / Hover Border Width / Hover Radius	These fields define the visual style of bubble rollover.
Icon Override	Define the point style from a list of icons.
PointStyle	Choose the point style; cross, circle, crossRot, dash, line, rect, rectRounded, rectRot, star, triangle.
Set Icon from Data	Check this to assign different icons and colors to bubbles based on their data source. This visual differentiation allows viewers to quickly identify and distinguish between multiple data layers or origins within the same chart. It is particularly useful when overlaying several datasets for comparison or correlation. When Set Icon from Data is enabled, the Icon and Icon Color properties are displayed. When icons are taken from the data source they must be specified as shown in the following example: - icon:("fa-caret-up";"fa-caret-down";"fa-caret-up"); — where fa-xxx indicates a font awesome icon. - iconColor:("green";"red";"green")
Icon	When Set Icon from Data is enabled, this property displays a dropdown list of columns from your datasource. Select the column representing the icon to be used. Note: Canvas Charts data icons support point styles. They don't support base64-encoded icons.
Icon Color	Set the color of bubbles when using a Line or Bubble layer that has Set Icon from Data enabled. Select the data source column to be used for the color of the icon.

Box Plot

Configure the properties, described in the following table.

Field	Description
Hover Background Color / Hover Background Opacity / Hover Border Color / Hover Border Opacity / Hover Border Width	Use these fields to define the visual style of Box plot rollover.
Bar Width Type	Select either percentage or manual bar thickness.
BarPercentage / Category Percentage	Defines width of bars, and intra-bar space when percentage is selected.
Bar Thickness / Max Bar Thickness	Defines the width of bar, and the maximum width of bars (in pixels) when manual bar thickness is selected.

Violin

Configure the properties, described in the following table.

Field	Description
Hover Background Color / Hover Background Opacity / Hover Border Color / Hover Border Opacity / Hover Border Width	These fields define the visual style of Violin rollover.
Bar Width Type	Select either percentage or manual bar thickness.
BarPercentage / Category Percentage	These fields define the width of bars, and intra-bar space when percentage is selected.
Bar Thickness / Max Bar Thickness	These fields define the width of bar, and the maximum width of bars (in pixels) when manual bar thickness is selected.

Candlestick

Configure the properties, described in the following table.

Field	Description
Use OHLC	Sets OHLC bar or candlestick.
Bear Color	Set color for down day candles.
Bull Color	Set color for up day candles.
Neutral Color	Set color for flat days.
Border Color	Set color of candlestick sides.
Bar Width Type	Select one of the options; percentage, manual bar thickness.
BarPercentage / Category Percentage	These fields define the width of bars, and the intra-bar space when percentage is selected.
Bar Thickness / Max Bar Thickness	These fields define the width of bar, and the maximum width of bars (in pixels) when manual bar thickness is selected.

Waterfall

Configure the properties, described in the following table.

Field	Description
Bar Increase Color / Bar Decrease Color	These fields define the visual style of the Waterfall bar increase and decrease colors based on the previous bar value.

Regex for Data

Regular Expressions can be used to define Axes instead of a data source column. For example, a Y-axis plot to show all column data except the Date column:

Highlight Rules

Refer to Highlight Rules for details.

To display a Highlight Rule for a Canvas Line Chart, first set Radius above zero, then adjust Border Width. Highlights will only occur at points.

Action

Refer to Actions for details.

Labels

Data labels can be added to any layers to place labels next to datapoints/bars. The options are described in the following table.

Field	Description
Enabled	Turns on or off data labels. This can be tied to viewstate.
Label Color	The color of Label Text.
Label Frequency	Labels are applied to every nth data point where n is the label frequency.
Align	The align option defines the position of the label relative to the anchor point position and orientation. Its value can be expressed either by a number representing the clockwise angle (in degree) or by one of the following string presets:
Anchor	An anchor point is defined by an orientation vector and a position on the data element. The orientation depends on the scale type (vertical, horizontal or radial). The position is calculated based on the anchor option and the orientation vector. Supported values for anchor:
Offset	The offset represents the distance (in pixels) to pull the label away from the anchor point. This can be specified as a single number, for example 4 or an x,y coordinate for example 4,10.
Label Rotation	This option controls the clockwise rotation angle (in degrees) of the label, the rotation center point being the label center. The default value is 0 (no rotation).
Label Show Overlap	The display option can be used to prevent overlapping labels.
Label Template	Define data to display. Warning! Must return a string, HTML not supported: Select data to display with the Template Editor - Basic or Advanced mode. Existing data and view states can be displayed. Handlebar helpers can be used for formats.
Font -> Bold	Makes Label bold.
Font -> Size	Adjust font size in px.

X Axes

Configure properties for the X Axes. These properties vary depending on the axis type selected.

1. Configure the XAxes common properties; XAxis n, Gridlines, Title and Labels.
2. If the x axis type is linear or logarithmic configure the Range properties.
3. If the x axis type is time configure the Time properties.
4. Click + XAXES to add additional X-axis labels.

XAxis n

Select the axes type from the drop-down list; category, linear, logarithmic and time. The available properties are contingent on the selected axis type.

Field	Description
Display	Check to display X-axis labels.
Stacked	When using a bar chart, bars will be stacked.
Position	Defines the axes position; select between top and bottom of the chart area for X axes.
Center	For linear selection, this centers the axis at a defined value.

Gridlines

Configure the properties, described in the following table.

Field	Description
OffsetGridLines	Check to shift charted category data from center alignment to left-alignment.
GridLinesColor / GridLinesOpacity	These fields define the visual style of chart gridlines; opacity has a value between 0 (transparent) and 100 (opaque).

Title

Configure the properties, described in the following table.

Field	Description
Display	Check to display X-axis description label.
LabelString	Descriptive label for X axis.
FontFamily / FontSize / FontStyle / FontColor / Font Opacity	These fields set font styling parameters for X-axis label. Opacity has a value between 0 (transparent) and 100 (opaque).

Labels

Configure the X-axis tick labels properties, described in the following table.

Field	Description
Display	Check to display X-axis labels.
Begin at Zero	X-axis includes zero when enabled. If disabled the chart fits the available data. This is available for non-time axis selections.
Reverse	Reverses the order of chart axis. This is available for linear and logarithmic axis selections.
Offset	For linear and time selection, this adds a buffer to the start and end of chart to display in full, the first and last data point.
Hide Trailing Zeroes	Do not display zeroes at the end of numeric data. Available for linear and logarithmic axis selections.
Format	Format of Y axis: General, Number, Smart Number, or Datetime. Available for non-time axis selections.
Decimal Places	Precision of numeric data for Number and Smart Number. Available for non-time axis selections.
Date/Time Format	Where Datetime is selected, define time format to use: YYYY-MM-DD, YYYY-MMM-DD, YYYY-MMMM-DD, YYYY-MM, YYY-MMM, YYYY-MMMM, MMM-DD, MMM Do, YYY-MM-DD HH:mm:ss, YYYY-MM-DD hh:mm:ss, YYYY-MM-DD kk:mm:ss, hh:mm:ss, kk:mm:ss, hh:mm:ss:SS, mm:ss or mm:ss:SS. Available for non-time axis selections.
Min Rotation / Max Rotation	These fields adjust the alignment of tick labels.
Fixed Axis Width	Defines distance between Canvas Chart component edge and axis. Useful when aligning neighboring charts.
Step Size	Sets the grid-line distance between tick labels (numeric).
Prefix / Suffix	These set the character text to be added before or after each label. For example, a $ prefix or a % suffix. Available for non-time axis selections.
Font Family / Font Size / Font Style / Font Color / Font Opacity	Use these fields to set the font for use in axis labels. Choose from; normal, italic, oblique, initial and inherit. Opacity is a value between 0 (transparent) and 100 (opaque).
Filter Unique	Removes duplicate labels when present in the data for category data.

Time Formats

These properties only apply when X-Axis is set to time. Configure the properties, described in the following table.

Field	Description
Distribution / Break / TriggerBreak	Choose the distribution type as either; Smart, Linear or Series definition. Distribution collapses time to remove null time intervals, for example between marked trading hours.
Force Time Unit	Select from year, quarter, month, week, day, hour, minute, second, millisecond, as defined in the following parameters.
Tooltip Format	This is currently not in use as it has been replaced by aforementioned options.
IsoWeekday	Use ISO weekday format for X-axis time display.
Round	Round time to the nearest Force Time Unit scale.
Show Major units	If true, major ticks are generated. Each major tick represents a new parent time period (based on the child minor ticks). Minor ticks are shown by default.

Range

These properties are only available for linear and logarithmic axis types. Configure the data range properties, described in the following table.

Field	Description
Use Min/Max	Defines axis range by minimum and maximum values in plotted data.
Reset on Change	When Min/Max is set as a boolean control and Soft Range is enabled, will re-scale axis when Min/Max is true.
Use Soft Range	Best fit within a suggested Min and Max value; e.g. for dynamic range charts.
Use Data Range	Use existing data to define Min/Max range. Uncheck to manually set.
Suggested Min / Suggested Max	Best fits chart by Suggested Min/Max values.
Min / Max	Define minimum and maximum values to chart. Warning! Hard Range: Charted data outside of the set Min and Max range is not displayed. If all data falls outside the set range, the chart will be blank.

Y Axes

Configure properties for the Y Axes. These properties vary depending on the axis type selected.

1. Configure the Y Axes common properties; YAxis, Gridlines, Title, and Gridlines.
2. For y axes linear, logarithmic type specify the Range properties.
3. Click + YAXES to add additional Y-axis labels.

YAxis n

Select the axes type from the drop-down and choose from; category, linear, logarithmic and time. The properties displayed are contingent on the selected axis type.

Field	Description
Display	Check control to display Y-axis labels.
Stacked	Check control to parse bars in a Y-axis stack. Note on Stacked Y-axis with Line Fill: Stacking stacks lines in numeric order. Line 1 is the first (highest) line down to the last and lowest line, closest to origin X-axis. Line fill changes accordingly.
Position	Position Y-axis label to the left or right of chart area.
Center	Set center value for linear Y-axis.

Gridlines

Configure the properties, described in the following table.

Field	Description
OffsetGridLines	Shift charted category data from center alignment to left-alignment.
GridLinesColor / GridLinesOpacity	Define the visual style of gridlines.

Title

Configure the properties, described in the following table.

Field	Description
Display	Check to display X-axis description label.
LabelString	Label description.
Font Family / Font Size / Font Style / Font Color / Font Opacity	Select the font for use in axis labels. Choice of font style between normal, italic, oblique, initial and inherit. Opacity has a value between 0 (transparent) and 100 (opaque).

Labels

Configure the properties, described in the following table.

Field	Description
Display	Display Y-axis labels.
Format	Format of Y axis: General, Number, Smart Number, or Datetime. Available for non-time axis selections.
Decimal Places	Precision of numeric data for Number and Smart Number. Available for non-time axis selections.
Date/Time Format	Where Datetime is selected, define time format to use: YYYY-MM-DD, YYYY-MMM-DD, YYYY-MMMM-DD, YYYY-MM, YYY-MMM, YYYY-MMMM, MMM-DD, MMM Do, YYY-MM-DD HH:mm:ss, YYYY-MM-DD hh:mm:ss, YYYY-MM-DD kk:mm:ss, hh:mm:ss, kk:mm:ss, hh:mm:ss:SS, mm:ss or mm:ss:SS. Available for non-time axis selections.
Hide Trailing Zeroes	Do not display zeroes at the end of numeric data.
Begin at Zero	Axis data starts at zero. Available for non-time axis selections.
Reverse	Reverse order of labels from bottom-up to top-down. Available for linear and logarithmic axis selections.
Offset	For linear and time selection, adds buffer to start and end of chart to display in full, the first and last data point.
Min Rotation	—
Max Rotation	Rotation of y-axis labels.
Fixed Axis Width	Distance between Y axis and the edge of the component (used when making room for Y-axis labels).
Step Size	Sets the grid-line distance between tick labels (numeric).
Prefix / Suffix	Specify the character text to be added before or after each label. For example; a $ prefix or a % suffix. Available for non-time axis selections.
Font Family / Font Size / Font Style / Font Color / Font Opacity	Specify the font qualities; style, size, color and opacity for the axis label.

Range

These properties are only available for linear and logarithmic axis types. Configure the properties, described in the following table.

Use data boundaries to define the X-axis range.

Field	Description
Use Min/Max	Defines the axis range by minimum and maximum values in plotted data.
Reset on Change	When Min/Max is set as a boolean control and Soft Range is enabled, the axis re-scales when Min/Max is true.
Use Soft Range	Best fit within a suggested Min and Max value, for example; for dynamic range charts.
Use Data Range	Use existing data to define Min/Max range. Uncheck to manually set.
Suggested Min / Suggested Max	Best-fits the chart by the Suggested Min/Max values.
Min / Max	Define the minimum and maximum values to chart. Warning! Hard Range: Charted data outside of the set Min and Max range is not displayed. If all data falls outside the set range, the chart is blank.

Animations

Configure transition animations to be applied when switching data in the chart. Configure the properties in the following table.

Field	Description
Enable	Check to enable animations.
Hover Events	By default the chart highlights all bubbles, points and bars that lie along the same x-axis. You can toggle this setting to disable highlighting on the chart. Crosshairs and Tooltips still function the same. This option must be checked in charts with large amounts of data, as it decreases the number of times the chart has to update while hovering.
Interaction Mode	Hovering Mode gives you the option of changing the way the chart highlights points. The options are: - x — By default, points with the same x value are also highlighted. - y — Points with the same y value get highlighted. - point — Only points you are hovering over are highlighted. - dataset — The entire dataset is highlighted.

Overlay

Configure the Overlay properties, which define the use of tooltips and their positioning.

Field	Description
Show Crosshairs	Check to show crosshair on chart.
Show Tooltip	Check to show tooltip on chart.
Tooltips Intersect	When intersect is selected, only bubbles, points or bars that are hovered over are shown in a potential tooltip. Lines do not count as points and will not trigger a tooltip, therefore line points must have a radius in order to be hoverable. Note: Due to limitation of the chart engine, highlight always appears based on the x-axis location.
Tooltips Prefer Intersect	When tooltip prefer intersect is selected, the tooltip will try populate itself with things that are being hovered on. If nothing is being hovered on, the tooltip will populate with items in the closest x-value. Set visual criteria for tooltip; intersect places tooltip at crosshair.
Crosshairs Color	Define the color for crosshair line.
Tooltip Background Opacity	Define the opacity of the Tooltip Background.
Tooltip Font Size	Set the fontsize in px of the Tooltip Text.
Align Tooltip with Edge	Enable to position tooltip along left chart axis.
Use Custom Tooltip	Check to enable use of a custom Tooltip, which is specified in the following field.
Custom Tooltip	Examples: html<br><table><br> <thead><br> <tr style="padding-right: 10px;"><br> <th> {{xLabel}} </th><br> <th/><br> </tr><br> </thead><br> {{#each points}}<br> <tr><br> <td><br> <svg height="12" width="12"><br> <rect height="12" width="12"<br> style="fill: {{colors.backgroundColor}};<br> stroke-width: 3; stroke: {{colors.borderColor}};" /><br> </svg><br> {{layerName}}:<br> </td><br> <td style="padding-right: 10px; text-align: left;"><br> {{layerData}}<br> </td><br> </tr><br> {{/each}}<br></table><br> To group together layers with the same name, modify the template as follows: html<br><table><br> <thead><br> <tr style="padding-right: 10px;"><br> <th>{{ xLabel }}</th><br> </tr><br> </thead><br> {{#groupByLayer}}<br> {{#each layers }}<br> <tr><br> <td><br> <svg height="12" width="12"><br> <rect height="12" width="12"<br> style="fill: {{colors.backgroundColor}};<br> stroke-width:3; stroke: {{colors.borderColor}};"> /><br> </svg><br> {{ layerName }}:<br> </td><br> {{#each layerPoints}}<br> <td style="text-align: left;"><br> {{data}}<br> </td><br> {{/each}}<br> </tr><br> {{/each}}<br> {{/groupByLayer}}<br></table><br> To display selected layers, set the names attribute in #filterLayers to a comma-separated list of layers to display; for example, to show Layer 1 and Layer 3 use: html<br><table><br> <thead><br> <tr style="padding-right: 10px;"><br> <th> {{xLabel}} </th><br> <th/><br> </tr><br> </thead><br> {{#filterLayers names="Layer 1,Layer 3"}}<br> {{#each points}}<br> <tr><br> ...<br> </tr><br> {{/each}}<br> {{/filterLayers}}<br></table><br>
Crosshairs Color	Define hex color code reference for crosshair color.

Refer to Templates for further information on configuring templates.

Zoom & Pan

Configure the properties as defined in the following table.

Field	Description
Scroll Zoom / Drag Zoom / Pan	Check to enable respective behaviors. Pan and Drag Zoom are both triggered by mouse movement, therefore icons in the top right corner of the chart appear allowing you to toggle between the two. Scroll zoom is activated with mouse wheel movement. Note: A pan is typically done after a zoom when there is data 'off screen' to see. To pan, click on the hand icon in the top-right of the chart.
Reset Viewstates Only	Check to reset only Min/Max Viewstates — this prevents the values of the viewstates being passed into the chart. This can be used for server side zooming, where additional aggregation occurs on the server to return the correct resolution of data.
Fill color / Fill Opacity	Set the color and opacity of highlight zoom region.
Min Viewstate / Max Viewstate	Specify View State Parameters for range values made on adjustment in the chart.
Default Min Viewstate / Default Max Viewstate	Set the default View State Parameters min and max range for when a chart loads.
Viewstate Update Delay	Set the length of time (in seconds) between when an adjustment in chart viewable area is then passed to Min/Max Viewstates. This only occurs for panning and scroll zooming; drag zoom values are passed to the viewstates instantaneously.
Snap to Data	When set, the selection moves to the nearest valid data point.
Rounding for Y-axis	Select none, nice or min/max. Best fits y-axis scale according to data range of zoomed data.

Legend

Configure the properties, to define the data legend labels, as per the following table.

Field	Description
Display	Toggle to display chart labels.
Position	Define where Legends are set: bottom, top, left, right or top-inline.
Icon Width / Icon Padding	Set the parameters of the area used to display Legends; width controls point size.
Label color / Label Font Size	Define the style of the Legend text.
Align	Set the position of Legends, choose between start, center or end.
Legend Display Type	Select between default, scroll, layer group or layer new line; layer groups and lines aggregate legends where wild card is used in the layer.
New Layer Threshold	Define the number of items to display per layer new line of Legend Display Type.
Reverse Order	Reverses order of labels from left-to-right to right-to-left.
Use Point Style	Enable use of chart points or use block color.

Legends toggle display

Users can click on legends to toggle display of the corresponding chart data. Hidden data is marked with strikethrough on its legend.

File Export

Refer to Export for details.

Style, Format, Margins

Refer to Style for details.

Further Reading

• Navigate Dashboards workspace
• Configure data source connections
• Use view states
• Publish & Export a dashboard
