Map (Offline)

This page describes the offline Map component and how it can be set up and configured to create visually appealing, engaging, and performant geographic maps.

This component uses WebGL technologies, enabling maps to render quickly and smoothly, which is highly beneficial when working with large datasets. The benefit of using this Map component over the standard Map (External API) component is that you do not need external access to the internet or external APIs.

There is a wide range of customizations available including adjusting styles, colors, fonts, adding custom icons and interactive layers (Points, Circles, Lines, Animated Points, Heatmaps, and customizable Layers).

Two Map components

KX Dashboards includes two Map components, both displaying geographical data but used for different purposes. To use the Map (External API) component, you need a stable internet connection and access to external APIs. If you need to use maps offline, the Map component described on this page allows you to visualize geographical data without an internet connection or external APIs. The properties for the two maps differ, so choose based on your needs.

The Map has features that enable you to: visualize and animate geographic data; visualize streaming and moving data geographically; display and interact with large quantities of data; query and filter map features; dynamically display and style custom client-side data; programmatically add points, circles, lines, and popups; annotate polygons and lines and store annotated points in view states; and overlay multiple layers of data.

Note

The Map component is built using the MapLibre libraries.

Set Up an Offline Map

To set up an offline Map component, click-and-drag the component into the workspace. Refer to Offline Map properties described in the next section for details on additional properties.

Offline Map Properties

The following sections provides details on how to configure the properties of the Offline Map component.

Basics

Open the Basics properties on the right and configure the properties described in the following table.

Property	Description
Name	Enter a name for the component.
Track Load Time	When checked, the time it takes to load the Map is tracked in the Load Time (ms) field below. This includes the time to load all defined layers. Monitoring load time helps identify performance issues.
Load Time (ms)	When Track Load Time is checked, this field is updated with the loading time in milliseconds.

Map

Configure the properties, described in the following table. The Map properties allow you to configure the zoom setting, latitude and longitude coordinates, and style of the map on load.

Property	Description
Map Box Key	This key (access token) associates API requests with an external map account. Required for online mode only.
Offline	Click to switch between offline mode and online mode. Offline mode requires no internet access. This must be unchecked to use the Map offline.
Center Latitude/Longitude	Sets the map center when the dashboard loads. Defined in longitude and latitude values.
Zoom	The initial zoom level.
JSON Style Override / URL Style Override	When set, the default style is overridden with JSON/GeoJSON (Offline mode) or a URL string (Online mode). Offline Mode: The default style uses a baked-in vector and country tile server (.pbf file), a baked-in font for glyphs, and a set of countries with a color scheme. These defaults can be overridden here; no external API requests are needed. Online Mode: Default styles are "mapbox://styles/mapbox/dark-v11" (Dark Theme) and "mapbox://styles/mapbox/light-v11" (Light Theme).
Layer Enablement	Options: None, Quick, All.

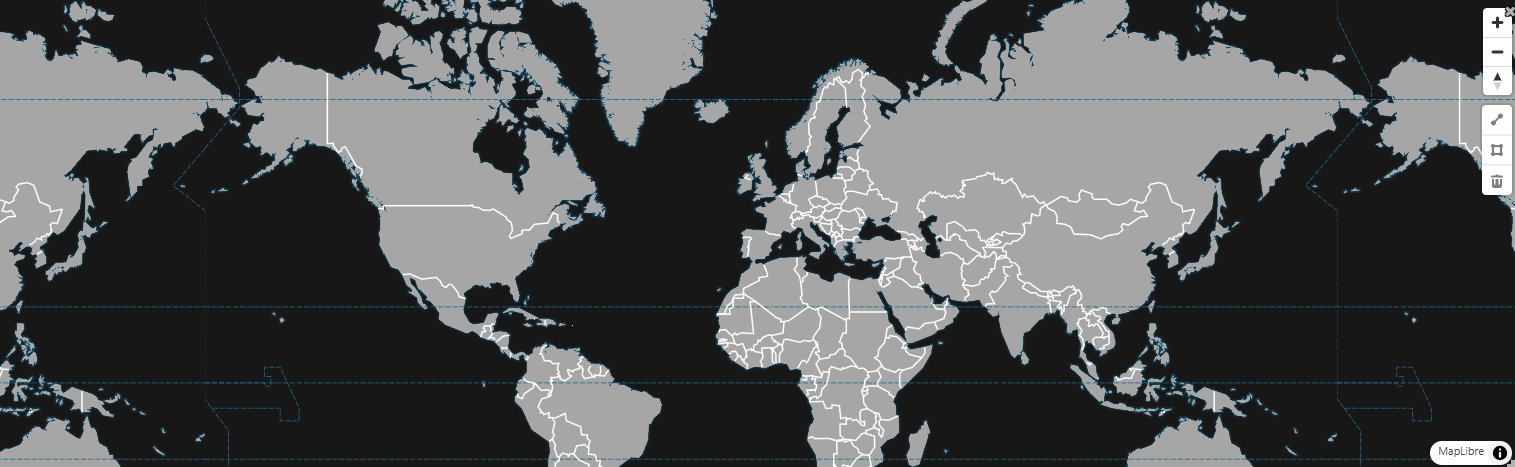

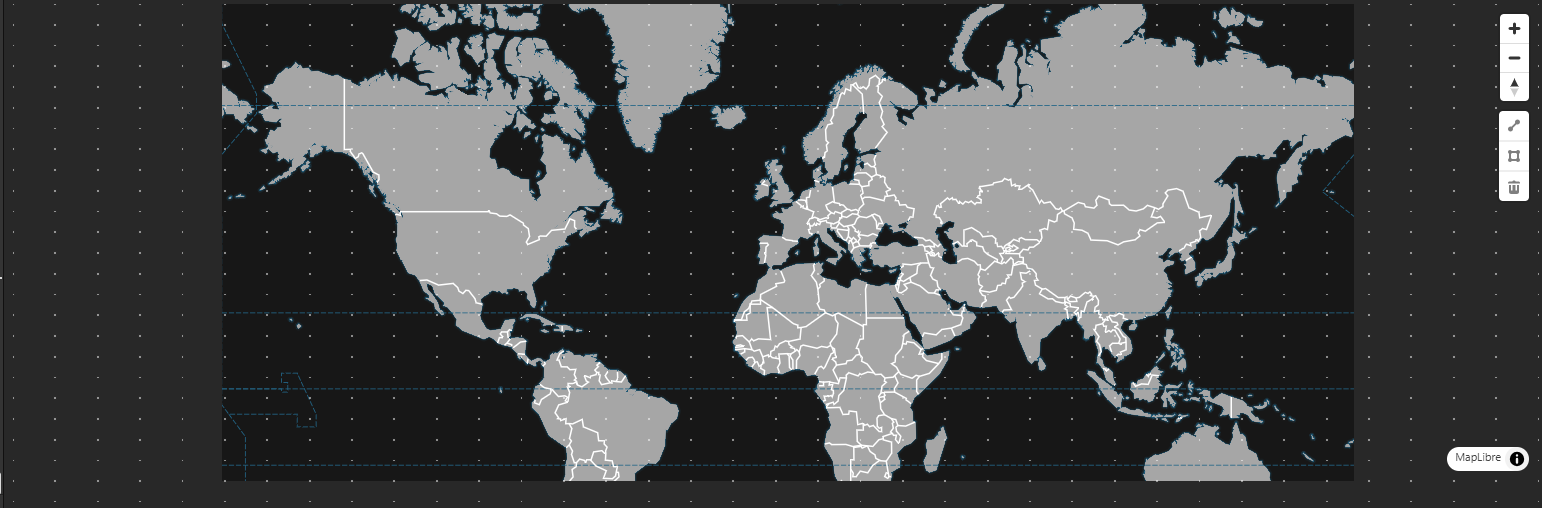

Render World Copies	Choose between a single constrained map instance (minimal GPU/tile resources) or duplicating the world horizontally for seamless wrap-around past the antimeridian (at the cost of extra tiles and memory). Unchecked by default (single world view).

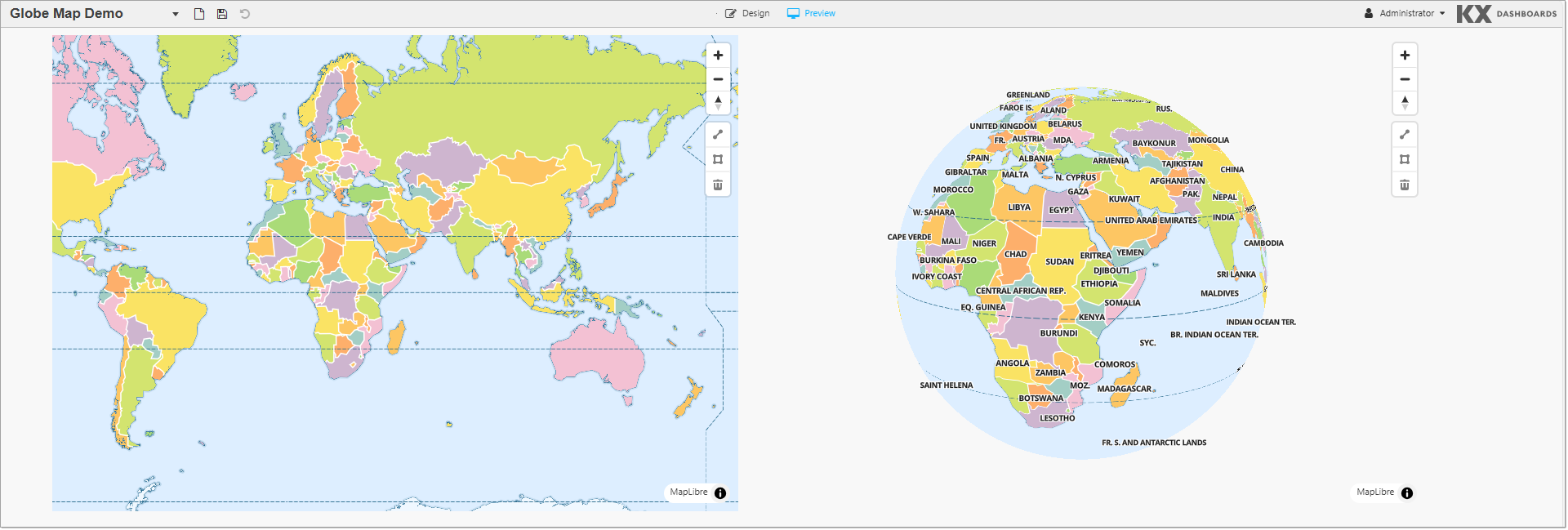

Projection	Choose how geographic data is displayed. Mercator: default cylindrical projection, ideal for street-level and navigation maps. Globe: renders the earth as a 3D sphere, ideal for global overviews and animated visualizations like flight paths.

Points

Use the Points properties to configure a custom point image at a specific geographic coordinate, with an option to add clustering.

Property	Description
Name	Define a name for the layer. If blank, the default name (Layer Type Layer Index) is used.
Cluster	When checked, grouped individual points are replaced with a numeric cluster icon. Points outside the cluster remain as individual points.
Load points in view	When checked, the map zooms and pans to the area containing points. When unchecked, the default zoom and center point is used.
ID	A distinct identifier for a point.
Latitude / Longitude Data	The data source columns for latitude and longitude.
Altitude Data	The data source column for altitude.
Color	The color of the map point graphic.
Icon	The shape of the map point graphic. A pointer is used by default.
Icon Scale	The proportional size of the shape. A value of 1 is used by default.
Icon Rotation	Sets the rotation angle of the icon from 0–360.
Icon Opacity %	The opacity of the shape.
Icon Zoom Interpolate	When checked, icon sizes smoothly scale in proportion to the map's zoom level.
Use Labels	When checked, the Map displays a label for each of the points.
Label	The label displayed next to each point.
Label Size	The label font size.
Show Tooltip	When checked, displays a tooltip on points mouseover.
Tooltip	Set the value you want to see for tooltip at mouse-over.
Zoom on Select	When checked, the map is centered and zoomed in on this point when clicked.
Track Selected	When checked, you can link/track a selected point on the map.
Cluster Max Zoom	The maximum zoom level at which nearby points are grouped into clusters. Above this zoom level, individual points are displayed.
Cluster Radius	Defines the clustering radius in pixels. A larger radius groups points that are farther apart, resulting in fewer but larger clusters.

Selected

The Selected properties relating to the configured Points are shown below.

Property	Description
Color	The color of the selected point.
Column	The data source column used in the selected row(s).
Selected Item	The current selected value. A point is highlighted with the specified color if the Selected Item value equals the value for the specified Column.
Annotated Items	When annotations are enabled, you can draw a polygon around a set of circles or points. The map captures the corresponding coordinates and selects all point IDs within that range, stored in this view state. These values can then be used in other components such as a data grid.

Actions

Refer to Actions for details.

Icon Scale Interpolate

Icon scale interpolation means the map holds each property constant until you hit the next defined zoom stop, then jumps to the new value rather than smoothly scaling continuously.

Property	Description
Zoom Stop 1 / Zoom Stop 2	Define the set of zoom stops.
Zoom Stop 1%	Defines the minimum zoom percentage (relative to icon size) at which a zoom stop occurs.
Exponential	Applies exponential scaling to icon sizes across zoom levels, creating a smoother and more natural growth effect compared to linear scaling.

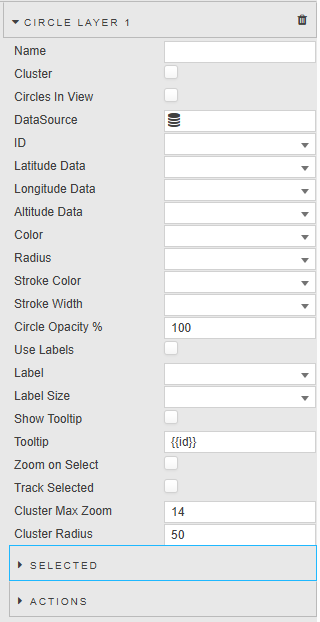

Circles

You can configure custom circles with clustering.

Property	Description
Name	Define a name for the layer. If blank, the default name (Layer Type Layer Index) is used.
Cluster	When checked, grouped individual Circles are replaced with a numeric cluster icon.
Circles in View	When checked, all circles are zoomed in and in view when the map is loaded.
Data Source	A data source that includes geographic coordinates.
ID	A distinct identifier for a circle.
Latitude / Longitude Data	The data source columns for latitude and longitude.
Altitude Data	The data source column for altitude.
Color	The color of the map circle graphic.
Radius	The radius of the map circle graphic.
Stroke Color	The border color of the map circle graphic.
Stroke Width	The border width of the map circle graphic.
Circle Opacity %	The percentage opacity of a circle.
Use Labels	When checked, each circle displays a label.
Label	The label displayed next to each circle.
Label Size	The label font size.
Show Tooltip	When checked, circles display a tooltip on mouseover.
Tooltip	Set the value you want to see for tooltip at mouse-over.
Zoom on Select	When checked, the map is centered and zoomed in on this circle when clicked.
Track Selected	When checked, you can link/track a selected circle on the map.
Cluster Max Zoom	The maximum zoom level at which nearby circles are grouped into clusters.
Cluster Radius	Defines the clustering radius in pixels.

Selected

Property	Description
Color	The color of the selected circle.
Column	The Data Source column used in the selected row(s).
Selected Item	The current selected value. A circle is highlighted with the Color property if the Selected Item value equals the value for the specified Column.
Annotated Items	When annotations are enabled, you can draw a polygon around a set of Circles or Points. The map captures coordinates and selects all circle IDs within the range, stored in this view state.

Actions

Refer to Actions for details.

Lines

The Lines properties enable you to configure lines with customizable styling.

Property	Description
Name	Define a name for the layer. If blank, the default name (Layer Type Layer Index) is used.
Load lines in view	Positions the map so that all points are zoomed in and visible when loaded.
Data Source	A data source that includes geographic coordinates.
ID	Lines are grouped by common IDs. To draw multiple lines from a single data source, group each set by the same ID.
Latitude / Longitude Data	The data source columns for latitude and longitude.
Color	The color of the map line graphic.
Width	The width of the map line graphic.
Use Labels	When checked, each line displays a label.
Label	The label displayed next to each line.
Label Size	The label font size.
Current Point Index	Set a value or view state with the current point index to highlight that point on the line.
Show Tooltip	When checked, the Map displays a tooltip when you mouse over a line.
Tooltip	Set the value you want to see on mouse-over from altitude, ID, latitude, or longitude.
Use Gradient	When checked, the color gradient indicator is shown.
Gradient Type	Select from linear (consistent color transition on a fixed scale) or data-driven (adapts to the data).
Gradient Column Data	Uses color gradients to visually represent data values within a column.

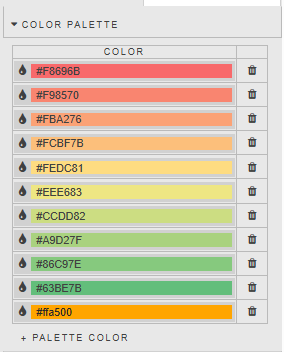

Colors

Property	Description
Color	Specifies the color used at a specific point in the gradient. Multiple colors can be defined for smooth transitions.
Percent	Position of the color stop within the gradient as a percentage (0–100%).

Point

Property	Description
Color	The color used by the current selected point on the line.
Size	The radius size of the current selected point on the line.

Actions

Refer to Actions for details.

Concentric Circles

The Concentric Circles properties enable you to add concentric circle layers to maps, useful for: visualizing range (coverage areas like cell tower range); data analysis (segmenting areas for demographic or environmental studies); navigation (indicating distances for logistics and emergency planning); comparative studies; and interactive maps.

You can specify a latitude and longitude to set the center of the first circle. The radius can be defined based on a distance from this center point. Subsequent circles can be drawn from the edge of the first circle or independently.

Property	Description
Name	Define a name for the layer. If blank, the default name (Layer Type Layer Index) is used.
DataSource	Specify the data source. The data source must have: Radius (KM) — a list of distances (KM) for each circle from the center point (e.g. ((25 50 100);(50 75))); Latitude and Longitude — center point coordinates (Latitude: -90 to 90, Longitude: -180 to 180); Colors — optional colors for each circle. See the sample data source query.
ID	A distinct identifier for each circle.
Latitude Data	The data source columns for latitude.
Longitude Data	The data source columns for longitude.
Radius (KM)	The radius of the concentric circle graphic.
Colors	The color of the concentric circle graphic.
Border Width	The border width of the concentric circle graphic.

Sample Data Source

The following example shows concentric circles over Irish airports.

([]
    id:(1 2);
    location:(`Dublin`Cork);
    distance:( (25 50 100);(25 50 75));
    colors:(("#FF0000";"#FFA500";"#00FF00");("#FF0000";"#FFA500";"#00FF00"));
    latitude:( 53.2528 51.8491);
    longitude:(-6.2574 -8.4899)
    )

Heatmap

Heatmaps show the density of points over an area by displaying a continuous gradient between points. They are also useful for visualizing relative differences between those points.

Property	Description
Name	Define a name for the layer. If blank, the default name (Layer Type Layer Index) is used.
Data Source	A data source that includes geographic coordinates.
ID	A distinct identifier for a point.
Latitude / Longitude Data	The data source columns for latitude and longitude.
Weight	Determines the weight for each individual node.
Show Tooltip	When checked, a tooltip is displayed on mouse-over.
Show Base Circle	When checked, the Map displays a circle for each of the specified coordinates.
Tooltip	Set the value you want to see for tooltip at mouse-over.
Palette Theme	Define the Palette Theme for the Heatmap Colors.
Show Gradient	When checked, the color gradient indicator is shown.

Colors

Property	Description
Color	Set the gradient color from minimum density to maximum density.

Actions

Refer to Actions for details.

Heatmap Grid

The Heatmap Grid allows you to visually represent large datasets using color gradients, making it easier to identify patterns, trends, and outliers. Each grid cell corresponds to a data point, with colors indicating values.

Property	Description
Name	Define a name for the layer. If blank, the default name (Layer Type Layer Index) is used.
Data Source	A data source that includes geographic coordinates.
ID	A distinct identifier for a point.
Latitude / Longitude Data	The data source columns for latitude and longitude.
Grid Size	The length of each cell side (in kilometers).
Cell Shape	The shape of each cell: Square or Hexagon.
Min Zoom / Max Zoom	The zoom range in which the heatmap is displayed. The map provides 23 zoom levels (0 = fully zoomed out, 22 = fully zoomed in). At level 0 you see the Earth; at 3, a continent; at 4, large islands; at 6, large rivers; at 10, large roads; at 15, buildings.
Show Zero Values	If true, shows the color gradient for values that are zero; otherwise transparent.
Show Tooltip	When checked, a tooltip is displayed on mouse-over.
Tooltip	Set the value you want to see for tooltip at mouse-over.
Palette Theme	Define the Palette Theme for the Heatmap Grid Colors.

Colors

Property	Description
Color	Set the gradient color from minimum density to maximum density.

Actions

Refer to Actions for details.

Bounds

Property	Description
Current Bounds	A bound is defined by its southwest and northeast points in longitude and latitude. Saves the current bound location when you zoom in or out. Used to map selected bounds coordinates to a View State Parameter.
Track Point click Bounds	When checked, you can track the bounds coordinates of a point when clicked.
Selected Point Bound Size	Defines a bounds around a point. Clicking on a point draws a rectangle around it, with width and height defined by this property.
Current Point Bounds	Displays the point bounds coordinates.

Annotation

The Annotation properties enable you to add annotations to the map using lines or polygon shapes.

Property	Description
Enable	When checked, you can annotate on the map using lines or polygons. A set of annotation controls appears on the left-hand side of the map, providing Line Draw, Polygon Draw, and Delete Annotation options.
Filter on Draw	When drawing a polygon, if checked, only the points/circles inside the drawn area remain; the rest are filtered out.
Zoom on Draw	When checked, the map zooms to the polygon area after you finish drawing.
Selected Annotation	The specific annotation currently highlighted or selected on the map.

Animated Circles

These properties enable you to configure customized animated circles on your map.

Property	Description
Name	Define a name for the layer. If blank, the default name (Layer Type Layer Index) is used.
Data Source	A data source that includes geographic coordinates.
ID	A distinct identifier for an animated circle.
Latitude / Longitude Data	The data source columns for latitude and longitude.
Color	The color of the animated circle graphic.
Radius	The radius of the animated circle graphic.
Use Labels	When checked, the map displays a label for each animated circle.
Label	The label displayed next to each animated circle.
Label Size	The label font size.
Show Tooltip	When checked, the map displays a tooltip on animated circle mouseover.
Tooltip	Set the value you want to see for tooltip at mouse-over.

Actions

Refer to Actions for details.

Icons

These properties present a list of icons added to the css\assets\images folder on the server. These icons can be used by the Icon property in the Points properties. Click + Icon to add more icons.

Night/Day Layer

These properties enable you to add a layer to determine the region of day and night time based on a current date/time value.

Property	Description
Show Layer	Toggle to specify whether the map shows the Night and Day layer.
Current	The current date/time value.

Style

You can use the Style properties to override the default colors used in the map component.

3D Models

With 3D Models, you can see 3D models when you zoom into the data property.

Property	Description
Show 3D Models	Check this box to enable the display of 3D models on the map.
Source	Defines the origin of the geographical data (vector tile, raster, or GeoJSON). Defaults to Composite, which combines multiple vector tile sources into a single source for efficient handling of complex maps.
Source Layer	Specifies a particular layer within a vector tile source. Necessary when a vector tile source contains multiple layers (like roads or buildings).
Min Zoom	Sets the minimum zoom level at which the 3D models are visible.
Fill Color	Sets the color used to fill the 3D models.
Fill Opacity	Controls the transparency of the fill color.

Tile Server

Integrating a custom-styled tile server allows you to load and display dynamic, custom-designed map layers with full control over appearance.

Property	Description
Enable	When checked, interaction with a custom Tile Server is enabled. Note: To see the results after changing this property, the Dashboard must be saved and reloaded.
Set Style using a URL	Defines whether to set the style using a URL endpoint or using the editor to define JSON.
Style URL	Set the style of the map based on a URL endpoint.
Style Editor	Define the JSON style configuration.
Widget Fonts	Set the font name to be used by the Map Component (for example, "Open Sans Bold"). This font is stored on the tile server and will be used by point clusters and labels.

Refer to Tile Server Installation and Setup for detailed instructions.

External API

This Map component can also be used online, enabling you to set external APIs.

Property	Description
Enable	When checked, you can use the external API on the map.
URL	The endpoint of the external API.
Key	The authentication key required to access the external API.
Style	Allows you to choose the visual representation of the map.

Layers

The Layers properties enable you to add the following types of layers to your map: Data Layers, Media Layers, Hosted Layers, Simple Layers, Raster Layers.

Data Layers

A Data layer combines GeoJSON geometric coordinates with kdb+ data. You can draw regions on the map based on GeoJSON coordinates and map kdb+ data to each region. The following example shows unemployment rate data across US states, highlighted in a color gradient from highest (bright red) to lowest (bright green).

Property	Description
Data Source	A data source that defines the underlying dataset to be used by the Layer.
File	The GeoJSON file name. Files must be hosted locally in modules\OfflineMap\css\assets\layers.
File Id	The ID used in the GeoJSON file, used to link coordinates from the GeoJSON file with the kdb+ data.
Id	The ID used in the kdb+ data, used to link data with the GeoJSON file coordinates.
Data Value	A column from the data source used to define the color of each region.
Show Zero & Null Values	When checked, regions with zero or null values are displayed.
Show Tooltip	When checked, enables the display of a tooltip.
Tooltip	Displays a tooltip over each map region. By default maps the color, id and value of the region.
UseMinMax	When checked, Min Range and Max Range define the numeric range over which colors are mapped in the color palette gradient.
Min Range	The smallest data value that maps to the start of the color range.
MaxRange	The largest data value that maps to the end of the color range.
Palette Theme	Refer to Palette Theme for details.

Color Palette

Actions

Refer to Actions for details.

Media Layers

A media layer allows you to add a geo-referenced video or image on top of a map layer. Click the trash can icon to delete a layer.

Property	Description
File	The file name. Files must be hosted locally in modules\OfflineMap\css\assets\layers. Can be either a video or image file.
Coordinates	Set four georeferenced coordinates (longitude, latitude) corresponding to the top-left, top-right, bottom-right, and bottom-left corners of the image. For example: [-122.516, 37.562], [-122.514, 37.564], [-122.513, 37.563], [-122.514, 37.561].
Order	The order in which the media layers are applied to the map.
Image	Must be checked if the media file is an image.

Hosted Layers

You can add a hosted GeoJSON layer to your maps. Each layer provides rules about how the renderer draws data in the browser. Click the trash can icon to delete a layer.

Property	Description
File	The file name. Files must be hosted locally in modules\OfflineMap\css\assets\layers.
Name	The label for the layer, used to identify it in the map legend and settings panel.
Properties	Defines the colors used by the layer. For example: {"paint": {"fill-color": "#f08","fill-opacity": 0.4}}.
Tooltip	Defines the content shown in the tooltip. You can reference data fields using template syntax.
Show Tooltip	Enables or disables tooltips for this layer.

Simple Layers

You can add a text-based GeoJSON layer to the maps.

Property	Description
Type	Determine the layer type: GeoJSON or vector.
Name	Name for the layer.
Data	The data used by the layer (JSON or GeoJSON format).
Properties	The style properties used by the layer. For example: { "id": "urban-areas-fill", "type": "fill", "source": "urban-areas", "layout": {}, "paint": { "fill-color": "#f08", "fill-opacity": 0.4 } }.
Tooltip	Tooltip content.
Show Tooltip	Enables or disables tooltips.

Asset storage

To avoid using external APIs, all assets including glyphs, images, and tiles are stored in the css\assets\ folder inside the component code.

Raster Layers

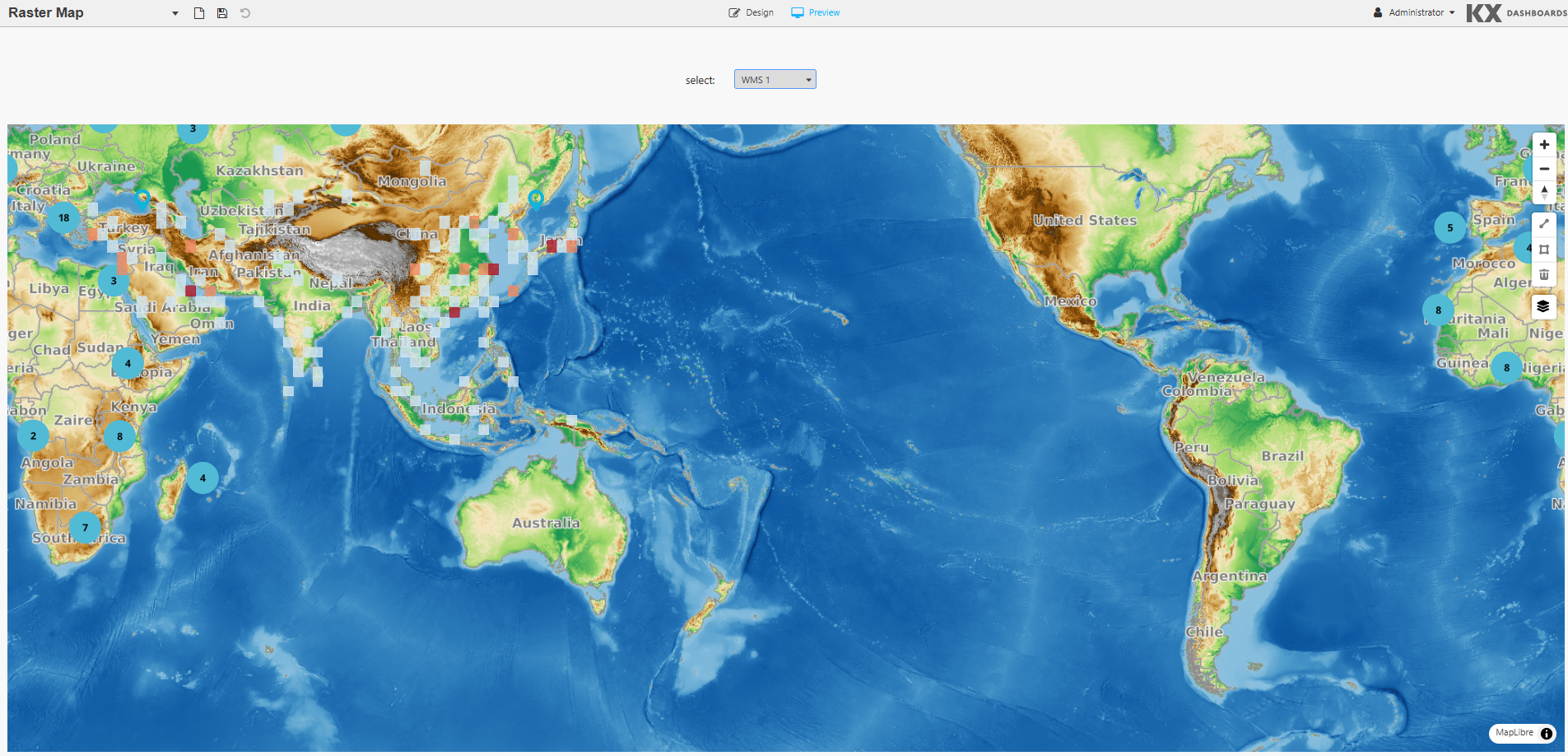

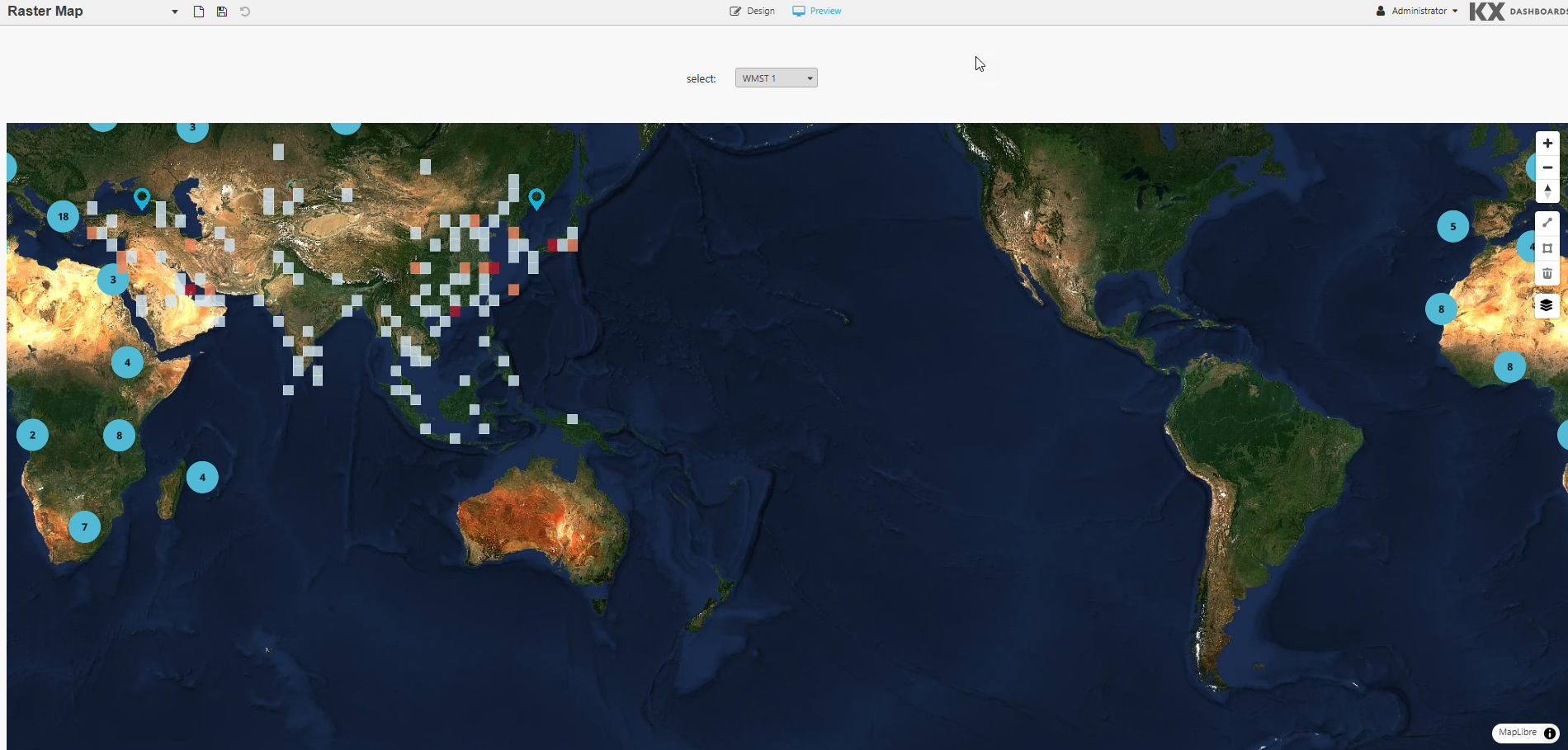

Raster layers represent data as a grid of pixels, where each pixel holds a value (temperature, elevation, satellite imagery, precipitation). The Raster Layer properties allow you to add custom layers from WMS or WMTS endpoints.

Property	Description
Name	A descriptive label for the raster layer (for example, Weather Radar).
Tile URL	The URL template for requesting tiles from your WMS or WMTS service. Must include necessary parameters (for example, bbox, srs/epsg, width, height, format). A viewstate can be used to set the URL.
Tile Size	Defines the pixel dimensions of each map tile (typically 256 or 512). Must match the service configuration.

Margins

Refer to Margins for details.

Format

Refer to Format for details.

Drawing a Line

This section describes how to draw a line on a map to calculate the distance between 2 or more spots. Once drawn, the distance (in kilometers) is shown in a popup.

To draw a line annotation:

1. In the annotation control, on the right-hand side of the map, click on the line icon.
2. Select the starting point on the map by using a left or right mouse click.
3. Click at any other point on the map to connect the line.
4. The line is displayed as a yellow dashed line while editing.
5. Once finished editing, click on the line to set it to blue.

To delete a line, select the line and click on the trash icon in the annotations properties on the left-hand side of the map.

Drawing a Polygon

This section describes how to draw a polygon on a map by selecting a set of points/circles.

To draw a polygon:

1. In Preview mode, click on the polygon icon in the annotation controls on the right-hand side of the map.
2. Click on the map where you want to start the polygon, then click on multiple sections to connect the polygon points.
3. The polygon is displayed as a yellow dashed line while editing.
4. Once finished editing, click on the line to set the polygon to blue.

Note

If Zoom on Draw is checked, the map zooms in on the polygon after it is applied. If Filter on Draw is checked, the map only displays the points/circles inside the polygon shape after it is applied.

To delete a polygon, select the polygon and click on the trash icon in the annotations menu.

Tile Server Installation

KX Dashboards uses tileserver-GL, a self-hosted map tile server for use when leveraging web-based maps and online map tilers are unavailable in offline and air-gapped environments.

Tile Server Documentation

Tile Server GitHub guide: https://github.com/maptiler/tileserver-gl

Full documentation: https://tileserver.readthedocs.io/en/latest/

Prerequisites

• Latest Version of KX Dashboards 2.2.5 or greater, or KX platform build 4.9.2 or greater
• Node JS 18.17.0 or greater
• https://github.com/maptiler/tileserver-gl

Operating Systems

• Windows (x64) or greater
• Ubuntu 22.04 or greater
• macOS 14 (x64/arm64) or greater

Getting Started

Install from npm to the directory you wish to install to.

Option 1: Install globally from npmjs:

npm install -g tileserver-gl

Option 2: Install locally from source:

git clone https://github.com/maptiler/tileserver-gl.git
cd tileserver-gl
npm install

Using tileserver-gl-light

tileserver-gl-light can be used but is unable to handle any raster functions. If raster functions may be required in future, install the full version.

Map Data

To render data offline, an mbtiles file is required for the area of interest. It is recommended to use the mbtiles files at: https://osm.dbtc.link/mbtiles/

mbtiles Recommendation

• Recommended mbtiles file download: 2024-06-25-planet.mbtiles
• This file is for OpenStreetMap Data last updated in June 2024. As this is a static file, map updates must be obtained by the user.
• KX is not responsible for providing map updates.

Adding Map Data and Styles

Once the OSM data is downloaded, copy it to the same directory as the tileserver-gl install (along with the accompanying config.json file, if present).

Sample fonts and files for the tile server can be obtained from: https://github.com/maptiler/tileserver-gl/releases/download/v1.3.0/test_data.zip

From test_data.zip, copy the styles and fonts directories to the tileserver-gl installation folder.

Tile Server Configuration File

The config.json file configures map styles, fonts, and data sources. If no config.json is defined, the server will use its default settings.

The tileserver-gl directory structure should look similar to this:

Inside the styles folder, the following styles are provided: osm-bright and klokantech-basic.

Additional styles

Additional styles can be added by following the user guide in the tileserver-gl documentation.

Before You Start the Tile Server

Tileserver-gl defaults to port 8080. Assign a new port to avoid conflicting with your KX install. Port 8082 is recommended.

tileserver-gl 2024-06-25-planet.mbtiles -p 8082

KX Dashboards Tile Server Integration

• Drag the Map component onto the canvas.
• In the Tile Server property section, check Enable.
• The Style can be specified in one of two ways:

Set the Style Using URL

1. Check Set Style using a URL.
2. Using a browser, navigate to the host and port for the Tile Server. Right-click the link for the chosen Style and copy the link to the clipboard.
3. Paste the URL into the Style URL property in KX Dashboards.
4. Save and reload/refresh the page.

Set the Style Using Editor

1. Uncheck Set Style using a URL.
2. Using a browser, navigate to the host and port for the Tile Server. Click the link for the chosen style and copy the contents to the clipboard.
3. Paste the contents into the Style Editor property.
4. Save and reload/refresh the page.

Further Reading

• Navigate Dashboards workspace
• Configure data source connections
• Use view states
• Publish & Export a dashboard
