Manufacturing Tutorial: Apply deep neural networks to streaming IoT data using MQTT and Tensorflow

For manufacturers, machine downtime can cost millions of dollars a year in lost profits, repair costs, and lost production time for employees. By embedding predictive analytics in applications, such as kdb Insights Enterprise, manufacturing managers can monitor the condition and performance of assets and predict failures before they happen.

In this use case, compute logic is applied to live data streaming from a MQTT messaging service. Then Deep Neural Network Regression is used to determine the likelihood of breakdowns.

Benefits

benefit	description
Predictive analysis	Use predictive analytics and data visualizations to forecast a view of asset health and reliability performance.
Reduce risks	Leverage data in real time for detection of issues with processes and equipment, reducing costs and maximizing efficiencies throughout the supply chain with less overhead and risk.
Control logic	Explore how to rapidly develop and visualize computations to extract insights from live streaming data.

This tutorial walks you through the following:

Build a database
Ingest live MQTT data
Query the data
Define a standard compute logic
Apply a deep neural network regression model
Query the Model

1: Build a database

Select Build a Database under Discover kdb Insights Enterprise of the Overview page.
Name the database (e.g. manufacturing).

Suggested database name

The rest of this tutorial assumes you have named the database manufacturing.
Open the Schema Settings tab and click on the right-hand side.

Paste the following JSON schema into the code editor.

Manufacturing JSON schema

Paste into the code editor:

[
    {
        "name": "sensors",
        "type": "partitioned",
        "primaryKeys": [],
        "prtnCol": "time",
        "sortColsDisk": [
            "time"
        ],
        "sortColsMem": [
            "time"
        ],
        "sortColsOrd": [
            "time"
        ],
        "columns": [
            {
                "type": "timestamp",
                "attrDisk": "parted",
                "attrOrd": "parted",
                "name": "time",
                "attrMem": ""
            },
            {
                "name": "flowplant",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "pressplant",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "tempplantin",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "tempplantout",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "massprecryst",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "tempprecryst",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "masscryst1",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "masscryst2",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "masscryst3",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "masscryst4",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "masscryst5",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "tempcryst1",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "tempcryst2",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "tempcryst3",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "tempcryst4",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "tempcryst5",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "temploop1",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "temploop2",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "temploop3",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "temploop4",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "temploop5",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "setpoint",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "contvalve1",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "contvalve2",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "contvalve3",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "contvalve4",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "contvalve5",
                "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            }
        ]
    },
    {
        "columns": [
            {
                "type": "timestamp",
                "attrDisk": "parted",
                "attrOrd": "parted",
                "name": "time",
                "attrMem": ""
            },
            {
                "name": "model",
                "type": "symbol",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            },
            {
                "name": "prediction",
               "type": "float",
                "attrMem": "",
                "attrOrd": "",
                "attrDisk": ""
            }
        ],
        "primaryKeys": [],
        "type": "partitioned",
        "prtnCol": "time",
        "name": "predictions",
        "sortColsDisk": [
            "time"
        ],
        "sortColsMem": [
            "time"
        ],
        "sortColsOrd": [
            "time"
        ]
        }
    ]

Apply the JSON.

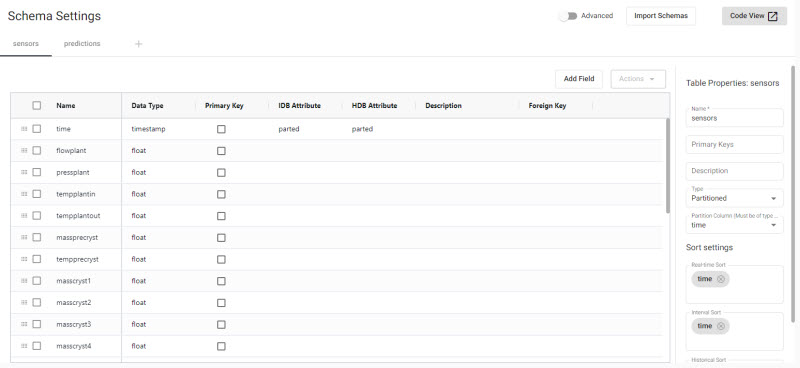

Applying the JSON populates the schema table.
the database.
the database.

When the database status changes to Active, it is ready to use.

Database warnings

Once the database is active, warnings are displayed in the Issues pane of the Database Overview page. These are expected and can be ignored.

An active database displays an adjacent green tick under the Databases menu.

2. Ingest live MQTT data

MQTT is a standard messaging protocol used in a wide variety of industries, such as automotive, manufacturing, telecommunications, oil and gas, etc.

It can be easily consumed by kdb Insights Enterprise.

Select 2. Import under Discover kdb Insights Enterprise of the Overview page.
Select MQTT and complete the properties (* are required):

setting value

Broker* ssl://mqtt.trykdb.kx.com:1883

Topic* livesensor

Username* demo

Use TLS* disabled
Select the JSON Decoder option;
Leave the Decode Each option unchecked and click Next.
Transform data to a kdb+ database compatible format;
1. Leave the Data Format setting set to Any.
2. Click the .
3. Select the manufacturing database and its sensors table created in 1. build a database.
4. Click Load.
5. Click Next.
Configure the writer by applying the following settings:

setting value

Database manufacturing

Table sensors

Write direct to HDB unchecked

Deduplicate Stream checked

Set Timeout Value unchecked

Advanced leave blank
Click Open Pipeline to view the pipeline.
The JSON decoder creates a kdb+ friendly dictionary that needs to be converted to a kdb+ table, using a Function Map node, before the schema is applied to the data. In the pipeline view, add a Function Map node to the pipeline as follows:
1. Right-click the existing link between the Decoder and Transform node; click Remove Edge to remove.
2. Position the Function Map node between the Decoder and Transform node.
3. Connect the Function Map node to the Decoder and Transform nodes with a click-and-drag connect of the dot edge of the node.

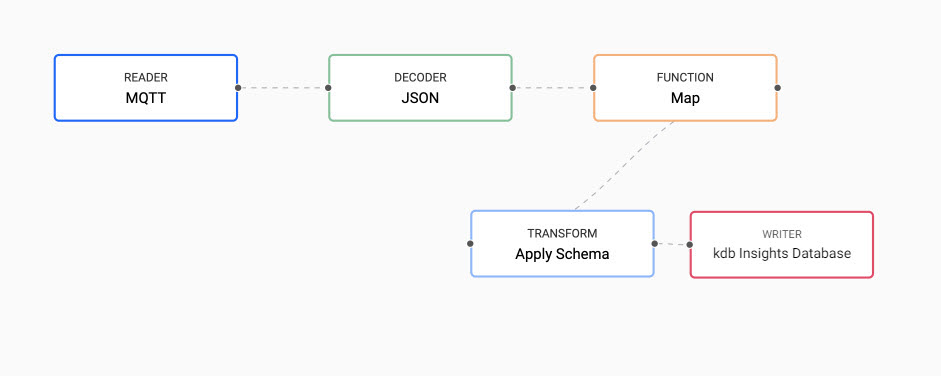

  Insert the Function Map node between the Decoder and Transform node.
4. Select the Function node and replace the q code with the following; this transforms the kdb+ dictionary to a table:
```
{[data]
    enlist data
 }
```
  Learn more about enlist.
5. Leave Allow Partials checked.
6. Save the pipeline.
7. Deploy the pipeline by completing the authentication for the MQTT feed:

  setting value

  password demo

  Deploying a pipeline requires an active database to receive the data. Ensure the manufacturing database is deployed and active before deploying the MQTT pipeline.

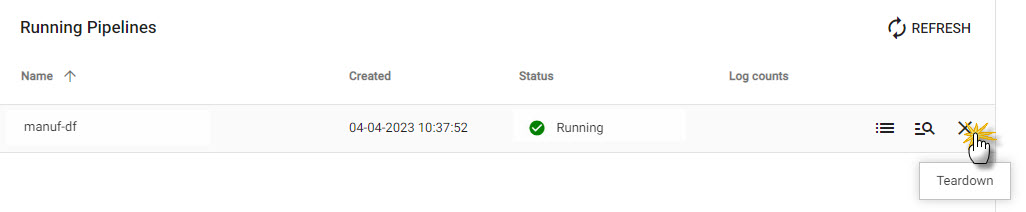

  Check your pipeline is running in the Running Pipelines section on the Overview page. Your pipeline should display as Status=Running.

  Trouble deploying a pipeline?

  When running Deploy, choose the Test option to debug each node.

  How to run a test deployment.

3. Query the data

Data queries are run in the query tab, which is accessible from the [+] of the ribbon menu, or Query under Discover kdb Insights Enterprise of the Overview page.

Open the SQL tab.

Allow 15-20 minutes of data generation before querying the data. Certain queries may return visuals with less data if run too soon.

Copy and paste the following code into the top window pane:

SELECT time,tempcryst1,tempcryst2,tempcryst3,tempcryst4,tempcryst5 FROM sensors

Define the Output variable as s1.
Click Get Data.

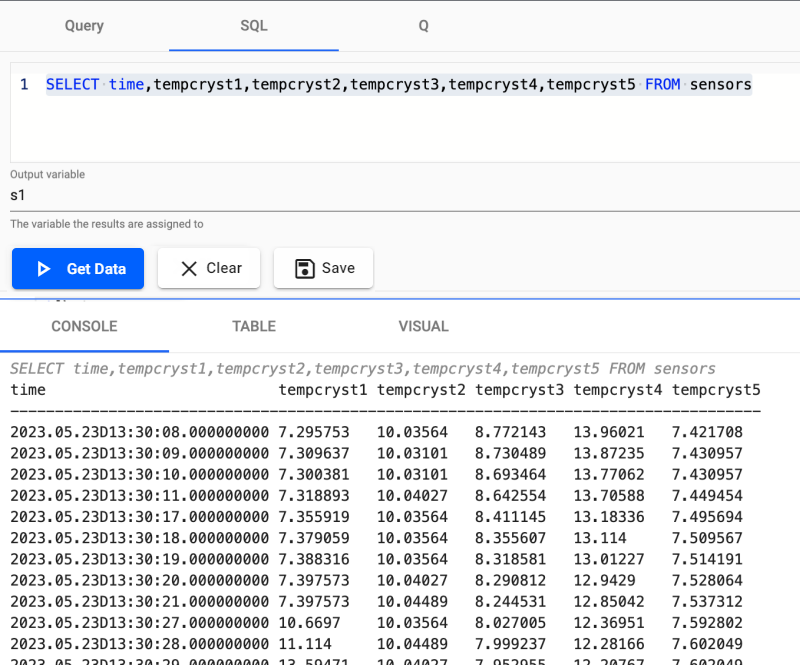

A SQL query using the filter table.
Create a visual to focus on temperature by switching the output tab to Visual and run Get Data again.

In the visual, there is a cyclical pattern of temperature in the crystallizers, fluctuating between 7-20 degrees Celsius.

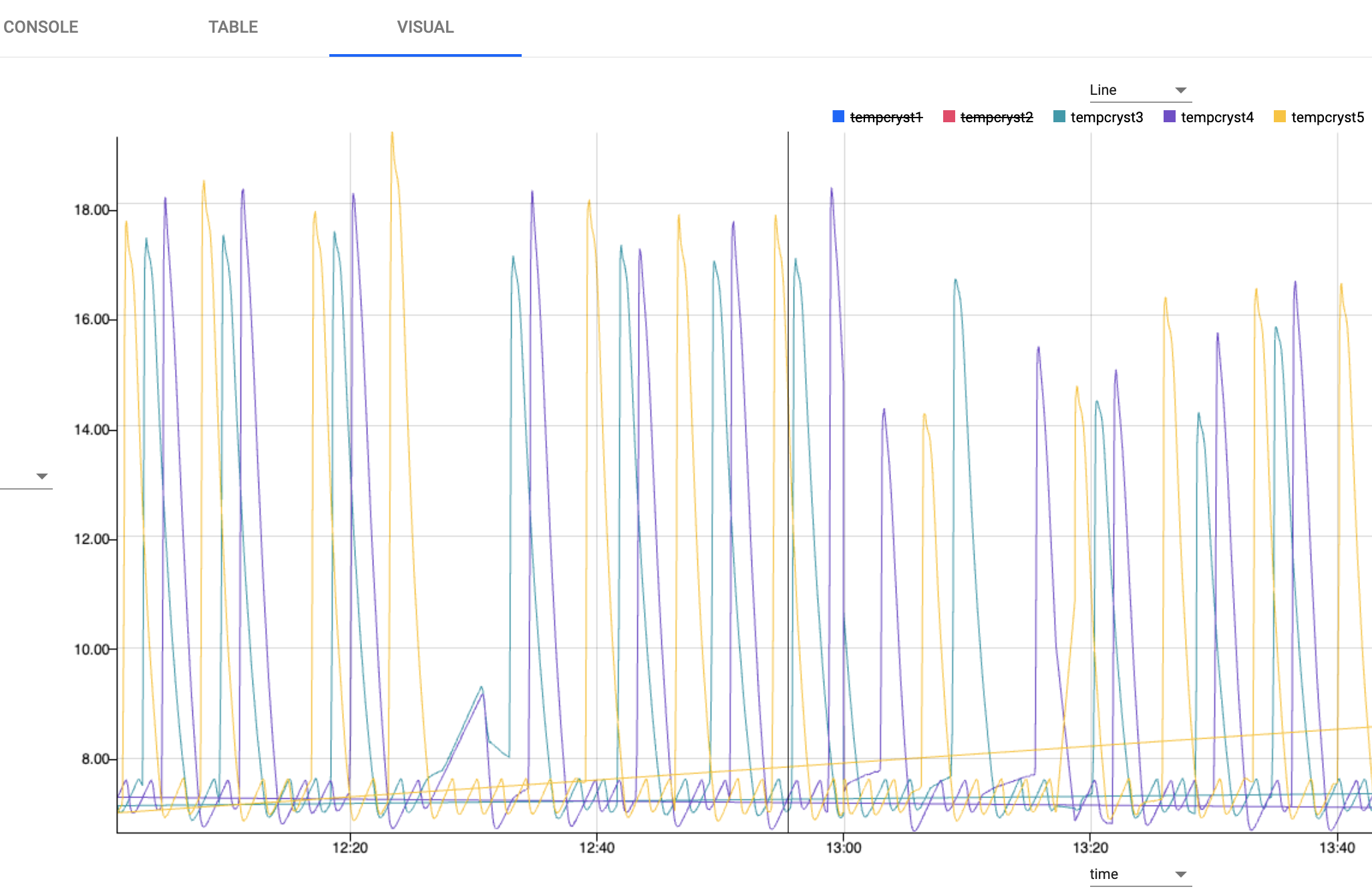

Run SQL query to plot sensor temperature over time in the Visual tab.
You can also query data for the mass fields using SQL. Similar fluctuations to those for the temperature values, occur for mass levels in the crystallizers, moving between 0-20000kg on a cycle.
1. Copy and paste the following code into the top window pane:
```
SELECT time,masscryst1,masscryst2,masscryst3,masscryst4,masscryst5 FROM sensors
```
1. Change the Output variable to s2.
2. Click Get Data.

4: Define a standard compute logic

Use the scratchpad to set Control Chart Limits to identify predictable Upper Control (UCL) and Lower Control Limits (LCL).

Calculate a 3 sigma UCL and LCL to account for 99.7% of expected temperature fluctuations. A recorded temperature outside of this range requires investigation.
1. Copy and paste the code below into the scratchpad q input box:
```
// Calculating 5 new values, most notably ucl and lcl where
// ucl - upper control limit
// lcl - lower control limit
select lastTime:last time,
    lastVal: (1.0*last tempcryst3),
    countVal: count tempcryst3,
    ucl: avg tempcryst3 + (3*dev tempcryst3),
    lcl: avg tempcryst3 - (3*dev tempcryst3)
    by xbar[10;time.minute]
    from s1
```
  q/kdb+ functions explained

  For more information on the code elements used in the above query:
  - last to get last record
  - * to multiply
  - count returns count of items
  - avg average value of list
  - dev standard deviation
  - xbar buckets time into intervals
2. Click .
3. Visualize the threshold by selecting the Line graph. The change in control limits is more obvious in the visual similar to the graph below after ~15-20 minutes of loading data.

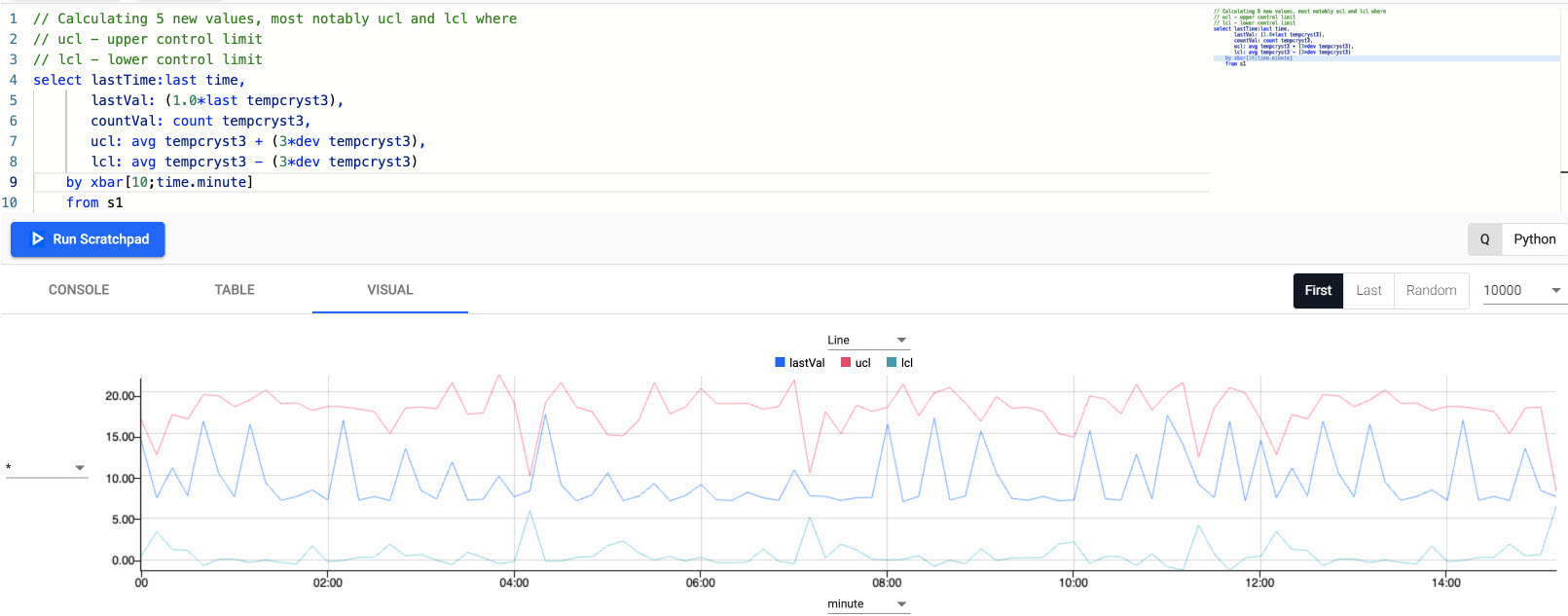

Plot of a 3 sigma upper and lower control temperature bound to account for 99.7% of expected temperature fluctuation in manufacturing process. Outliers outside of this band require investigation.
Next, aggregate temperature thresholds over two rolling time windows; a 1 minute aggregate and a second, smoother, 60 minute aggregate of sensor readings.
1. Replace all code in the scratchpad with the code below:
```
// Using asof join to join 2 tables
// with differing aggregation windows
aj[`minute;
    // table 1 aggregates every 1 minute
    select lastTime : last time,
        lastVal : last tempcryst3,
        countVal : count tempcryst3
        by xbar[1;time.minute] from s1;
    // table 2 aggregates every 60 minute
    select ucl : avg[tempcryst3] + (3*dev tempcryst3),
        lcl : avg[tempcryst3] - (3*dev tempcryst3)
        by xbar[60;time.minute] from s1]
```
  q/kdb+ functions explained

  For more information on the code elements used in the above query:

  aj is a powerful timeseries join, also known as an asof join, where a time column in the first argument specifies corresponding intervals in a time column of the second argument.

  This is one of two bitemporal joins available in kdb+/q.

  To get an introductory lesson on bitemporal joins, view the free Academy Course on Table Joins.
2. Click .

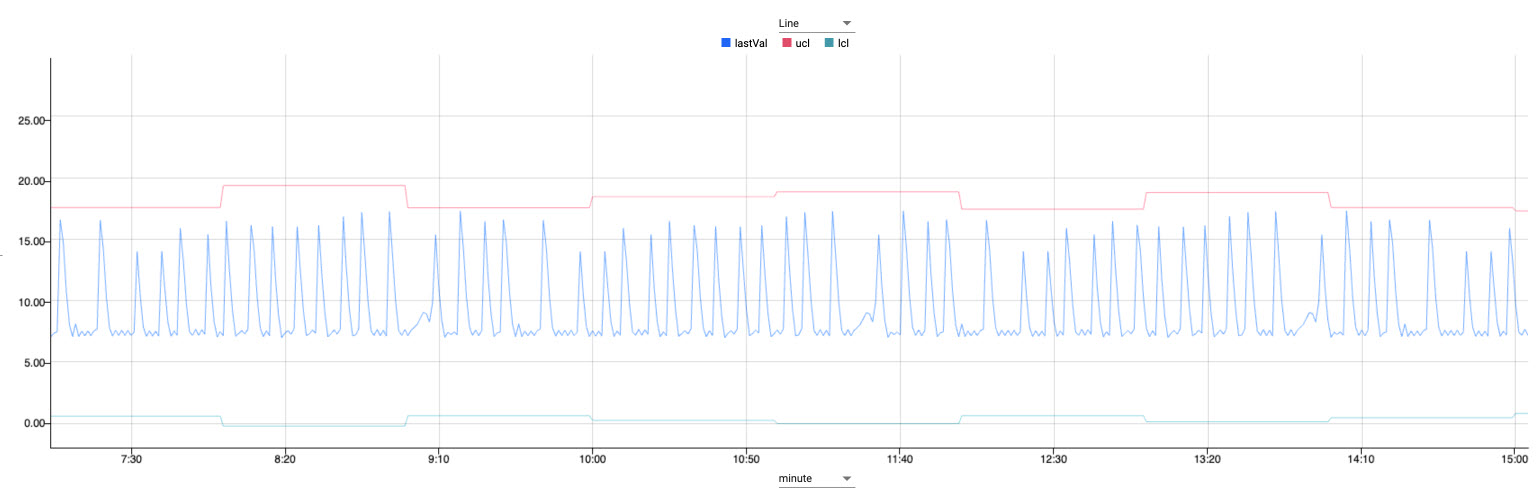

Plot of aggregate temperature thresholds for 1 minute and 60 minutes.

Next, define a function to simplify querying and run the query with a rolling 1 minute window:

Append the code below to the code already in the scratchpad:

// table = input data table to query over
// sd = standard deviations required
// w1 = window one for sensor readings to be aggregated by
// w2 = window two for limits to be aggregated by
controlLimit:{[table;sd;w1;w2]
    aj[`minute;
    // table 1
    select lastTime : last time,
        lastVal : last tempcryst3,
        countVal : count tempcryst3
        by xbar[w1;time.minute] from table;
    // table 2
    select ucl : avg[tempcryst3] + (sd*dev tempcryst3),
        lcl : avg[tempcryst3] - (sd*dev tempcryst3)
        by xbar[w2;time.minute] from table]
    }

controlLimit[s1;3;1;60]

q/kdb+ functions explained

For more information on the code elements used in the above query:

{} known as lambda notation allows us to define functions.

It is a pair of braces (curly brackets) enclosing an optional signature (a list of up to 8 argument names) followed by a zero or more expressions separated by semicolons.

To get an introductory lesson, view the free Academy Course on Functions.

Click .

Finally, change the w1 parameter value to see the change in signal when you use different window sizes:
1. Append the code below to the code already in the scratchpad, to set the parameter to 10 minutes:
```
controlLimit[s1;3;10;60]
```
2. Append the code below to the code already in the scratchpad, to set the parameter to 20 minutes:
```
controlLimit[s1;3;20;60]
```
By varying the parameter for one of the windows, you can see the change in signal between rolling windows of 1, 10 and 20 minutes. This means you can tailor the output to make it more or less smooth as per your requirements.

5: Apply a deep neural network regression model

Apply a trained neutral network model to incoming data.

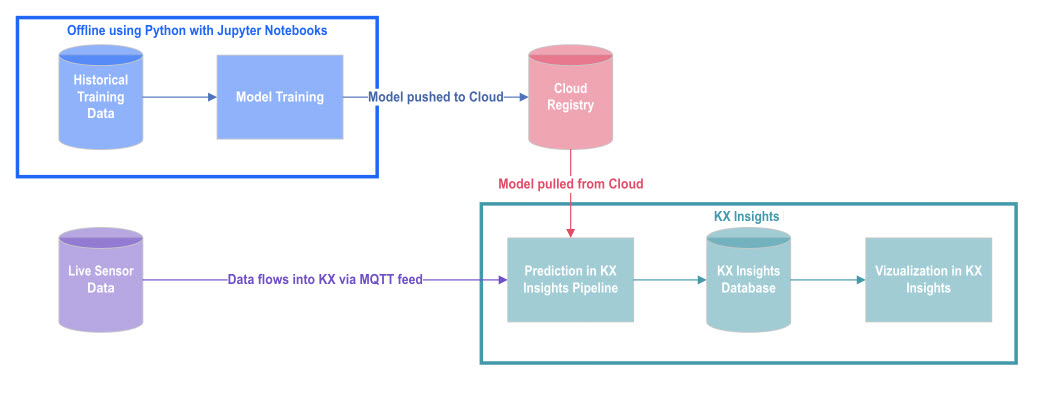

Architecture of neural network reguression model as it relates to kdb Insights Enterprise.

For the purpose of this use case, our model is pre-trained using tensorflow neural networks and xgboost. Each model prediction is then aggregated for added benefit.

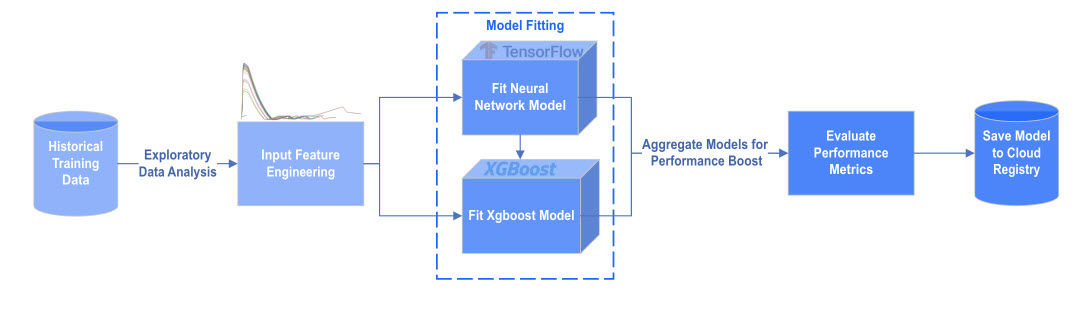

Aggregated model pre-trained using tensorflow neural networks and xgboost.

kdb Insights Enterprise offers a range of machine learning nodes in the pipeline template to assist in model development.

Duplicate the pipeline created in MQTT import; and assign a name:

Duplicate the MQTT import pipeline from the pipeline template menu.

Paste into the Global Code editor:

pythonq

import numpy as np
import pykx as kx
ewmaLag100 = np.nan
ewmaLead100 = np.nan
ewmaLag300 = np.nan
ewmaLead300 = np.nan
timeSince = np.nan
started = False
back = np.nan

ewmaLag100:0n;
ewmaLead100:0n;
ewmaLag300:0n;
ewmaLead300:0n;
timeSince:0n;
started:0b;
back:0n;

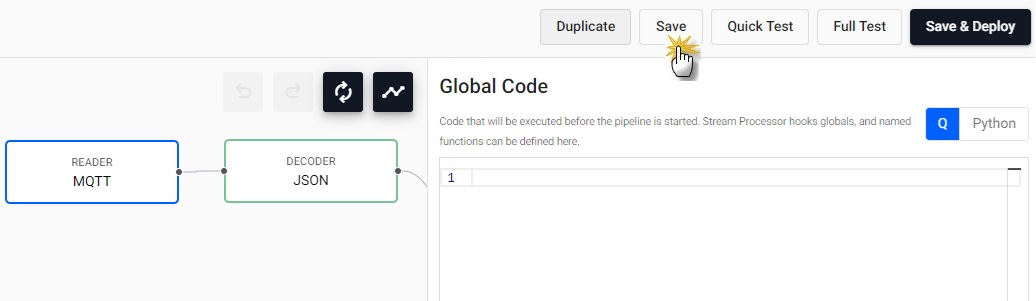

Update the Global Code with q or python code.

Add a Function Split node to the pipeline.

This split maintains the original database write as one path, and you add the machine learning workflow to the second path.
1. Right-click the existing link between the Apply Schema and kdb Insights Database node; click on Remove Edge to remove.
2. Position the Function Split node between the Apply Schema and kdb Insights Database node.
3. Connect the Function Split node to the Apply Schema and kdb Insights Database node with a click-and-drag connect of the dot edge of the node.

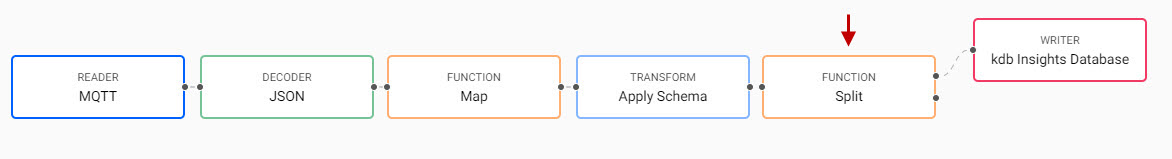

Add a Function Split node to the pipeline.

Add a Function Map node:

This adds a new variable, timePast, that calculates the time interval between spikes. A spike occurs when product mass breaks above the spike threshold of 1,000 kg.

Connect it to the Split node.

Click on the Map node and copy and paste the following to the code editor using either python or q code, leave Allow Partials checked:

pythonq

def func(data):
    global timeSince, back
    if (data["masscryst3"][0].py()>1000)&(not np.isnan(back))&(back < 1000):
        timeSince = 0.0
    else:
        timeSince = timeSince + 1.0

    back = data["masscryst3"][0].py()
    d = data.pd()
    d['timePast'] = timeSince
    return d[['time','timePast','tempcryst4','tempcryst5']]

{[data]
    data:-1#data;
    $[(first[data[`masscryst3]]>1000)&(not null back)&(back<1000);
    [timeSince::0;
        back::first[data[`masscryst3]];
        tmp:update timePast:timeSince from data];
    [timeSince::timeSince+1;
        back::first[data[`masscryst3]];
        tmp:update timePast:timeSince from data]
    ];
    select time,timePast,tempcryst4,tempcryst5 from tmp
}

Click .
Rename the node to "Spike Threshold".

Rename nodes on right-click

Right-click on a node to rename

Rename a node on right-click.

Add a second Function Map node:

This calculates moving averages for temperature.

Connect it to the Spike Threshold node.

Copy and paste the following to the code editor in python or q. Leave Allow Partials checked:

pythonq

def func(data):
    global started,ewmaLag100,ewmaLead100,ewmaLag300,ewmaLead300
    a100=1/101.0
    a300=1/301.0
    if not started:
        started = True
        ewmaLag100 = data["tempcryst5"][0].py()
        ewmaLead100 = data["tempcryst4"][0].py()
        ewmaLag300 = data["tempcryst5"][0].py()
        ewmaLead300 = data["tempcryst4"][0].py()
    else:
        ewmaLag100 = a100*data["tempcryst5"][0].py() + (1-a100)*ewmaLag100
        ewmaLead100 = a100*data["tempcryst4"][0].py() + (1-a100)*ewmaLead100
        ewmaLag300 = a300*data["tempcryst5"][0].py() + (1-a300)*ewmaLag300
        ewmaLead300 = a300*data["tempcryst4"][0].py() + (1-a300)*ewmaLead300
    d = data.pd()
    d['ewmlead300'] = ewmaLead300
    d['ewmlag300'] = ewmaLag300
    d['ewmlead100'] = ewmaLead100
    d['ewmlag100'] = ewmaLag100
    d['model'] = kx.SymbolAtom("ANN")
    d = d[~(np.isnan(d.timePast))]
    return d

{[data]
    a100:1%101.0;
    a300:1%301.0;
    $[not started;
    [ewmaLag100::first data`tempcryst5;
    ewmaLead100::first data`tempcryst4;
    ewmaLag300::first data`tempcryst5;
    ewmaLead300::first data`tempcryst4;
    started::1b];
    [ewmaLag100::(a100*first[data[`tempcryst5]])+(1-a100)*ewmaLag100;
    ewmaLead100::(a100*first[data[`tempcryst4]])+(1-a100)*ewmaLead100;
    ewmaLag300::(a300*first[data[`tempcryst5]])+(1-a300)*ewmaLag300;
    ewmaLead300::(a300*first[data[`tempcryst4]])+(1-a300)*ewmaLead300
    ]];
    t:update ewmlead300:ewmaLead300,ewmlag300:ewmaLag300,ewmlead100:ewmaLead100,ewmlag100:ewmaLag100 from data;
    select from t where not null timePast
}

Click .
Rename the node to "Temperature".

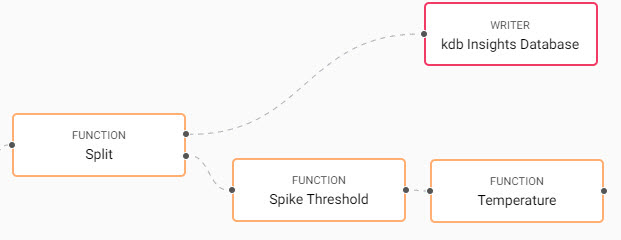

A second **Function** node calculates moving averages for temperature and is connected to the spike threshold node. Each function node is renamed to identify its role in the pipeline.
A second Function node calculates moving averages for temperature and is connected to the spike threshold node. Each function node is renamed to identify its role in the pipeline.

Add a Machine Learning node:

Add the Predict Using Registry Model.

Use the Search feature at the top of the Nodes list to quickly find the Predict Using Registry Model node
Connect it to the Temperature node.

Click on the ML node and click add icon to add a Feature Column Name; this is done for the variables defined in the previous function node:

setting	value
Feature Column Name	ewmlead300
Feature Column Name	ewmlag300
Feature Column Name	ewmlead100
Feature Column Name	ewmlag100
Feature Column Name	tempcryst4
Feature Column Name	tempcryst5
Feature Column Name	timePast

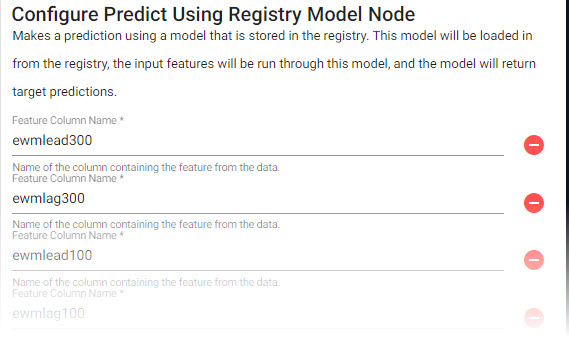

In the _Predict Using Registry Model_ node, add a _Feature Column Name_ for the variables defined in the previous function node.
In the Predict Using Registry Model node, add a Feature Column Name for the variables defined in the previous function node.

Set the remaining properties of the Predict Using Registry Model node:

setting value

Prediction Column Name yhat

Registry Type AWS S3

Registry Path s3://qrisk
Click .

Add another Function Map node:

This node adds some metadata.
1. Connect it to the Machine Learning node.
2. Copy and paste the following into the python or q code editor. Leave Allow Partials checked:
  pythonq
  def func(data): d = data.pd() d['prediction'] = d['yhat'].astype(float) return d[['time','model','prediction']]
  {[data] select time, model:`ANN, prediction:"f"$yhat from data }
3. Click .
4. Rename the node to "Metadata".

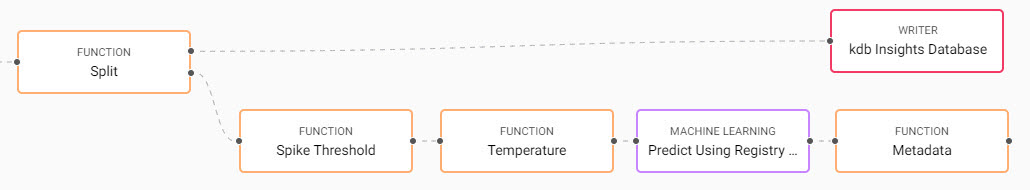

A third Function Map node is connected to the Machine Learning node to add some metadata.
Add a second kdb Insights Database node:

This completes the workflow and writes the preditions to the predictions table.
1. Connect the Writer kdb Insights Database to the Metadata node.
2. Apply the following settings:

  setting value

  Database manufacturing

  Table predictions

  Write direct to HDB unchecked

  Deduplicate Stream checked
3. Click .
Click on the Settings tab in pipeline:
1. Scroll down to the Environment Variables. These variables provide the credentials that are required to access the machine learning model on AWS cloud storage.

  variable value

  AWS_ACCESS_KEY_ID AKIAZPGZITYXCEC35GF2

  AWS_SECRET_ACCESS_KEY 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

  AWS_REGION eu-west-1

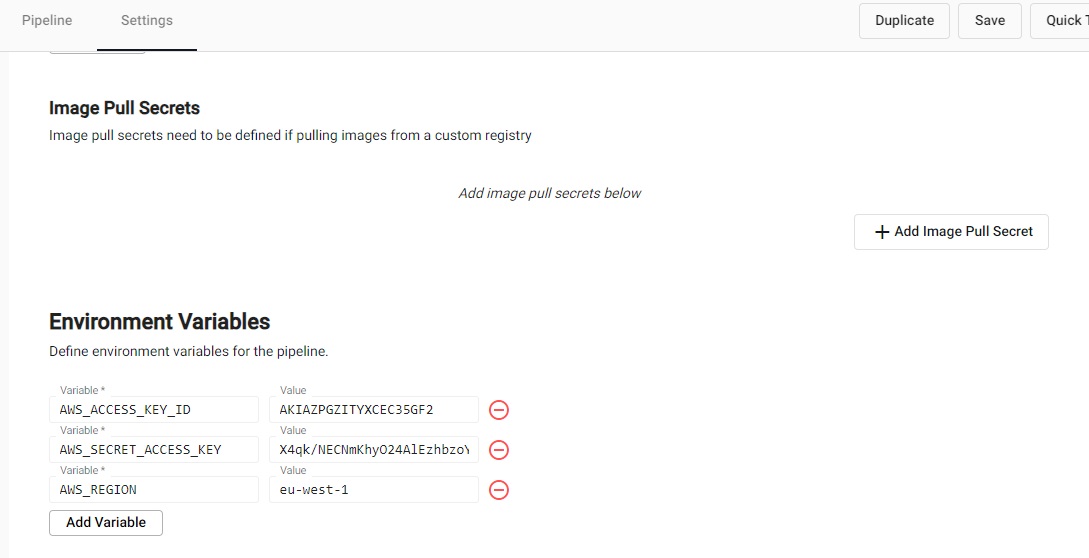

Define the Environment Variables to access the machine learning model stored on AWS.
Click Save.
If still running, go to the Overview page to teardown the existing manufacturing pipeline and select Clean up resources after teardown.

Teardown any running manufacturing pipeline before deploying the machine learning version. Check the box to _Clean up resources after teardown in the pop-up dialog._
Deploy the modified pipeline with the machine learning workflow. Complete the authentication to access the MQTT feed:

setting value

Password demo

Check Running Pipelines in Overview; when Status=Running the prediction model has begun.

When will my data be ready to Query?

It takes at least 20 minutes to calculate the timePast variable as two spikes are required. For more spikes in the data, shorten the frequency of spike conditions.

6. Query the Model

After sufficient time has passed to generate values for timePast, open the query tab. This is accessible from the [+] of the ribbon menu, or Query under Discover kdb Insights Enterprise of the Overview page.

Select the Query tab.
Define the filters:

setting value

Table name predictions

Output variable p1

Start date Midnight of deployment date

End date 23:59 of deployment date
Select the Visual tab.
Run

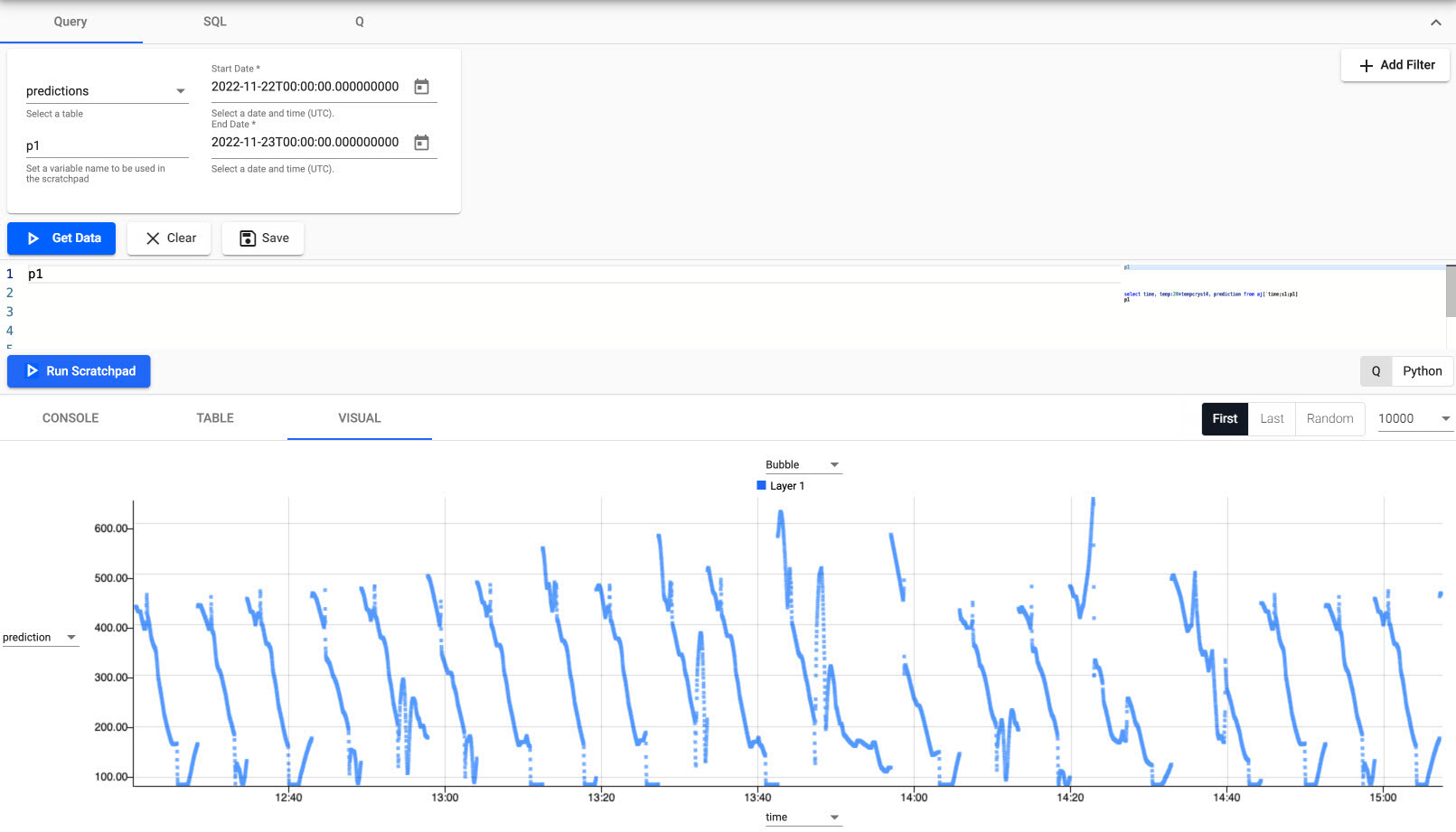

Initial predictive output from set variables.

Compare the prediction to "real-world" data;

In the scratchpad paste the following:

select time,
    temp:20*tempcryst4,      // adjust temp by a factor of 20 for visulization purposes
    prediction
    from aj[`time;s1;p1]        // joining sensors input data with predictions table on time

Click .

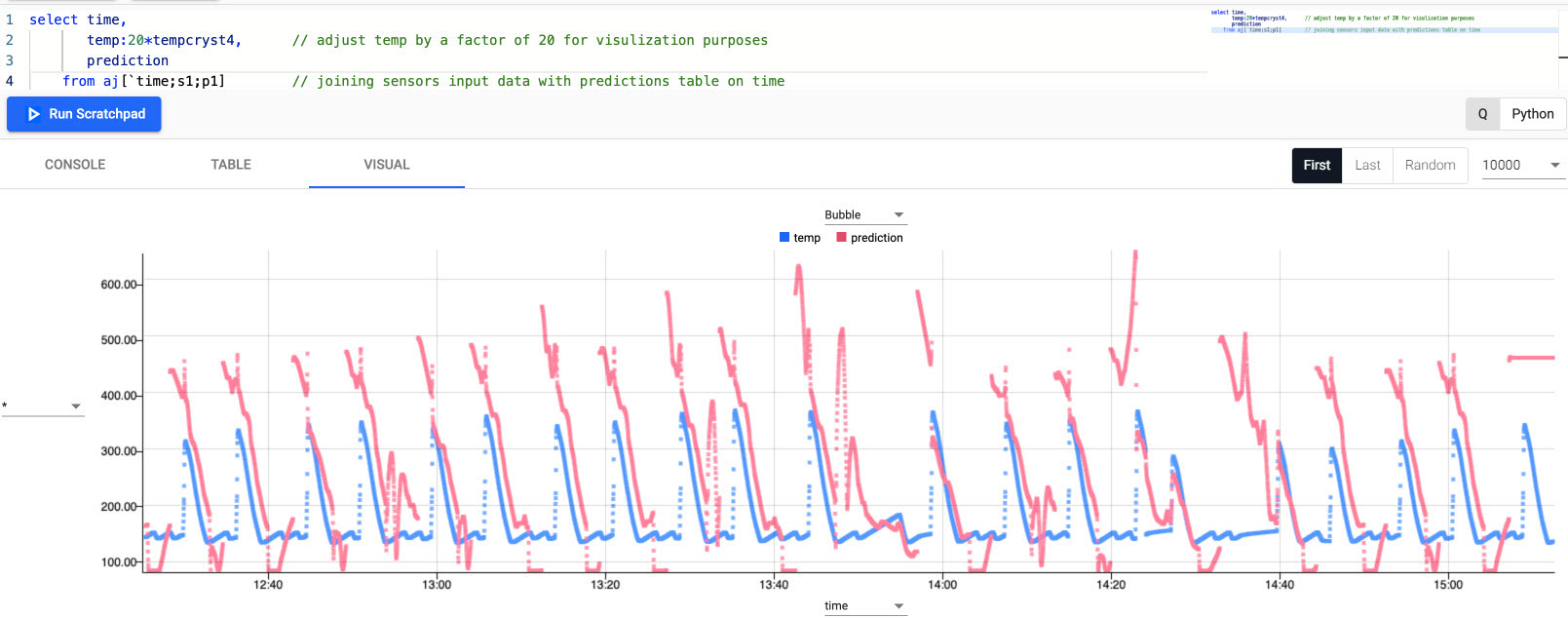

Predictive model vs real-world data.

Summary

While not exact, the red predictive data matches relatively well to real-world data in blue. Model performance would improve with more data.

The prediction model gives the manufacturer advance notice to when a cycle begins and expected temperatures during the cycle. Such forecasting informs the manufacturer of filtration requirements.

In a typical food processing plant, levels can be adjusted relative to actual temperatures and pressures. By predicting parameters prior to filtration, the manufacturer can alter rates in advance, thus maximising yields.

This and other prediction models can save millions of dollars in lost profits, repair costs, and lost production time for employees. By embedding predictive analytics in applications, manufacturing managers can monitor the condition and performance of assets and predict failures before they happen.

I want to learn more about kdb Insights Machine Learning.

setting	value
Broker*	ssl://mqtt.trykdb.kx.com:1883
Topic*	livesensor
Username*	demo
Use TLS*	disabled

setting	value
Database	manufacturing
Table	sensors
Write direct to HDB	unchecked
Deduplicate Stream	checked
Set Timeout Value	unchecked
Advanced	leave blank

setting	value
Prediction Column Name	yhat
Registry Type	AWS S3
Registry Path	s3://qrisk

variable	value
AWS_ACCESS_KEY_ID	AKIAZPGZITYXCEC35GF2
AWS_SECRET_ACCESS_KEY	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
AWS_REGION	eu-west-1

setting	value
Table name	predictions
Output variable	p1
Start date	Midnight of deployment date
End date	23:59 of deployment date
