KX Flow Quickstart Guide
The KX Flow Accelerator is an FSI Accelerator package which comes with ready made Pipelines, Views, and Schemas out of the box. It provides a real time streaming integration with the KX Flow application.
Prerequisites
This quickstart guide is not intended to be a comprehensive KDB Insights Install Guide, for more information regarding KDB Insights installation refer to the kdb Insights Enterprise documentation). This guide assumes the following pre-requisites:
- KDB Insights Enterprise 1.9.0 (minimum version) installed
- Necessary credentials obtained and configured:
- Insights Users:
- GUI User
- API Client
- Insights Users:
- kx download portal bearer token to download packages/charts (represented by BEARER in this guide).
- Necessary Tools Used:
- Access to *nix command-line
- KDB Insights CLI -
kxi
- Kubernetes tools:
- kubectl
- K9s
- Helm installed and logged in to nexus
- VSCode with the following plugins:
- KX kdb
- Jupyter
Quick Start Guide
Download the required FSI packages from the kx download portal:
# Download fsi-lib - the Core FSI Library
curl -s --fail-with-body -D /dev/stderr --oauth2-bearer ${BEARER} -L -OJ https://portal.dl.kx.com/assets/raw/kxi-accelerators/fsi/fsi-lib/packages/1.0.0/fsi-lib-1.0.0.kxi
# Download fsi-app-kx-flow - the KX Flow Accelerator
curl -s --fail-with-body -D /dev/stderr --oauth2-bearer ${BEARER} -L -OJ https://portal.dl.kx.com/assets/raw/kxi-accelerators/fsi/fsi-kx-flow/packages/1.0.0/fsi-app-kx-flow-1.0.0.kxi
Unpack fsi-app-kx-flow:
kxi package unpack fsi-app-kx-flow-1.0.0.kxi
Edit the file fsi-data-assembly-db-shard.yaml
in ../fsi-app-kx-flow/databases/fsi-data-assembly-db/shards
to include the static ips:
sequencers:
fsifx-north:
external: true
staticIPs:
- 4.212.242.231
- 4.212.243.147
- 4.212.241.204
kxi package packit fsi-app-kx-flow --tag --version 1.0.0
Push the packages to Insights and deploy the fsi-kx-flow-assembly:
# Install the packages
kxi package push --force fsi-lib/1.0.0
kxi package push --force fsi-app-kx-flow/1.0.0
# Deploy the assembly
kxi package deploy fsi-app-kx-flow/1.0.0
Note
At this point you should be able to see the pipelines booting up on the GUI or on k9s.
Data Ingestion
The KX Flow package contains ready to use pipelines for ingesting data via a flowbridge. See FX Data Ingestion for more information on the preconfigured pipelines.
The flowbridge will be managed by KX and requires a service account client enrolled on the insights assembly.
Create a service account client with the role insights.role.maintainer
via keycloak.
# Enrol client
kxi client enrol --name <CLIENT_NAME> --insert-topic fsiassembly
{
"message": "success",
"detail": "Client enrolled",
"url": "4087a3e7991beb212681ea78e2e91744",
"config_url": "https://kdbinsightsent7958602a.francecentral.cloudapp.azure.com/informationservice/details/4087a3e7991beb212681ea78e2e91744"
}
This url will need to be shared with the KX Flow team for the flowbridge connection.

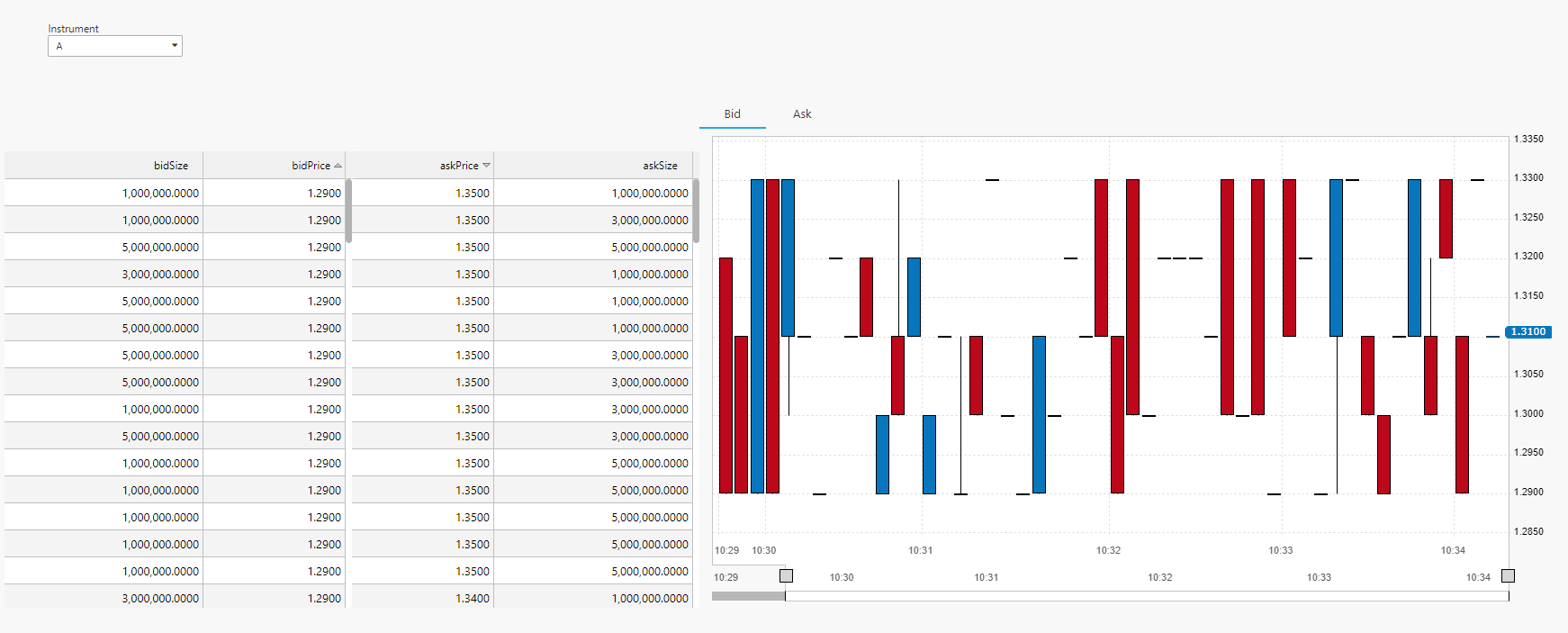

Once the flowbridge is connected and publishing you should be able to see data flowing in realtime via the FxChart View:
