Transform

Change the shape of data with no code transformations

Transforms enable data type and shape conversions without the need to write the transformation as code.

See APIs for more details

A q interface can be used to build pipelines programatically. See the q API for API details.

A Python interface is included along side the q interface and can be used if PyKX is enabled. See the Python API for API details.

The pipeline builder uses a drag-and-drop interface to link together operations within a pipeline. For details on how to wire together a transformation, see the building a pipeline guide.

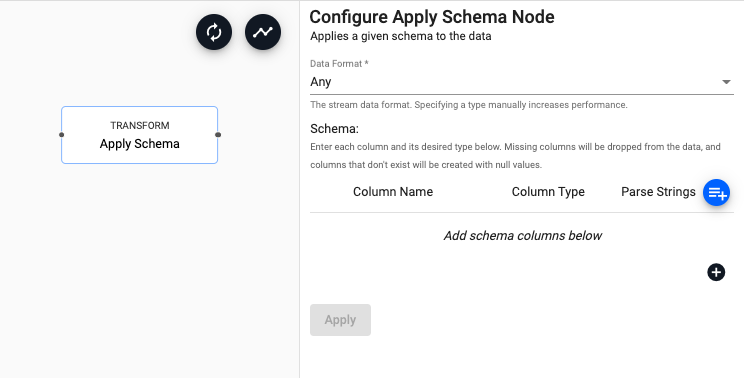

Apply Schema

Apply a table schema to data passing through the operator

See APIs for more details

q API: .qsp.transform.schema  Python API: kxi.sp.transform.schema

Required Parameters:

name	description	default
Data Format	Indicates the format of the data within the stream if it is known. Selecting either Arrays or Table will allow the schema operator to optimize its data conversions. Leave this value as Any if the data format is unknown.	Any
Schema	Enter a column name and column type for each column in the data. Missing columns will be dropped, and non-existent columns will be created with null values.

Schema Parameters:

name	description
Column Name	Give the assigned column a name.
Column Type	Define the kdb+ type for the assigned column.
Parse Strings	Indicates if parsing of data type is required. Parsing of input data should be done for all time, timestamp, and string fields unless your input is IPC or RT. Defaults to Auto, but can be configured as On or Off.

Schemas require a timestamp partition column

Schemas require a timestamp data column. In addition, the table should be partitioned and sorted (interval, historic and/or real-time) by this timestamp column. This can be configured as part of the essential properties of a schema.

Expected type formats

The parse option allows for string representations to be converted to typed values. For numeric values to be parsed correctly, they must be provided in the expected format. String values in unexpected formats may be processed incorrectly.

• Strings representing bytes are expected as exactly two base 16 digits, e.g. "ff"
• Strings representing integers are expected to be decimal, e.g. "255"
• Strings representing boolean values have a number of supported options, e.g. "t", "1"
  • More information on the available formats.

Load Schema

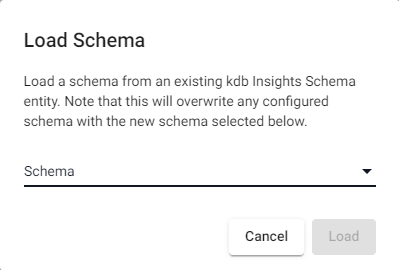

To load an existing schema, click the add schema button.

This open the Load Schema dialog which allows you to select a schema from a list of schemas already entered in the system. Selecting a schema will copy all of the column and type definitions into the pipeline.

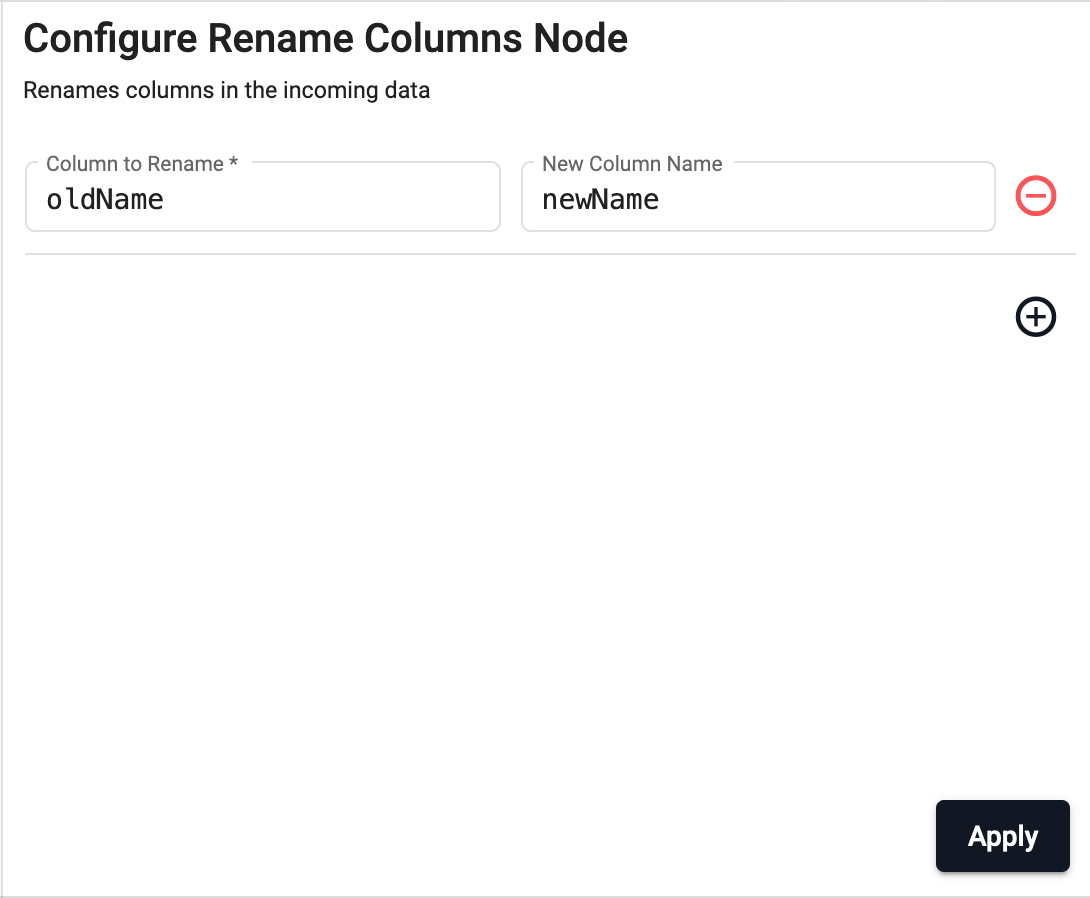

Rename Columns

Rename one or more columns in your data

See APIs for more details

q API: .qsp.transform.renameColumns  Python API: kxi.sp.transform.rename_columns

Required Parameters:

name	description	default
Renaming Scheme	A dictionary mapping current column names to what they should be renamed to.

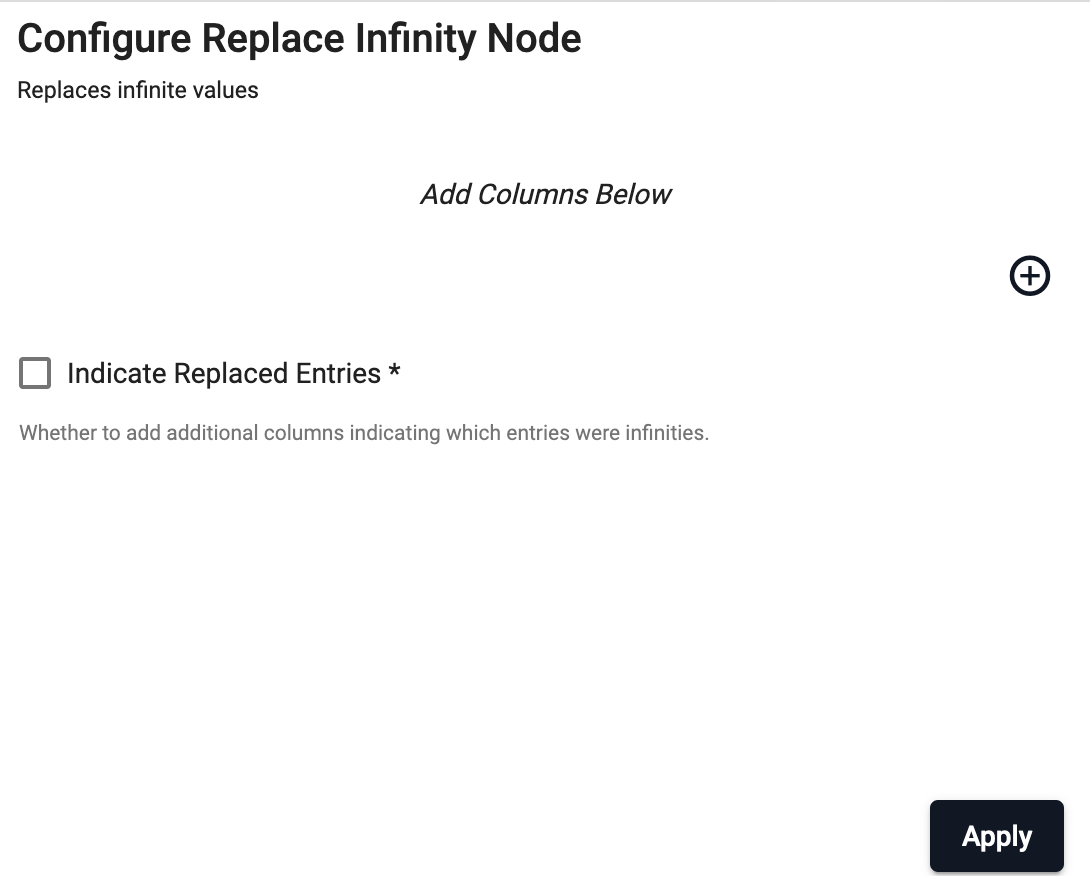

Replace Infinity

Replaces infinities in your data

See APIs for more details

q API: .qsp.transform.replaceInfinity  Python API: kxi.sp.transform.replace_infinity

Required Parameters:

name	description	default
Source Columns	A list of column names to act upon.

Optional Parameters:

name	description	default
Indicate Replaced Entries	Whether to create additional columns indicating which entries were replaced.	No

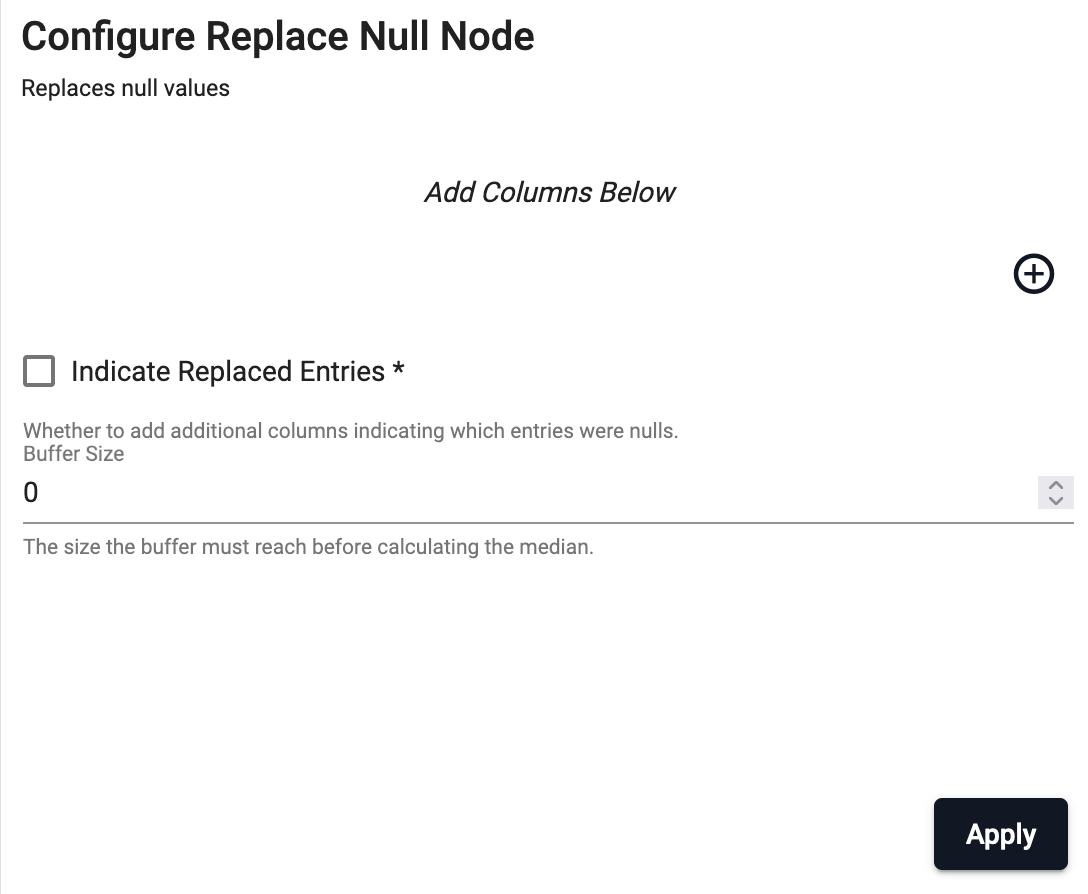

Replace Null

Replaces nulls in your data

See APIs for more details

q API: .qsp.transform.replaceNull  Python API: kxi.sp.transform.replace_null

Required Parameters:

name	description	default
Source Columns	A list of column names to act upon.

Optional Parameters:

name	description	default
Buffer Size	Number of data points that must amass before calculating the median.	0
Indicate Replaced Entries	Whether to create additional columns indicating which entries were replaced.	No

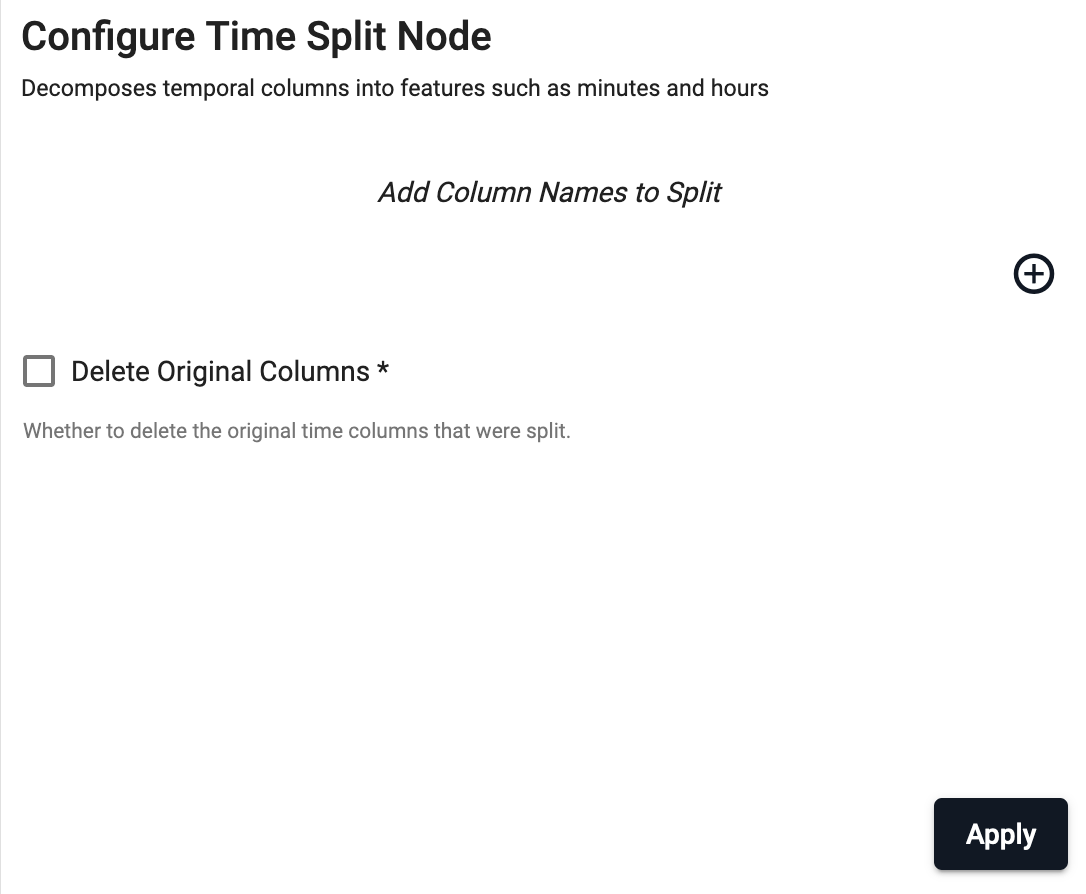

Time Split

Decomposes time data into subdivisions of hours, minutes, seconds, etc.

See APIs for more details

q API: .qsp.transform.timeSplit  Python API: kxi.sp.transform.time_split

Required Parameters:

name	description	default
Source Columns	A list of column names to act upon.

Optional Parameters:

name	description	default
Delete Original Columns	Whether to delete the original source column(s).	No
