Get Data - Kafka

The purpose of this walkthrough is to guide you through the steps to ingest data from Apache Kafka into kdb Insights Enterprise.

We have provided a Kafka subway feed for use in this walkthrough, which generates live alerts for NYC Subway trains; tracking arrival time, station location co-ordinates, direction and route details.

No kdb+ knowledge required

No prior experience with q/kdb+ is required to build this pipeline.

Before you import data you must ensure the insights-demo database is created, as described here.

Import Data

The import process creates a Pipeline which is a collection of nodes to read data from a source, transform it to a kdb+ compatible format and write that data to a kdb Insights Enterprise database.

Open the import wizard by selecting 2. Import from the Overview page. Next, you are prompted to select a reader node.

Select a Reader

A reader stores details of data to import, including any required authentication.

  1. Select the Kafka reader and complete the connection details as follows:

    setting value
    Broker kafka.trykdb.kx.com:443
    Topic subway
    Offset End
    Use TLS No
    Use Schema Registry No
  2. Expand the Advanced parameters section and add the following key value-pairs into the Use Advanced Kafka Options section:

    key value
    sasl.username demo
    sasl.password demo
    sasl.mechanism SCRAM-SHA-512
    security.protocol SASL_SSL

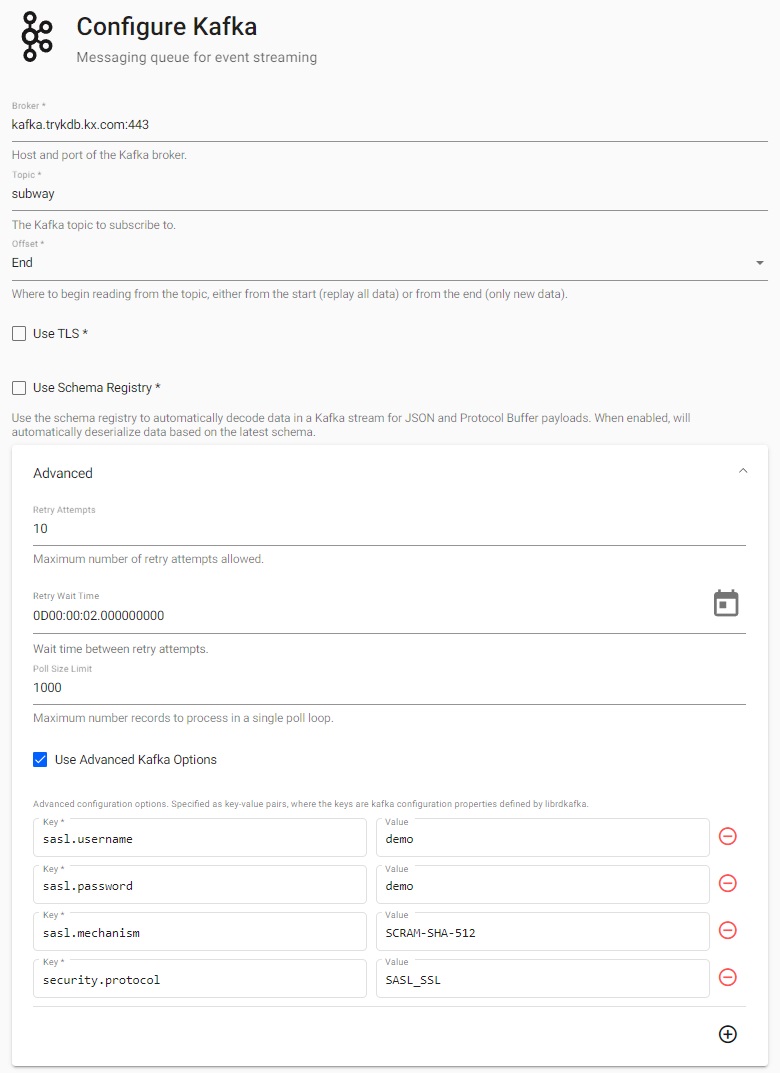

    The following screen shows the Configure Kafka screen with the above values set.

    Choose the Kafka reader

  3. Click Next.

Select a Decoder

Kafka event data is in JSON and has to be decoded to a kdb+ friendly format (a kdb+ dictionary).

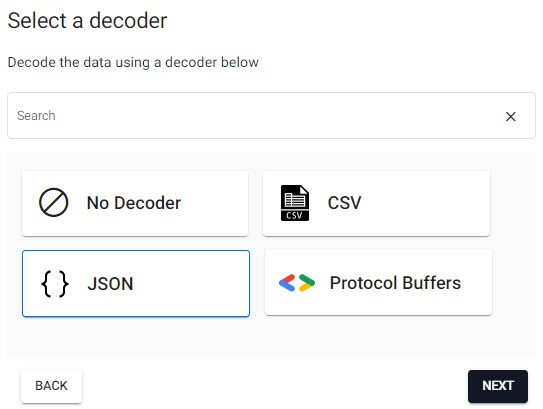

  1. Select a JSON decoder.

    JSON decoder

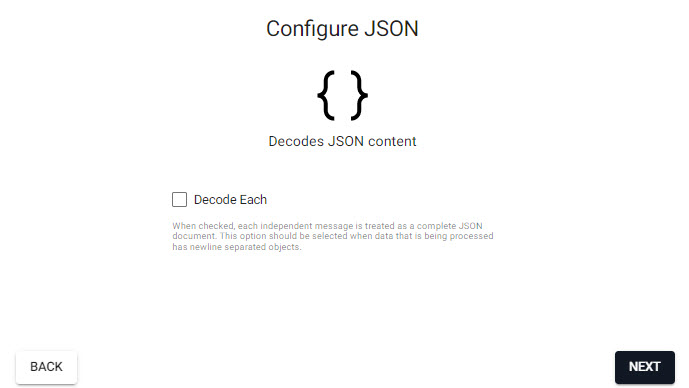

  2. Keep the default JSON decoder settings.

    Keep default JSON decoder settings

  3. Click Next.

Define the Schema

Next you need to define a schema which converts data to a type compatible with a kdb Insights Database. Every imported data table requires a schema; and every data table must have a timestamp key to be compatible with kdb's time series columnar database. insights-demo has a predefined schema for subway data.

  1. Complete the Apply Schema properties as follows:

    setting value
    Apply a Schema Checked
    Data Format Any

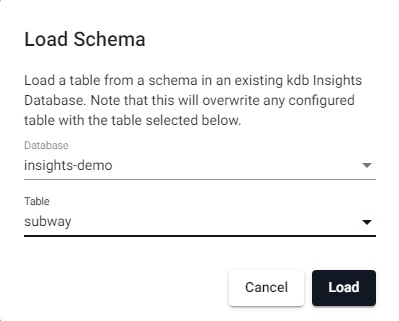

  2. Click the Load Schema icon and select insights-demo from the database dropdown and subway from the table dropdown, as shown below.

    Select the subway table from the insights-demo database.

  3. Click Load and then Next to open the Configure Writer screen.

Configure Writer

You now need to configure the Writer which writes transformed data to the kdb Insights Enterprise database.

  1. Specify the following settings:

    setting value
    Database insights-demo
    Table subway
    Write Direct to HDB No
    Deduplicate Stream Yes
    Set Timeout Value No
  2. Click Open Pipeline to review the pipeline in the pipeline viewer

Add Map node to enlist data

The Kafka pipeline requires an additional piece of functionality to convert the decoded data to a kdb+ table prior to deployment. This is done with an enlist of the data which is setup using a Map node. This is described in the next steps.

  1. In the pipeline template view, click-and-drag into the workspace a Map node from the list of Functions.

  2. Connect the Map node between the Decoder and Transform node. Remove the existing connection between Decoder and Transform nodes by right-clicking the link and selecting Remove Edge, as shown in the following animation.

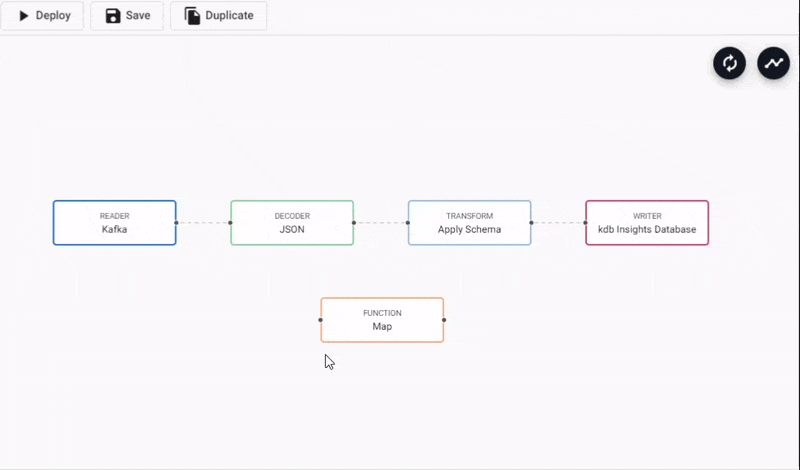

    Adding a **Function Map** node to a Kafka data pipeline. Connect edges with click-and-drag, right-click a connection to remove.

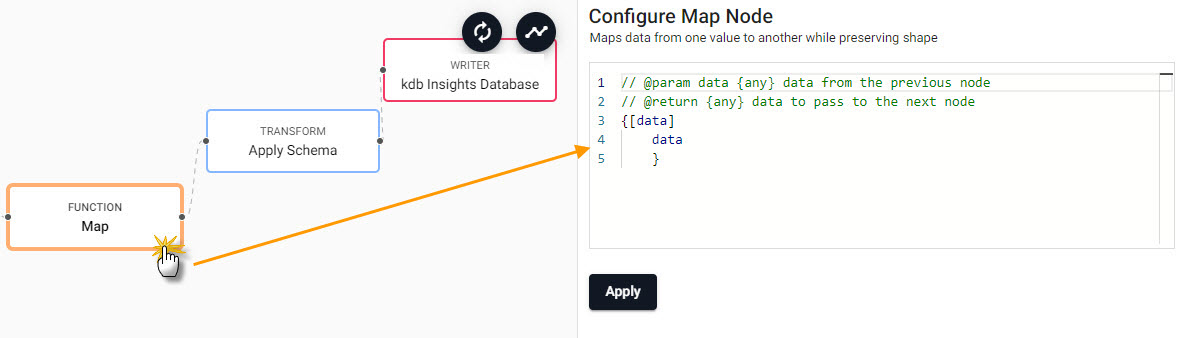

  3. Click on the Map node to edit its properties and set the enlist data as shown below.

    Select the Function Map node to edit its properties.

    {[data]
        enlist data
        }

  4. Click Apply to apply these changes to the node.

Save the Pipeline

Once you have configured and reviewed your Pipeline you must save it.

  1. Enter a name in the top left of the workspace. The name must be unique to the pipeline; for example, subway-1.

  2. Click Save.

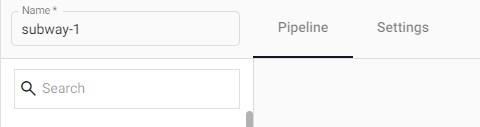

    Save the pipeline as subway-1.

  3. The subway-1 pipeline is available under Pipelines in the left-hand menu.

A Kafka pipeline built using the import wizard.

Deploy the Pipeline

You can now deploy the Pipeline. This will read the data from its source, transforms it to a kdb+ compatible format, and writes it to the insights-demo database.

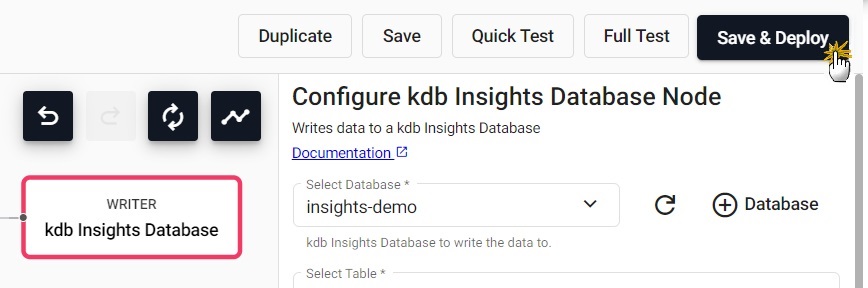

  1. Click on Save & Deploy in the top panel. Save and deploy the pipeline

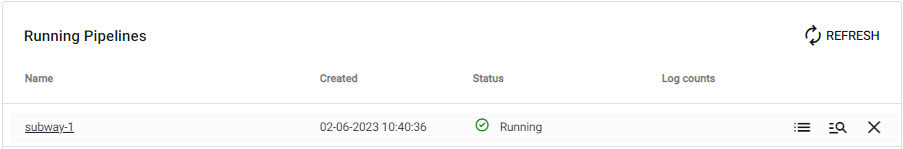

  2. Check the progress of the pipeline under the Running Pipelines panel of the Overview tab, which may take several minutes. The data is ready to query when Status is set to Running.

    A running crime pipeline available for querying.

Pipeline warnings

Once the pipeline is running some warnings may be displayed in the Running Pipelines panel of the Overview tab, these are expected and can be ignored.
