Run machine learning model to create stock predictions in real-time


Use kdb Insights Enterprise to define and run a machine learning model to predict the future state of stock prices.

Ensure you have completed the previous stage first, if not find it here.


This tutorial is to show how you can train a Python-first ML model in the kdb Insights Enterprise platform rather than focusing on developing a particularly accurate model.


benefit description
  Python based analysis Stage data for Python-based analysis to predict future values, such as Neural Network algorithms.
  ANSI SQL support Execute using ANSI SQL queries which most Data Science and Machine Leaning tools are familiar.
  Multiple visualization options Use the scratchpad to verify the training/test sets and predictions and then move to advanced visualization using Reports or Common BI tools like PowerBi or Tableau to show live data, more depth to the model and empower larger teams to visualize insights.


You will need to complete steps 1-2 in the Backtest trading strategies tutorial to ingest the required financial trade table.

Run model

Query dataset

Query the trade data you created in the prerequisites step to get it in the form required for the model later on.

  1. Select the SQL tab of the query page.
  2. To retrieve the open, high, low, close (OHLC) of events in the trade table, add this to the code editor:

    SELECT date_trunc('minute', timestamp) timestamp,
        FIRST(price) o, MAX(price) h,
        MIN(price) l, LAST(price) c
    FROM trade GROUP BY date_trunc('minute', timestamp)
  3. Define an output variable ohlc.

  4. Switch window at the bottom of the page from Console to Visual.
  5. Click Get Data to execute the query.

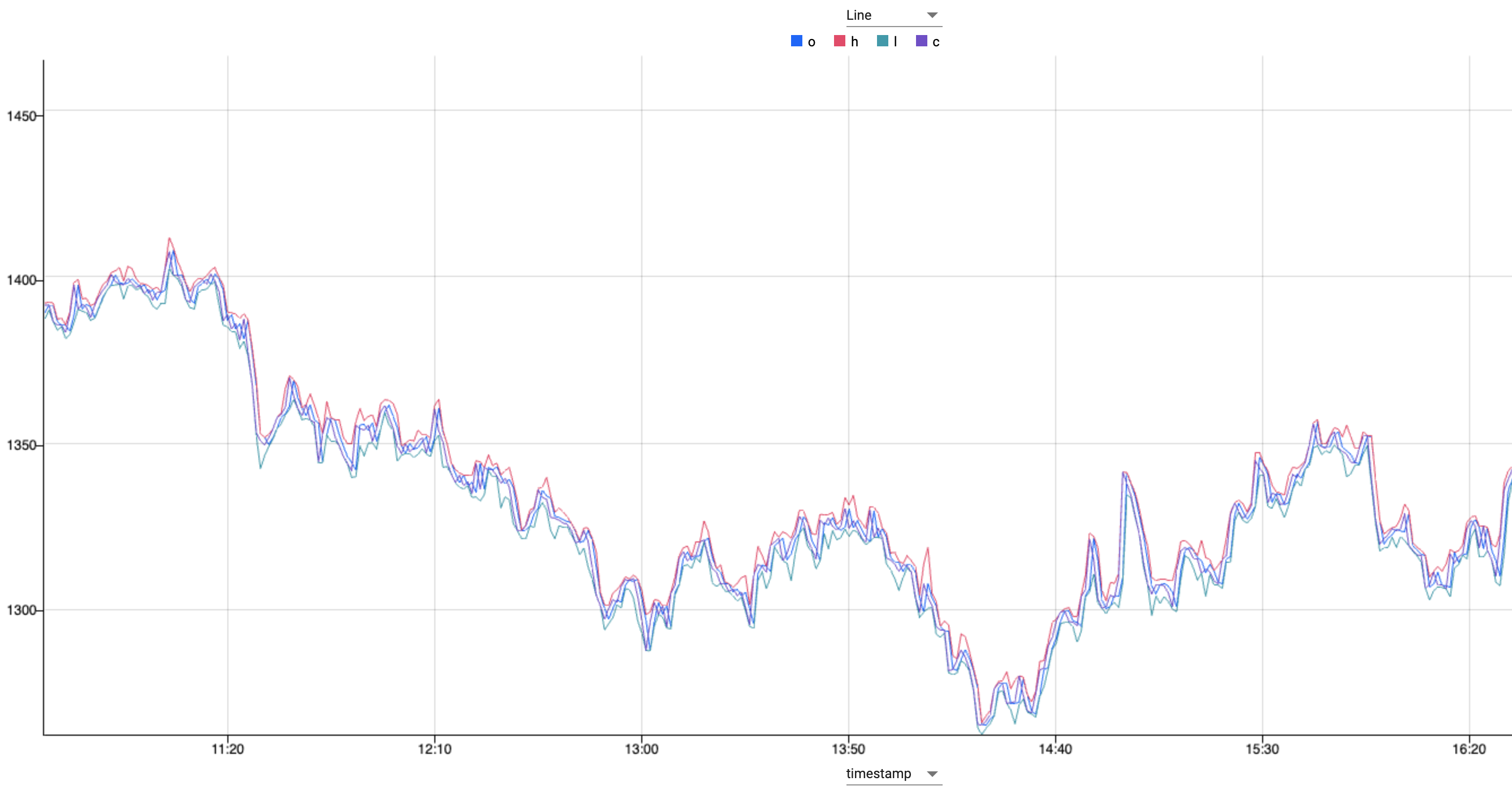

    A SQL query showing open, high, low, close values from the trade table.
    A SQL query showing open, high, low, close values from the trade table.

    What does this show?

    This OHLC chart shows the open, high, low and closing prices for each period.

    OHLC charts are useful since they show the four major data points over a period, with the closing price being considered the most important by many traders.

Run the ML code

For processing the data, a paper written in 2020 used an Long Short-Term Memory algorithm to predict stock prices. Using an open source Git repo, a LTSM model written in Python can be run against the data, to create predictions, and visualize in Scratchpad.

For this section you use the scratchpad for running machine learning model in real-time. The Scratchpad is the middle window of the Query page.

  1. In Scratchpad, select Python. Add the following Python code to the scratchpad editor:

    Machine Learning Python Code

    Paste the following Python code into the scratchpad:

    # Imports
    import pandas as pd
    import numpy as np
    import math
    # Machine learning lib - used here for data preprocessing and calcualtions - applies the range with minmaxclater zero and 1
    from sklearn.preprocessing import MinMaxScaler
    # Gets the stat that informs the quality of the prediction
    from sklearn.metrics import mean_squared_error
    # Define a neural network model - this is what is being used to predict the future state of the prices later on
    from keras.models import Sequential
    from keras.layers import Dense, Activation
    from keras.layers import LSTM   # Reference to the docs --
    # Convert the dataset into dataframe and get averages
    df = pd.DataFrame (ohlc.pd())
    # Axis 1 is horizontal and we want to see this data tabularised
    OHLC_avg = df[['o','h','l','c']].mean(axis=1)
    # Preparation of the time series dataset
    # reshape data preparation step so the data will fit the model applied
    OHLC_avg = np.reshape(OHLC_avg.values, (len(OHLC_avg),1))
    # creates the scaler function
    scaler = MinMaxScaler(feature_range=(0,1))
    # which is applied here
    OHLC_avg = scaler.fit_transform(OHLC_avg)
    # Train-test split
    # Model is trained using 75% of the data - subsample of the data - note that this is the first 75%
    train_OHLC = int(len(OHLC_avg) * 0.75)
    # Test data is the remaning 25% so between test and train the whole 100%
    test_OHLC = len(OHLC_avg) - train_OHLC
    train_OHLC, test_OHLC = OHLC_avg[0:train_OHLC,:], OHLC_avg[train_OHLC:len(OHLC_avg),:]
    def new_dataset(dataset, step_size):
        data_X, data_Y = [],[]
        for i in range(len(dataset)-step_size-1):
            a = dataset[i:(i + step_size),0]
            data_Y.append(dataset[i + step_size,0])
        # This produces the dataset which tells you what T+1 is within the time-series and organises the data in to what will be used as the features
        # This feeds the model, and target, which is what is produced
        return np.array(data_X),np.array(data_Y)
    # Time-series dataset (for time T, values for time T+1)
    trainX, trainY = new_dataset(train_OHLC,1)
    # This give you T which is what you have, and T+1 which the prediction
    testX, testY = new_dataset(test_OHLC,1)
    # Reshaping train and test data
    trainX = np.reshape(trainX, (trainX.shape[0],1,trainX.shape[1]))
    testX = np.reshape(testX, (testX.shape[0],1,testX.shape[1]))
    # Gets data into the format that is needed
    step_size = 1
    # LSTM model
    model = Sequential()
    model.add(LSTM(32, input_shape=(1,step_size), return_sequences =True))
    # Beyond the scope of this  - takes the features T and learn how to predict what T+1 is
    # Model compiling and training
    # compile builds the model into an executable who we will calculate performance and how it is optimised
    model.compile(loss='mean_squared_error',optimizer='adam'), trainY, epochs=5, batch_size=1, verbose=2)    # takes the training data fits the model to it that will be used for predictions.
    # Prediction
    trainPredict = model.predict(trainX)
    testPredict = model.predict(testX)      # does this
    # Denormalising and plotting
    trainPredict = scaler.inverse_transform(trainPredict)
    trainY = scaler.inverse_transform([trainY])
    testPredict = scaler.inverse_transform(testPredict)
    # Previously the data was weighted artificially with the MinMaxScaler, but that is not a real number for output or for a decision.
    # This must be now reversed so that the output is actual price data unweighted
    testY = scaler.inverse_transform([testY])
    # Training RMSE
    trainScore = math.sqrt(mean_squared_error(trainY[0], trainPredict[:,0]))
    # Calculating how well the predictions match reality
    # Test RMSE
    testScore = math.sqrt(mean_squared_error(testY[0], testPredict[:,0]))
    # Calculating how well the predictions match reality
    # Creating similar dataset to plot training predictions
    trainPredictPlot = np.empty_like(OHLC_avg)
    trainPredictPlot[:,:] = np.nan
    # More processing to shape the data for the flattening step
    trainPredictPlot[step_size:len(trainPredict)+step_size, :] = trainPredict
    # Creating similar dataset to plot test predictions
    testPredictPlot = np.empty_like(OHLC_avg)
    testPredictPlot[:,:] = np.nan
    # More processing to shape the data for the flattening step
    testPredictPlot[len(trainPredict)+(step_size*2)+1:len(OHLC_avg)-1, :] = testPredict
    OHLC_avg = scaler.inverse_transform(OHLC_avg)
    dataset = pd.DataFrame({
        'tradetime':df['timestamp']    # x axis
        ,'ohlc': OHLC_avg.flatten()
        ,'train': trainPredictPlot.flatten()
        ,'test': testPredictPlot.flatten()
        }, columns=['tradetime','ohlc','train','test'])
  2. In the Visual tab, switch the chart type to Line.

  3. Run Scratchpad

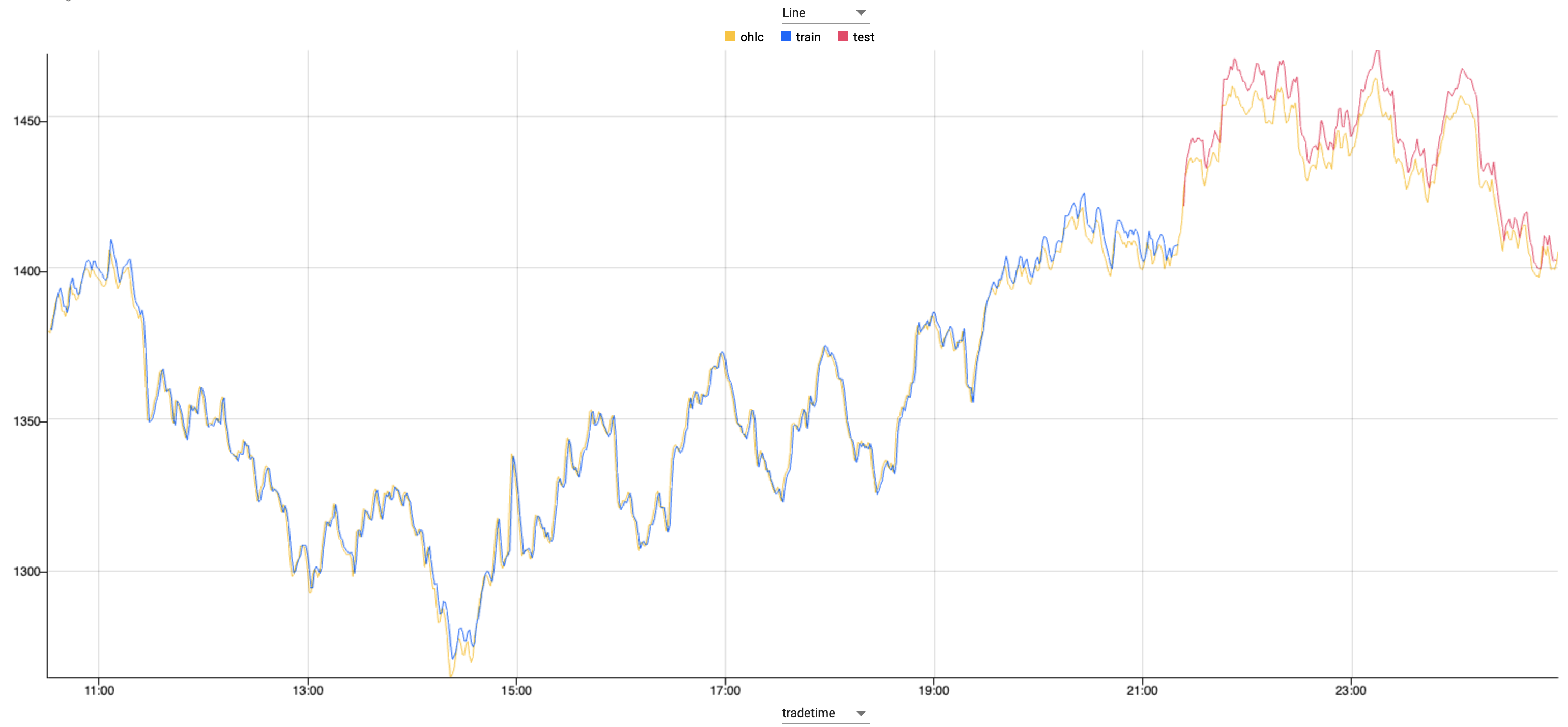

    Plot of train, test and ohlc predictions dataset
    Plot of train, test and predictions dataset

    What is the model doing?

    Using standard machine learning libraries that are available in kdb Insights Enterprise the dataset is weighted, shaped and plotted.

    The model is first trained using 75% of the data, with the remaining 25% is used to test the model.

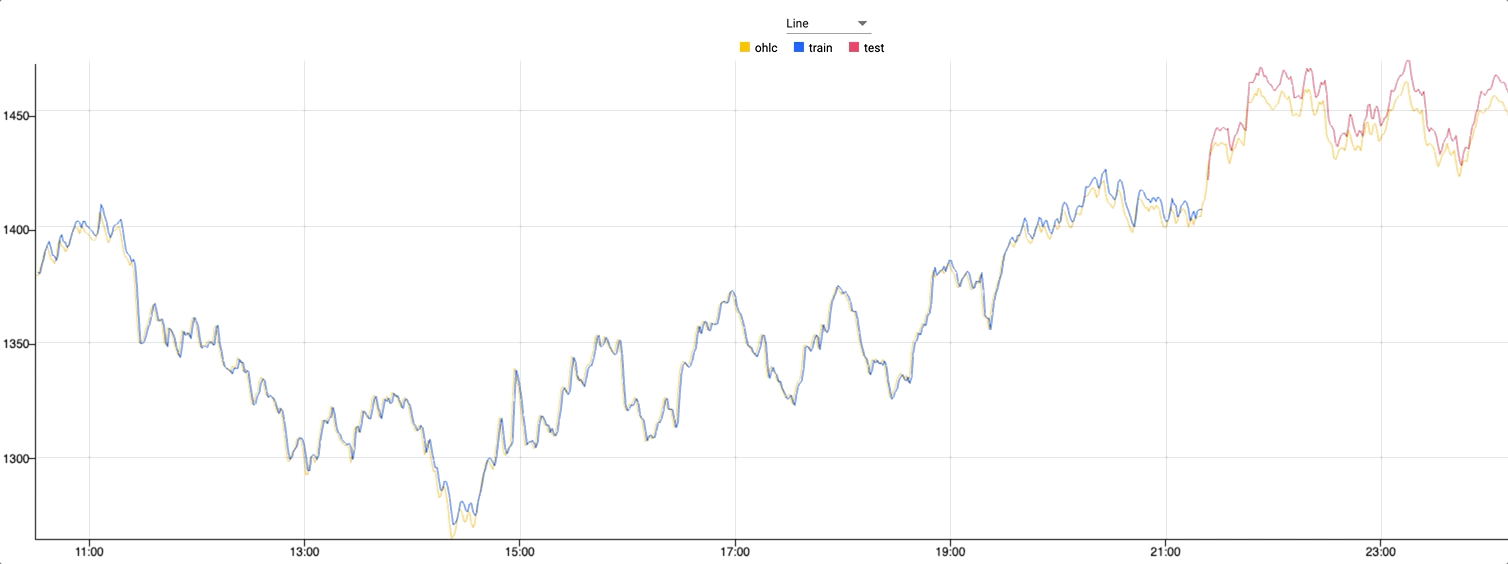

    Zooming in on the graph where the color changes, you can see where the test dataset begins. Against this test data the predictions follow the live data extremely closely.

    A SQL query showing open, high, low, close values from the trade table.

What's next?

  • Learn how to deploy a machine learning model in a real-time pipeline in the Industry Tutorial.
