Views

This section guides you through the steps to create Views in the kdb Insights Enterprise UI.

You can build rich data visualizations in kdb Insights Enterprise using over 40 components including tables, maps, charts and more.

To create a View:

The following steps explain how to create a View containing a Data Grid. This Data Grid can then be customized to display data from the walkthroughs created earlier.

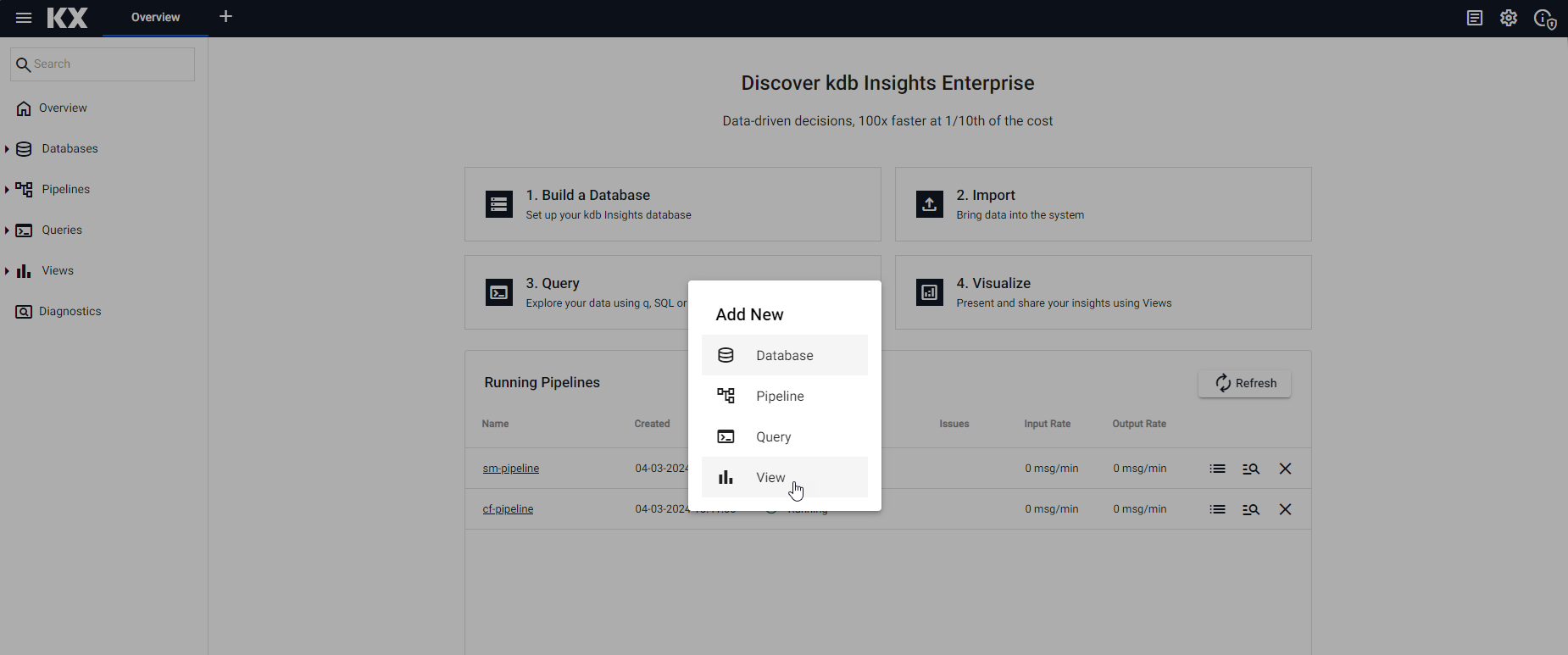

1. Click the + in the ribbon or left-hand menu, or select 4. Visualize from the Overview page.




2. Click-and-drag a a Data Grid (first component on the list), from the component menu into the central workspace.

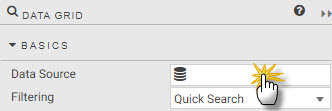

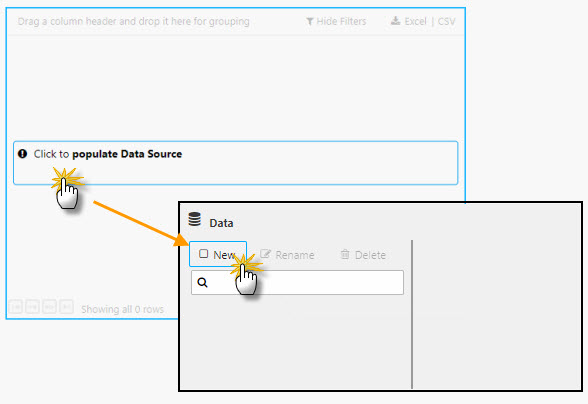

3. With the component selected, Click to populate Data Source,



   or click Data Source in the Basics properties for the selected component.




   When a component is selected in the workspace it displays a light-blue border.

4. Click New to add a new Data Source.

5. Enter a name for the Data Source.

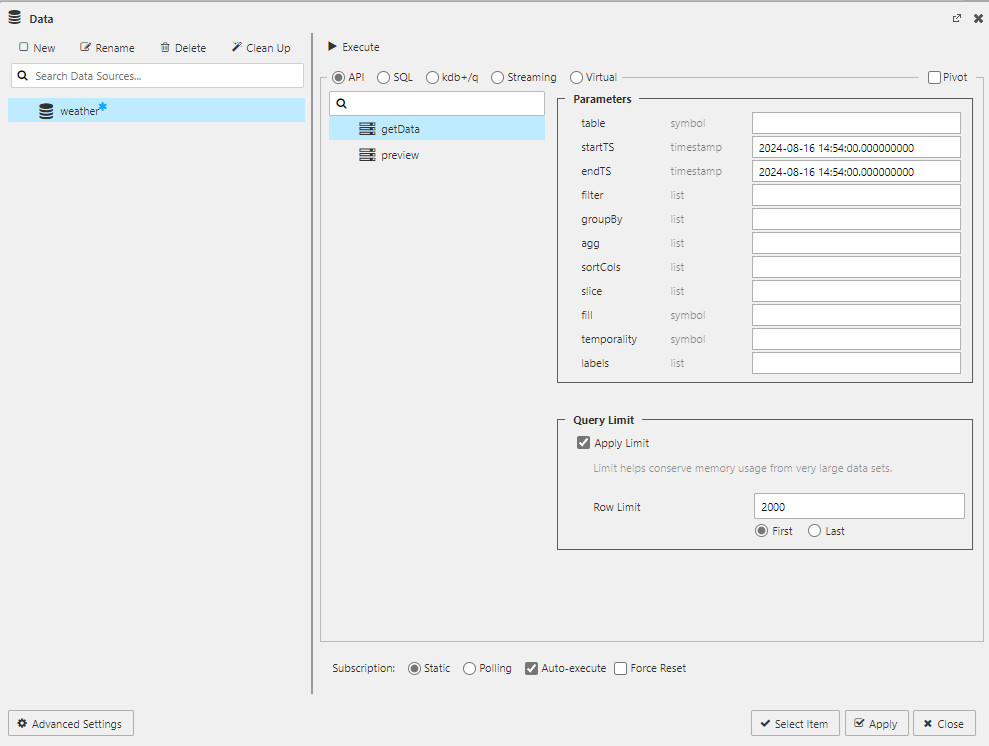

6. Click API to configure the Data Source. Note that this walkthrough uses API to setup the Data Source. For further information on the other Data Sources see here.



7. Select the relevant tab in the next section to customize the Data Source for weather, crime, subway or health data sets.

Data Grid

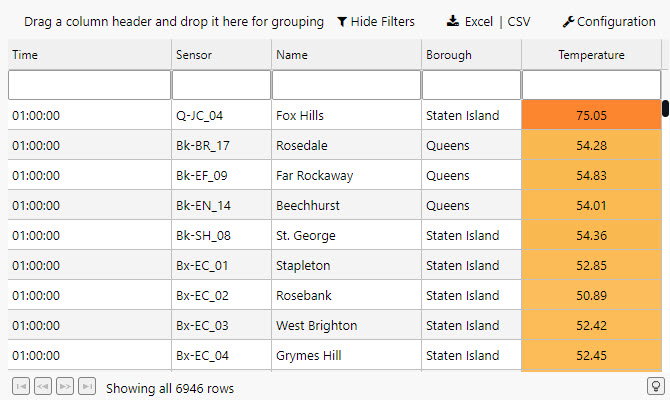

Data Grid tabulates data and offers a range of formatting options for tables, including highlight rules and custom templates.

Once you have completed the step in the previous section to create your view with the data grid, select the tab below that corresponds to the data set you have already ingested. Then complete the configuration to create a data grid for that tables data.

weathersubwayhealthcrime

Name the new Data Source weather and configure the following API properties.

property	setting
table	weather
startTS	2022-07-28T00:00:00.000000000
endTS	2022-07-28T23:59:00.000000000

Click Execute, Apply and then Select Item to apply the data to the Data Grid. This step closes the query editor.

Defining table in the query editor

When creating a new data source, the table is the name of the data table as hosted on the database, it's not the Output variable as defined when exploring the data.

Basics

In the Basics properties enable Custom Layout for end-user control of the columns to be displayed.

property	setting
Filtering	Column Filters

Custom Filters

In the Custom Filters properties you can add a greater level of filter control with the following custom filters:

name	type
timestamp	DateTime
sensor	Selection
airtemp	Number
name	Selection
borough	Selection

Columns

Use the Column properties to apply column configurations which style content and widths for the display of data in the table.

column	Display Name	Min Width	Text Align	Format	Precision	Date Format	Time Format	Range Color	Template	Hidden
timestamp	Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
sensor	Sensor	100	Left	General	-	-	-	-	-	-
airtemp	Temperature	100	Center	Formatted Number	2	-	-	-	-	-
name	Name	150	Left	General	-	-	-	-	-	-
borough	Borough	150	Left	General	-	-	-	-	-	-
longitude	longitude	-	-	-	-	-	-	-	-	Yes
latitude	latitude	-	-	-	-	-	-	-	-	Yes
color	color	-	-	-	-	-	-	-	-	Yes

You can re-arrange the column order with a click-and-drag to move columns. For example, select the Temperature column and reposition it below the Borough Column in the Data Grid Columns properties.

Highlight Rules

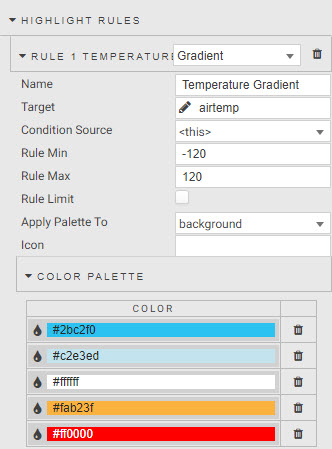

Set Highlight Rules properties to create a color gradient for temperature. Use a Gradient highlight rule to give temperature definition in the table, using the following properties.

property	setting
Name	Temperature Gradient
Target	airtemp
Rule Min	-120
Rule Max	120
Apply Palette To	background
COLOR PALETTE	#2bc2f0, #c2e3ed, #ffffff, #fab23f, #ff0000

Selection & Routing

The Selection & Routing properties are used to pull value(s) from a table and set them to a view state parameter. A view state parameter is a stored value accessible to all components and queries.

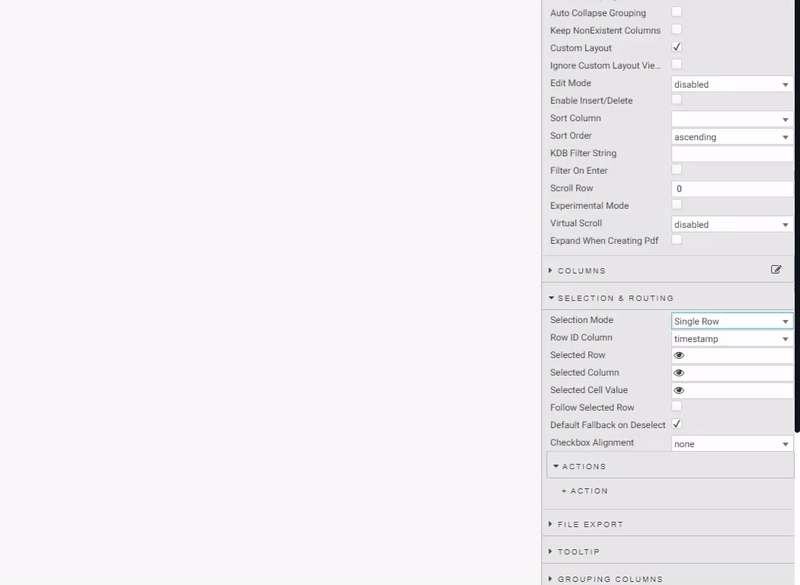

Change Selection Mode to Single Row to enable the selection control. Actions are used to map cell values from columns to view state parameters - enabled by a click inside the data grid. Set the Trigger Column to use wildcard, *.

Create actions to map:

source column	view state parameter	type	default	value
sensor	sensor	symbol	Q-JC_04	Q-JC_04
borough	borough	symbol	-	-
name	name	symbol	-	-

Name the new Data Source subway and configure the following API properties.

property	setting
table	subway
startTS	yyyy-mm-dd 00:00:00.000000000
endTS	yyyy-mm-dd 23:59:00.000000000

startTS and endTS

Set startTS as 00:00 and endTS as 23:59 of the deployment date; use a SQL query to find the deployment date. Ensure both the subway pipeline and insights-demo database are running and active to access data in your View.

• Click Execute then click Apply and then Select Item to apply the data to the Data Grid. This step closes the query editor.

Basics

Subway is an informational data set it is recommended to use a simpler Data Grid, so the following properties are recommended:

property	setting
Filtering	Column Filters
Enable Grouping	Unchecked

Custom Filters

Custom Filters properties help find additional information for given routes. Columns with no custom filter use default text search. Add the following:

name	type
route_short_name	Selection
trip_headsign	Selection
route_long_name	Selection
direction_id	Selection
arrival_time	DateTime

Columns

Add the following Column configurations style content and widths for the display of data in the table under the Columns properties.

column	Display Name	Min Width	Text Align	Format	Precision	Date Format	Time Format	Range Color	Template	Hidden
trip_id	Trip	-	-	-	-	-	-	-	-	Yes
arrival_time	Arrival Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
stop_id	Stop	100	Left	General	-	-	-	-	-	-
stop_sequence	Sequence	100	Left	General	-	-	-	-	-	-
stop_name	Stop Name	250	Left	General	-	-	-	-	-	-
stop_lat	Stop longitude	-	-	-	-	-	-	-	-	Yes
stop_lon	Stop latitude	-	-	-	-	-	-	-	-	Yes
route_id	Route ID	-	-	-	-	-	-	-	-	Yes
trip_headsign	Route Header	200		General	-	-	-	-	-	-
direction_id	Direction	100	-	General	-	-	-	-	-	-
route_short_name	Route Number	100	-	Number	-	-	-	-	see below	-
route_long_name	Route Name	200	-	General	-	-	-	-	-	-
route_desc	Description	-	-	-	-	-	-	-	-	Yes
route_type	Type	-	-	-	-	-	-	-	-	Yes
route_url	Route URL link	-	-	-	-	-	-	-	-	Yes
route_color	Route color	-	-	-	-	-	-	-	-	Yes

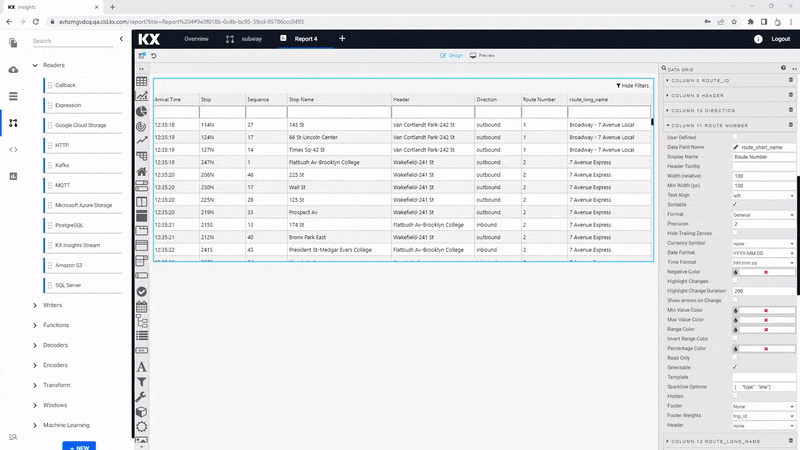

A feature of columns is custom Template.

• Template adds custom styling to the data grid, but requires a little coding to get the most out of it.
• Template uses Handlebars to apply column formats.

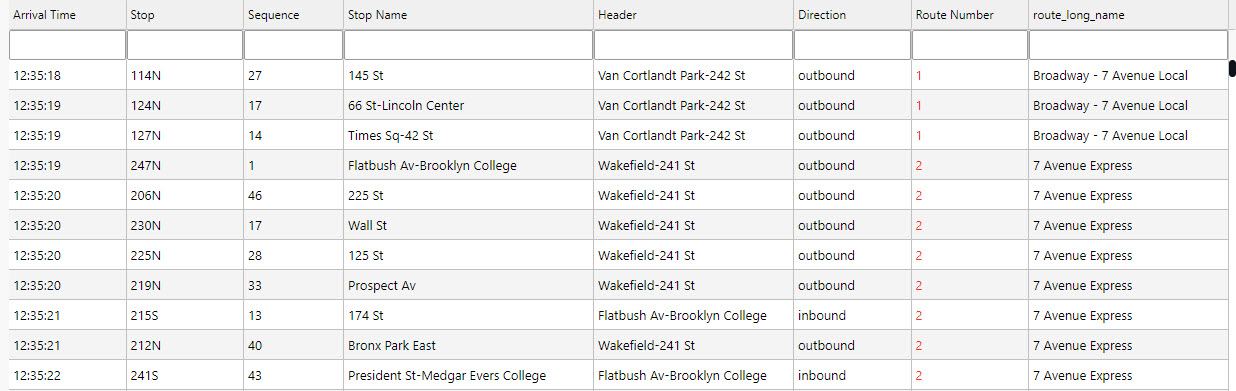

• For subway, use the route_color column to apply color to the text of the route_short_name column; add to the Advanced mode of Template:

<font color="{{route_color}}">{{route_short_name}}</font>

File Export

In the File Export properties uncheck Show Export CSV button and Show Export Excel Button to hide unnecessary file export.

Name the new Data Source health and configure the following API properties.

property	setting
table	health
startTS	yyyy-mm-dd 00:00:00.000000000
endTS	yyyy-mm-dd 23:59:00.000000000

startTS and endTS

Set startTS as 00:00 and endTS as 23:59 of the deployment date; use a SQL query to find the deployment date. Ensure both the health pipeline and insights-demo database are running and active to access data in your View.

Click Execute, then click Apply. Next, click Select Item to apply the data to the Data Grid. This closes the query editor.

Basics

In the Basics properties enable Column Filtering.

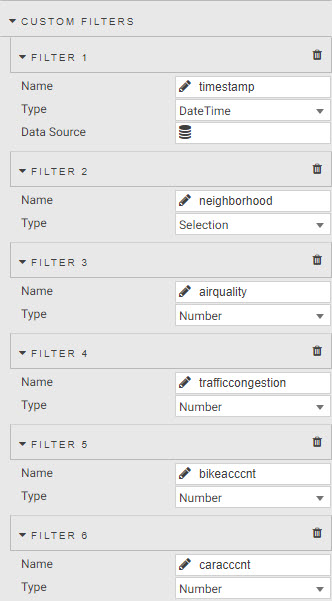

Custom Filters

Numeric columns filter with >, < or > < for a range.

name	type
timestamp	DateTime
name	Selection
airquality	Number
trafficcongestion	Number
bikeacccnt	Number
caracccnt	Number

Columns

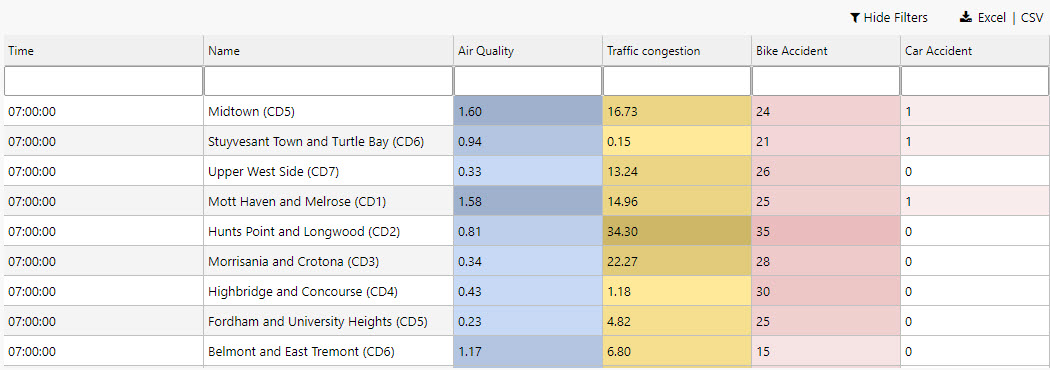

Column configurations style content and widths for the display of data in the table.

• Use Range Color to add color gradients to numeric columns.
• Check Invert Range Color to give high values a darker shade.

column	Display Name	Min Width	Text Align	Format	Precision	Date Format	Time Format	Range Color	Template	Hidden
name	Name	250	Left	General	-	-	-	-	-	-
lat	Latitude	-	-	Number	-	-	-	-	-	Yes
long	Longitude	-	-	Number	-	-	-	-	-	Yes
neighborhood	Neighborhood	250	Left	General	-	-	-	-	-	Yes
airquality	Air Quality	250	Left	Number	2	-	-	#d1e3ff	-	-
trafficcongestion	Traffic Congestion	100	Left	Number	2	-	-	#ffe999	-	-
bikeacccnt	Bike Accidents	100	Left	Number	0	-	-	-	-	-
caracccnt	Car Accidents	100	Left	Number	0	-	-	-	-	-
timestamp	Time	100	Left	Time	-	-	HH:mm:ss	-	-	-

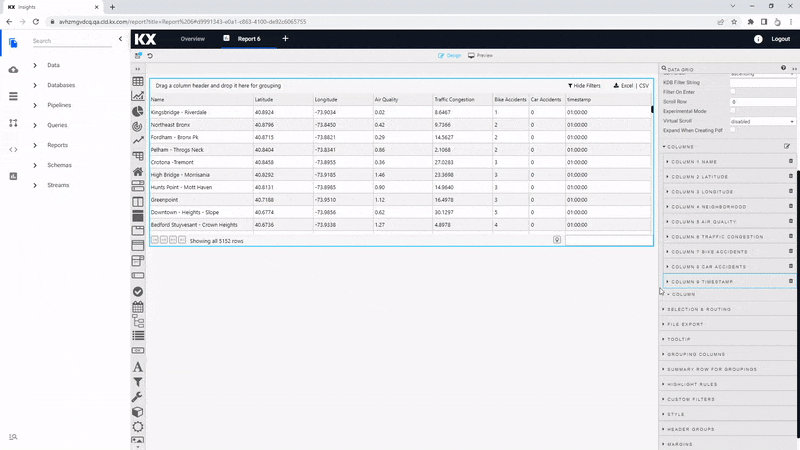

Change the column order to re-position the Timestamp column as the first column.

Highlight Rules

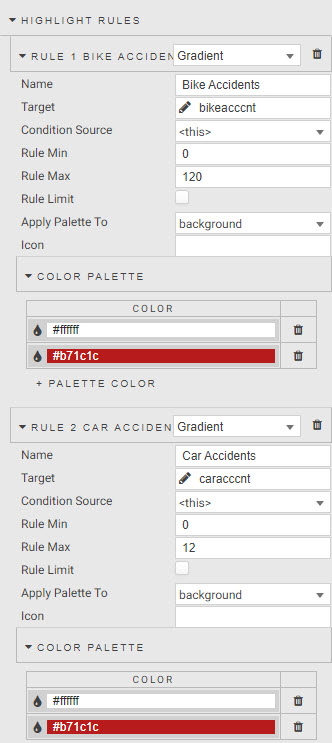

Under the Highlight Rules properties, add a color highlight for number of bike and car accidents.

value	bikeacccnt	caracccnt
Name	Bike Accidents	Car Accidents
Target	bikeacccnt	caracccnt
Rule Min	0	0
Rule Max	120	12
Apply Palette To	background	background
COLOR PALETTE	#ffffff, #b71c1c	#ffffff, #b71c1c

Selection & Routing

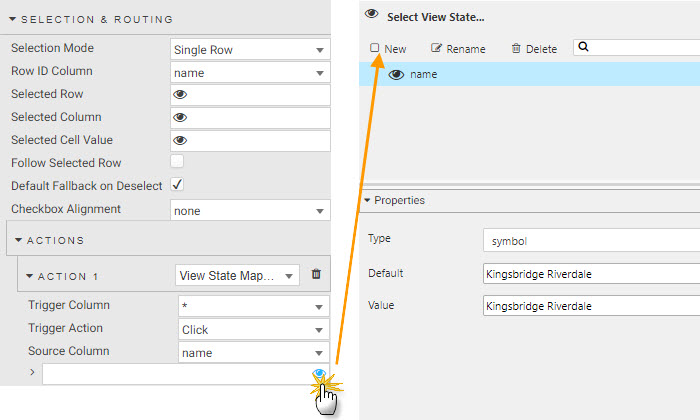

Selection & Routing properties are used to pull value(s) from a table and set it to a view state parameter. A view state parameter is a stored value accessible to all components and queries. Create a view state for neighborhood to use in other (optional) queries, for example a chart of accidents, congestion and air quality.

1. Change the Selection Mode to a Single Row.
2. Define an action to map the neighborhood name to a view state parameter. This action occurs on a click inside the Data Grid; set the Trigger Column to use the wildcard, *.

ACTIONS

property	setting
Trigger Column	*
Trigger Action	Click
Source Column	name
>	view state parameter: name

Name the new Data Source crime and configure the following API properties.

property	setting
table	crime
startTS	2022-03-31 00:00:00.000000000
endTS	2022-03-31 23:59:00.000000000

Click Execute, then click Apply. Next, click Select Item to apply the data to the Data Grid. This closes the query editor.

Requires an active database and running pipeline

To build a view, the crime must be running and the insights-demo is active.

Basics

In the Basics properties set the following

property	setting
Filtering	Column Filters
Enable Grouping	Checked
Custom Layout	Checked

Custom Filters

In the Custom Filter properties, use filters of Type = Selection for descriptive columns and Type = DateTime for timestamps. Set the following filters:

value	setting
incident_time	DateTime
nypd_precinct	Selection
borough	Selection
patrol_borough	Selection
radio_code	Selection
crime_in_progress	Selection
call_timestamp	DateTime
displatch_timestamp	DateTime
arrival_timestamp	DateTime
closing_timestamp	DateTime

Columns

Set Column properties to ensure descriptive columns have sufficient width to display their information.

column	Display Name	Min Width	Text Align	Format	Precision	Date Format	Time Format	Range Color	Template	Hidden
event_id	Event	80	Left	General	-	-	-	-	-	-
incident_time	Time of Incident	100	Left	Time	-	-	`HHss	-	-	-
nypd_precinct	Precinct	60	Left	Number	0	-	-	-	-	-
borough	Borough	100	Left	General	-	-	-	-	-	-
patrol_borough	Patrol Borough	200	Left	Number	-	-	-	-	-	-
call_x_geo	Call x-cord.	-	-	Number	-	-		-	-	Yes
call_y_geo	Call y-cord.	-	-	Number	-	-	-	-	-	Yes
radio_code	Radio Code	80	Left	Number	-	-	-	-	-	-
description	Crime Description	300	Left	General	-	-	-	-	-	-
crime_in_progress	Crime in Progress?	100	Left	General	-	-		-	-	-
call_timestamp	Call Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
dispatch_timestamp	Displatch Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
arrival_timestamp	Arrival Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
closing_timestamp	Close Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
latitude	Latitude	-	-	Number	-	-	-	-	-	Yes
longitude	Longitude	-	-	Number	-	-	-	-	-	Yes

Highlight Rules

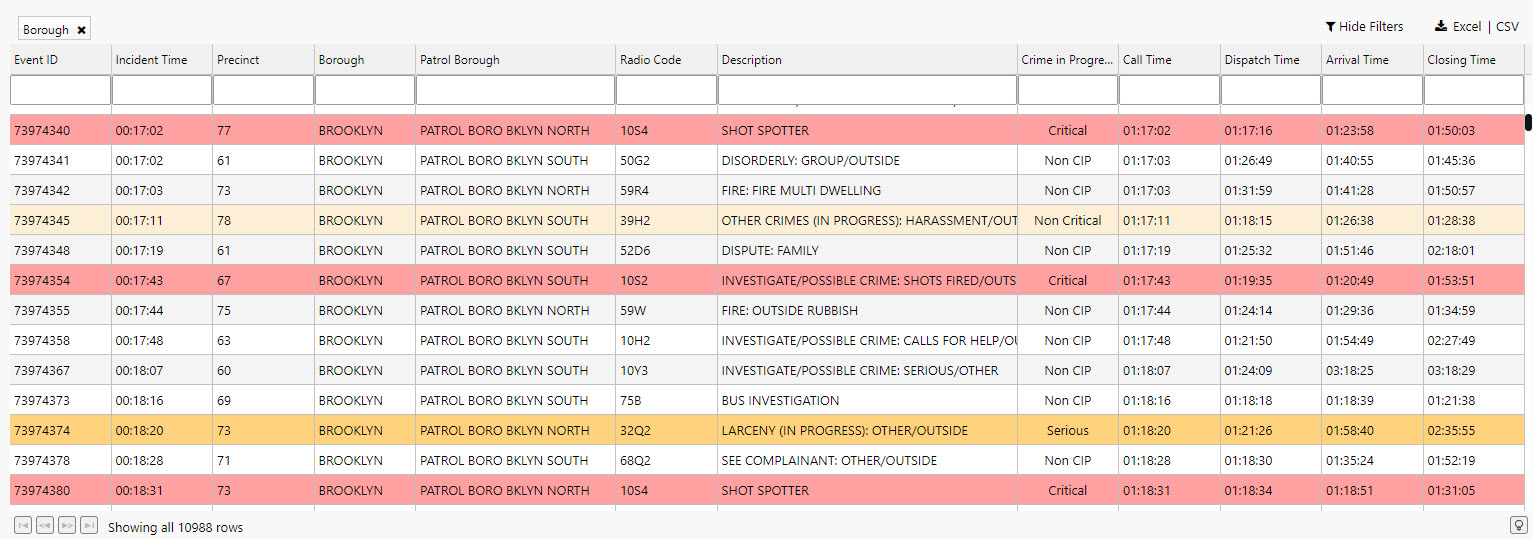

Add color highlights to give context to the seriousness of reported crime. Use wildcard, ***** to apply a highlight to the entire row.

value	critical	serious	non-critical
Name	Critical	Serious	Non Critical
Target	*	*	*
Condition Source	crime_in_progress	crime_in_progress	crime_in_progress
Condition Operator	==	==	==
Condition Value	Critical	Serious	Non Critical
Background Color	#ffa1a1	#ffd27d	#fcefd6

To learn more about highlight rules click here

Data Form with View State

This section guides you on how to create custom queries with the Data Form. A Data Form exposes view state parameters to change in the View; for example, startTS and endTS parameters.

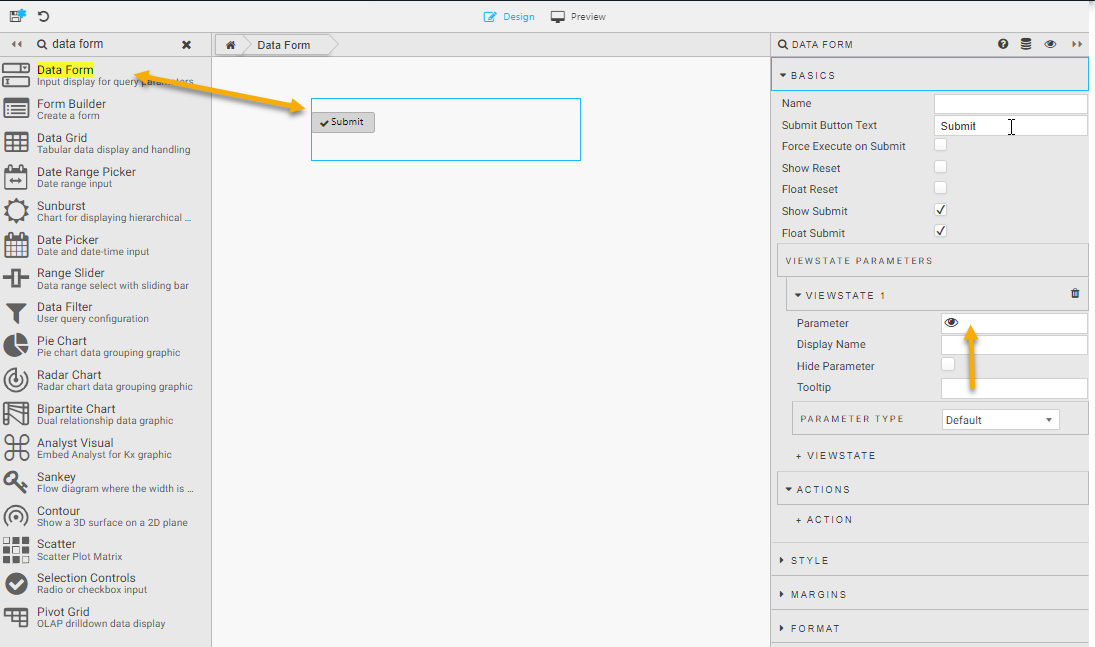

1. Click-and-drag a Data Form into the View.



2. Click on the Parameter property under Viewstate Parameters to open the view state parameter dialog.

3. To create view states for startTS and endTS:

   • Click New to create view states for Start Time and End Time with the following properties:

   property	value
   Type	Set both to timestamp.
   Default	Use the deployment date as the default value for bothstartTS and endTS. Use a SQL query to find the deployment date for weather, subway or health data sets. These valuses are shown in the tabs below.

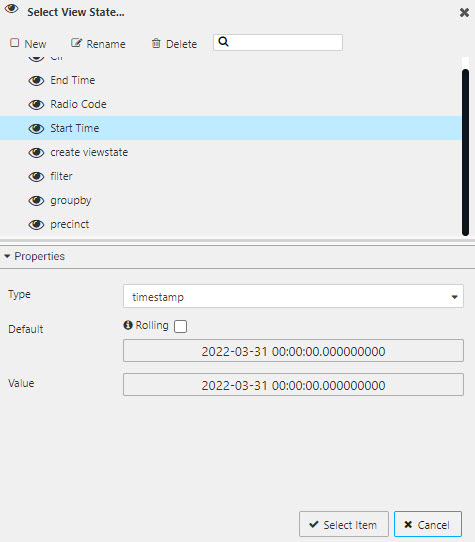

Start Time

weather, subway and healthcrime

value	setting
Type	timestamp
Default	2022-07-28T00:00:00.000000000
Value	2022-07-28T23:59:00.000000000

Use the deployment date for Default and Value yyyy-mm-dd.

value	setting
Type	timestamp
Default	2022-03-31 00:00:00.000000000
Value	2022-03-31 00:00:00.000000000

End Time

weather, subway and healthcrime

value	setting
Type	timestamp
Default	yyyy-mm-dd 23:59:00.000000000
Value	yyyy-mm-dd 23:59:00.000000000

Use the deployment date for Default and Value yyyy-mm-dd.

value	setting
Type	timestamp
Default	2022-03-31 23:59:00.000000000
Value	2022-03-31 23:59:00.000000000

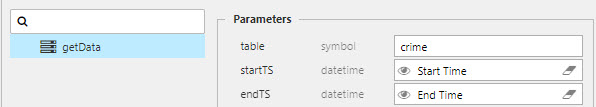

Use View State Parameters in Data Source

To use the View State parameters, created above:

1. Replace the startTS and endTS values, set in the Data Grid, with their corresponding View State parameters in the data editor as shown below.

Date Picker

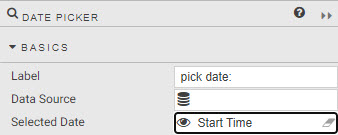

Date Picker is a time-specific input; map Start Time or End Time view states to the Selected Date property under the list of Basics options.

Filter

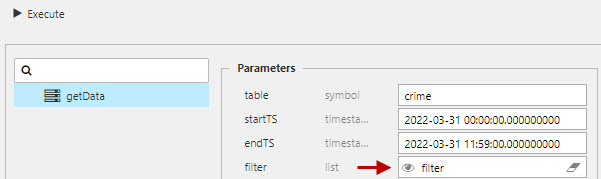

Use the Filter property of the data editor.

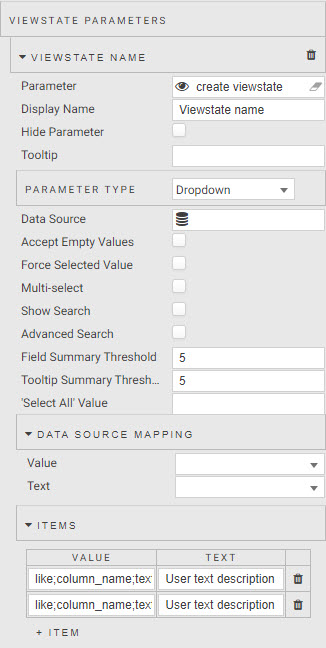

1. Create a view state of type List (named filter) and assign to the Filter property of data editor in Data Grid.




2. Add a Data Form

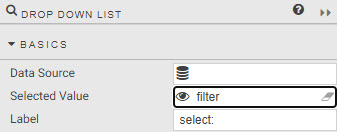

3. Map the created filter view state to Viewstate Parameter of Data Form.
4. Switch Parameter Type to Dropdown
5. Add Items corresponding to the selected values.

There is a special case for defining the Value for Items which uses the following structure as determined by the getData API.

=;column_name;value

item	setting
=	matches numeric values, use like for text values.
column_name	data column name referenced in the database.
value	filter value; numeric for =, text for like.

Filter values by data set:

subwaycrimehealth

value	settings
Parameter	Direction view state parameter
Display Name	Direction

Set the following Items:

value	text
like;direction_id;inbound	Inbound
like;direction_id;outbound	Outbound

value	settings
Parameter	CIP view state parameter
Display Name	Crime In Progress

Set the following Items:

value	text
like;crime_in_progress;Critical	Critical
like;crime_in_progress;Non CIP	Not in Progress
like;crime_in_progress;Non Critical	Not Critical
like;crime_in_progress;Serious	Serious

value	settings
Parameter	Car Accident view state parameter
Display Name	Number of Car Accidents

Set the following Items:

value	text
=;caracccnt;0	None
=;caracccnt;1	One
=;caracccnt;2	Two
=;caracccnt;3	Three
=;caracccnt;4	Four
=;caracccnt;5	Five

Drop Down List

Drop Down List is a self-contained dropdown component. Assign the filter view state parameter to Selected Value property listed under Basics. Define Items as for data form.

Further Reading

Click a link below to learn more about the following:

• View (Dashboards) components

• Data Grids

• Data Forms

• Date Pickers

• Filtering

• Highlight rules

• Actions

• Custom templating

• Drop downs
