Packaging quickstart

By the end of this quickstart section you will be able to:

  1. Create a package locally that contains a pipeline and a database
  2. Upload and deploy the package to kdb Insights Enterprise
  3. Manage the package in the kdb Insights Enterprise UI
  4. Add a UDF to the package and use it in the kdb Insights Enterprise UI
  5. Add a User Defined Analytic (UDA) to the package and use it in the kdb Insights Enterprise UI

Deploy a database and pipeline

Create the package locally

To create a local package that contains a pipeline to inject 100 random floats between 0 and 100 and writes them to the database follow the steps below:

  1. Set your package path:

    This can be done in configuration to avoid this step.

    export KX_PACKAGE_PATH=docs-packages/packages
export KX_ARTIFACT_PATH=docs-packages/artifacts
mkdir -p $KX_PACKAGE_PATH
mkdir -p $KX_ARTIFACT_PATH

  2. Create a package that contains a database and a single table:

    export PKG=mypackage
kxi package init ${PKG} --version 1.0.0
kxi package add --to ${PKG} database --name mydb
kxi package add --to ${PKG} table --name mytab

    Creating package at location: mypackage
Writing mypackage/manifest.yaml
Writing mypackage/manifest.yaml
Writing mypackage/manifest.yaml

    Default table definition.

    By default when a table is added to a package it is defined as a partitioned table with 2 columns: t1 :timestamp and x1:float.

    This is all that is required for the quickstart, but if you wish to update the table you can edit the tables/mytab.yaml file.

  3. Add query components:

    kxi package add --to $PKG router
kxi package add --to $PKG agg
kxi package add --to $PKG rc

    Writing mypackage/manifest.yaml
Writing mypackage/manifest.yaml
Writing mypackage/manifest.yaml

  4. Add a pipeline to inject 100 random floats between 0 and 100:

    kxi package add --to ${PKG} pipeline --name mypipeline
cat << EOF > ${PKG}/src/mypipeline.q
demodata: ([] t1: 100#2024.03.15D00:00:00; x1: 100?100.0)
.qsp.run
        .qsp.read.fromExpr["demodata"]
        .qsp.write.toStream["mytab";"mypackage-mydb"]
EOF

    Writing mypackage/manifest.yaml

    Pipeline source file

    To change the source file of the pipeline you can modify the spec field in pipelines/mypipeline.yaml in your package.

  5. Check your package contains all the expected components:

    kxi package info ${PKG}

    ==PATH==
/builds/kxdev/documentation/insights/mypackage

==OBJECT==
Package

==Manifest==
uuid: 12992690-0683-49c2-93cf-b83402278d65
name: mypackage
version: 1.0.0
metadata:
  description: ''
  authors:
  - {}
entrypoints:
  default: init.q
tables:
  mytab:
    file: tables/mytab.yaml
databases:
  mydb:
    dir: databases/mydb
    shards:
    - mydb-shard
    tables: []
pipelines:
  mypipeline:
    file: pipelines/mypipeline.yaml
router: router/router.yaml

Upload and deploy the package

To upload the package to kdb Insights Enterprise follow the steps below:

  1. Pack the package. Making sure to define the version of the package on the command line.

    kxi package packit ${PKG} --version 1.0.0 --tag

    Refreshing package before packing...
Creating package from mypackage
Package created: /tmp/artifact_store/mypackage-1.0.0.kxi
mypackage-1.0.0.kxi
    packit creates .kxi package and writes it to KX_ARTIFACT_PATH.

  2. List the current .kxi packages available locally in KX_ARTIFACT_PATH.

    kxi package list --artifacts

    {
    "mypackage": [
        {
            "fields": {},
            "version": "1.0.0"
        }
    ]
}

  3. List the currently available packages on kdb Insights Enterprise:

    kxi package remote-list

    {}

    Currently there are no packages available.

  4. Push your package to kdb Insights Enterprise:

    kxi package push ${PKG}/1.0.0

    {
  "mypackage": [
    {
      "version": "1.0.0",
      "_status": "InstallationStatus.SUCCESS"
    }
  ]
}

  5. Re-run the remote-list command. Your new package now appears in this list:

    kxi package remote-list

    {
  "mypackage": [
    "1.0.0"
  ]
}

    At this stage, your package is uploaded to kdb Insights Enterprise and the database and pipeline will be visible in the UI.

  6. Deploy the package to ingest the data into the database:

    kxi package deploy $PKG/1.0.0

Manage the package in the UI

If you log into your kdb Insights Enterprise instance you can:

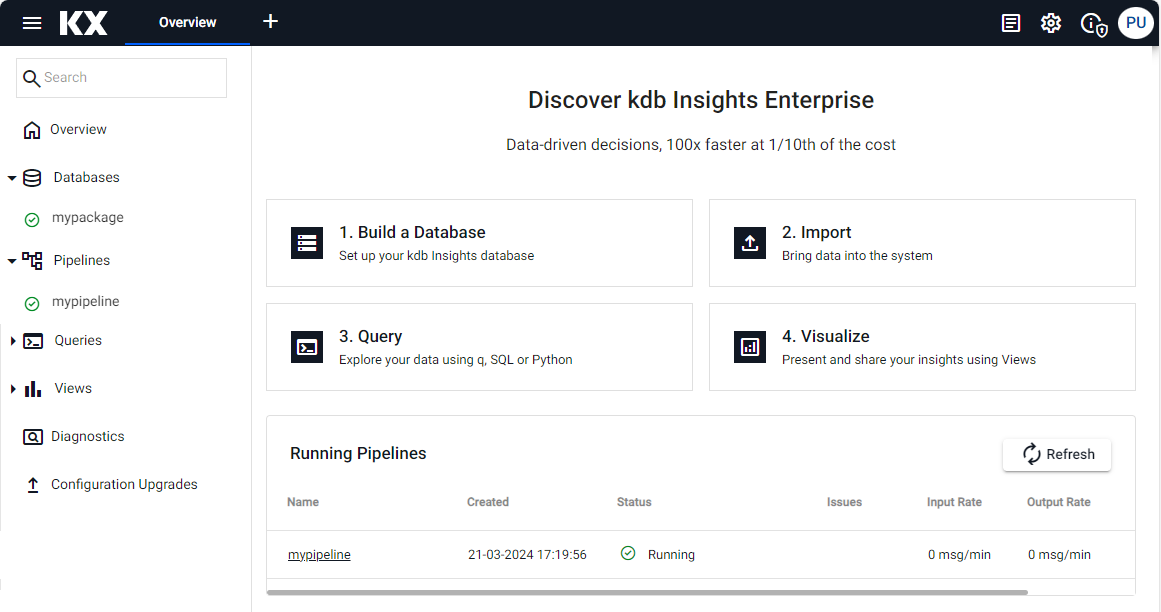

  • See mypackage and mypipeline are displayed in the left-hand menu as shown below.

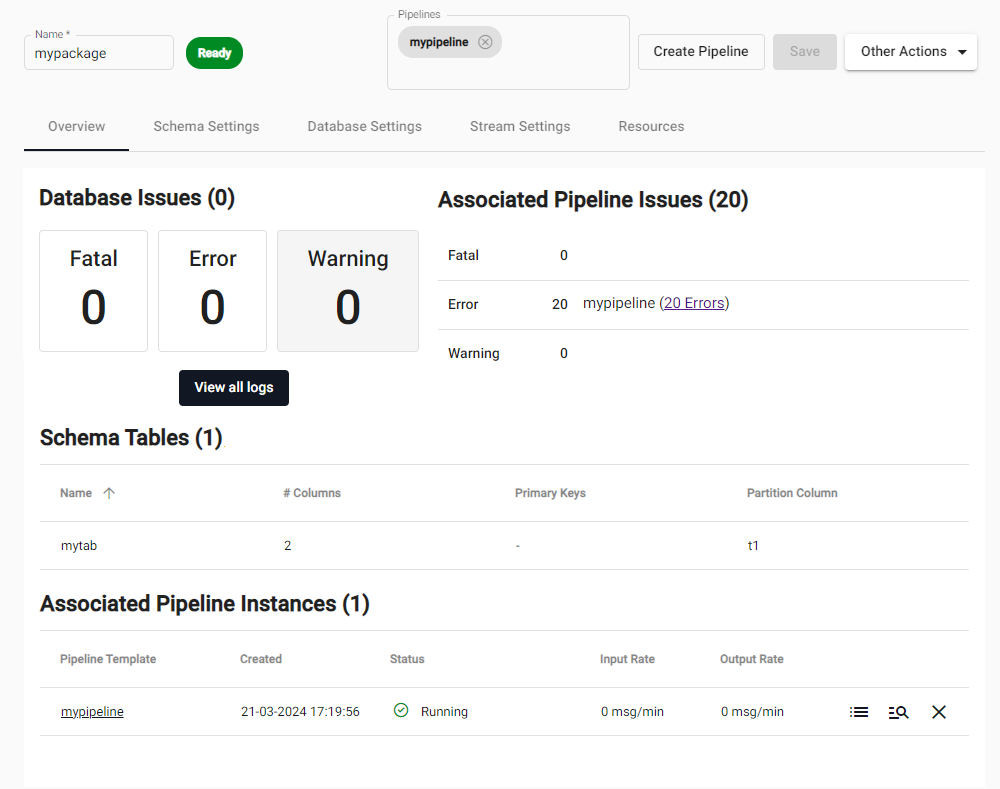

  • View the database details, make modifications and redeploy via the UI.

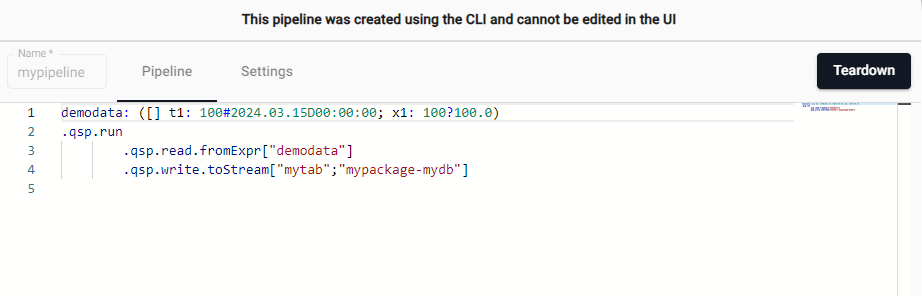

  • View the pipeline details, make modifications to the pipeline settings and redeploy via the UI.

    Managing pipelines that are defined using q or Python via the CLI.

    Currently if a pipeline specification is defined via the CLI using q or Python code, rather than using the Pipeline Editor in the UI, you cannot edit the code in the UI only the pipeline settings."

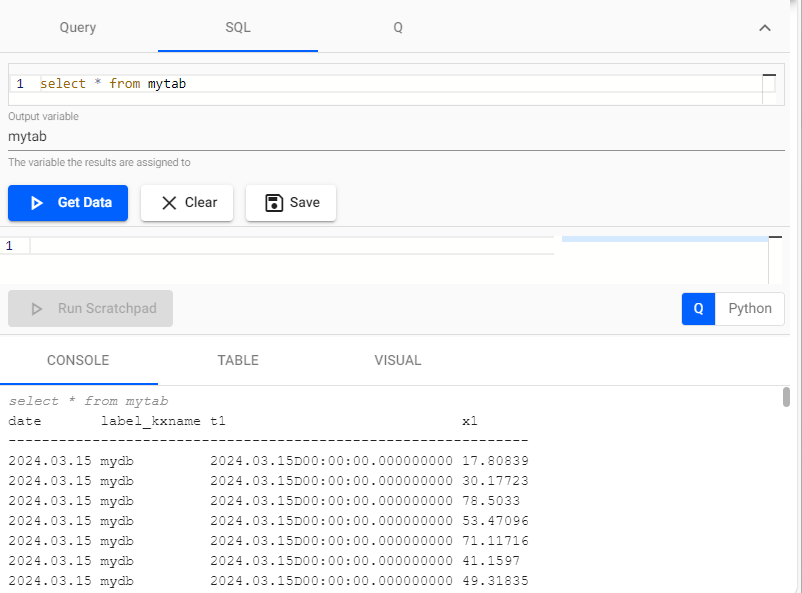

  • Query the data in the database using the Query Window.

Add a UDF

In this quickstart section, you will add a UDF to the package that only returns the values where the columns x is less than 10.

Update the local package

To add a UDF to the package take the following steps:

  1. Create a file src/myudf.q within the mypackage directory that will contain the UDF.

    This file contains a UDF.

    cd ${PKG}
mkdir -p src/

cat << EOF > src/myudf.q
// @udf.name("sp_map")
// @udf.tag("sp")
// @udf.category("map")
.test.sp.map:{[table;params]
    select from table where x1<10
 }
EOF
cd ..

    The decorators @udf.* ensure that it will be listed as one of the UDFs available for use in the Map function of the Pipeline Editor and named sp_map.

  2. Modify the init.q file which is your default entrypoint in order to ensure that your new file gets loaded by default.

    cd ${PKG}
cat << EOF > init.q
// Load the src/myudf.q file relative to package root
.kxi.packages.file.load["src/myudf.q"]
EOF
cd ..

  3. Check your package:

    kxi package info ${PKG}

    ==PATH==
/builds/kxdev/documentation/insights/mypackage

==OBJECT==
Package

==Manifest==
uuid: 12992690-0683-49c2-93cf-b83402278d65
name: mypackage
version: 1.0.0
metadata:
  description: ''
  authors:
  - {}
entrypoints:
  default: init.q
tables:
  mytab:
    file: tables/mytab.yaml
databases:
  mydb:
    dir: databases/mydb
    shards:
    - mydb-shard
    tables: []
pipelines:
  mypipeline:
    file: pipelines/mypipeline.yaml
router: router/router.yaml

    The local package now includes a new udf myudf.

Update and deploy the package

To update the package created in the previous section in kdb Insights Enterprise follow the steps below:

  1. Teardown the currently deployed package.

    kxi package teardown ${PKG}

  2. Deploy the updated package:

    kxi package packit $PKG --version 1.0.0 --tag
kxi package push $PKG/1.0.0 --force
kxi package deploy $PKG/1.0.0

Use the UDF

If you log into your kdb Insights Enterprise instance you can now leverage your code in the UI in the following ways:

  • List and load the content of a package within a Query session.

    // List all packages
.kxi.packages.list.all[]

// Load the package
.kxi.packages.load["mypackage";"1.0.0"]

// View the populated context from the package
.test

// List all available UDFs
.kxi.udfs.list.all[]

    ScratchpadListLoad

  • Using the UDF within a scratchpad.

    ScratchpadSPUDF

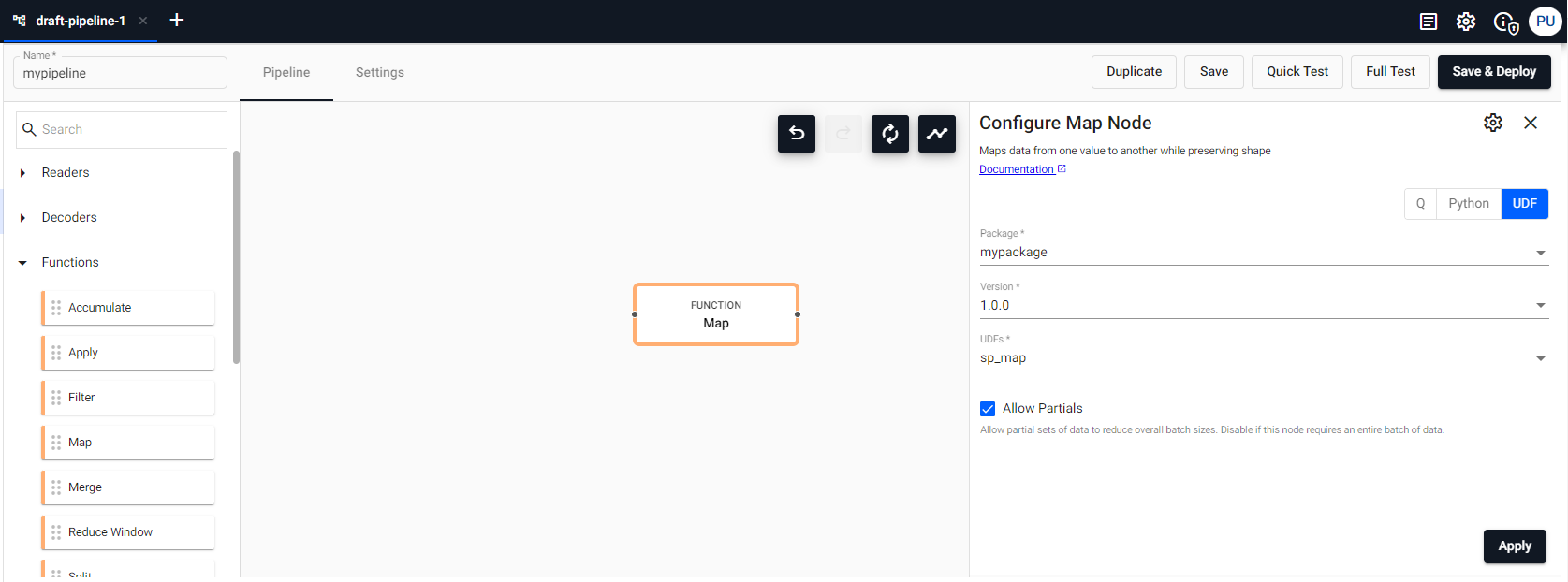

  • Use the UDF in a Function node within a Pipeline Editor.

    PipelineUDF

Use a UDA

In this quickstart section, you will add a UDA to the package that multiplies a selected column by a multiplier and returns the original data and a running average of the multiplied column.

Update the local package

To add a UDA to the package defined in the previous section, take the following steps:

  1. Add an entrypoint and the custom code to be used when querying the database, this is done by the Data Access processes. The code multiplies the selected column by the specified multiplier and registers the UDA:

    kxi package add --to $PKG entrypoint --name data-access --path src/da.q
cat << 'EOF' > $PKG/src/da.q
.example.daAPI:{[table;column;multiplier;startTS;endTS]
    data:.kxi.selectTable[table;(startTS;endTS);();0b;enlist column;()!()];
    res:?[data;();0b;`original_col`multiplied_col!(column;(*;column;multiplier))];
    (multiplier;res)
    };

metadata:.kxi.metaDescription["Example UDA"],
    .kxi.metaParam[`name`type`isReq`description!(`table;-11h;1b;"Table to query")],
    .kxi.metaParam[`name`type`isReq`description!(`column;-11h;1b;"Column to multiply")],
    .kxi.metaParam[`name`type`isReq`description!(`multiplier;-7h;1b;"Multiplier")],
    .kxi.metaParam[`name`type`isReq`description!(`scope;-99h;0b;"Workaround")],
    .kxi.metaReturn[`type`description!(98h;"Result of the UDA")],
    .kxi.metaMisc[enlist[`safe]!enlist 1b]

.kxi.registerUDA `name`query`metadata!(`.example.daAPI;`.example.daAPI;metadata);
EOF

    Writing mypackage/manifest.yaml
    For more information on registering a UDA, refer to the Register the UDA documentation.

  2. Add an entrypoint and the custom code to be used when aggregating the data, this is done by the Aggregator. The code calculates the running average of the multiplied column returned when querying the database and registers the UDA:

    kxi package add --to $PKG entrypoint --name aggregator --path src/agg.q
cat << 'EOF' > mypackage/src/agg.q
.example.aggAPI:{[tbls]
    razed:raze last each tbls;
    res:select original_col, multiplied_col_avg: avgs multiplied_col from razed;
    .kxi.response.ok res
    };

.kxi.registerUDA `name`query`aggregation`metadata!(`.example.daAPI;`.example.daAPI;`.example.aggAPI;());
EOF

    Writing mypackage/manifest.yaml
    When registering your aggregation function, you can define the UDAs for which this aggregation function should be the default. Here .example.daAPI from step 1 has been specified. See other examples of registering a UDA here

  3. Add the environment flags to the package specification to ensure the entrypoints are loaded:

    kxi package add --to $PKG deployment-config
echo "env: [{name: KXI_PACKAGES, value: mypackage:1.0.0}]" > $PKG/deployment_config/deployment_config.yaml

    Writing mypackage/manifest.yaml

    The local package now includes a new UDA daAPI.

Upload and deploy the package

To update the package follow the steps below:

  1. Teardown the currently deployed package.

    kxi package teardown ${PKG}

  2. Deploy the package:

    kxi package packit $PKG --version 1.0.0 --tag
kxi package push $PKG/1.0.0 --force
kxi package deploy $PKG/1.0.0

Create a View

To create a View that uses the UDA, follow the instructions below:

  1. Log into your kdb Insights Enterprise instance.
  2. Create a new View by selecting the plus icon at the top toolbar and select View.

  3. Upload the ready-made View:

    1. Click on the link here to display a JSON representation of the ready-made View in a new browser window.
    2. Select all the text in the new browser window and copy it into an empty text file using the editor of your choice.
    3. Save the file on your local machine. You must use a .json extension for this file.
    4. Drag the file over the View. When the workspace is highlighted in blue and Drop Dashboards to Import is displayed in the center of the workspace, release the file. The ready-made View mypackage-view is now displayed in a new tab. This View displays a grid that includes two columns, the original value from the demo data and a running average of the column multiplied by 7.

  4. To modify the multiplier that is used to select the values:

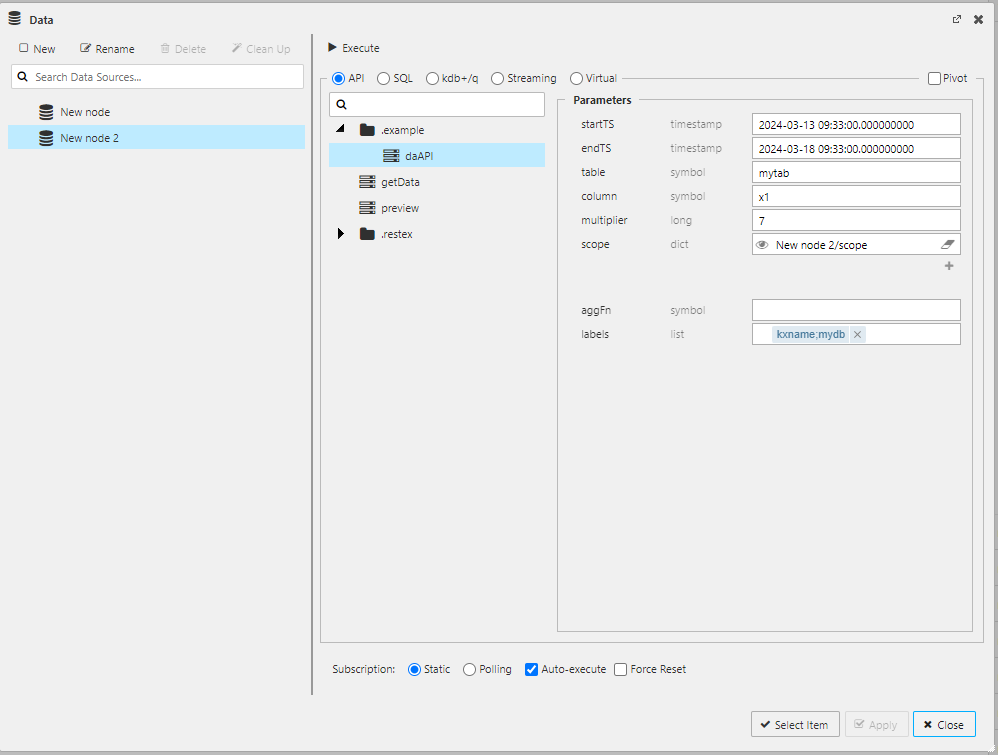

    1. With the Data Grid selected in the new View, open the Data Source and choose the mypackage-node Data Source from the list on the left-hand side.
    2. Expand the .example node to display the daAPI UDA.

    1. Update the multiplier value from 7 to any value you wish.

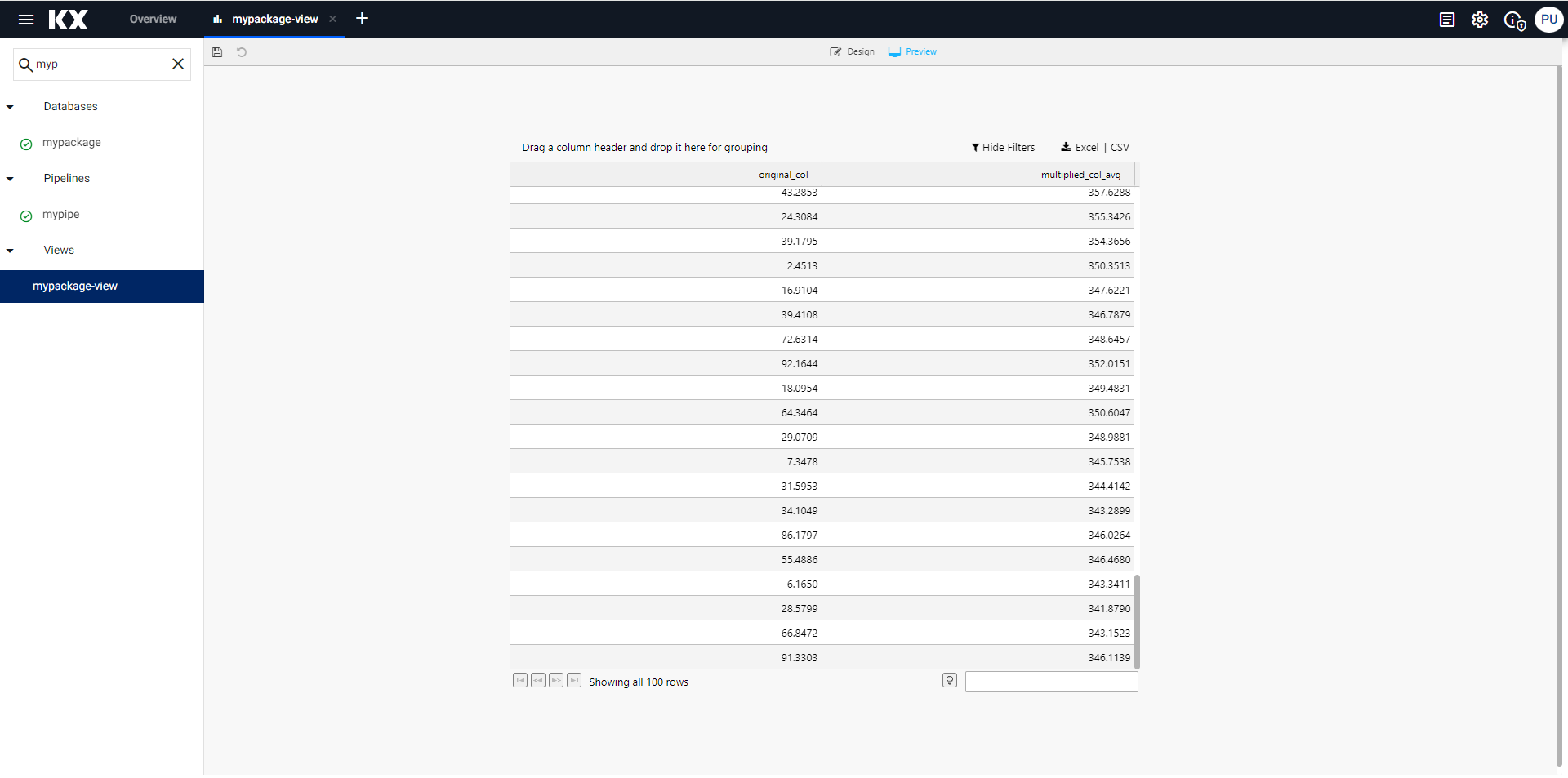

    2. Select Apply and then Select Item to update the Data Grid with the new multiplier.

Querying over HTTPS

You can also call your UDA via REST by supplying the UDA parameters.

  1. Authenticate to your kdb Insights Enterprise:

    INSIGHTS_TOKEN=`curl -s --header "Content-Type: application/x-www-form-urlencoded" \
    -d "grant_type=client_credentials&client_id=$INSIGHTS_CLIENT_ID&client_secret=$INSIGHTS_CLIENT_SECRET" \
    "${INSIGHTS_URL}/auth/realms/insights/protocol/openid-connect/token" | jq -cr ".access_token"`

    This example requires the following parameters: INSIGHTS_URL, INSIGHTS_CLIENT_ID and INSIGHTS_CLIENT_SECRET

  2. Run the REST request calling your daAPI UDA and storing the returned data:

    DATA=`curl -s -X POST "${INSIGHTS_URL}/servicegateway/example/daAPI" \
    -H "Content-Type: application/json" \
    -H "Accept: application/json" \
    -H "Authorization: Bearer $INSIGHTS_TOKEN" \
    -d "$(jq -n \
        '{
            table       : "mytab",
            column      : "x1",
            multiplier  : "3",
            startTS     : "2024.03.14D00:00:00",
            endTS       : "2024.03.16D00:00:00",
            scope       : { "assembly" : "mypackage" }
        }' | jq -cr .)"`

  3. Display the resulting data:

    echo $DATA | jq -cr '.payload'
[{"original_col":17.80839,"multiplied_col_avg":53.42516},{"original_col":30.17723,"multiplied_col_avg":71.97842},...

Remove a package

To remove the package created in this quickstart from kdb Insights Enterprise, run the following command:

kxi package teardown $PKG/1.0.0 --rm-data
kxi package remote-remove $PKG/1.0.0 --force

{
  "mypackage": [
    {
      "_status": "DELETED",
      "version": "1.0.0"
    }
  ]
}

remote-remove

remote-remove by default removes the packages but not the .kxi package file.

To clear the .kxi files run:

kxi package remote-remove --artifacts ${PKG}/1.0.0 --force

{
  "mypackage": [
    {
      "_status": "DELETED",
      "version": "1.0.0"
    }
  ]
}

You can also remove your locally stored packages and .kxi files in a similar way:

kxi package uninstall $PKG/1.0.0 --force && kxi package uninstall --artifacts $PKG/1.0.0 --force

{}
{
    "mypackage": [
        {
            "_status": "DELETED",
            "version": "1.0.0"
        }
    ]
}
