Registration workflows

Basic authentication flow

A plain text username and password. Underlying library base64 encodes "user:pass".

.kurl.register (`basic; domain; tenant; `user`pass!(user; pass))

Example:

.kurl.register (`basic; "http://localhost"; .z.u; `user`pass!(.z.u;"password"))
.kurl.sync ("http://localhost/v1/service?test=1";`GET;``tenant!(::;.z.u))

OAuth2 authentication flow

When building a new application to use single sign on (SSO), you may create a client ID and client secret in an identity provider’s online portal.

You will use the information you specify in the portal, along with generated IDs returned by the portal, to create an OAuth2 client specification that you may package with your application.

When you start up your application, you may start a login flow using Kurl’s helper .kurl.oauth2.startLoginFlow. Kurl will automatically start a worker process called ‘the sidecar‘ on your machine using the port specified in your OAuth2 client specification.

When asked for a redirection URI, include a redirection URI http://localhost:port, where the port is any number you want to use on your local machine.

The sidecar will open a browser window at the authentication endpoint listed in your client specification.

You will then type in your user account information and sign into the authentication endpoint. After successfully logging in, by using HTTP redirects, your Web browser will return a token response back to the Kurl library. Your personal credentials are never passed through Kurl, or returned to us by the browser. The browser gives us only tokens that can be used on your behalf.

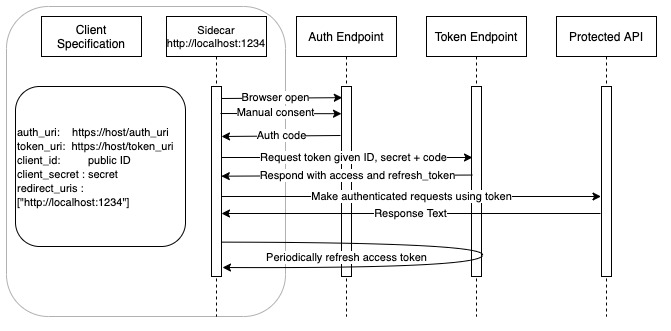

An OAuth2 login flow:

OAuth2 Authentication Flow Diagram

The entire OAuth2 Login flow process can be thought of as requesting and getting an access token.

Expected server response

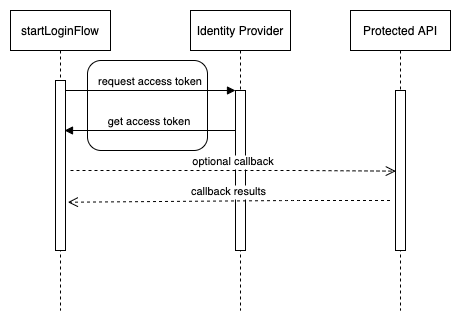

Kurl’s startLoginFlow can be visualized as a simple callback that triggers after getting an access token.

Start Login Flow Diagram

Several minutes prior to the expiration of the access token, Kurl makes a request to the token URI endpoint using the refresh token to acquire a new access token.

OAuth2 client specification

OAuth2 clients must provide the following information. Key names are chosen to match Google’s downloadable JSON; if using something else, make the keys match.

client_id       10h    OAuth2 Client ID
client_secret   10h    OAuth2 Client Secret
auth_uri        10h    SSO providers Authentication endpoint (GET)
token_uri       10h    SSO providers Token endpoint (POST)
redirect_uris   0h     list of permitted URLs to redirect authentication response to

When providing a specification to Kurl, pass in a dictionary with the above information.

Optionally, you may set the ENV KX_OAUTH2_CLIENT_JSON to a path to a JSON file that has the above specification, and Kurl will read that file in, if the dictionary is left blank.

An example JSON client specification is below: Note the extra "web" key. The title here is not important to Kurl, however for ease of use with Google for SSO we will look under whatever the "first" key is, because Google inserts a key.

{
  "web":{
    "client_id"     : "redacted",
    "auth_uri"      : "https://accounts.google.com/o/oauth2/auth",
    "token_uri"     : "https://oauth2.googleapis.com/token",
    "client_secret" : "redacted",
    "redirect_uris" : ["http://localhost:1234"]
  }
}

When using Azure or other services, the auth_uri and token_uri may contain identifiers within the URLs themselves

OAuth2 Login API

Calling the following API will start the login flow:

.kurl.oauth2.startLoginFlow[domain;client;overrides;callback]
value type desc example
domain 10h wildcard for when to use stored information "*.googleapis.com"
spec 99h (or env var) OAuth2 client specification see OAuth2 Client Specification
overrides 99h optional values for authentication `scope`access_type`prompt!("openid email";"offline";"consent")
callback 100h/104h callback allows you to make a following request {[tenant; auth_response] }

The domain is a wildcard that matches requests endpoints the login will be valid for. It is not the domain of the OAuth2 endpoint. The OAuth2 endpoint should be in the client specification.

Note

In the event of a successful login, the auth_response will be a dictionary, else an error message.

OAuth2 standard access token response

OAuth2 servers should return a standard response.

Kurl supports only token_type Bearer, and expects the content to be JSON.

Kurl looks for the following JSON values.

access_token
expires_in      optional, if present must be in seconds
refresh_token   optional

Handling non-standard access token responses

If a server or utility does not return the following keys in JSON, (spelled exactly as follows), you must provide the key names to .kurl.register so it knows how to map the response.

access_token
expires_in      optional, if present must be in seconds
refresh_token   optional

For example, suppose we have a utility that prints an access token in camel case. This is a practical example Kurl handles when using the access tokens for an existing Azure CLI login.

$ az account get-access-token
{
  "accessToken": "token value here",
  "expiresOn": "2021-01-10 17:48:18.766268",
  "subscription": "b574a496-8d3e-4430-b935-19c579ebcc9a",
  "tenant": "95451270-5f0c-4cee-9d65-1473e3f04320",
  "tokenType": "Bearer"
}

Kurl offers the following optional keys for registering non-standard token responses. These keys should be inserted into the authInfo of a registration input.

All values are symbols or strings, excluding expires_onformat_len, which should be a positive number.

access_token_key     title for access_token
refresh_token_key    title for refresh_token
expires_in_key       title for expires_in
expires_on_key       title for expires_on
expires_on_format    date format string acceptable by strptime()
expires_on_len       maximum length of expires_on to scan

These values tell Kurl the JSON key names to use when refreshing OAuth2 tokens.

In our above example, Kurl would need the following ‘corrections’.

rawresponse:`accessToken`expiresOn!
  ("token value here"; "2021-01-10 17:48:18.766268")

kys:`access_token_key`expires_on_key`expires_on_format`expires_on_format_len
corrections:kys!("accessToken"; "expiresOn"; "%Y-%m-%d %H:%M:%S"; 19 )

authInfo: rawresponse , corrections

Using the above corrections allows Kurl to maintain tokens that need to be refreshed now that it knows the titles to use.

OAuth2 authentication flow with QPacker

When using QPacker with the OAuth2 login flow, ensure the ports of your redirect_uri are accessible from outside the container running Kurl.

For example, if your client specification file contains the following

{
  "web":{
    "client_id"     : "redacted",
    "auth_uri"      : "https://accounts.google.com/o/oauth2/auth",
    "token_uri"     : "https://oauth2.googleapis.com/token",
    "client_secret" : "redacted",
    "redirect_uris" : ["http://localhost:1234"]
  }
}

then the sidecar will listen on port 1234 and this port must be exposed by the container running kurl.

Example of this using Docker:

# Build and tag a container image containing kurl
qp build myapp
qp tag myapp 0.0.1

# Run the image including qp environment variables and expose port 1234
docker run --env-file=qpbuild/.env -it --rm -p 1234:1234 myapp:0.0.1

You may also need to mount the folder containing your client specification file into the running container so that kurl can access it.

Remote OAuth2 authentication flow

If you are running Kurl on a machine remotely and want to use OAuth2 then you need to specify the redirect URI as part of the overrides dictionary parameter.

For example, if you are running kurl on a VM called test.codekx.com and want to run the sidecar on port 1234 this could be specified as

.kurl.oauth2.startLoginFlow[
  "*.googleapis.com";
  `:client.json;
  `access_type`prompt`redirect_uri!
        ("offline";"consent";"http://test.codekx.com:1234");
  {[tenant;auth] show tenant} ]

This value must be an authorized redirect URI. These are generally specified in the developer’s console of the identity provider.

For Development

This workflow will expose your machines IP to the web, it is not recommended for production use.

For production systems, other authentication methods that rely on system indenties, not user indenties should be used.

AWS authentication

AWS authentication requires an access key ID, secret access key, and a token, if one was provided.

These values can be sourced from various AWS services, environment variables, or disk.

Capitalized names must exactly match AWS response case and spelling. Lowercase values are used by Kurl and named for consistency between authentication types.

Using temporary security credentials with the AWS CLI

AccessKeyId

Amazon Key ID, required

e.g. getenv `AWS_ACCESS_KEY_ID

Expiration

String of form "%Y%m%dT%H%M%SZ", optional

e.g. "2020-12-09T23:59:00Z"

SecretAccessKey

Key Secret (required)

e.g. getenv `AWS_SECRET_ACCESS_KEY

Token

Token for Refresh endpoint, required

e.g. getenv `AWS_SESSION_TOKEN

initial_sts_response

Initial XML response returned by STS; required only if using Amazon Secure Token Service (STS)

e.g. Example STS response

url

URL for library to ask to generate next access key; required only if Expiration is specified

e.g. "http://169.254.169.254/latest/meta-data/iam/security-credentials/rolename"

web_token_file

Filename where Amazon updates web token, used by Kubernetes pod integration; required only if using Amazon Secure Token Service (STS)

e.g. getenv `AWS_WEB_IDENTITY_TOKEN_FILE

AWS instance metadata service

If you are logged into an EC2 instance, and have assigned an IAM role to an EC2 instance when creating the instance, Kurl will automatically discover the temporary access credentials.

For listing a EC2 instances metadata, refer to retrieving instance metadata

Kurl stores the following information, and you may consider Kurl’s relationship with the VM instance read-only.

The VM is responsible for rotating access tokens, and Kurl is simply pointing at the value, and reloading the information prior to expiry.

{
  "Code" : "Success",
  "LastUpdated" : "2020-12-09T17:30:48Z",
  "Type" : "AWS-HMAC",
  "AccessKeyId" : "redacted",
  "SecretAccessKey" : "redacted",
  "Token"      : "redacted",
  "Expiration" : "2020-12-09T23:59:00Z"
}

AWS user environment

AWS environment variables are one of the authentication inputs automatically registered by the library.

AWS_ACCESS_KEY_ID
AWS_SECRET_ACCESS_KEY
AWS_SESSION_TOKEN

AWS STS WebTokens

If you are logged into a Kubernetes pod, the library will automatically use AWS_ROLE_ARN and AWS_WEB_IDENTITY_TOKEN_FILE if they are available.

Introducing fine-grained IAM roles for service accounts

Google Cloud Platform authentication

GCP Instance Metadata Service

If you are logged into an Google Cloud Platform VM instance, and have assigned a service account to the VM instance, Kurl will automatically discover the temporary access credentials.

Listing a VM instances metadata for manual inspection

Kurl stores the following information, and you may consider its access to the VM instance as read-only.

The VM is responsible for rotating access tokens, and Kurl is simply pointing at the value, and reloading the information prior to expiry.

access_token

OAuth2 Access Token, see example below

expires_in

Expiry in number of seconds, e.g. 2944

headers

"Metadata-Flavor: Google" header, e.g.

enlist[`$"Metadata-Flavor"]!enlist "Google"

method

GET, needed to tell Kurl this is not a typical POST endpoint, e.g. `GET

token_uri

Instance metadata URL e.g.

"http://metadata.google.internal/computeMetadata/v1/instance/service-accounts/default/token"

GCP user environment

If you have installed the Google Cloud CLI Gcloud, the Kurl library will automatically use your Cloud CLI login.

Install the Google CLI

Use gcloud auth login to sign in to Google.

If you are signed in, Kurl will use the following system command to get your login token.

gcloud auth print-access-token

GCP single signon

Using Google for single signon can be done by having an administrator create a OAuth2 Client ID in Google Cloud Platform.

When created, download the client JSON, and use OAuth2.

GCP Identity-Aware Proxy

For access to a REST server protected by Google Cloud Platforms Identity-Aware Proxy (IAP) refer to:

Enabling IAP
Programmatic Authentication to IAP
GCP Identity Aware Proxy example

IAP uses the JSON Web Token (JWT) extension for OAuth2: RFC 7519.

Using IAP makes initial requests to sign in as above, followed by a request from the signed-in user to access the application.

The initial request to login has no relationship to IAP

You are logging in first, accepting an agreement, and then requesting IAP access afterwards, which generates a JWT token.

Kurl provides a built-in convenience function for making this follow-up request to get the JWT token for an IAP service .kurl.oauth2.grantAudience.

audience: "IAP ID"
baseurl: "your https IAP URL"
.kurl.oauth2.startLoginFlow[
  "https://openidconnect.googleapis.com";
  spec;
  `scope`access_type`prompt!("openid email";"offline";"consent");
  .kurl.oauth2.grantAudience[audience; baseurl; client; callback;] ]

Server domain

Unlike first-party apps, the domain is openidconnect.googleapis.com instead of the server you ultimately want to access.

The server you want to access is specified to the grantAudience callback as the baseurl parameter.

Azure authentication

Azure user environment

If you have installed the Azure CLI az, the Kurl library will automatically use your CLI login.

Use az login to sign in to Azure.

If you are logged into the Azure CLI, Kurl will grant itself several access tokens.

At the time of writing this covers all Azure services that support Active Directory

az account get-access-token --resource https://management.azure.com
az account get-access-token --resource https://vault.azure.net
az account get-access-token --resource https://datalake.azure.net
az account get-access-token --resource https://database.windows.net
az account get-access-token --resource https://eventhubs.azure.net
az account get-access-token --resource https://servicebus.azure.net
az account get-access-token --resource https://*.asazure.windows.net
az account get-access-token --resource https://storage.azure.com

If you want to modify the list Kurl uses set KX_KURL_AZURE_AD_RESOURCES to a space-separated list of URLs.

export KX_KURL_AZURE_AD_RESOURCES="https://management.azure.com https://vault.azure.com"

Azure Instance Metadata Service

If you are logged into an Azure VM instance, and have assigned a managed identity to the VM instance, Kurl will automatically discover the temporary access credentials.

For setting up a VM instance to use a managed identity see the following:

How to use managed identities for Azure resources on an Azure VM to acquire an access token
Managed identity

Azure Active Directory

Authentication to Azure to access most services can be done by setting up an Azure Active Directory tenant to use OAuth2, and registering with Kurl.

OAuth2 Login API
OAuth2 client specification

Some services may support either SharedKey or OAuth2, such as Azure Storage.

How to optionally use AD
Azure services that support Azure AD authentication

Azure API management

For access to a REST server protected by Azure API management:

Protect a web API backend
Azure API Management Example

When using Azure as the service provider and the identity provider, login is the same as the first-party case.

If you have enabled the Subscription ID option for the Azure API Management service, you must specify the ID when making sync or async requests.

You can find the querystring name and header name for where to specify the ID under the API Settings > Subscription.

In the console these are displayed with the following defaults

Header name             Ocp-Apim-Subscription-Key
Query parameter name    subscription-key

// Example joining on query string
.kurl.sync (url,"?subscription-key=xyz";`GET;::)

Subscription ID

The subscription ID under API > Subscriptions is not the same as the Subscription ID for your entire organization or company.

It is a subscription ID unique to the client who subscribed to the application.

Azure shared key

A select few Azure services support Header Signing V2 and require a shared key for access, e.g. Azure Storage and Azure Monitor (Logging).

Shared keys allow an application to access a resource and its contained entities. It does not allow general access to the Azure platform.

Providing a shared key is done by calling .kurl.register.

If you wish to register against a single storage account, a simpler ENV var approach can be used.

When registering, two lists of headers need specifying:

sign_headers

custom x-ms- headers Azure wants listed, typically called CanonocalizedHeaders variable in examples

sign_values

standard HTTP header names Azure wants the values signed for, typically part of the StringToSign in examples

The headers and values differ for each service:

Azure Monitor Authentication
Azure Storage

Why does Kurl not detect and supply these for you? It is because some headers are optionally omitted from authentication, and we cannot determine what headers Microsoft intends to be required and what are not.

value desc example
account_name alias for ID, the Storage account ID
(only applies to storage)		 copy from Azure Storage account
id Logging workspace ID, Storage account ID, etc. see below
shared_key Azure shared key copy from Azure
(called Primary or Secondary key)
sign_values string list of standard headers to include in authentication ("Content-Length";"Content-Type")
sign_headers string list of CanonocalizedHeaders enlist "x-ms-date"
workspace_id alias for ID, the Logging workspace ID
(only applies to logging)		 copy from Azure Logging workspace

To use an Azure service that supports header signing that is not Logging or Storage, use id

Authorization: SharedKey <id will be here in Azure documentation>:<Signature>

Azure SharedKey for Logging

Azure SharedKey for Storage

Azure shared key single storage account

You may set environment variables AZURE_STORAGE_ACCOUNT and AZURE_STORAGE_SHARED_KEY to have kurl perform registration, on your behalf, instead of explicitly calling .kurl.register. Setting these variables has the same effect as calling register like so:

    account:getenv `AZURE_STORAGE_ACCOUNT;
    sk:getenv `AZURE_STORAGE_SHARED_KEY;
    sign_headers:("x-ms-date"; "x-ms-version"; "x-ms-blob-type"; "x-ms-copy-source");
    sign_values:("Content-Encoding";"Content-Language";"Content-Length";"Content-MD5"; "Content-Type");
    sign_values,:("Date"; "If-Modified-Since"; "If-Match"; "If-None-Match"; "If-Unmodified-Since"; "Range");
    credInfo:`account_name`shared_key`sign_headers`sign_values!(
        account;
        sk;
        sign_headers;
        sign_values);
    uri:"https://",account,".blob.core.windows.net";
    .kurl.register (`azure; uri; ""; credInfo);

If you wish to communicate with multiple storage accounts, then you should see the above section on shared keys.

If you intend to use any x-ms- headers other than x-ms-date, x-ms-version, x-ms-blob-type, x-ms-copy-source, you must register manually, and update sign_headers accordingly.
