Routing

This page describes the logic by which the Resource Coordinator (RC) distributes a request across one or more Data Access Processes (DAPs).

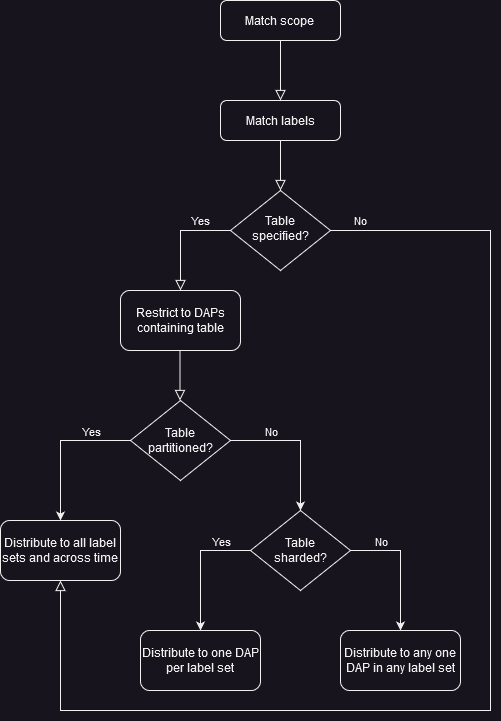

Routing flowchart

The following flowchart gives a high-level overview of the RC's routing logic. Each node in the flowchart is described in detail in the sections below.

routing flowchart

Distinguished parameters

kdb+ Insights reserves distinguished parameters that, unless otherwise specified, affect routing. The parameters are referenced throughout this page, but we summarize them here for convenience.

parameter description
labels A dictionary describing DAP labels to target. See Match labels.
scope A dictionary describing what RC and/or DAPs to target. See scope.
startTS Inclusive start time of the request. See Time.
endTS Exclusive end time of the request. See Time.
inputTZ Timezone of startTS and endTS (default: UTC).
outputTZ Timezone of the final result (.kxi.getData only). No effect on routing.
table Table to target. See Table.

Match scope

If scope.assembly is not specified, this step is skipped. If scope.assembly is specified, then the RC restricts the request to only those DAPs whose assembly matches the assembly name specified by scope.assembly.

Match labels

The RC compares the requested labels to the labels of all its DAPs, and those of the DAPs of its peer RCs, to determine the list of candidate label sets for the request (see Purviews). If a requested set of labels is not covered by any assembly/DAP, the request fails (see Troubleshooting). Note the following:

  • Any label key not specified in the request arguments defaults to all known label values for that key under the specified label constraints. For example, suppose the known set of label keys in the RC is foo and bar with the following known values:

    foo bar
    a x
    a y
    a z
    b x
    b z

    If a request specifies labels:enlist[`foo]!enlist`a, but does not specify values for `bar, then the RC defaults `bar to `x`y`z. If a request, however, specifies labels:enlist[`foo]!enlist`b, then the RC defaults `bar to `x`z, because there is no `foo`bar!`b`y.

  • A request can specify multiple label values for each key. The candidate label sets are the cross product of the values. For example, if the request specifies labels:`foo`bar!(`a`b;`x`y`z), the candidate label sets are:

    foo bar
    a x
    a y
    a z
    b x
    b y
    b z

Once the candidate label sets are specified, the RC determines which ones to target based on the table parameter in the request arguments. See Table.

Note that if both labels and scope are specified, the RC filters DAPs based on both. In particular, if the requested labels do not match the specified assembly's labels, the request fails. It is therefore not advisable, nor necessary, to use labels if using scope.

Table

In the request arguments, table is a distinguished parameter. If included, the RC routes the request based on the specified table's properties. Firstly, it restricts candidate DAPs to only those that contain the specified table. Then, it checks the following properties from the assembly configuration file(s):

tables:
  myTable:
    type: partitioned # {partitioned|splayed}
    isSharded: true # {true|false} - Optional, default is false (non-partitioned tables only)
    # ...
  • If the table's type is partitioned, then the table is sharded across multiple label sets and distributed across multiple tiers (RDB/IDB/HDB). The RC distributes across all candidate label sets, and across time (i.e. tiers) within each label set (see Time).
  • If the table's type is not partitioned and isSharded is true, then the table is sharded across multiple label sets and replicated across DAPs within a set. The RC distributes across all candidate label sets, but chooses only one DAP per set among the feasible DAPs. If no DAPs are feasible for one or more label sets, those request portions are queued (see Queueing, retries, and timeouts), whereas portions of the request that have feasible DAPs are dispatched immediately.
  • If the table's type is not partitioned and isSharded is false, then the table is replicated across all DAPs that contain the table. The RC distributes the request to exactly one feasible DAP from any of the candidate label sets. If no DAPs are feasible, the request is queued (see Queueing, retries, and timeouts).

Note

You define table properties in each assembly's configuration file. For assemblies with the same label set, you must define table properties consistently for each table, otherwise errors may occur. For assemblies that share a table but have different label sets, there are no such restrictions, as this may be desirable in more complex set systems. Any query targeting a table across multiple assemblies that have different table properties will fail. See Troubleshooting for details.

If table is not specified in the request arguments, then the RC routes the request using the same strategy as for partitioned tables, i.e. it distributes across all candidate labels sets, and across time within each label set.

Time

If the request targets a partitioned table, or table is not specified in the request arguments, then the RC distributes the request across time within each label set. Time can be constrained using the startTS and endTS request parameters. If not specified, these default to -0Wp and 0Wp, respectively.

Within a label set, the RC aims to distribute the requested time range across DAPs while avoiding any overlaps (so as to not duplicate data in the response). It does this by doing the following iteratively:

  1. Intersect outstanding requested time interval(s) with time ranges from feasible DAPs.
  2. Of the DAPs with nontrivial intersection, choose the one with the largest intersection (if there are multiple largest, choose one at random).
  3. Remove assigned time interval(s) from outstanding interval(s).
  4. Repeat from step 1 until no time intervals remain or no feasible DAPs remain. If any time intervals remain, they are queued (see Queueing, retries, and timeouts).

The above process is illustrated in the following diagrams.

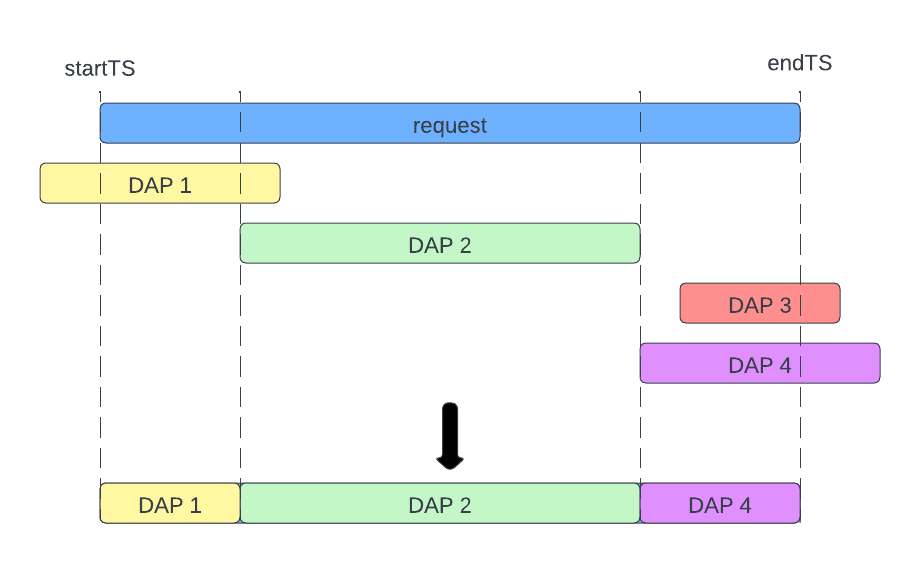

time-distribution-1

In this diagram, DAP 2 covers the largest interval of the request time range, so it is chosen first. DAP 1 is assigned whatever remains on the left. On the right, DAP 4 covers more of the request than DAP 3, so it is chosen to cover what remains of the request. The entire request can be assigned, and hence nothing needs to be queued.

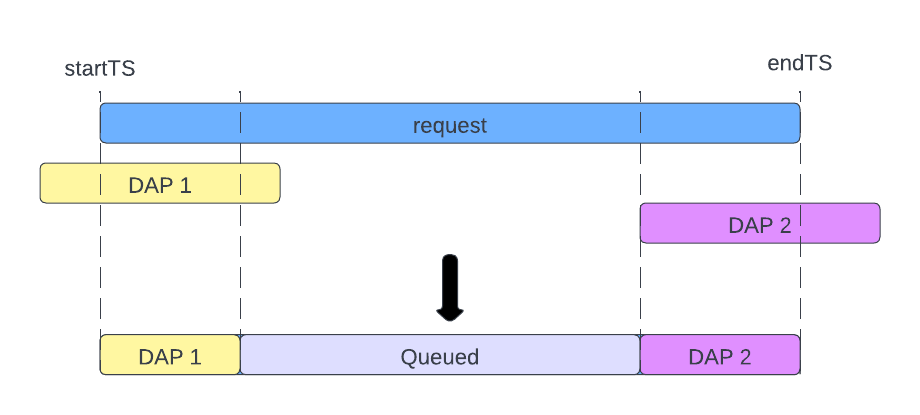

time-distribution-2

In this diagram, a section of the request is not covered by any DAP. The RC sends the portions it can to DAPs 1 and 2, and queues the remaining portion that it is unable to allocate at this time.

Examples

For the following examples, suppose we have an kdb Insights set up to collect utilities usage (electrical, gas, and water, depending on jurisdiction) of households across major Canadian cities. Data is sharded by city (toronto, montreal, ottawa, vancouver), sensorType (electric, gas for all cities, water for montreal and ottawa only). Moreover, since toronto has larger data loads, toronto assemblies further subdivide data by area (to for Toronto proper, and gta for the greater Toronto area). Assembly names shall be <city|area>_<sensorType>.

name: to_electric
labels:
  city: toronto
  sensorType: electric
  area: to

name: gta_electric
labels:
  city: toronto
  sensorType: electric
  area: gta

...

name: montreal_electric
labels:
  city: montreal
  sensorType: electric

name: ottawa_gas
labels:
  city: ottawa
  sensorType: gas
...

Moreover, suppose that for legal reasons, gas data in jurisdiction of the city of ottawa must have a redundant assembly. The label are the same (since they offer the same data), but the redundant assembly has a unique name:

name: ottawa_gas_backup
labels:
  city: ottawa
  sensorType: gas

Furthermore, suppose all assemblies have a set of common tables: trace, sensor, uom. Assemblies with sensorType=gas, however, contain an additional table that is gas-specific: pressure. Schema properties (relevant to routing) are:

schema:
  trace:
    description: time-series sensor data
    type: partitioned
    ...
  sensor:
    description: metadata for each sensor
    type: splayed
    isSharded: true
    ...
  uom:
    description: units of measure (conversions, billing rates, etc...)
    type: basic
    isSharded: false
    ...
  # Gas only.
  pressure:
    description: pressure readings
    type: partitioned
    ...

In addition, suppose toronto, montreal and ottawa are often queried together, and toronto and vancouver are often queried together, but there are relatively few queries that query both vancouver and montreal or ottawa. Therefore, we chose to set up a 2 RC system with montreal and ottawa DAPs connecting to rc-0, vancouver DAPs connecting to rc-1, and toronto DAPs spread across both RCs. Moreover, sup

The division of label sets across both RCs is thus:

city sensorType area RC
toronto electric to rc-0
toronto electric gta rc-0
toronto gas to rc-0
toronto gas gta rc-0
montreal electric rc-0
montreal gas rc-0
montreal water rc-0
ottawa electric rc-0
ottawa gas rc-0
ottawa water rc-0
toronto electric to rc-1
toronto electric gta rc-1
toronto gas to rc-1
toronto gas gta rc-1
vancouver electric rc-1
vancouver gas rc-1

Finally, suppose that at a given moment in time, rc-0 has the following DAPs registered:

dap city sensorType area available refVintage startTS endTS assembly
dap-0-0 toronto electric to 1b 100 -0Wp 2022.11.22D to_electric
dap-0-1 toronto electric to 1b 99 -0Wp 2022.11.22D to_electric
dap-1-0 toronto electric to 1b 100 2022.11.22D 2022.11.22D12 to_electric
dap-1-1 toronto electric to 1b 100 2022.11.22D 2022.11.22D12 to_electric
dap-2-0 toronto electric to 1b 100 2022.11.22D12 0Wp to_electric
dap-2-1 toronto electric to 1b 100 2022.11.22D12 0Wp to_electric
dap-3-0 toronto electric gta 1b 110 -0Wp 2022.11.22D gta_electric
dap-3-1 toronto electric gta 1b 110 -0Wp 2022.11.22D gta_electric
dap-4-0 toronto electric gta 1b 110 2022.11.22D 2022.11.22D10 gta_electric
dap-4-1 toronto electric gta 1b 110 2022.11.22D 2022.11.22D11 gta_electric
dap-5-0 toronto electric gta 0b 110 2022.11.22D10:30 0Wp gta_electric
dap-5-1 toronto electric gta 1b 110 2022.11.22D10:30 0Wp gta_electric
dap-6-0 toronto gas to 1b 120 -0Wp 2022.11.22D to_gas
dap-7-0 toronto gas to 1b 120 2022.11.22D 2022.11.22D12 to_gas
dap-8-0 toronto gas to 1b 120 2022.11.22D12 0Wp to_gas
dap-9-0 toronto gas gta 1b 130 -0Wp 2022.11.22D gta_gas
dap-10-0 toronto gas gta 1b 130 2022.11.22D 0Wp gta_gas
dap-11-0 montreal electric 1b 200 -0Wp 2022.11.22D montreal_electric
dap-11-1 montreal electric 1b 200 -0Wp 2022.11.22D montreal_electric
dap-12-0 montreal electric 1b 200 2022.11.22D 2022.11.22D12 montreal_electric
dap-12-1 montreal electric 1b 200 2022.11.22D 2022.11.22D12 montreal_electric
dap-13-0 montreal electric 1b 200 2022.11.22D12 0Wp montreal_electric
dap-13-1 montreal electric 1b 200 2022.11.22D12 0Wp montreal_electric
dap-14-0 montreal gas 1b 210 -0Wp 2022.11.20D montreal_gas
dap-14-1 montreal gas 1b 210 -0Wp 2022.11.20D montreal_gas
dap-15-0 montreal gas 1b 210 2022.11.20D 0Wp montreal_gas
dap-15-1 montreal gas 1b 210 2022.11.20D 0Wp montreal_gas
dap-16-0 montreal water 1b 220 -0Wp 2022.11.20D montreal_water
dap-17-0 montreal water 1b 220 2022.11.21D 2022.11.22D montreal_water
dap-18-0 montreal water 1b 220 2022.11.22D12 0Wp montreal_water
dap-19-0 ottawa electric 1b 300 -0Wp 2022.11.22D ottawa_electric
dap-20-0 ottawa electric 1b 300 2022.11.22D 2022.11.22D12 ottawa_electric
dap-21-0 ottawa electric 1b 300 2022.11.22D12 0Wp ottawa_electric
dap-22-0 ottawa gas 1b 310 -0wp 2022.11.22D ottawa_gas
dap-23-0 ottawa gas 1b 310 2022.11.22D 0Wp ottawa_gas
dap-24-0 ottawa water 0b 320 -0Wp 2022.11.22D ottawa_water
dap-25-0 ottawa water 1b 319 2022.11.22D 2022.11.22D12 ottawa_water
dap-26-0 ottawa water 1b 320 2022.11.22D12 0Wp ottawa_water
dap-27-0 ottawa gas 1b 310 -0wp 2022.11.22D ottawa_gas_backup
dap-28-0 ottawa gas 1b 310 2022.11.22D 0Wp ottawa_gas_backup

Unless otherwise specified, assume that the reference vintage for common label sets is no higher in rc-1 than in rc-0.

Example 1

// Routes to (dap-1-0 or dap-1-1).
`table`labels`startTS`endTS!(`trace;`city`sensorType`area!`toronto`electric`to;2022.11.22D;2022.11.22D06)

The request targets a single label set, which rc-0 is able to satisfy. The table specified is partitioned, thus the RC takes time into consideration. It routes to either dap-1-0 or dap-1-1, which are both able to completely service the query.

Example 2

// Routes to (dap-1-0 or dap-1-1) and (dap-2-0 or dap-2-1).
`table`labels`startTS!(`trace;`city`sensorType`area!`toronto`electric`to;2022.11.22D)

This is similar to Example 1, but endTS is not specified, thus it defaults to 0Wp. The request must be distributed across multiple DAPs; the RC routes to either dap-1-0 or dap-1-1 for the [2022.11.22D;2022.11.22D12) portion, and to either dap-2-0 or dap-2-1 for the [2022.11.22D12;0Wp) portion.

Example 3

// Maps to dap-0-0 and (dap-1-0 or dap-1-1) and (dap-2-0 or dap-2-1).
enlist[`labels]!enlist`city`sensorType`area!`toronto`electric`to

The request targets a single label set. No table is specified, thus the RC routes the request as though it is a request for a partitioned table, i.e. the request is routed across time. No time is specified, thus startTS and endTS default to -0Wp to 0Wp, respectively. The RC routes to either dap-1-0 or dap-1-1 for the [2022.11.22D;2022.11.22D12) portion, and to either dap-2-0 or dap-2-1 for the [2022.11.22D12;0Wp) portion. Since dap-0-1 is not feasible (its refVintage lags compared to other DAPs in this label set), the only feasible DAP for the [-0Wp;2022.11.22D) portion is dap-0-0.

Example 4

// Routes to dap-4-1 and dap-5-1 and dap-9-0.
`table`labels`startTS!(`trace;enlist[`area]!enlist`gta;2022.11.22D)

The request targets all label sets where area=gta, i.e. `city`sensorType`area!`toronto`electric`gta and `city`sensorType`area!`toronto`gas`gta. Since the table is partitioned, we also distribute across time. No endTS is provided, so it defaults to 0Wp.

For the first label set, the RC routes the [2022.11.22D10:30;0Wp) portion of the request to dap-5-1, and the [2022.11.22D;2022.11.22D10:30) portion to dap-4-1. Note that the RC chooses dap-5-1 over dap-5-0 because dap-5-0 is unavailable. Moreover, since dap-5-0 has the largest intersection with the request, the RC chooses to send as much of the request as possible to it before considering other DAPs. What remains thereafter is the portion from [2022.11.22D;2022.11.22D10:30). The RC chooses dap-4-1 since it can service the entire remaining portion (dap-4-0 is thus not considered).

For the second label set, the RC routes to dap-9-0 since it can service the entire time range.

Example 5

// Routes to (dap-3-0 or dap-4-0 or dap-4-1 or dap-5-1) and (dap-9-0 or dap-10-0).
`table`labels!(`sensor;enlist[`area]!enlist`gta)

The request targets all label sets where area=gta, i.e. `city`sensorType`area!`toronto`electric`gta and `city`sensorType`area!`toronto`gas`gta. The table is not partitioned, but is sharded. Therefore, we send to one feasible DAP in both label sets. For the first label set, the RC routes to either dap-3-0, dap-4-0, dap-4-1, or dap-5-1 (dap-5-0 is unavailable). For the second label set, the RC routes to either dap-9-0 or dap-10-0.

Example 6

// Routes to any one DAP other than dap-0-1 and dap-5-0 and dap-25-0 and dap-26-0.
enlist[`table]!enlist`uom

The request targets a non-partitioned, non-sharded table. All label sets contain this table, thus the RC can send to any one of its feasible DAPs. The only non-feasible DAPs are dap-0-1, dap-25-0 (since their reference vintages are lagging), dap-5-0, and dap-24-0 (since they are unavailable).

Since the RC contains DAPs that can service this request, it chooses to send to one of its DAPs, rather than send to rc-1 even if rc-1 could satisfy the request also.

Example 7

// Routes to dap-0-0 or dap-1-0 or dap-1-1 or dap-2-0 or dap-2-1 or dap-3-0 or dap-3-1 or
// dap-4-0 or dap-4-1 or dap-5-1 or dap-6-0 or dap-7-0 or dap-8-0 or dap-9-0 or dap-10-0.
`table`labels!(`uom;enlist[`city]!enlist`toronto)

This is similar to Example 6, but we explicitly request only label sets where city=toronto. The RC routes to any one feasible DAP under this constraint.

Example 8

// Routes to rc-1.
`table`labels!(`uom;enlist[`labels]!enlist`vancouver)

This is similar to Example 6, but we explicitly request only label sets where city=vancouver. This RC does not have any such label sets. Hence, it sends the request to rc-1, and rc-1 determines how to route to its DAPs once it receives the request.

Example 9

// Routes to (dap-11-0 or dap-11-1) and (dap-12-0 or dap-12-1) and (dap-13-0 or dap-13-1) and
// dap-19-0 and dap-20-0 and dap-21-0.
`table`labels!(`trace;`city`sensorType!(`montreal`ottawa;`electric))

The request targets a partitioned table; it targets label sets where (city=montreal or city=ottawa) and sensorType=electric. Thus, the targeted label sets are `city`sensorType!`montreal`electric and `city`sensorType!`ottawa`electric (note the area label does not apply). The time range is not specified, thus startTS and endTS default to -0Wp and 0Wp, respectively.

For the first label set, the RC routes the [-0Wp;2022.11.22D) portion to dap-11-0 or dap-11-1, the [2022.11.22;2022.11.22D12) portion to dap-12-0 or dap-12-1, and the [2022.11.22D12;0Wp) portion to dap-13-0 or dap-13-1.

Similarly, for the second label set, the RC routes the [-0Wp;2022.11.22D) portion to dap-19-0, the [2022.11.22D;2022.11.22D12) portion to dap-20-0, and the [2022.11.22D12;0Wp) portion to dap-21-0.

Example 10

// Routes to (dap-11-0 or dap-11-1 or dap-12-0 or dap-12-1 or dap-13-0 or dap-13-1) and
// (dap-16-0 or dap-17-0 or dap-18-0) and (dap-19-0 or dap-20-0 or dap-21-0) and dap-26-0.
`table`labels!(`sensor;`city`sensorType!(`montreal`ottawa;`electric`water))

The request targets a non-partitioned, sharded table; it targets label sets where (city=montreal or city=ottawa) and (sensorType=electric or sensorType=water). Thus, the target label sets are the cross product: `city`sensorType!`montreal`electric, `city`sensorType!`montreal`water, `city`sensorType!`ottawa`electric, `city`sensorType!`ottawa`water. The RC routes to one feasible DAP per label set.

For the first label set, the RC routes to dap-11-0, dap-11-1, dap-12-0, dap-12-1, dap-13-0, or dap-13-1.

For the second label set, the RC routes to dap-16-0, dap-17-0, or dap-18-0.

For the third label set, the RC routes to dap-19-0, dap-20-0, or dap-21-0.

For the fourth label set, only dap-26-0 is feasible (dap-24-0 is unavailable, and dap-25-0's ref vintage lags behind its peers).

Example 11

// Routes to dap-16-0 and dap-17-0 and dap-18-0 and dap-26-0. Portions of the request are queued.
`table`labels!(`trace;`city`sensorType!(`montreal`ottawa;`water))

The request targets a partitioned table; the target label sets are `city`sensorType!`montreal`water and `city`sensorType!`ottawa`water. The time range is not specified, thus startTS and endTS default to -0Wp and 0Wp, respectively.

For the first label set, the RC routes the [-0Wp;2022.11.20D) portion to dap-16-0, the [2022.11.21D;2022.11.22D) portion to dap-17-0, and the [2022.11.22D12;0Wp) portion to dap-18-0. That leaves two outstanding portions that it cannot assign to any DAP: [2022.11.20D;2022.11.21D) and [2022.11.22D;2022.11.22D12). These portions are queued.

For the second label set, dap-24-0 is unavailable, and dap-25-0's ref vintage lags behind its peers, hence the RC can only route the [2022.11.22D12;0Wp) portion to dap-26-0. This leaves one outstanding portion that it cannot assign to any DAP: [-0Wp;2022.11.22D12). This portion is queued.

The queued portions are held by the RC. The RC attempts to assign queued entries to DAPs as they register/become feasible and intersect with the queued entries. See (Queueing, retries, and timeouts).

Example 12

// Routes to dap-6-0 and dap-9-0 and (dap-15-0 or dap-15-1) and (dap-22-0 or dap-27-0).
`table`startTS`endTS!(`pressure;2022.11.21D;2022.11.22D)

The request targets a partitioned table, but does not explicitly specify labels. However, since the pressure table only appears in label sets where sensorType=gas, the RC limits to just those label sets: `city`sensorType`area!`toronto`gas`to, `city`sensorType`area!`toronto`gas`gta, `city`sensorType!`montreal`gas, and `city`sensorType!`ottawa`gas. In all cases, a single DAP is able to service the entire time range: dap-6-0 and dap-9-0 and (dap-15-0 or dap-15-1) and (dap-22-0 or dap-27-0), respectively).

Example 13

// Routes to (dap-0-0 or dap-1-0 or dap-1-1 or dap-2-0 or dap-2-1) and
// (dap-3-0 or dap-3-1 or dap-4-0 or dap-4-1 or dap-5-1) and
// sends "vancouver" portion to rc-1.
`table`labels!(`sensor;`city`sensorType!(`toronto`vancouver;`electric))

The request targets a non-partitioned, sharded table; it targets all label sets where city=toronto or city=vancouver: `city`sensorType`area!`toronto`electric`to, `city`sensorType`area!`toronto`electric`gta, and `city`sensorType!`vancouver`electric.

For the first label set, the RC sends to any one feasible DAP within the label set: dap-0-0, dap-1-0, dap-1-1, dap-2-0, or dap-2-1 (dap-0-1's reference vintage is lagging).

Similarly, for the second label set, the RC sends to any one feasible DAP within the label set: dap-3-0, dap-3-1, dap-4-0, dap-4-1, or dap-5-1 (dap-5-0 is unavailable).

For the third label set, the RC does not have any DAPs with label city=vancouver. Hence, it sends this portion of the request to rc-1, which takes care of distributing to its own DAPs.

Example 14

For this example, suppose that rc-1 reports that the reference vintage for label set `city`sensorType`area!`toronto`gas`gta is 131 (i.e. higher than the reference vintage of all DAPs within rc-0).

// Queued.
enlist[`labels]!enlist`city`sensorType`area!`toronto`gas`gta

Ordinarily the request could be routed to dap-9-0 or dap-10-0. However, since rc-1 reports the reference vintage for this label set is 131, then rc-0 concludes that its DAPs for this label set are lagging. The request is queued until the DAPs report a higher reference vintage (or new DAPs with a higher reference vintage register with it).

Example 15

// Routes to (dap-22-0 or dap-27-0) and (dap-23-0 or dap-28-0).
enlist[`labels]!enlist`city`sensorType!`ottawa`gas

This is similar to Example 3. The request is routed to a single label set, but may mixed and matched between the two redundant assemblies (ottawa_gas and ottawa_gas_backup).

Example 16

// Routes to dap-27-0 and dap-28-0.
enlist[`scope]!enlist enlist[`assembly]!enlist`ottawa_gas_backup

This is similar to Example 15, but using scope instead of labels to specifically target ottawa_gas_backup rather than ottawa_gas.

Example 17

// Routes to dap-27-0 and dap-28-0.
`labels`scope!(enlist[`city]!enlist`ottawa;enlist[`assembly]!enlist`ottawa_gas_backup)

This request is functionally no different that Example 16. The scope forces the RC to target ottawa_gas_backup. The labels, though redundant, are consistent with the labels of the ottawa_gas_backup assembly.

Example 18

// Query fails.
`labels`scope!(enlist[`city]!enlist`toronto;enlist[`assembly]!enlist`ottawa_gas)

The query fails, since the labels (city: toronto) do not match the labels of the ottawa_gas assembly.
