Get Data - SQL Database

The purpose of this walkthrough is to demonstrate how to ingest SQL data into kdb Insights Enterprise.

A health dataset, hosted on a PostresSQL database, has been provided for use in this walkthrough, which has records of air quality, traffic congestion, car and bike accidents for a day in New York. Once ingested, it is ready to be queried and visualized.

No kdb+ knowledge required

No prior experience with q/kdb+ is required to build this pipeline.

Before you import data you must ensure the insights-demo database is created, as described here.

Import Data

The import process creates a Pipeline which is a collection of nodes:

  • Readers - read data from its source
  • Decoders - define the type of data imported
  • Schema - converts the data to a type compatible with a kdb+ database
  • Writers - write the data to a kdb Insights Enterprise database

Open the import wizard by selecting 2. Import from the Overview page. You are prompted to select a reader node from the Import you Data screen.

Select a Reader

A reader stores details of data to import.

  1. Select PostgreSQL from the Relational readers, shown below.

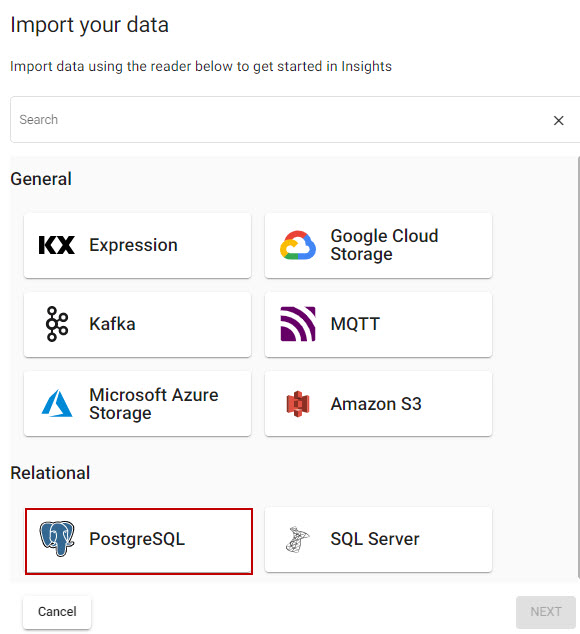

    Select PostgreSQL from relational readers.

  2. Enter the following values for the PostgresSQL database in the Configure PostgreSQL screen.

    setting value
    Server postgres.trykdb.kx.com
    Port 5432
    Database demo
    Username demo
    Query select * from health

  3. Click Next to open the Configure Schema screen.

Add a Schema

The schema is responsible for converting data to a type compatible with a kdb+ database. Every data table imported requires a schema; and every data table must have a timestamp key to be compatible with kdb's time series columnar database. insights-demo has a predefined schema for the health data set.

  1. Complete the Apply Schema properties as follows:

    setting value
    Apply a Schema Checked
    Data Format Any

  2. Click the Load Schema icon and select the insights-demo schema from the Database dropdown and weather from the Table dropdown, as shown below.

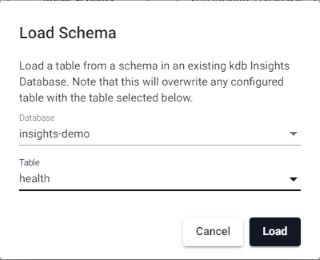

    Select the **health** table from the **insights-demo** database.

  3. Click Load and then Next to open the Configure Writer screen.

Configure the Writer

The last step in creating this pipeline is to add a Writer which writes transformed data to the kdb Insights Enterprise database.

  1. Specify the following settings:

    setting value
    Database insights-demo
    Table health
    Write Direct to HDB No
    Deduplicate Stream Yes
    Set Timeout Value No

  2. Click Open Pipeline to review the pipeline in the pipeline viewer.

The pipeline is a linked set of nodes derived from each step of the import process that reads data from its source, transforms it to a kdb+ compatible format, and writes it to a kdb Insights Enterprise database.

The completed PostgresSQL pipeline is shown below.

The completed PostgresSQL pipeline.

Save the Pipeline

You now need to save and deploy your Pipeline.

  1. Enter a Name in the top left of the workspace. The name must be unique to the pipeline; for example, health-1.

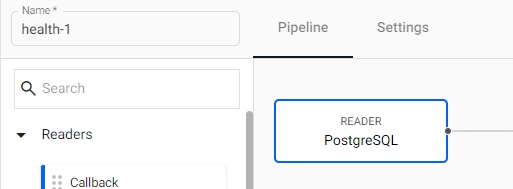

    Save the pipeline as **health-1**.

  2. Click Save.

  3. The health-1 pipeline is now available under Pipelines in the left-hand menu.

Deploy the Pipeline

You must deploy the pipeline in order for it to read the data from its source, transform it to a kdb+ compatible format, and write it to the insights-demo database.

  1. Click on Save & Deploy in the top panel, as shown below.

    Save and deploy the pipeline

  2. Deploying a PostgresSQL pipeline requires a password to access the database. Enter the following password in the Enter password for PostgreSQL screen.

    setting value
    password demo

  3. Check the progress of the pipeline under the Running Pipelines panel on the Overview tab. The data is ready to query when Status is set to Running. Note that it may take several minutes for the pipeline to start running.

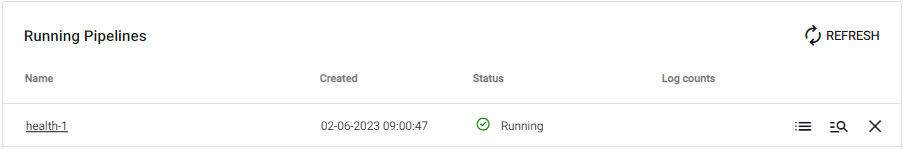

    A running health pipeline available for querying.

Pipeline warnings

Once the pipeline is running some warnings may be displayed in the Running Pipelines panel of the Overview tab, these are expected and can be ignored.
