Maps

This section takes you through the steps to add a Map to your View to visualize weather data.

Add Map Component

To add a Map to a View:

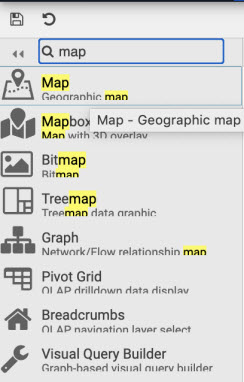

1. Search for the Map component in the left-hand list of components and drag into the workspace.

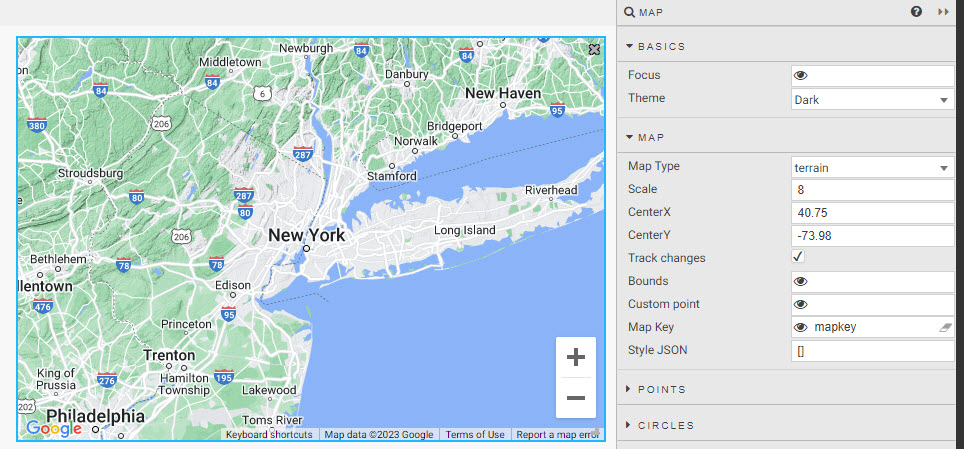

2. With the map component selected, (it has a light blue border when active), update the properties of the Map section:

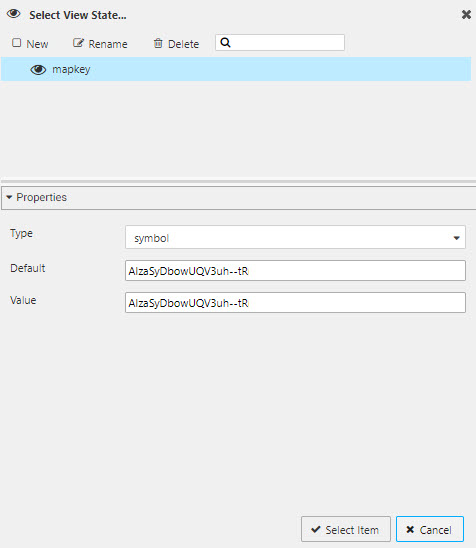

   • Click "set Google Maps JavaScript API Key in Map Key Property". This allows you to save the map key as a View State inside your Map component.




   • Provide a Google Maps API Map Key. This is saved as a View State parameter in your view.




   • Centralize the map on New York with the following Map properties:

     setting	value
     CenterX	40.75
     CenterY	-73.98




   Sign up for Google Maps API Key

   You need a Google Maps API Map Key to use the Maps component. Learn more about Google Map Keys.

2. Set Data Source

Expand the Points properties and click Data Source.

1. Create a New data source.

2. Click API in the data editor, and set:

   setting	value
   table	weather
   startTS	midnight of deployment date
   endTS	23:59 of deployment date
   groupBy	name, sensor, borough. GroupBy must be of type List
   agg	see next step to create a View State

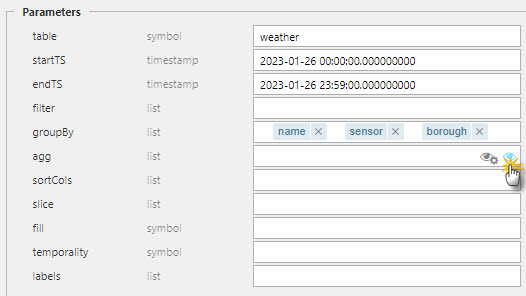

   1. Within agg, create a View State by rolling over the text input and clicking on the small, blue eye icon to the right.

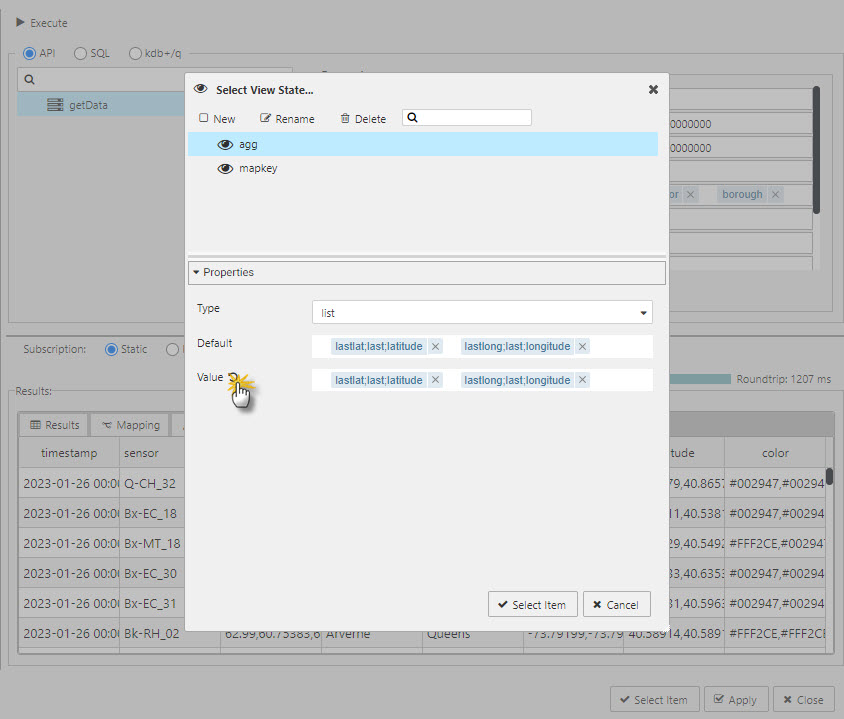

   2. In the view state dialog, create a New view state and set type to List.

   3. Set Default to lastlat;last;latitude and lastlon;last;longitude; tab across to add the second filter.

   4. Click the refresh icon next to Value to copy the default values to the Value property.




   5. Click Select Item to apply the View State.

3. Click Apply and Select Item to apply the data source change to the map.

3. Configure Map Component

1. In the Points properties set:

setting	value
Latitude Data	lastlat
Longitude Data	lastlong

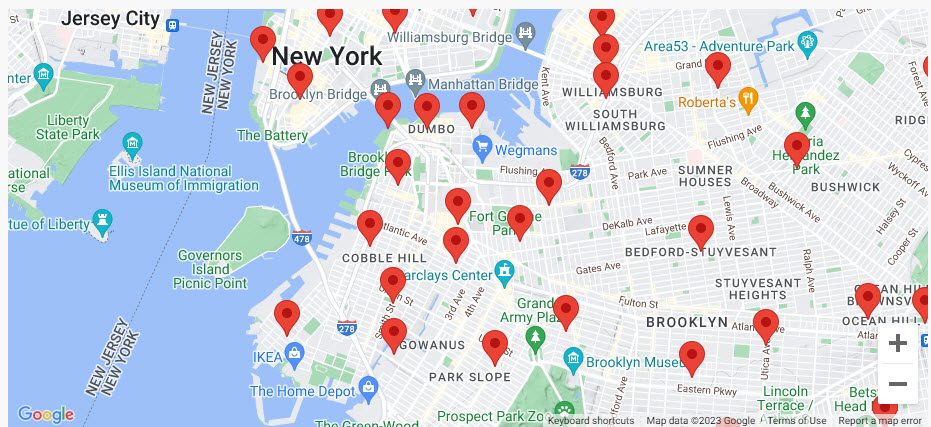

The following Map showing sensor locations in New York is displayed.
