Get Data - Kafka

This section provides a walkthrough on how to use kdb Insights Enterprise to stream data from Kafka to monitor NYC subway train punctuality for travel planning.

Apache Kafka is an event streaming platform that seamlessly integrates with kdb Insights Enterprise, enabling real-time data processing through pipelines connected to Kafka data sources.

We have provided a Kafka subway feed for use in this walkthrough, which generates live alerts for NYC Subway trains; tracking arrival time, station location co-ordinates, direction and route details.

No kdb+ knowledge required

No prior experience with q/kdb+ is required to build this pipeline.

Import Data

The import process creates a Pipeline which consists of a set of nodes. These nodes are responsible for reading data from a source, transforming it to a kdb+ compatible format and writing that data to a kdb Insights Enterprise database.

The pipeline requires the following nodes:

Node Description
Reader The reader stores details of data to import, including any required authentication.
Decoder This decodes Kafka event data, which is in JSON, to a kdb+ friendly format (a kdb+ dictionary).
Transform This applies a schema which converts data to a type compatible with a kdb Insights Database. Every imported data table requires a schema; and every data table must have a timestamp key to be compatible with kdb's time series columnar database. insights-demo has a predefined schema for subway data.
Writer This writes transformed data to the kdb Insights Enterprise database.
Map This node uses enlist to convert the decoded data to a kdb+ table prior to deployment.

To setup the pipeline, containing the nodes in the table above:

Before you import data you must ensure the insights-demo database is created, as described here.

  1. On the Overview page, click 2. Import.
  2. In the Import your data screen select the Kafka reader.

  3. In the Configure Kafka screen:

    • Enter values for:

      Setting Value
      Broker kafka.trykdb.kx.com:443
      Topic subway

      The default values can be accepted for the following:

      Setting Value
      Offset End
      Use TLS Unchecked
      Use Schema Registry Unchecked

    • Open the Advanced drop-down and check Advanced Broker Options.

    • Click + under Add an Advanced Configuration and enter the following key value-pairs:

      key value
      sasl.username demo
      sasl.password demo
      sasl.mechanism SCRAM-SHA-512
      security.protocol SASL_SSL

    • Click Next.

  4. In the Select a decoder screen click JSON.

  5. In the Configure JSON screen click Next, leaving Decode each unchecked.

  6. In the Configure Schema screen:

    • Keep Data Format set to Any.
    • Click Load Schema icon beside Parse Strings.
    • Select insights-demo as the database. This is the database you created here.
    • Select subway as the table.
    • Click Load.
    • Keep Parse Strings set to Auto for all fields.
    • Click Next.

  7. In the Configure Writer screen:

    • Select insights-demo as the database. This is the database you created here.

    • Select subway as the table. . - Keep the default values for the remaining fields.

      setting value
      Write Direct to HDB Unchecked
      Deduplicate Stream Checked
      Set Timeout Value Unchecked

    • Click Open Pipeline to open a view of the pipeline.

  8. In the pipeline template:

    • Click-and-drag a Map node, from the list of Functions, into the workspace.
    • Remove the connection between Decoder and Transform nodes by right-clicking the link and selecting Remove Edge.
    • Connect the Map node to the Decoder and Transform nodes.

    • Click on the Map node to edit its properties and set the enlist data as shown below.

      {[data]
    enlist data
    }
      - Click Apply to apply these changes to the node.

    Adding a **Function Map** node to a Kafka data pipeline. Connect edges with click-and-drag, right-click a connection to remove.

Save the Pipeline

Once you have configured and reviewed your Pipeline you must save it.

  1. Enter a name in the top left of the workspace. The name must be unique to the pipeline; for example, subway-1.

  2. Click Save.

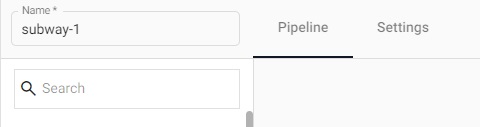

    Save the pipeline as subway-1.

  3. The subway-1 pipeline is available under Pipelines in the left-hand menu.

A Kafka pipeline built using the import wizard.

Deploy the Pipeline

You can now deploy the Pipeline. This will read the data from its source, transforms it to a kdb+ compatible format, and writes it to the insights-demo database.

  1. Click on Save & Deploy in the top panel. Save and deploy the pipeline

  2. Check the progress of the pipeline under the Running Pipelines panel of the Overview tab, which may take several minutes. The data is ready to query when Status is set to Running.

    A running crime pipeline available for querying.

Pipeline warnings

Once the pipeline is running some warnings may be displayed in the Running Pipelines panel of the Overview tab, these are expected and can be ignored.

You are now ready to query the subway data.
