Pipelines

The kdb Insights Stream Processor is a stream processing service for transforming, validating, processing, enriching and analyzing real-time data in context. It is used for building data-driven analytics and closed loop control applications optimized for machine generated data from data sources, and delivering data and insights to downstream applications and persistent storage.

The Stream Processor allows stateful custom code to be executed over stream or batch data sources in a resilient manner, scaling up when data sources allow. This code can be used to perform a wide range of ingest, transform, process, enrich, and general analytics operations.

Stream processing

Stream processing is the practice of taking one or more actions on a series of data that originate from one or more systems that are continuously generating data. Actions can include a combination of ingestion (e.g. inserting the data into a downstream database), transformation (e.g. changing a string into a date), aggregations (e.g. sum, mean, standard deviation), analytics (e.g. predicting a future event based on data patterns), and enrichment (e.g. combining data with other data, whether historical or streaming, to create context or meaning).

These actions may be performed serially, in parallel, or both, depending on the use case and data source capabilities. This workflow of ingesting, processing, and outputting data is called a stream processing pipeline.

This document describes how to use the stream processor in kdb Insights Enterprise using the drag-and-drop, low code user interface.

Operators

Pipelines can be built by dragging operators from the left-hand entity tree and linking them together. Connect operators together and configure each operator's parameters to build the pipeline. Click an operator to configure it using the configuration tray on the right.

Operators are the building blocks for pipelines. Each operator is capable of operating on data in a stream but each has a specific function. To begin, drag-and-drop operators from the left-hand entity tree into the canvas.

Operators and nodes

The words operators and nodes are used interchangeably within this document and within the user interface.

Advanced Operator Configuration

Some nodes support additional advanced configuration that can be accessed by clicking the gear icon in the top right corner of the node configuration panel. Nodes that don't support this feature will not have the gear present.

See API for more details

Refer to the q API for more details about advanced node configuration.

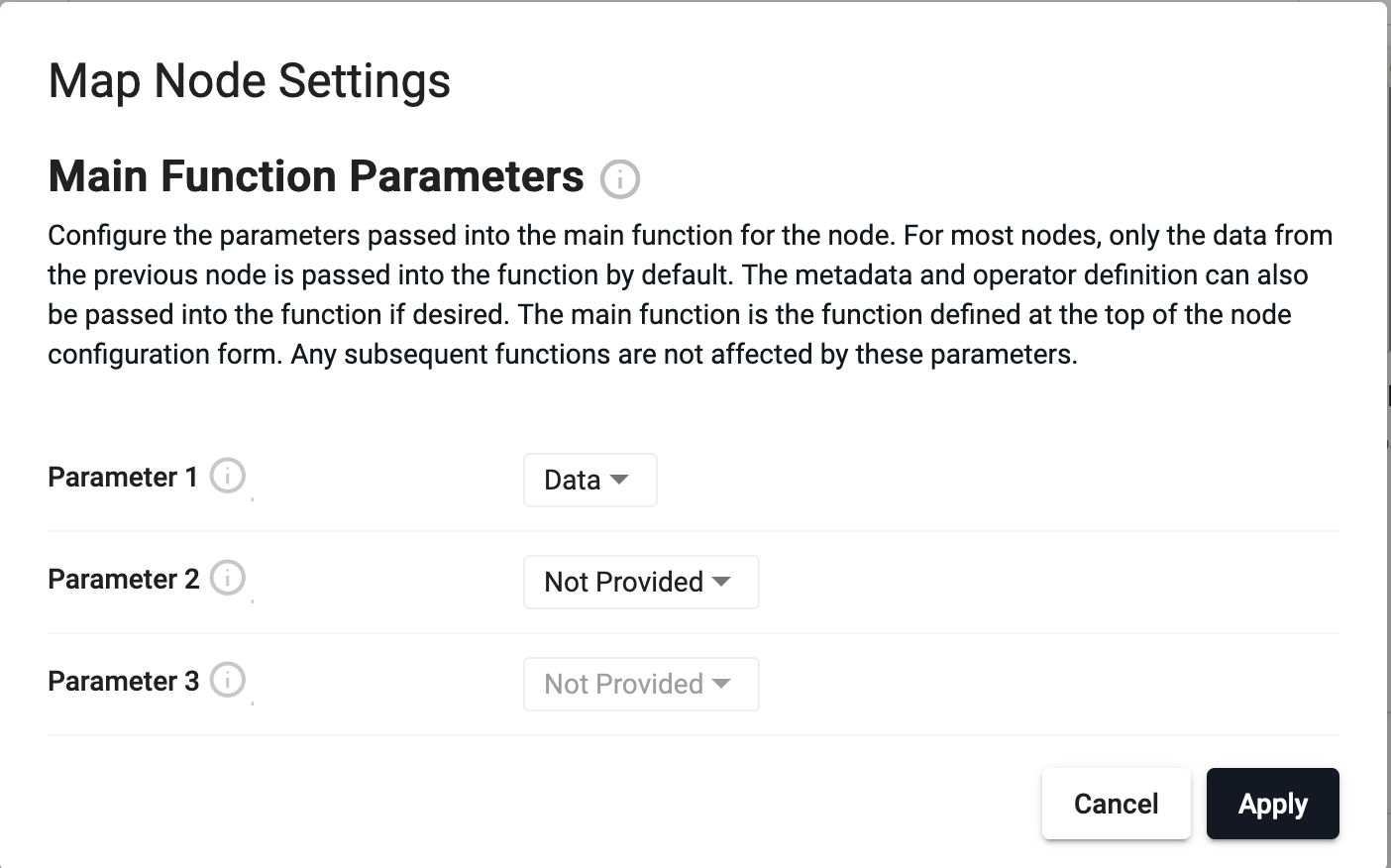

The node settings dialog for a Map node

Customizing Main Function Parameters

Nodes that contain a 'main function' also support customizing the parameters that are passed into that function. For most nodes, only the data from the previous node is passed into the main function as the only parameter. However, metadata and the operator definition can also be passed into the function if desired. This can be helpful when needing to action based on the data's metadata, or if needing to use Stream Processor functions like .qsp.set and .qsp.get. This works for both q and Python functions.

Changing the parameters

After changing these settings it is up to the user to update their function to accept the new parameters and make use of them.

Main function

The 'main function' is the function defined at the top of the node configuration form. Some examples of nodes that use a 'main function' and have customizable parameters are the Apply and Map nodes. These parameter settings only apply to the main function field. Any subsequent functions defined after the main function are not affected by these settings.

Types

Select from the following types of operator:

Readers read data from an external or internal data source.
Writers send data data to an internal or external data sink.
Functions provide building blocks for transforming data by mapping, filtering or merging streams.
Encoders map data to serialize data formats that can be shared out of the system with writers.
Decoders deserialize incoming data into a kdb+ representation for manipulation.
Windows group data into time blocks for aggregating streams.
String Utilities perform string operations on data
Transform operators provide low code and no code transformations for manipulating data.
Machine Learning operators can be used to build prediction models of data in a stream.

Actions

When an operator is added, the right-click menu has a number of actions which can be done on the operator.

An example expression pipeline with reader, transformation and writer operator; right-click for menu options.

Click an operator in the pipeline canvas to edit; this will update the pipeline settings with details of the operator.
Right-click an operator in the pipeline canvas to rename, remove or duplicate an operator. A duplicated operator will retain the contents of the original, and will have the name appended with a numeric tag; -n.

Right click menu on operator editing.

Building a pipeline

From the Document menu bar or Perspective icon menu on the left, create a new Pipeline by clicking the plus icon.
Click-and-drag an operator listed in the left-hand entity tree into the central workspace; for example, start with a Reader operator.

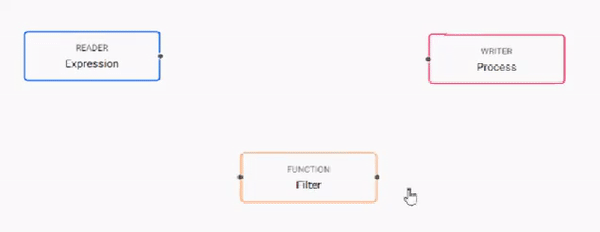

Build the pipeline by adding operators to the workspace and joining them with the operator-anchors. Operators can be removed on a right-click, or added by click-and-drag from the entity tree, or a right-click in an empty part of the workspace. To change a connection, rollover to display the move icon and drag-connect, remove with a right-click. A successful pipeline requires a reader and writer operator as a minimum.
Configure each of the pipeline operators; click-select to display operator parameters in the panel on the right.
Example Pipeline

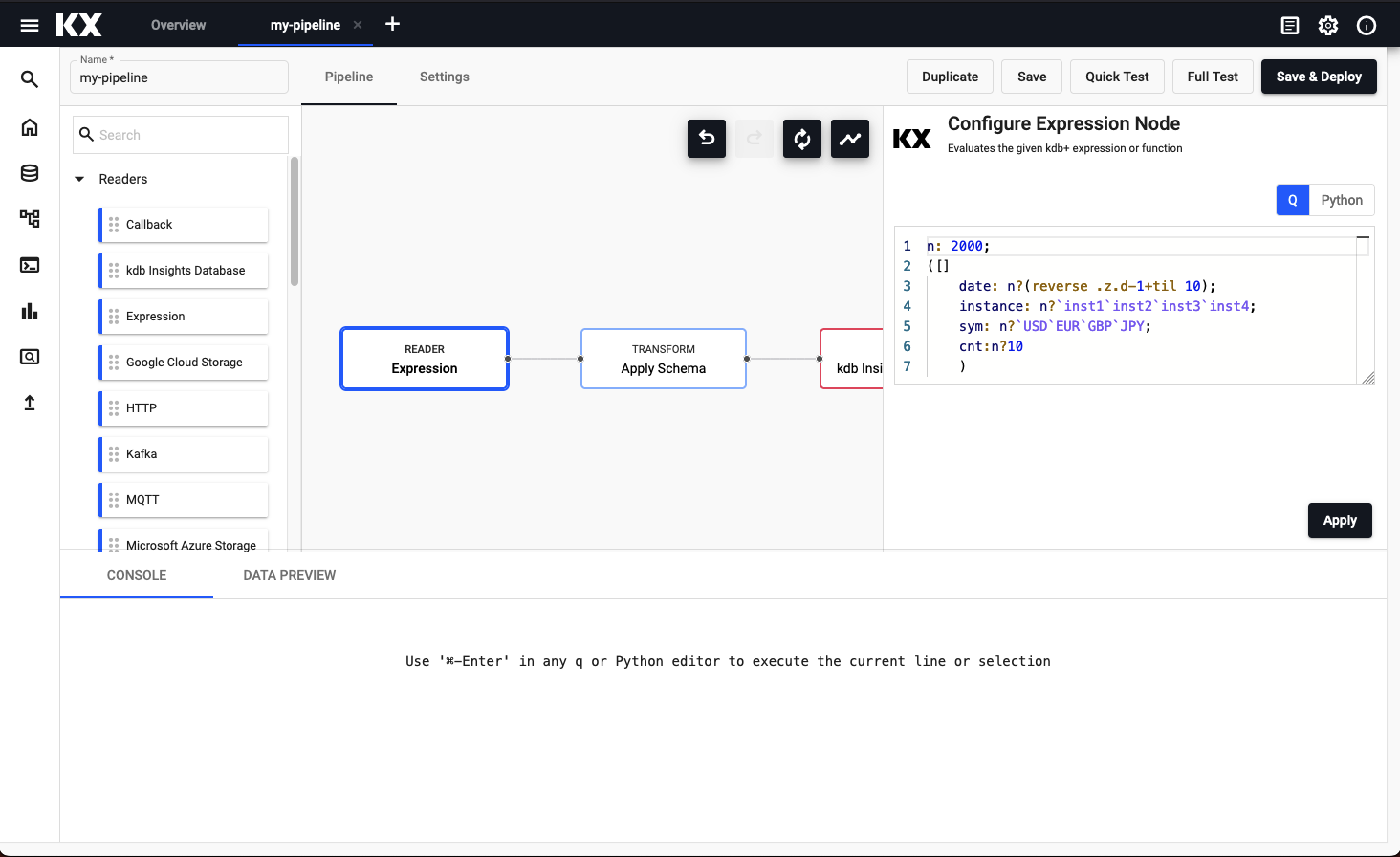

Reader operator: Expression
```
n:2000;
([] date:n?(reverse .z.d-1+til 10);
    instance:n?`inst1`inst2`inst3`inst4;
    sym:n?`USD`EUR`GBP`JPY;
    cnt:n?10)
```

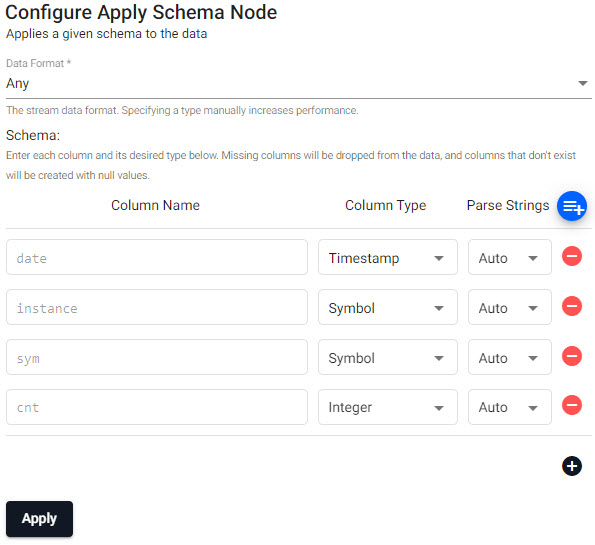

Transform operator: Apply Schema

Leave the Data Format as Any (required).

Column Name Column Type Parse Strings

date Timestamp Auto

instance Symbol Auto

sym Symbol Auto

cnt Integer Auto

Preferably, a table schema should be loaded from a database created using the database builder; select the database and schema table from their respective dropdowns. Use the above schema for the database table.

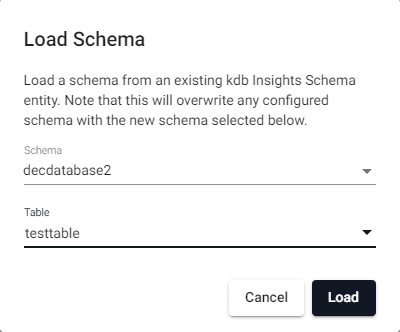

Load a schema from a database.

will load

Predefined schema from database.

Writer operator: kdb Insights Database

Use the existing table name to write the data to. If not already done, create a database.

property setting

Database yourdatabasename

Table testtable

Write to HDB unchecked

Deduplicate Stream checked

Completed Pipeline

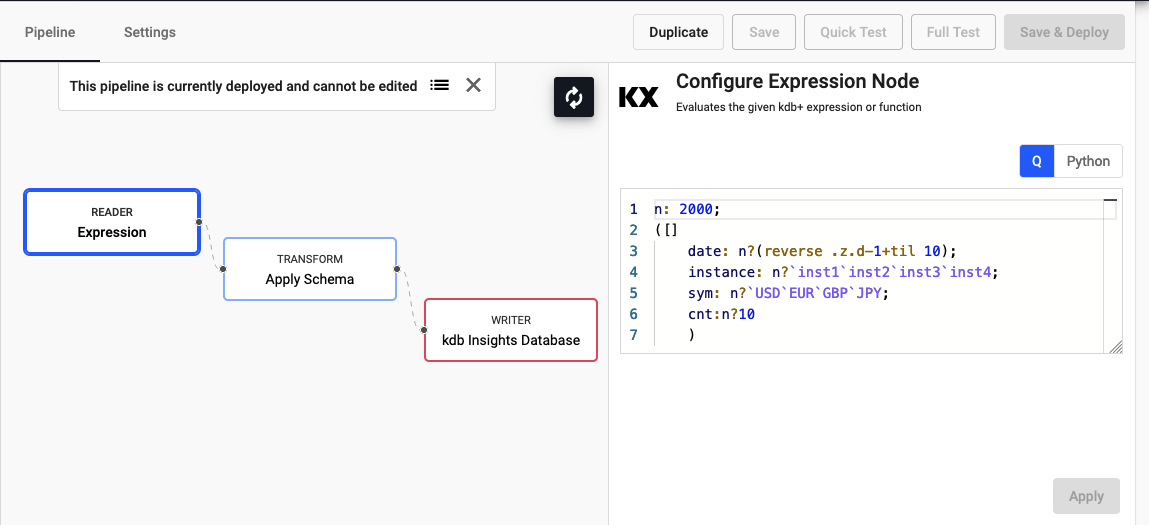

Completed expression pipeline after deployment.
Schemas Require a Timestamp Partition Column

All schemas require a timestamp data column. In addition, the table should be partitioned and sorted (interval, historic and/or real-time) by this timestamp column. This can be configured as part of the set up database, or with the essential and advanced properties of a schema.

Executable Editors

All q or Python editors in node configuration are executable and can be used to interactively develop complex functions. The current selection or line can be executed using 'Ctrl-Enter' or '⌘Enter' and the output viewed in the Console tab in the bottom section of the pipeline editor.

Table naming

Avoid using reserved keywords for SQL or q when naming tables as this can return an error; e.g. do not give a table in the schema a name of table.
Rename the pipeline by typing a new name into the name field in the top left corner. The pipeline name should be lowercase, only include letters and numbers, and exclude special characters other than -.
Click Save to save the pipeline. A pipeline can be associated with a database prior to deployment, or deployed directly to an active database.

Database selection

If not previously created, create a database before configuring. The initial database will have a default table (and schema); additional tables can be added to the database schema.
Deploy the database associated with the pipeline. When the database is ready to be queried it will show a green circle with a tick next to it. The pipeline will appear under Pipelines of the Overview page, and show as Running.

Test Deploys

A quick or full test deploy can be done by clicking the respective test type in the pipeline page. Results will be displayed in the Data Preview tab of the lower panel of the pipeline editor - click on an operator to see the results at each step along the pipeline. Test deploys will automatically be torn down after completion of the test. See test deploy for more details.

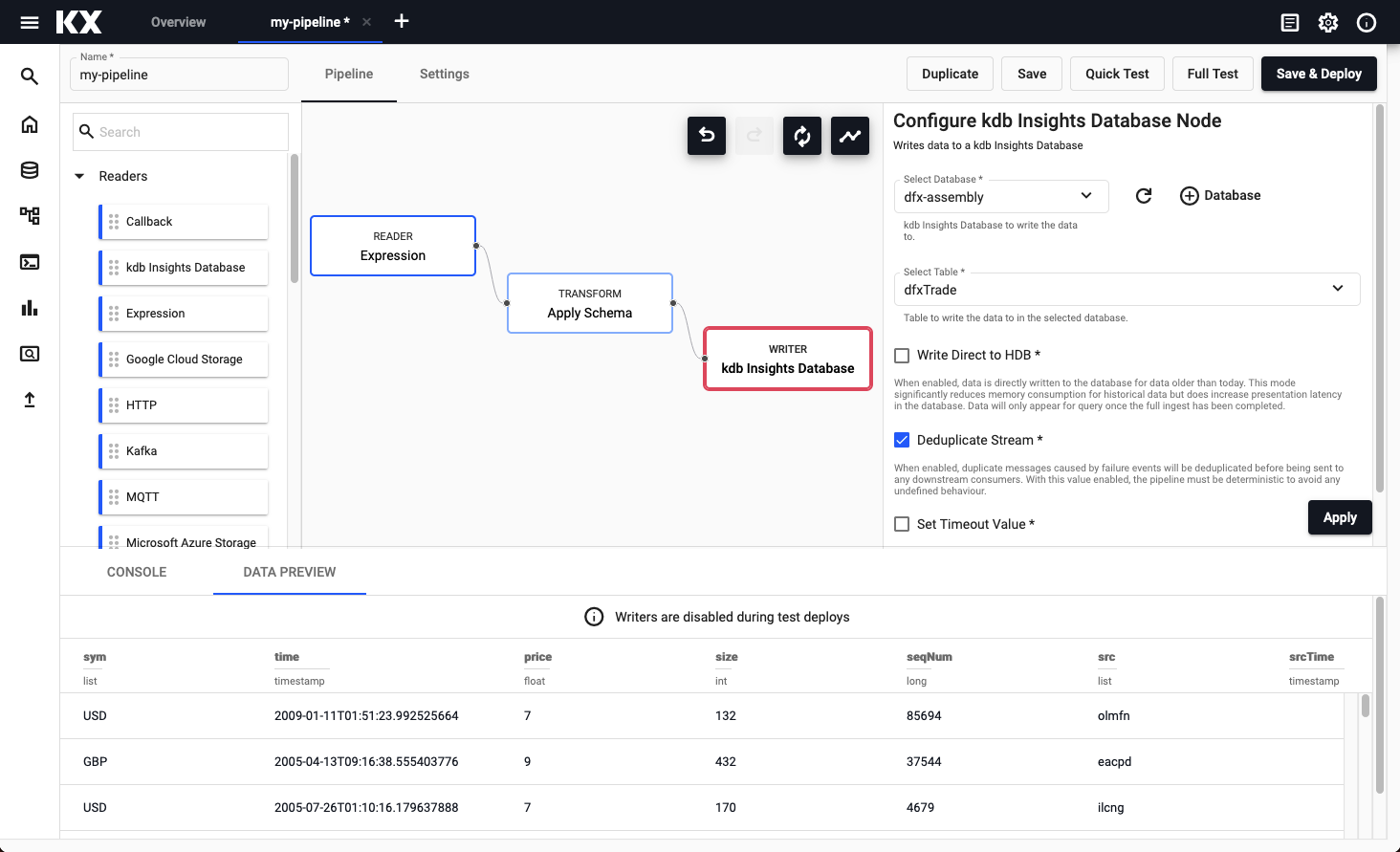

Results from a test deployment of an Expression pipeline.

A running pipeline as shown in the Overview page.
Open a Query workspace from the ribbon "+" menu, or from the icon bar on the left. Then open the SQL tab, and in the SQL editor add for the aforementioned Expression example:

SQL query

SELECT * FROM testtable
Click Run Query to generate output of the query in the Console tab.

Set up

In order to use Kafka and Postgres pipelines, relevant charts must be installed, running, and accessible on the cluster.

Lower Case required

When configuring pipelines, lower case should be used in all instances of names and references.

Take a look at some of the guided walkthrough pipeline examples.

Pipeline status

A pipeline can have one of the following status values:

Status	Description
Creating	Pipeline SP Controller is being created.
Initializing controller	Pipeline SP Controller has been created.
Partitioning workers	Pipeline is in the process of distributing partitions among one or more Workers.
Ready to receive data	Pipeline is ready to start, but is not yet processing messages.
Running	Pipeline is running and processing messages.
Unresponsive	Pipeline SP Controller is not responding to HTTP requests.
Errored	Pipeline errored before starting. This does not include errors encountered while processing messages.
Tearing down	Pipeline is in the process of tearing down.
Finished	Pipeline has finished processing messages, but has not been torn down.
Not Found	Pipeline does not exist.

The status of a pipeline can be viewed in the UI in two places:

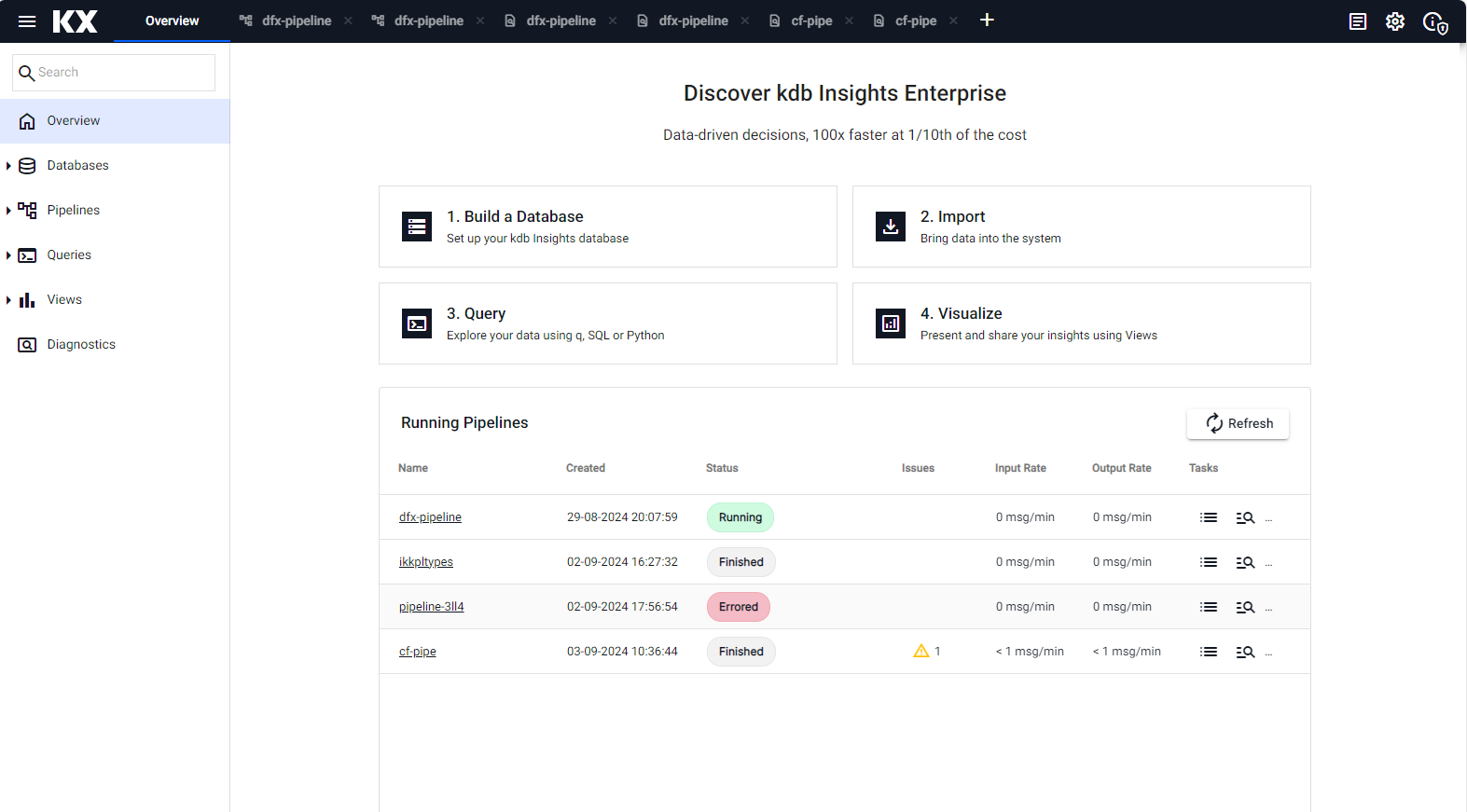

The status of all running pipelines can be seen on the Overview page.

Running pipelines table

This following details are displayed:

Item	Description
Name	The pipeline name. Click on the name to go the Pipeline details screen.
Created	The data and time the pipeline was deployed.
Status	The current status of the pipeline. Refer to the table above for a full list of status values.
Issues	An icon showing the number of issues. Click the icon to got to the Application Logs screen to view logs relating to this pipeline
Input Rate	Refer to input rate.
Output Rate	Refer to output rate.
Tasks	Click this icon to got to the Application Logs screen to view logs relating to this pipeline.
View Diagnostics icon	Click this icon to go to the Diagnostics Events screen to view details of events relating to this pipeline.
Teardown icon	Click this icon to teardown the database. Tearing down a pipeline stops data processing. Click the Cleanup resources after teardown checkbox if you want to delete all pipeline checkpoints and user states. Data that has already been written down is not affected.

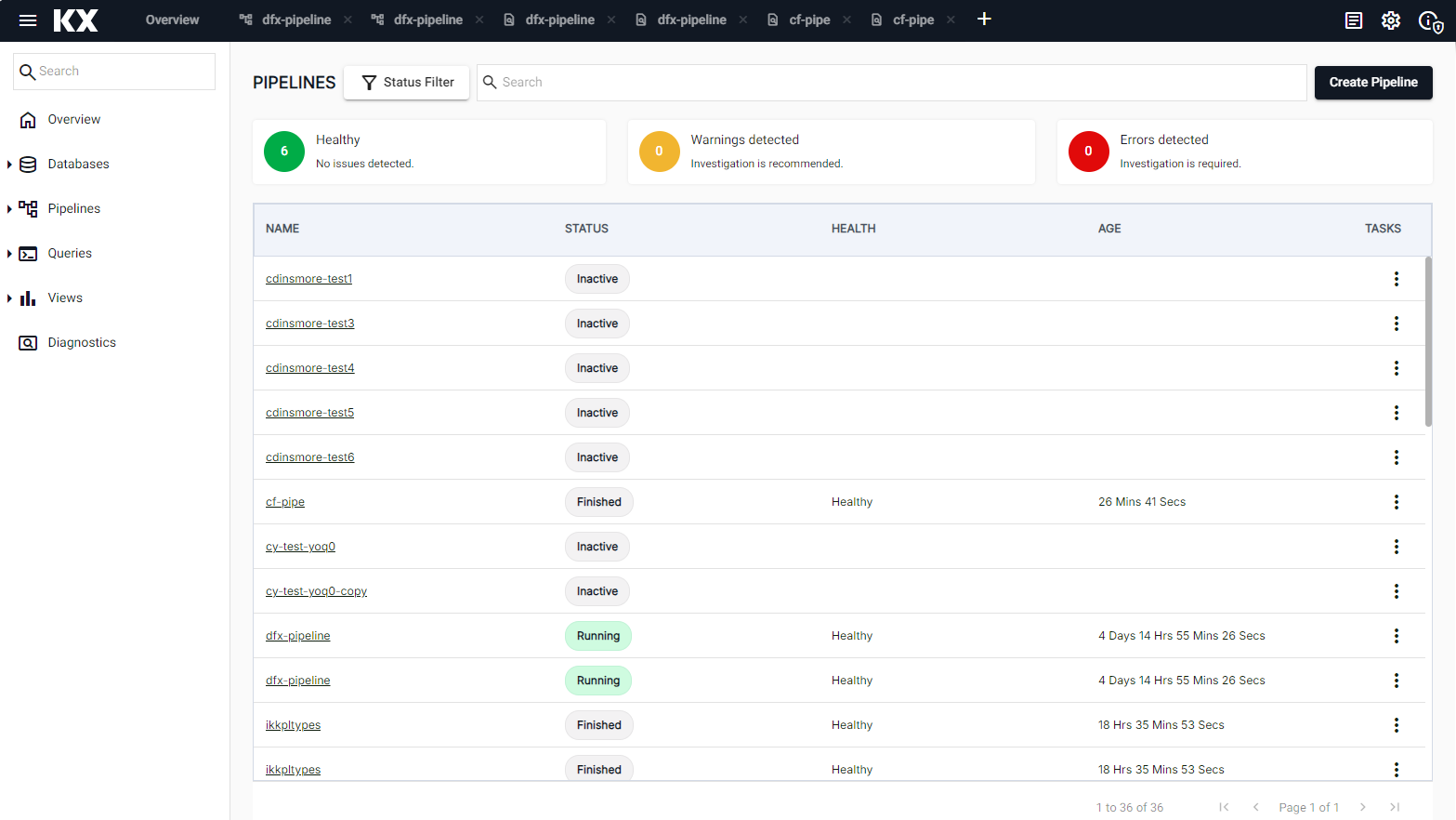

The status of all pipelines can be seen on the Pipelines index page. Click on Pipelines in the left-hand menu. This shows their current status as well as information on the health and age of each pipeline.

Pipelines index

This following details are displayed:

Item	Description
NAME	The pipeline name. Click on the name to go the Pipeline details screen.
STATUS	The current status of your pipeline. Hover over the status value for additional information. Refer to the table above for a full list of status values.
HEALTH	This column displays the health status of the pipeline. A value of Healthy indicates there are no reported issues with the pipeline and is shown for status of Finished, Running. When an error has been encountered a warning message is displayed indicating that attention is required. Refer to warnings and remediation actions for details about these errors and how they can be resolved.
AGE	The time since the pipeline was last deployed.
TASKS	Click the three dots under Tasks to view a list of pipeline actions. You have options to Export, Rename and Delete a pipeline.

Pipeline API status values

If you are using the pipeline APIs such as the details or status API, the statuses are as follows:

CREATING
INITIALIZING
PARTITIONING
READY
RUNNING
UNRESPONSIVE
ERRORED
TEARING_DOWN
FINISHED
NOTEXIST

Input and output rates

By default, pipelines enable record counting for all their readers and writers. This allows the pipeline to calculate the average number of records entering and exiting the pipeline over the last 5 minutes. If record counting is disabled, input and output rates will not be available.

Pipeline settings

Clicking the Settings tab will allow changing the pipeline resources, environment variables and tuning pipeline settings. See pipeline settings for more details.

Deploying, Testing, and Saving

Duplicate

Creates a copy of the pipeline.

Pipeline name: Give the duplicate pipeline a name. The duplicate pipeline name should be lowercase, only include letters and numbers and have a different name to the original pipeline, while excluding special characters other than -.

Save

Save the pipeline.

Quick test

Run a quick test deploy in the scratchpad to validate that the pipeline works. See test deploys for more information.

Full test

Run a full test deploy using worker and controller pods to validate that the pipeline works. See test deploys for more information.

Deploy

Deployed pipelines are deployed indefinitely. If a deployed pipeline errors, it will remain deployed. A deployed pipeline can be torn down from the pipeline listing, or from the banner that appears when the pipeline is deployed. Note that it is recommend that a test deploy is run before running a pipeline normally, as test deploys let you validate the output without writing from the writers.

Graph options

Pipeline canvas options and configuration properties.

icon	function
	Undo change
	Redo change
	Reset view
	Automatically layout pipeline

Operator configuration

When an operator is selected, the right-hand panel contains the configuration details for the selected operator.

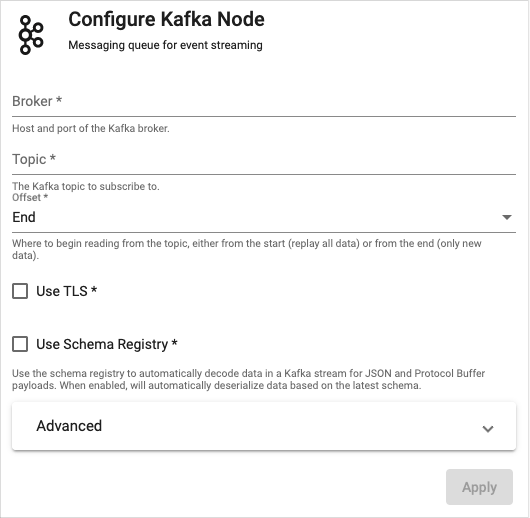

Pipeline properties for a Kafka import.

Global code

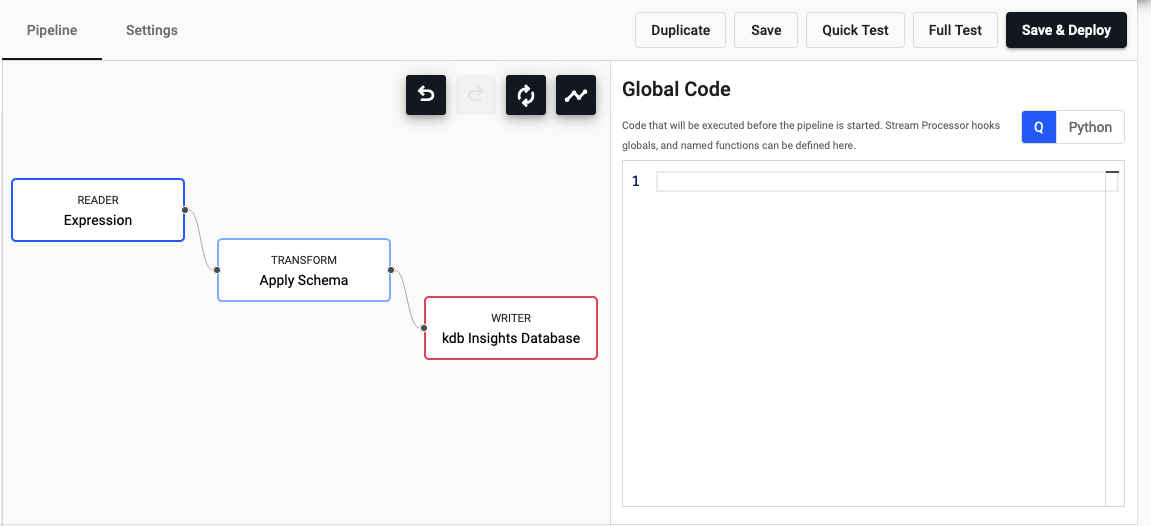

When no operator is selected, the right-hand panel contains the Global Code configuration. Global Code is executed before a pipeline is started; this code may be necessary for Stream Processor hooks, global variables and named functions.

Python code within pipeline UI

Development of stream processor pipelines within the UI provides the ability for logic to be written in Python. The following sections of documentation outlines requirements and caveats which you should bear in mind when developing such nodes.

Writing Python code within the pipeline UI

When defining the code which is to be used for a given node you need to take the following into account:

The parsing logic used to determine the function used within a Python node works by retrieving for use the first function defined within the code block. The entire code block will be evaluated but it is assumed that the first function defined is that is retrieved is that used in execution.
Only Python functions are supported at this time for definition of the execution function logic. You should not attempt to use lambdas or functions within classes to define the execution logic for a node. Additionally while functions/variables defined within the global code block can be used within individual nodes they cannot be referenced by name as the definition of the function to be used.
All data entering and exiting an executed Python node block will receive and emit it's data as a PyKX object. The PyKX documentation provides outlines on how these objects can be converted to common Python types and additionally includes notes on performance considerations which should be accounted for when developing code which interacts with PyKX objects.

The following provides an example of a map and filter node logic which could be used on a pipeline:

Simple map nodeSimple filter node

import pykx as kx

def map_func(data):
    # compute a three window moving average for a table
    return kx.q.mavg(3, data)

    # Function expected to return a list of booleans
    # denoting the positions within the data which are to
    # be passed to the next node
def filter_func(data):
        return kx.q.like(data[0], b"trades")
