Query Resilience

There are four process types in the query path: Gateway (GW), Resource Coordinator (RC), Data Access Process (DAP), and Aggregator (Agg). Each process can be configured with multiple replicas for resiliency. Process connections are as follows.

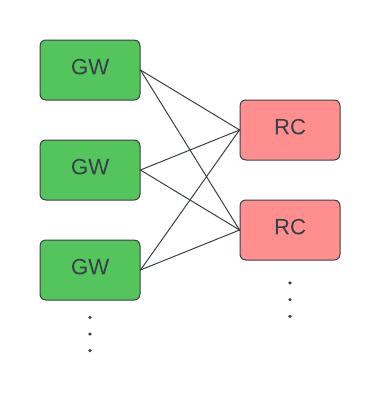

• GWs connect to multiple RCs. Each GW distributes requests round-robin across all known RCs.

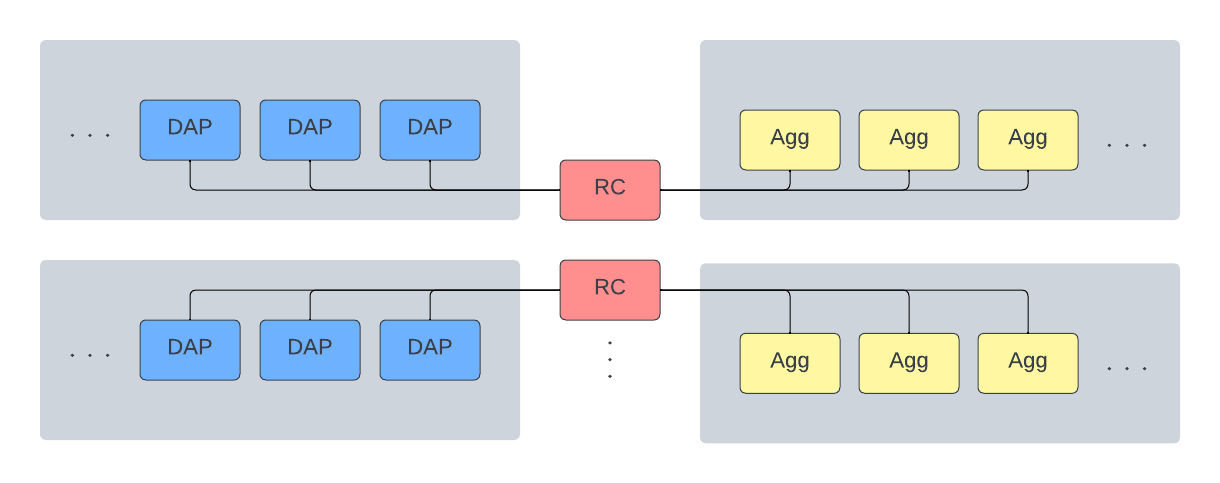

• DAPs and Aggs connect to exactly one RC each. Hence, every RC owns its set of DAPs/Aggs.

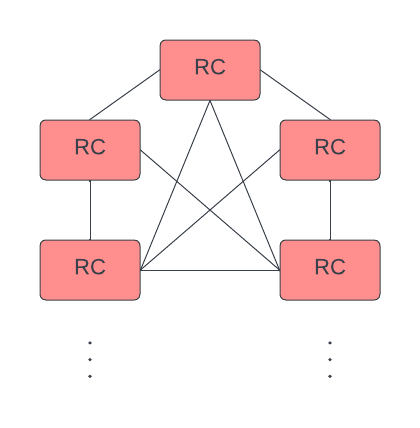

• RCs can connect to each other.



In general, it is best practice to allocate multiple of each resource at each connection point. That is:

• Allocate multiple RCs, so that if one dies, the GWs can distribute to the remaining ones. If no RCs remain, requests return a "No Resource Coordinator connections are available and ready for service" error (see Troubleshooting).
• Allocate multiple DAPs (of each type RDB/IDB/HDB) for each label set to each RC. Multiple DAPs increase query throughput as RCs can distribute queries to several DAPs in parallel. If a DAP dies, the RC continues to distribute to the remaining ones. If no DAPs for a particular tier/label set are available, requests queue up in the RCs (see Queueing).
• Allocate multiple Aggs to each RC. Multiple Aggs increase query throughput as RCs can allocate queries across several Aggs. If an Agg dies, the RC allocates to the remaining ones. If no Aggs remain for a particular RC, requests received by this RC return a "No aggregator available" error (see Troubleshooting).

Configuration

kdb Insights

Using kdb Insights offers the greatest degree of flexibility around process connection at the cost of extra configuration. All processes connect to the RCs. The details for how to configure each process type are described below.

Gateway

You can configure the Gateway to connect to the RC in one of three ways. They are listed below in decreasing order of decreasing precedence.

• Environment variable

  The simplest method of configuration is to explicitly define set the RC address in an environment variable. Set host and port of the RC in the KXI_SG_RC_ADDR environment variable in the GW container.

  KXI_SG_RC_ADDR="<rc_host>:<rc_port>"


  Note that this method restricts the GW to connect to a single RC.

• Kubernetes control plane.

  If using Kubernetes, configure the GW to connect to RCs using Kubernetes labels. For this method, the GW pod requires Kubernetes RBAC permissions for the "get", "watch", and "list" verbs of the "pods" resource.

  Note that GWs connect to all RCs it is configured to discover. The GWs round-robin between them on each request. Moreover, the GW can target a specific set of RCs using scope.

  Below is an example configuration.

  # GW pod.
  apiVersion: apps/v1
  kind: Pod
  metadata:
    name: insights-gateway
  spec:
    serviceAccountName: insights-serviceAccount
    containers:
    # GW container
    - ...
      env:
      # The following environment variables control what RCs the GW will find. Shown here are the default values; they
      # are used if the corresponding environment is not defined. These can be overwritten to allow for fine-tuned
      # controlled over GW-RC connections.
      #    - RC_LABEL_SELECTOR    Label selector to identify/filter RC pods (`kubectl get pods -l '...').
      #    - RC_CONTAINER_NAME    Name of the RC's container within the RC pod.
      - name: KXI_RC_LABEL_SELECTOR
        value: app.kubernetes.io/name=resource-coordinator
      - name: KXI_RC_CONTAINER_NAME
        value: resource-coordinator
  ---
  # GW service account.
  apiVersion: v1
  kind: ServiceAccount
  metadata:
    name: insights-gateway-service-account
  ---
  # RBAC role.
  apiVersion: rbac.authorization.k8s.io/v1
  kind: Role
  metadata:
    name: insights-gateway-role
  rules:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["get", "watch", "list"]
  ---
  # RoleBinding RBAC role to GW's ServiceAccount.
  apiVersion: rbac.authorization.k8s.io/v1
  kind: RoleBinding
  metadata:
    name: insights-gateway-role-binding
  subjects:
  - kind: ServiceAccount
    name: insights-gateway-service-account
    apiGroup: ""
  roleRef:
    kind: Role
    name: insights-gateway-role
    apiGroup: ""


  The GW(s) connect to all RCs with the corresponding metadata labels:

  kind: Pod
  metadata:
    name: insights-resource-coordinator
    labels:
      app.kubernetes.io/name: "resource-coordinator" # Must match GW's KXI_RC_LABEL_SELECTOR
  spec:
    containers:
    - resource-coordinator: # Must match GW's KXI_RC_CONTAINER_NAME
      ports:
      - ...
        containerPort: 5050 # Must set a port for the GW to connect to
        protocol: TCP


Data access process

DAPs connect to their respective RCs in one of three ways. They are listed here in order of decreasing precedence.

• Environment variable

  Configure a DAP to explicitly connect to a particular RC by defining the RC address in the KXI_SG_RC_ADDR environment variable.

  KXI_SG_RC_ADDR="<rc_host>:<rc_port>"


• Kubernetes discovery

  If using Kubernetes, configure the DAPs to connect to RCs using Kubernetes labels. For this method, the DAP pods require Kubernetes RBAC permissions for the "get", and "list" verbs of the "pods" resource.

  See Kubernetes configuration for an example configuration.

  Note that, while DAPs may discover multiple RCs (all those matching the configured label selector), each DAP connects to one RC using ordinals.

Aggregator

Aggs connect to to their respective RCs in one of below methods. They are listed here in order of decreasing precedence.

• Environment variable

  Configure an Agg to explicitly connect to a particular RC by defining the RC address in the KXI_SG_RC_ADDR environment variable.

  KXI_SG_RC_ADDR="<rc_host>:<rc_port>"


• Kubernetes discovery

  If using Kubernetes, configure the Aggs to connect to RCs using Kubernetes labels. For this method, the Agg pods require Kubernetes RBAC permissions for the "get", and "list" verbs of the "pods" resource.

  See Kubernetes q configuration for an example configuration.

  Note that, while Aggs may discover multiple RCs (all those matching the configured label selector), each Agg connects to one RC using ordinals.

Resource coordinator

RCs connect to each other so they can enlist each other for help when the RC receiving the request does not contain the required DAPs to be able to complete the request on its own (see Routing). RCs can only connect to each other using Kubernetes labels. The RC pods require Kubernetes RBAC permissions for the "get", and "list" verbs of the "pods" resource.

See Kubernetes q configuration for an example configuration.

Note that, global RCs connect to all RCs, and assembly RCs connect only to other RCs within their respective assemblies. See assembly/global RCs.

kdb Insights Enterprise

If you use kdb Insights Enterprise, no extra configuration is needed. DAP-RC and Agg-RC connection is done by ordinal.

Kubernetes q configuration

The following is an example configuration for Kubernetes-based discovery for q containers (DAP, RC, Agg).

# Connecting pod.
apiVersion: apps/v1
kind: Pod
metadata:
  name: connecting-pod
spec:
  serviceAccountName: insights-serviceAccount
  containers:
  # Connecting container.
  - ...
    env:
    # Enable Kubernetes discovery.
    - name: KXI_DISC_MODE
      value: kubernetes
    # The following environment variables control what RCs the connecting container will find. Shown here are the
    # default values; they are used if the corresponding environment is not defined. These can be overwritten to allow
    # for fine-tuned controlled over RC connections.
    #    - RC_LABEL_SELECTOR    Label selector to identify/filter RC pods (`kubectl get pods -l '...').
    #    - RC_CONTAINER_NAME    Name of the RC's container within the RC pod.
    - name: KXI_RC_LABEL_SELECTOR
      value: app.kubernetes.io/name=resource-coordinator
    - name: KXI_RC_CONTAINER_NAME
      value: resource-coordinator
---
# Service account.
apiVersion: v1
kind: ServiceAccount
metadata:
  name: insights-service-account
---
# RBAC role.
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: insights-role
rules:
- apiGroups: [""]
  resources: ["pods"]
  verbs: ["get", "list"]
---
# RoleBinding RBAC role to GW's ServiceAccount.
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: insights-role-binding
subjects:
- kind: ServiceAccount
  name: insights-service-account
  apiGroup: ""
roleRef:
  kind: Role
  name: insights-role
  apiGroup: ""

The Pod/container above discovers all RCs configured as shown below.

kind: Pod
metadata:
  name: resource-coordinator
  labels:
    app.kubernetes.io/name: "resource-coordinator" # Must match connecting pod's KXI_RC_LABEL_SELECTOR
spec:
  containers:
  - resource-coordinator: # Must match connecting pod's KXI_RC_CONTAINER_NAME
    ports:
    - ...
      containerPort: 5050 # Must set a port
      protocol: TCP

RCs connect to all discovered RCs, whereas DAPs and Aggs connect to one of the discovered RCs using ordinals.

Ordinal connection

If you use Kubernetes-based discovery to connect to RCs, DAPs and Aggs, use ordinals. A process's ordinal is the number following the last "-" or "_" in the process's host name. If a process's host name has no number following the last "-" or "_", then its ordinal is 0. For example:

host name	ordinal
resource-coordinator-3	3
dap-hdb_11	11
aggregatorOne	0

It is important to use properly numbered RC, DAP, and Agg replicas with sequential ordinals. Use Kubernetes StatefulSets or Docker compose replicas to do this.

In kdb Insights, in order for this method to work, RCs MUST set the following the KXI_RC_STS_SIZE environment variable to the total number of RCs.

KXI_RC_STS_SIZE=<total_number_of_RCs>

In kdb Insights Enterprise, this environment variable is automatically set.

A DAP or Agg with ordinal n connects to the (unique) RC whose ordinal is congruent to n modulo KXI_RC_STS_SIZE. For example, in a system with 6 DAPs and KXI_RC_STS_SIZE=3:

DAP	RC
dap-0	rc-0
dap-1	rc-1
dap-2	rc-2
dap-3	rc-0
dap-4	rc-1
dap-5	rc-2

Note

• You must have at least as many DAPs and Aggs as RCs so that each RC has at least one DAP and one Agg.
• We recommend that you have a number of DAPs and Aggs equal to a multiple of the number of RCs so that each RC has equal query throughput capacity.
• We recommend using ordinal-based connections as described above (i.e. letting DAPs and Aggs determine the correct RC via modulo arithmic). However, for specialized setups, it may be desirable to override an individual pod's ordinal. This can be achieved using the KXI_ORDINAL environment variable. E.g. KXI_ORDINAL="1" sets the pod's ordinal to 1 regardless of the pod's actual ordinal in the stateful set.
