Get Data - Kafka

This page provides a walkthrough on how to use kdb Insights Enterprise to stream data from Kafka to monitor NYC subway train punctuality for travel planning.

Apache Kafka is an event streaming platform that seamlessly integrates with kdb Insights Enterprise, enabling real-time data processing through pipelines connected to Kafka data sources.

We have provided a Kafka subway feed for use in this walkthrough, which generates live alerts for NYC Subway trains tracking arrival time, station location co-ordinates, direction, and route details.

No kdb+ knowledge required

No prior experience with q/kdb+ is required to build this pipeline.

Before you build your pipeline, you must ensure the insights-demo database is created, as described here.

The following sections describes how to:

  • Create a pipeline. Create the subway pipeline and add it to the insights-demo package. This pipeline contains the following nodes:
    • Reader: The reader stores details of data to import, including any required authentication.
    • Decoder This decodes Kafka event data, which is in JSON, to a kdb+ friendly format (a kdb+ dictionary).
    • Transform: This applies a schema which converts data to a type compatible with a kdb Insights Database. Every imported data table requires a schema and every data table must have a timestamp key to be compatible with kdb's time series columnar database. The insights-demo database has a predefined schema for subway data.
    • Writer: This writes transformed data to the kdb Insights Enterprise database.
    • Map: This node uses enlist to convert the decoded data to a kdb+ table prior to deployment.
  • Ingest the data. To run the pipeline you have just created to ingest data into the insights-demo database.

Create a pipeline

To setup the pipeline, containing the nodes described in the previous section:

  1. On the Overview page, choose Immport Data under Databases:

    Select a build a database.

  2. In the Import your data screen select the Kafka reader.

  3. In the Configure Kafka screen:

    • Enter values for:

      Setting Value
      Broker kafka.trykdb.kx.com:443
      Topic subway

      The default values can be accepted for the following:

      Setting *Value**
      Offset End
      Use TLS Unchecked
      Use Schema Registry Unchecked

    • Open the Advanced drop-down and check Advanced Broker Options.

    • Click + under Add an Advanced Configuration and enter the following key value-pairs:

      Key Value
      sasl.username demo
      sasl.password demo
      sasl.mechanism SCRAM-SHA-512
      security.protocol SASL_SSL

    • Click Next.

  4. In the Select a decoder screen click JSON.

  5. In the Configure JSON screen click Next, leaving Decode each unchecked.

  6. In the Configure Schema screen:

    • Keep Data Format set to Any.
    • Click the Load Schema icon next to Parse Strings.
    • Select insights-demo as the database. This is the database you created here.
    • Select subway as the table.
    • Click Load.
    • Keep Parse Strings set to Auto for all fields.
    • Click Next.

  7. In the Configure Writer screen:

    • Select insights-demo as the database. This is the database you created here.
    • Select subway as the table.

    • Keep the default values for the remaining fields.

      Setting Value
      Write Direct to HDB Unchecked
      Deduplicate Stream Checked
      Set Timeout Value Unchecked

    • Click Open Pipeline to open a view of the pipeline.

      • Enter subway-1 as the Pipeline Name
      • Click Select a Package and select insights-demo.
      • Click Create.

  8. In the pipeline template:

    • Click-and-drag a Map node, from the list of Functions, into the workspace.
    • Remove the connection between Decoder and Transform nodes by right-clicking the link and selecting Remove Edge.
    • Connect the Map node to the Decoder and Transform nodes.

    • Click on the Map node to edit its properties and set the enlist data as shown below.

      {[data]
    enlist data
    }

    • Click Apply to apply these changes to the node.

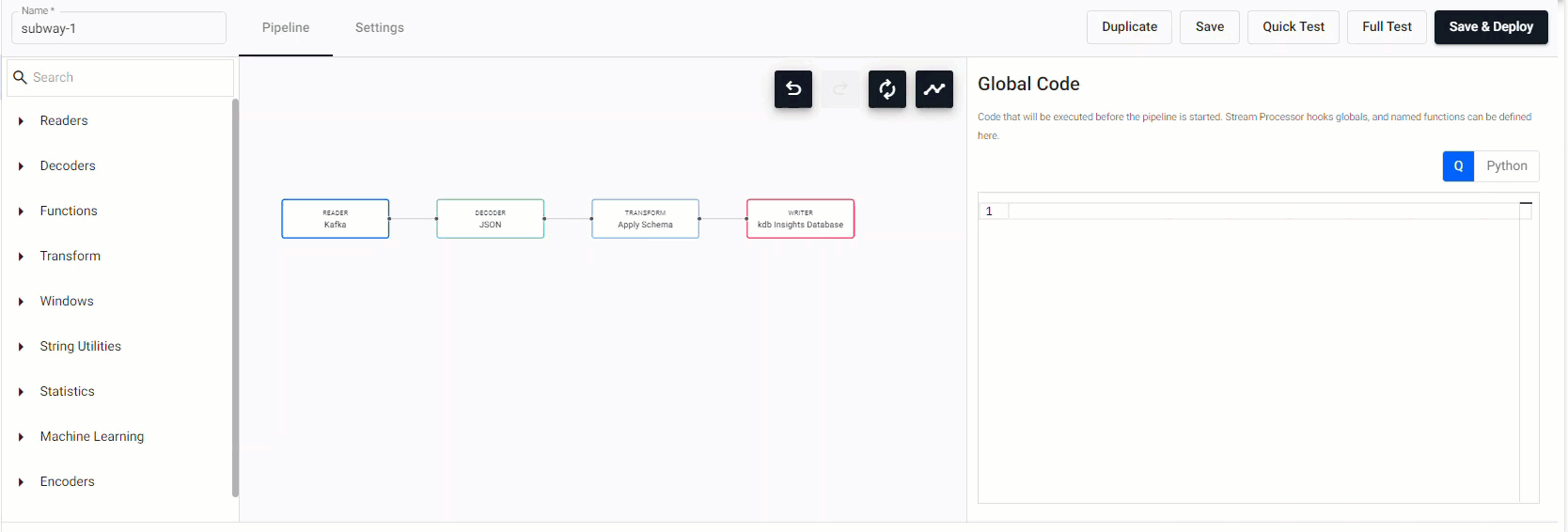

    Adding a **Function Map** node to a Kafka data pipeline. Connect edges with click-and-drag, right-click a connection to remove.

  9. Click Save.

Deploy the pipeline

Deploy the package containing the database and pipeline in order to ingest the data into the database.

  1. Go to the Package Index page and click on the three dots beside insights-demo package and click Deploy.

Note

It may take Kubernetes several minutes to release the necessary resources to deploy the pipeline.

If the package or its database are already deployed you must tear it down. Do this on the Package Index page by clicking on the three dots beside insights-demo package and click Teardown.

  1. Check the progress of the pipeline under the Running Pipelines panel on the Overview tab. The data is ready to query when Status = Running.

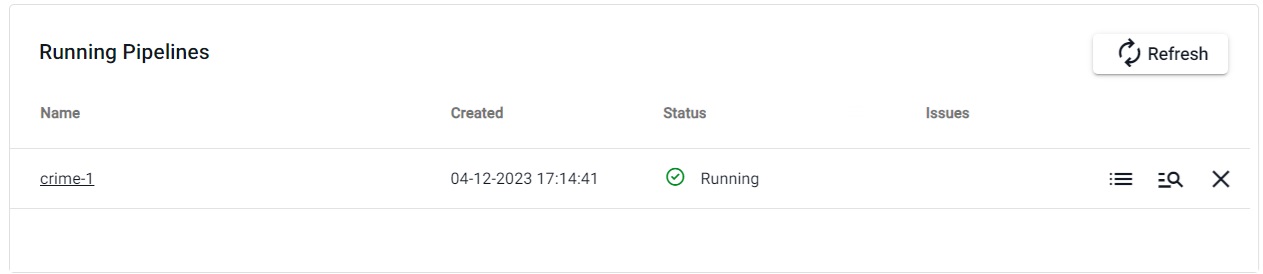

    A running crime pipeline available for querying.

Pipeline warnings

Once the pipeline is running some warnings may be displayed in the Running Pipelines panel of the Overview tab, these are expected and can be ignored.

Next steps

Now that data has been ingested into the weather table you can:
