Create a Package and a Database

This page guides you through the steps to create a database and add it to a package, using the kdb Insights Enterprise Web Interface.

The Build a database section guides you through building the insights-demo database and adding it to the insights-demo package.

Details on how to set up pipelines and ingest data into this database are provided in the other walkthroughs.

Build a database

This section explains how to create a new database, add it to a package, and set up the schema for the new database in the Insights Enterprise Web Interface.

On the Overview page, choose Create new under Databases in the Quick Actions section.

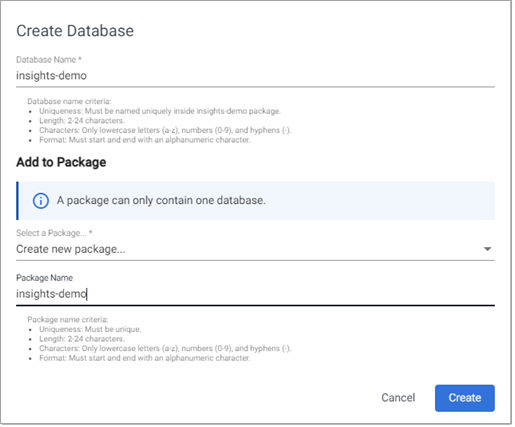

In the Create Database dialog:
- Enter insights-demo as the Database Name.
- Click Select a Package and Create new package.
- Enter insights-demo as the Package Name.
- Click Create.
On the Schema Settings tab click Code View to open the Schema Code View. You can use this to add large schema tables, in JSON format.

Replace the existing code with the following JSON.

insights-demo schema

This JSON code is used in all the walkthrough examples that use the insights-demo database.

[
    {
        "name": "weather",
        "type": "partitioned",
        "primaryKeys": [],
        "prtnCol": "timestamp",
        "sortColsDisk": ["airtemp"],
        "sortColsMem": ["timestamp"],
        "sortColsOrd": ["sensor"],
        "columns": [
        {
            "type": "timestamp",
            "name": "timestamp",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "sensor",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "sorted",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "airtemp",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "sorted",
            "compound": false
        },
        {
            "name": "name",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "borough",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "longitude",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "latitude",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "color",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        }
        ]
    },
    {
        "columns": [
        {
            "type": "symbol",
            "name": "trip_id",
            "attrMem": "sorted",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "arrival_time",
            "type": "timestamp",
            "attrMem": "",
            "attrOrd": "sorted",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "stop_id",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "sorted",
            "compound": false
        },
        {
            "name": "stop_sequence",
            "type": "long",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "stop_name",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "stop_lat",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "stop_lon",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "route_id",
            "type": "long",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "trip_headsign",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "direction_id",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "route_short_name",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "route_long_name",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "route_desc",
            "type": "string",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "route_type",
            "type": "long",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "route_url",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "route_color",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        }
        ],
        "primaryKeys": [],
        "type": "partitioned",
        "prtnCol": "arrival_time",
        "name": "subway",
        "sortColsDisk": ["stop_id"],
        "sortColsMem": ["trip_id"],
        "sortColsOrd": ["arrival_time"]
    },
    {
        "columns": [
        {
            "type": "string",
            "name": "name",
            "attrMem": "sorted",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "lat",
            "type": "float",
            "attrMem": "",
            "attrOrd": "sorted",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "long",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "sorted",
            "compound": false
        },
        {
            "name": "neighborhood",
            "type": "string",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "airquality",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "trafficcongestion",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "bikeacccnt",
            "type": "int",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "caracccnt",
            "type": "int",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "timestamp",
            "type": "timestamp",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        }
        ],
        "primaryKeys": [],
        "type": "partitioned",
        "prtnCol": "timestamp",
        "name": "health",
        "sortColsDisk": ["long"],
        "sortColsMem": ["name"],
        "sortColsOrd": ["lat"]
    },
    {
        "columns": [
        {
            "type": "symbol",
            "name": "event_id",
            "attrMem": "sorted",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "incident_time",
            "type": "timestamp",
            "attrMem": "",
            "attrOrd": "sorted",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "nypd_precinct",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "sorted",
            "compound": false
        },
        {
            "name": "borough",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "patrol_borough",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "call_x_geo",
            "type": "long",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "call_y_geo",
            "type": "long",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "radio_code",
            "type": "symbol",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "description",
            "type": "string",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "crime_in_progress",
            "type": "string",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "call_timestamp",
            "type": "timestamp",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "dispatch_timestamp",
            "type": "timestamp",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "arrival_timestamp",
            "type": "timestamp",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "closing_timestamp",
            "type": "timestamp",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "latitude",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        },
        {
            "name": "longitude",
            "type": "float",
            "attrMem": "",
            "attrOrd": "",
            "attrDisk": "",
            "compound": false
        }
        ],
        "primaryKeys": [],
        "type": "partitioned",
        "prtnCol": "arrival_timestamp",
        "name": "crime",
        "sortColsDisk": ["nypd_precinct"],
        "sortColsMem": ["event_id"],
        "sortColsOrd": ["incident_time"]
    }
    ]

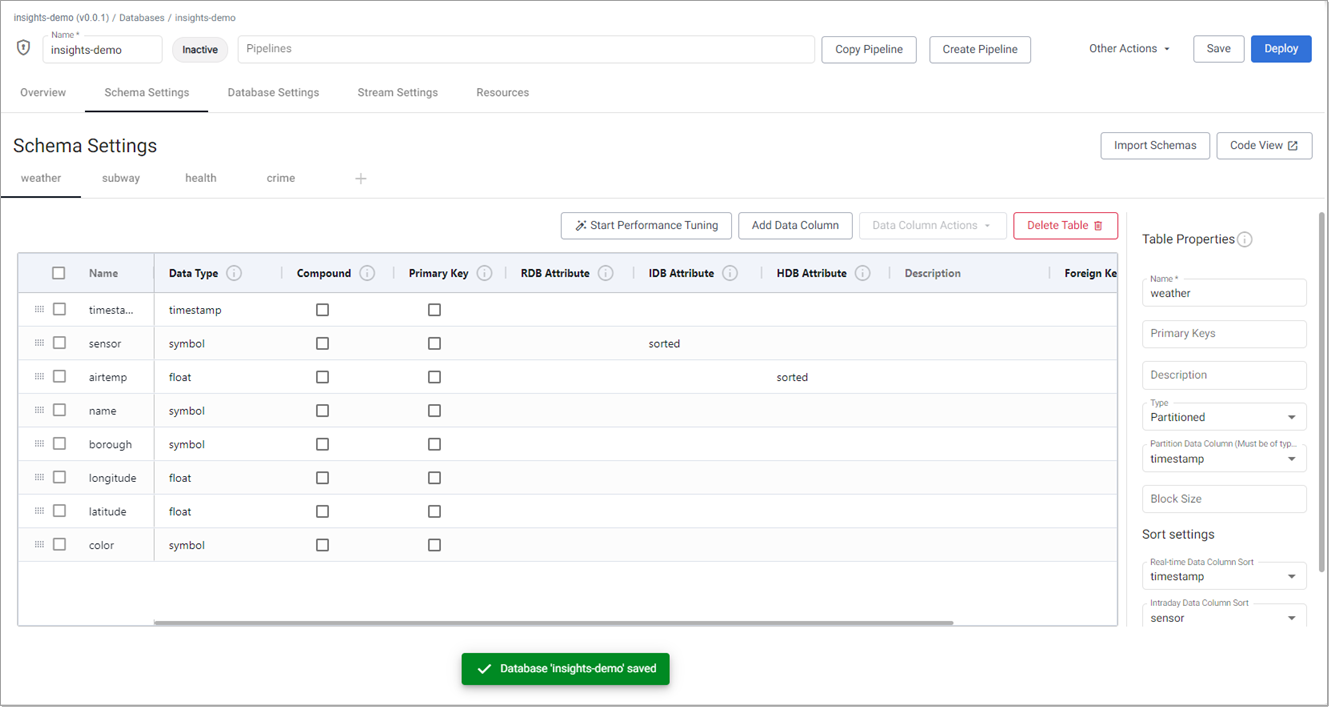

Click Apply to setup the database schema.
Click Save.

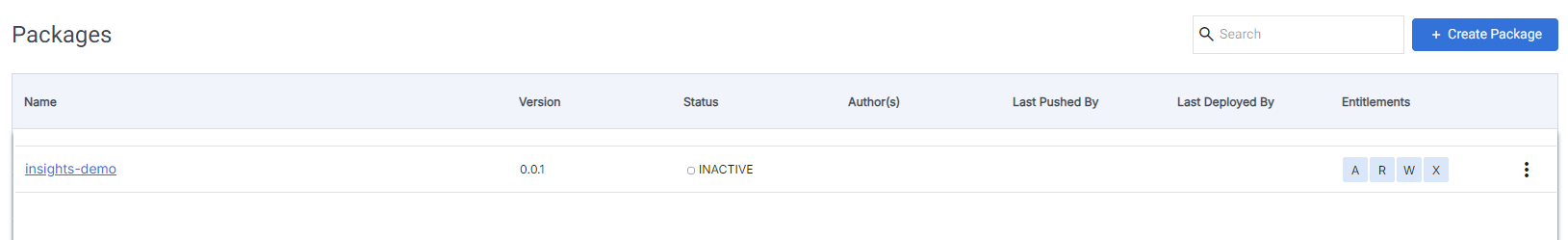

Navigate to the package index page to see the package containing the database.
Next, create pipelines to ingest data into this database:
