This page provides a walkthrough to guide you through the steps to create a pipeline to ingest Protocol buffers data into kdb Insights Enterprise.

Protocol buffers are Google's language-neutral, platform-neutral, extensible mechanism for serializing structured data. We have provided a crime data set for use in this walkthrough, which is a record of events from March 31st 2022 in NYC, organized by precinct, including location coordinates of the call, dispatch times, and a description of the crime.

No kdb+ knowledge required

No prior experience with q/kdb+ is required to build this pipeline.

Before you build your pipeline you must ensure the insights-demo database is created, as described in the database documentation.

Create a pipeline

  1. On the Overview page, choose Create new under Pipelines:

    Select a build a database.

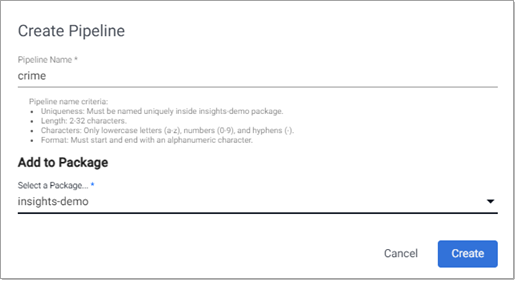

  2. In the Create Pipeline dialog:

    • Enter crime as the Pipeline Name
    • Click Select a Package, then select insights-demo.

    If insights-demo is not available for selection (if it has already been deployed), open the packages index and select Teardown from the actions menu beside insights-demo.

    If insight-demo does not appear on packages list create it, as described in the database documentation.

    Create insights-demo

  3. Next, add the nodes to the pipeline:

    • Expression node pulls in the crime data set.
    • Decoder node reads in this data in a format compatible with kdb+.
    • Transform node transforms the crime data fields to kdb+ types compatible with the insights-demo kdb+ database.
    • Writer node writes the transformed crime data to the kdb Insights Enterprise database.

Add an Expression node

  1. Click-and-drag an Expression node from the Readers, into the workspace.

  2. Click on the Expression and add the following q code to the Configure Expression Node panel. This code pulls in the crime data set.

    URL:"https://code.kx.com/kxiwalkthrough/data/crime.msg";
resp:.kurl.sync[(URL;`GET;(::))];
if[200 <> first resp; ' last resp];
"\n" vs last resp

  3. Click Apply to apply these changes to the node.

Add a Decoder node

  1. Click-and-drag the Protocol Buffers decoder node from the list of Decoders into the central workspace, and connect it to the Expression node.

  2. Select the Decoder node.

  3. Add the following settings to the right-hand property panel:

    Setting Value
    Message Name crime
    Message Definition copy the JSON code block below
    As List disabled
    syntax = "proto3";

message crime {
    uint64 event_id = 1;
    string incident_time = 2;
    uint64 nypd_precinct = 3;
    string borough = 4;
    string patrol_borough = 5;
    uint64 call_x_geo = 6;
    uint64 call_y_geo = 7;
    string radio_code = 8;
    string description = 9;
    string crime_in_progress = 10;
    string call_timestamp = 11;
    string dispatch_timestamp = 12;
    string arrival_timestamp = 13;
    string closing_timestamp = 14;
    double latitude = 15;
    double longitude = 16;
}

  4. Click Apply to apply these values to the node.

Add a Transform node

  1. Click-and-drag the Apply Schema node from the list of Transform nodes and connect it to the Decoder node. insights-demo has a predefined schema for crime data which transforms the data to a kdb+/q format.

  2. Select the Apply Schema node.

  3. In the Configure Apply Schema Node section leave the Data Format setting set to Any.

  4. Click the Load Schema icon , select the insights-demo database and the crime table from the dropdowns as shown below.

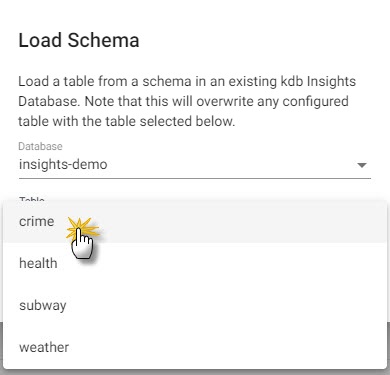

    Loading the crime schema from insights-demo.

  5. Click Load.

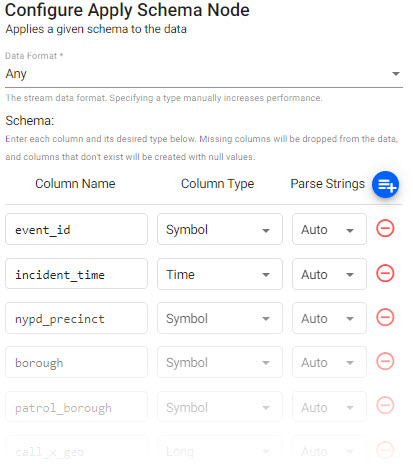

    The crime schema in the transform node.

  6. Click Apply to apply changes to the node.

Add a Writer node

  1. Click-and-drag the kdb Insights Database node from the list of Writer nodes into the workspace and connect it to the Transform node.

  2. Select the Writer node and add the following settings to the right-hand Configure kdb Insights Database property panel:

    Setting Value
    Database insights-demo
    Table crime
    Write Direct to HDB No
    Deduplicate Stream Yes
    Set Timeout Value No

  3. Click Apply to apply these settings to the node.

Review the pipeline

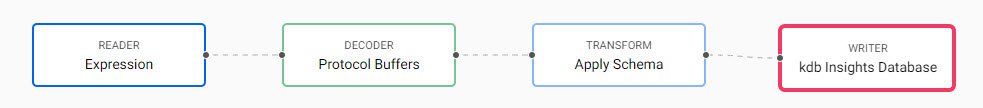

The final pipeline looks like this:

A completed crime pipeline.

Save the pipeline

You now need to save the Pipeline.

  1. Click Save.

Deploy the pipeline

Deploy the package containing the database and pipeline in order to ingest the data into the database.

  1. Go to the Package Index page and click on the three dots beside insights-demo package and click Deploy.

Note

It may take Kubernetes several minutes to release the necessary resources to deploy the pipeline.

If the pipeline or database in the package are already deployed you must tear it down. Do this on the Package Index page by clicking on the three dots beside insights-demo package and click Teardown.

  1. Check the progress of the pipeline under the Running Pipelines panel of the Overview tab. The data is ready to query when Status = Running.

    A running crime pipeline available for querying.

Pipeline warnings

Once the pipeline is running some warnings may be displayed in the Running Pipelines panel of the Overview tab. These are expected and can be ignored.
