Writers
This page explains how to set up writer operators, for kdb Insights Enterprise pipelines, using the Web Interface.
Writers are a specialized type of operators that allow users to push data from a streaming pipeline to different external data sources, using the stream processor.
See APIs for more details
A q interface can be used to build pipelines programmatically. See the q API for API details.
A Python interface is included along side the q interface and can be used if PyKX is enabled. See the Python API for API details.
The pipeline builder uses a drag-and-drop interface to link together operations within a pipeline. For details on how to build a pipeline, see the building a pipeline guide.

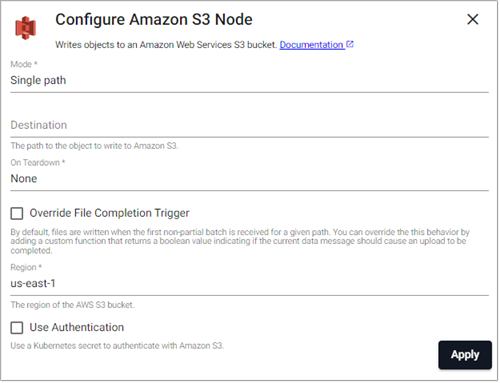

Amazon S3
The Amazon S3 operator writes data to an object in an Amazon S3 bucket.
See APIs for more details
q API: .qsp.write.toAmazonS3 •
Python API: kxi.sp.write.to_amazon_s3
Required Parameters:
| name | description | default |
|---|---|---|
| Mode | Indicates if this writer should write to a single file path or if it should use a function to derive a function path from the data in the stream. | Single path |
| Destination | If Single path is selected, the destination is the path of the object to write to in Amazon S3. If Dynamic path is selected, destination is a function that accepts the current batch of data and returns a string of the object path in S3 to save data to |
|
| On Teardown | Indicates the desired behavior for any pending data when the pipeline is torn down. The pipeline can perform no action (None) and continue to buffer data until the pipeline starts again. This is recommended for most use cases. Alternatively, the pipeline can be set to Abort any partial uploads. Or the pipeline can be set to Complete any partial uploads. |
None |
Optional Parameters:
| name | description | default |
|---|---|---|
| Override File Completion Trigger | When selected, an Is Complete function is required to be provided. This allows the completion behavior for partial data to be customized |
No |
| Is Complete | A function that accepts metadata and data and returns a boolean indicating if after processing this batch of data that all partial data should be completed. |
|
| Region | The AWS region of the bucket to authenticate against | us-east-1 |
| Use Authentication | Enable Kubernetes secret authentication. | No |
| Kubernetes Secret | The name of a Kubernetes secret to authenticate with Azure Cloud Storage. Only available if Use Authentication is enabled. |
Amazon S3 Authentication
To access private buckets or files, a Kubernetes secret needs to be created that contains valid AWS credentials. This secret needs to be created in the same namespace as the kdb Insights Enterprise install. The name of that secret is then used in the Kubernetes Secret field when configuring the reader.
To create a Kubernetes secret containing AWS credentials:
kubectl create secret generic --from-file=credentials=<path/to/.aws/credentials> <secret-name>
Where <path/to/.aws/credentials> is the path to an AWS credentials file, and <secret-name> is the name of the Kubernetes secret to create.
Note that this only needs to be done once, and each subsequent usage of the Amazon S3 reader can re-use the same Kubernetes secret.

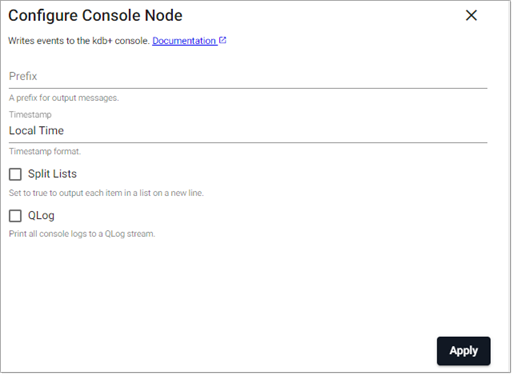

Console
The Console operator writes to the console.
See APIs for more details
q API: .qsp.write.toConsole •
Python API: kxi.sp.write.to_console
Optional Parameters:
| name | description | default |
|---|---|---|
| Prefix | A customized message prefix for data sent to the console. | "" |
| Timestamp | Indicates what timezone should be used for timestamps, either Local Time, UTC or No Timestamp. |
Local Time |
| Split Lists | Indicates if each element of a list should be on its own line or if it can all be on a single line. | No |
| QLog | Logs written by the console output are in raw text format. Check this option to wrap all output in QLog format. | No |
kdb Insights Database
Use this operator to write data to a kdb Insights database. The operator properties, shown below, are described in the table that follows.
There are 2 versions of the kdb Insights Database writer operator.
- The original, v1 is the default version.
- v2, released with kdb Insights Enterprise Version 1.12, enhances the ingest experience when Write Direct to HDB is enabled.
To change the operator version, click the version drop-down to select either v1 or v2.
Changing versions overwrites operator configuration
Pipelines built using v1 of this operator retain this version unless you change it. If you change operator versions, the fields of the v2 screen are blank and the v2 fields have to be configured. The v1 current configuration is overwritten and the new configuration is applied when you click Apply. You are notified and asked to confirm this action.
Click the v1 or v2 tab below to view the operator configuration options available for each version.

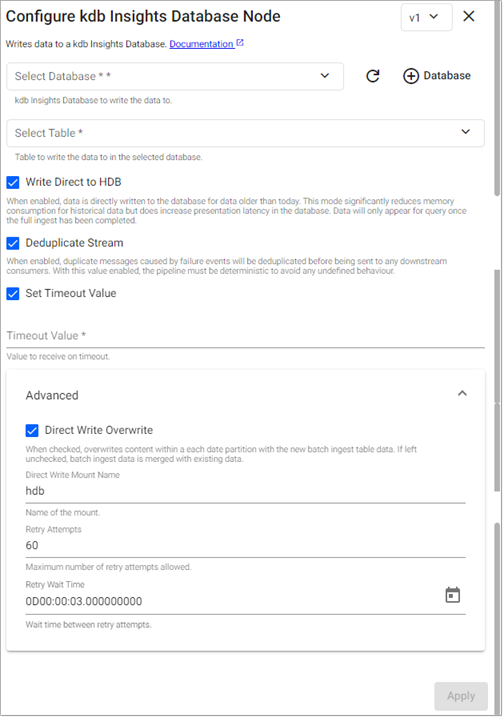

Configuration options for the v1 kdb Insights Database node are described below.
| name | description | default |
|---|---|---|
| Database | The name of the database to write data to. | None |
| Table | The name of the table to insert data into. | None |
| Write Direct to HDB | When enabled, data is directly written to the database for data older than the purview of the HDB. For large historical ingests, this option has significant memory savings. When this is selected, data is not available for query until the entire pipeline completes. When data is ingested directly to the HDB a banner section provides updates on the status of the ingest. The Batch Ingest tab in Diagnostics provides details about the status of batch ingests. |
Unchecked |
| Deduplicate Stream | For deterministic streams, this option ensures that data that is duplicated during a failure event only arrives in the database once. Only uncheck this if your model can tolerate data that is duplicated but may not be exactly equivalent. In v2 of this operator, this field is not available if Write Direct to HDB is enabled. |
Checked |
| Set Timeout Value | This controls whether to set a database connection timeout. | Disabled |
| Timeout Value | The database connection timeout value. | None |
| Advanced | ||
| Direct Write Overwrite | This is only displayed in the Advanced parameters when Write Direct to HDB is enabled. When checked this overwrites content within each date partition with the new batch ingest table data. When unchecked, batch ingest data is merged with existing data. | Checked |
| Direct Write Mount Name | This is only displayed in the Advanced parameters when Write Direct to HDB is enabled. When using direct write, this name indicates the name of the mount to use writing to the database. This must match the database mount name used for the HDB tier. This value corresponds to spec.elemeents.sm.tiers.<hdb tier>.mount in the database assembly file. |
hdb |
| Retry Attempts | The maximum number of database connection attempts. | 60 |
| Retry Wait Time | The wait time between retry attempts. Click on the time picker to select the hours, minutes, and seconds. | 0D00:00:03.000000000 |
Required fields are marked with an asterisk (*).
Click ** + Database** to create a new database.

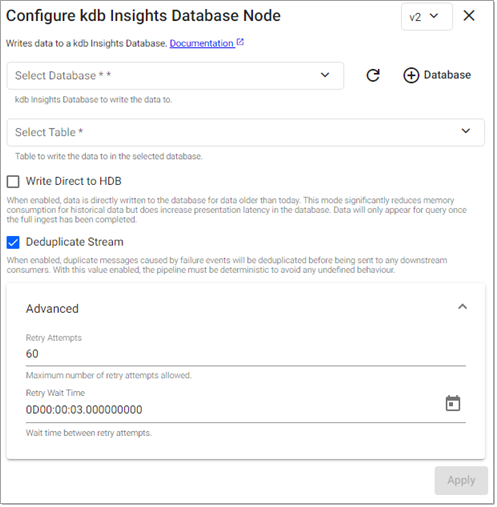

Configuration options for the v2 kdb Insights Database node are described below.
| name | description | default |
|---|---|---|
| Database | The name of the database to write data to. | None |
| Table | The name of the table to insert data into. | None |
| Write Direct to HDB | When enabled, data is directly written to the database. For large historical ingests, this option has significant memory savings. When this is checked, data is not available for query until the entire pipeline completes. When a pipeline with this setting on is run, a status indicator shows the progress of the data ingest in the banner section of the database screen. The status of the ingest can also be seen on the Batch Ingest tab under Diagnostics. |
Unchecked |
| Deduplicate Stream | For deterministic streams, this option ensures that data that is duplicated during a failure event only arrives in the database once. Only uncheck this if your model can tolerate data that is duplicated but may not be exactly equivalent. This is only available if Write Direct to HDB is disabled. | Enabled |
| Direct Write Overwrite | This is only displayed when Write Direct to HDB is enabled. When checked, this overwrites content within each data partition with the new batch ingest table data. When this is unchecked, batch ingest data is merged with existing data. | Unchecked |
| Advanced | ||
| Retry Attempts | The maximum number of database connection attempts. | 60 |
| Retry Wait Time | The wait time between retry attempts. Click on the time picker to select the hours, minutes, and seconds. | 0D00:00:03.000000000 |
- Required fields are marked with an asterisk (). Click *+ Database endpoint** to create a new database.
Read about the v2 database writer here.
See APIs for more details
q API: .qsp.write.toDatabase •
Python API: kxi.sp.write.to_database

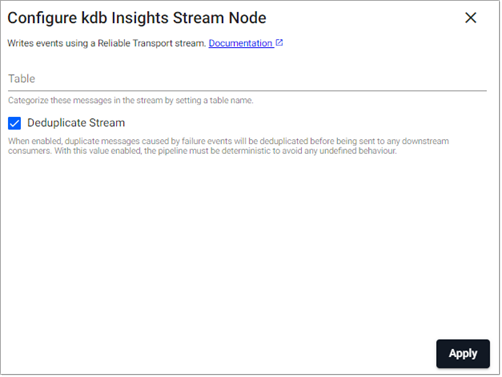

kdb Insights Stream
The kdb Insights Stream operator writes data using a kdb Insights Reliable Transport stream.
See APIs for more details
q API: .qsp.write.toStream •
Python API: kxi.sp.write.to_stream
Optional Parameters:
| name | description | default |
|---|---|---|
| Table | Wraps outbound data with the given table name as part of the message. Without this field, data is sent using the key name as the table name. Leave this blank for pipelines that both read and write from a stream. | |
| Deduplicate Stream | For deterministic streams, this option ensures that data that is duplicated during a failure event only arrives in the database once. Only uncheck this if your model can tolerate data that is duplicated but may not be exactly equivalent. | Yes |

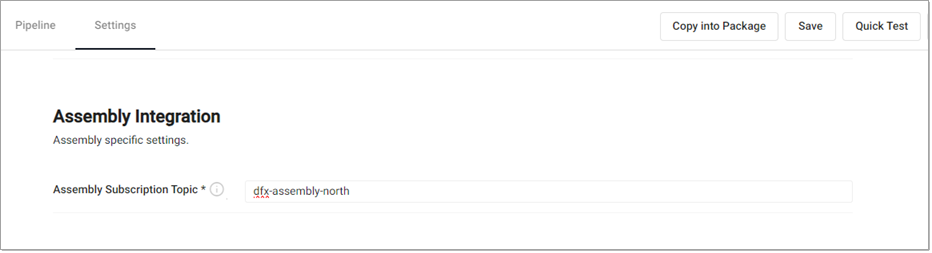

To write data to a stream, an assembly must be provided. This is done at pipeline deploy time. When you click the Deploy button and select the Assembly Integration tab. On this page, you need to set the assembly name and topic name.

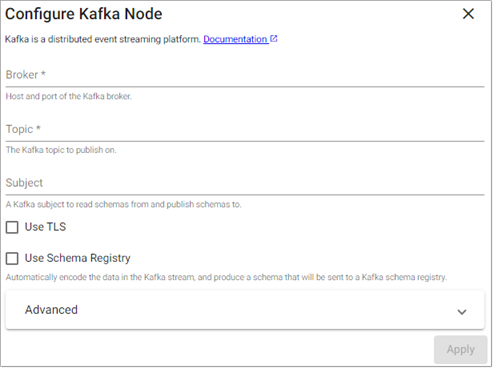

Kafka
The Kafka operator publishes data on a Kafka topic.
See APIs for more details
q API: .qsp.write.toKafka •
Python API: kxi.sp.write.to_kafka
Required Parameters:
| name | description | default |
|---|---|---|
| Broker | Location of the Kafka broker as host:port. If multiple brokers are available, they can be entered as a comma separated list. | |
| Topic | The name of the Kafka topic to subscribe to. |
Optional Parameters:
| name | description | default |
|---|---|---|
| Use TLS | Enable TLS for encrypting the Kafka connection. When selected, certificate details must be provided with a Kubernetes TLS Secret | No |
| Kubernetes Secret | The name of a Kubernetes secret that is already available in the cluster and contains your TLS certificates. Only available if Use TLS is selected. |
|
| Certificate Password | TLS certificate password, if required. Only available if Use TLS is selected. |
|
| Use Schema Registry | Use the schema registry to automatically decode data in a Kafka stream for JSON and Protocol Buffer payloads. When enabled, will automatically deserialize data based on the latest schema. | No |
| Registry | Kafka Schema Registry URL. Only available if Use Schema Registry is selected. |
|
| Auto Register | Whether or not to generate and publish schemas automatically. When enabled, the Stream Processor will update the registry with a new schema if the shape of data changes. If false, the schema for this topic must already exist. | No |
Advanced Parameters:
| name | description | default |
|---|---|---|
| Retry Attempts | The maximum number of retry attempts allowed. | 5 |
| Retry Wait Time | The amount of time to wait between retry attempts. | 2s |
Use Advanced Configuration
Allows more flexible options for security protocol configuration or changes to fetch intervals, as seen when subscribing to an Azure Event Hub Kafka connector.
Use Advanced Configuration
Allows more flexible options for security protocol configuration or changes to fetch intervals, as seen when subscribing to an Azure Event Hub Kafka connector.
See this guide for more details on setting up TLS Secrets

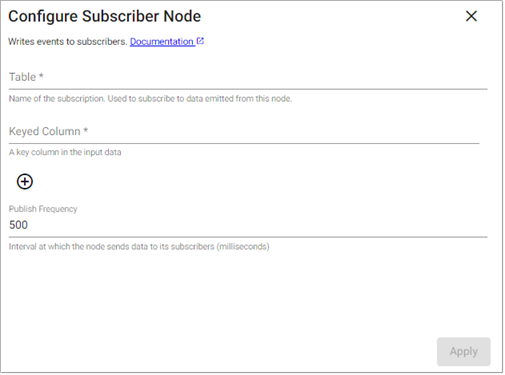

Subscriber
The Subscriber operator writes data to a subscriber. It emits a summarized view of the input data, with one record per unique combination of values in the list of keyed columns. The remaining columns are set to their latest values.
See APIs for more details
q API: .qsp.write.toSubscriber •
Python API: kxi.sp.write.to_subscriber
Required Parameters:
| name | description | default |
|---|---|---|
| Table | Name of the subscription. Used to subscribe to data emitted from this operator. | |
| Keyed Columns | A list of keyed columns in the input data (ex. sym). There must be at least one keyed column set and keyed columns must be of type symbol, integer, long or GUID |
Optional Parameters:
| name | description | default |
|---|---|---|
| Publish Frequency | Interval at which the operator sends data to its subscribers (milliseconds) | 500 |

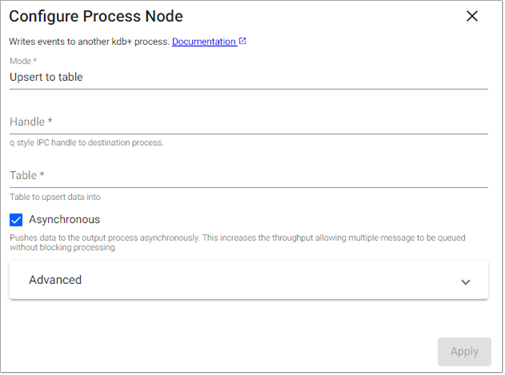

Process
The Process operator writes data to a kdb+ process.
See APIs for more details
q API: .qsp.write.toProcess •
Python API: kxi.sp.write.to_process
Required Parameters:
| name | description | default |
|---|---|---|
| Mode | Chose for data to either be added to a table in the remote process or to call a function. | Upsert to Function |
| Handle | An IPC handle to a destination process (ex. tcps://10.0.1.128:8080). |
Optional Parameters:
| name | description | default |
|---|---|---|
| Table | When using Upsert to Function mode, this is the table name to write data to in the remote process. |
|
| Function | When using Call function mode, this is the name of the function to invoke in the remote process. |
|
| Parameter | When using Call function mode, these are additional arguments to pass to the remote function call. The last parameter is always implicitly the data to be sent. |
|
| Asynchronous | Indicates if data should be sent to the remote process asynchronously. If unchecked, the pipeline will wait for the remote process to receive each batch of data before sending the next. Disabling this will add significant processing overhead but provide greater reliability. | Yes |
Advanced Parameters:
| name | description | default |
|---|---|---|
| Retry Attempts | The maximum number of retry attempts allowed. | 5 |
| Retry Wait Time | The amount of time to wait between retry attempts. | 1s |
| Queue Length | The maximum async message queue length before flush. | |
| Queue Size | The maximum number of bytes to buffer before flushing. | 1000 |
