Integrate Kafka and kdb+ for real-time telemetry

This dashoard view monitors NYC subway train punctuality for travel planning.

Overview

Real-time information on train times is a Apache Kafka feed.

Real-time data can be seamlessly handled in kdb Insights Enterprise using pipelines connecting to data sources. Apache Kafka is an event streaming platform that can be easily published to and consumed by kdb Insights Enterprise.

Guided walkthrough

Requires an insights-demo database. Available databases are listed under Databases in the Overview page; create an insights-demo database if none available.

Benefits

benefit	description
Get a Live View	Use kdb Insights Enterprise to stream data from Kafka for a continuous view of your transactional data.
Real Time Monitoring	View business events as they happen; be responsive not reactive.
Get Analytics-Ready Data	Get your data ready for analytics before it lands in the cloud.

Subway dataset

Kdb Insights Enterprise helps you easily consume Kafka natively. A real time demo of NYC subway dataset is available with Kafka, offering live alerts for NYC subway trains including arrival time, stop location coordinates, direction and route details.

1. Build a database

Select Build a Database under Discover kdb Insights Enterprise of the Overview page.
Name the database (e.g. insights-demo).

Define a subway table schema in the Schema Settings tab. Column descriptions are optional and not required here.

Subway schema

column	data type
trip_id	symbol
arrival_time	timestamp
stop_id	symbol
stop_sequence	short
stop_name	symbol
stop_lat	float
stop_lon	float
route_id	short
trip_headsign	symbol
direction_id	symbol
route_short_name	symbol
route_long_name	symbol
route_desc	string
route_type	short
route_url	symbol
route_color	symbol

I want to learn more about schema kdb+ types

In the right-hand Table Properties panel, set Partition Column to arrival_time.
the database.
Then .
The database runs through the deployment process; when successful, the database listed in the left-hand menu shows a green tick and is active for use.

Database warnings

Once the database is active you will see some warnings in the Issues pane of the Database Overview page, these are expected and can be ignored.

2. Ingest live Data

The subway feed uses Apache Kafka. Apache Kafka is an event streaming platform easily consumed and published by kdb Insights Enterprise.

Select 2. Import under Discover kdb Insights Enterprise of the Overview page.
Select the Kafka node and complete the properties; * are required fields:

setting value

Broker* kafka.trykdb.kx.com:443

Topic* subway

Offset* End

Use TLS No

Use Schema Registry No

Use Advanced Configuration Yes

Add the following key value-pairs into the Use Advanced Configuration section:

key value

sasl.username demo

sasl.password demo

sasl.mechanism SCRAM-SHA-512

security.protocol SASL_SSL
Click Next.
Select a decoder. Event data on Kafka is of type JSON; select the JSON decoder, then click Next
Incoming data is converted to a type compatible with a kdb Insights Enterprise database using a schema. The schema is already defined as part of database creation; Click . Then select the database created in 1. Build a Database and the subway schema. Data Format is unchanged as Any. Parse Strings is kept as auto for all fields.

setting value

Data Format* Any

Guided walkthrough

Select the insights-demo database to get the subway schema.
Click Load to apply the schema.
Click Next.
The Writer step defines the data write to database. Use the database and table defined in step 1.

setting value

Database* Name as defined in 1. Build a database

Table* subway

Write Direct to HDB Unchecked

Deduplicate Stream Enabled

Set Timeout Value No
Click to open a view of the pipeline in the pipeline template.

Modify Pipeline

The data ingest process finishes with a pipeline view. The Kafka ingest requires one more step, or node, in the pipeline. Use the pipeline template to add the extra step.

Data is converted from an incoming JSON format on the Kafka feed, to a kdb+ friendly dictionary. But the missing step requires a conversion from a kdb+ dictionary to a kdb+ table before deployment. This is done using enlist.

In the pipeline template, open the Functions node list in the left-hand-menu and click and drag the Map function node into the pipeline template workspace.
Disconnect the connection between the Decoder and Transform node with a right-click on the join.
Insert the Map function between the Decoder and Transform nodes; drag-and-connect the edge points of the Decoder node to the Map node, and from the Map node to the Transform node.

Kakfa pipeline with the inserted Map function node between JSON Decoder node and schema Transform node.
Update the Map function node by adding to the code editor:
```
{[data]
    enlist data
 }
```
5. Click to save details to the node.

3. Save pipeline

Save and name the pipeline (subway). Saved pipelines are listed under the Pipelines menu of the Overview page.

4. Deploy pipeline

Select and deploy the pipeline. This activates the pipeline, making the data available for use.

Deployed pipelines are listed under Running Pipelines of the Overview page. The subway pipeline reaches Status=Running when data is loaded.

5. Query the data

Kafka event count

Data queries are run in the query tab; this is accessible from the [+] of the ribbon menu, or Query under Discover kdb Insights Enterprise of the Overview page.

Select the SQL tab of the query page.
To retrieve a count of streaming events in the subway table, use the query:
```
SELECT COUNT(*) FROM subway
```
Define an Output Variable - this is required.
Click to execute the query. Rerun the query to get an updated value.

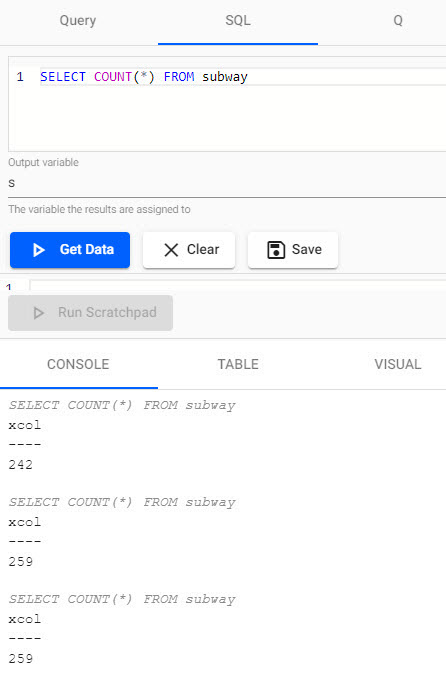

A SQL query reporting a count of events from the Kafka feed.

Filtering and visualizing

Next, get a subset of the data and save it to an output variable, s.

Set today's date in q

Use .z.d as a convenient way to return today's date.

In the q tab, select the insights-demo and the idb instance.
Use the query
```
select from subway where arrival_time.date in .z.d
```
3. Define the Output Variable as s. 4. Click to execute the query.

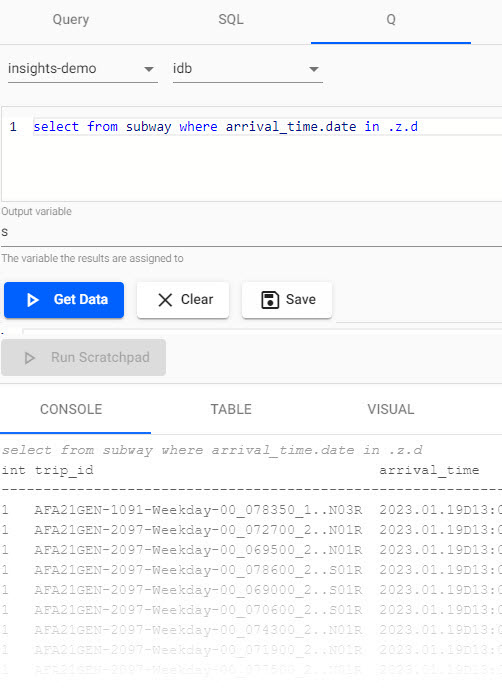

A q query listing arrival time of trains for today.
Additional analysis can be done against the s variable of today's train data with the scratchpad. Querying in the scratchpad is more efficient than direct querying of the database and supports both q and python. Pull data for a selected trip_id; change the value of the trip_id to another if the following example returns no results:
```
select from s where trip_id like "AFA21GEN-1091-Weekday-00_033450_1..N03R"
```
Click
View the result in one of the Console, Table or Visual tabs; note, you have to rerun the query for each tab change.

A q query run in scratchpad for a selected trip.
In the Visual inspector, set the y-axis to use stop_sequence and x-axis to arrival_time returns a plot of journey time between each of the stops.

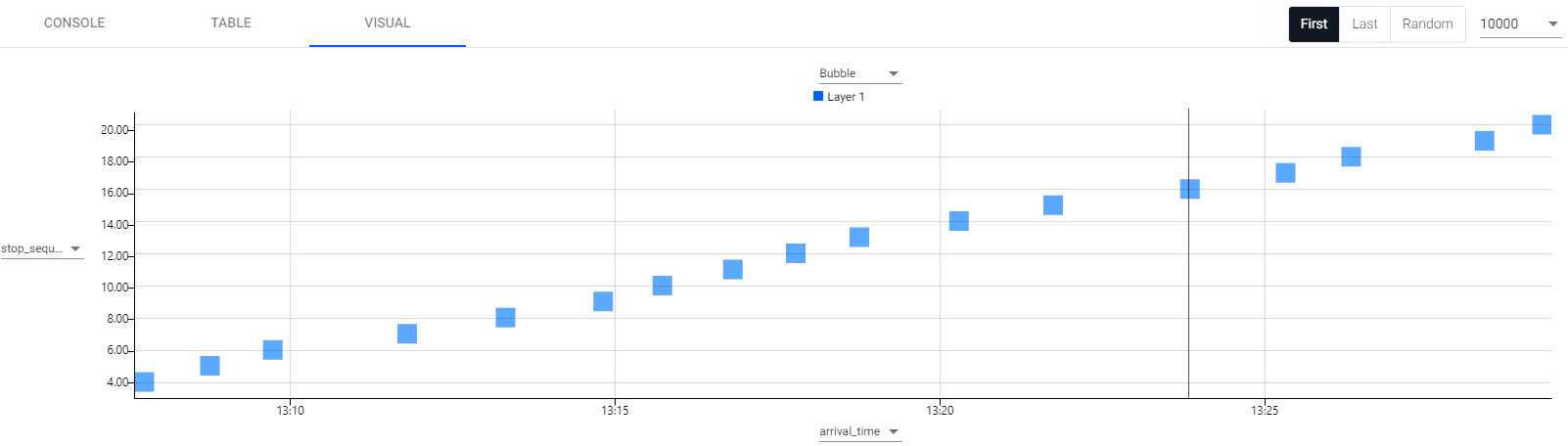

A visual representation of a single trip between each station.

Calculate average time between stops

Calculate the average time between stops as a baseline to determine percentage lateness.

Run in the scratchpad using a trip_id from the previous step; each id is unique:

`arrival_time`time_between_stops xcols
    update time_between_stops:0^`second$arrival_time[i]-arrival_time[i-1] from
    select from s
    where trip_id like "AFA21GEN-1091-Weekday-00_138900_1..N03R"

q for calculating average time between stops run in the scratchpad.
q for calculating average time between stops run in the scratchpad.

New to the q language?

In the above query, the following q elements are used:

xcols to reorder table columns
^ to replace nulls with zeros
$ to cast back to second datatype
x[i]-x[i-1] to subract each column from the previous one

If you run into an error on execution, check to ensure the correct code indentation is applied for s3.

What was the longest and shortest stop for this trip?

We can use the Table tab to filter the results - remember to run the scratchpad again on a tab change; for example, doing a column sort by clicking on the column header for the newly created variable time_between_stops will toggle the longest and shortest stop for the selected trip.

Calculating percentage lateness for all trains

Which trains were most frequently on time?

Focus is on trains that completed their entire route. Remove the previous code block, then run in the scratchpad

// Getting the length of each train journey and num of stops
s3:select start_time:first arrival_time,
    journey_time:`second$last arrival_time-first arrival_time,
    first_stop:first stop_name,
    last_stop:last stop_name,
    numstops:count stop_sequence
    by route_short_name,direction_id,trip_id
    from s;
// Filtering only only trains that fully completed their route
s4:select from s3 where numstops=(max;numstops) fby route_short_name;
// Calculating the average journey time per sroute
s5:update avg_time:`second$avg journey_time by route_short_name from s4;
// Calculating the % difference between actual journey time and average time per route
s6:update avg_vs_actual_pc:100*(journey_time-avg_time)%avg_time from s5

New to the q language?

In the above query, the following q elements are used:

first, last to get first or last record
- to subract one column from another
count to return the number of records
by to group the results of table by column/s - similar to excel pivot
fby to filter results by a newly calculated field without needing to add it to table
x=(max;x) to filter any records that equal the maximum value for that column
$ to cast back to second datatype
* to perform multiplication
% to perform division.

If you run into an error on execution, check to ensure the correct code indentation is applied.

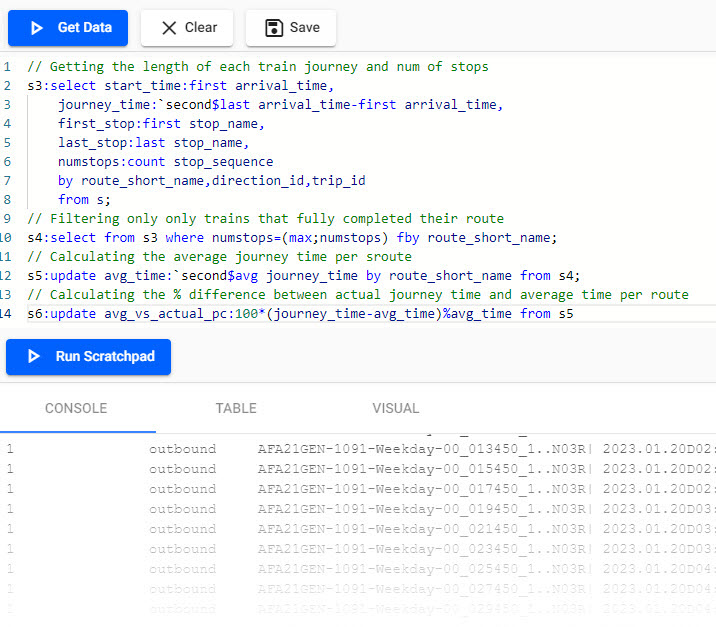

q code for calcuating average journey time.
q code for calcuating average journey time.

Most punctual train

Which train was most punctual? Remove the previous code block and then run in the scratchpad

select from s6 where avg_vs_actual_pc=min avg_vs_actual_pc

Using min, the 04:53 route E train was the most punctual (your result will differ).

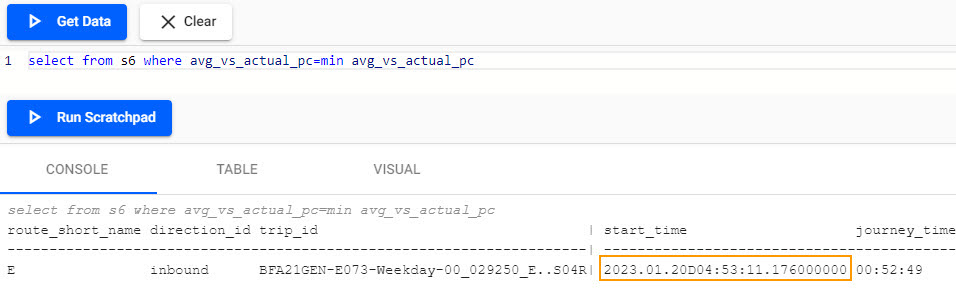

The console shows which train was the most punctual from the Kafka data.

Visualize journey time

Switch to the Visual tab.

Visualize for a single route; remove the previous code block in scratchpad and run

// Filtering for at only inbound trains on Route 1
select from s6 where route_short_name=`1 ,direction_id=`inbound

Switch to a bar chart. Set the y-axis to avg_vs_actual_pc and the x-axis to start_time

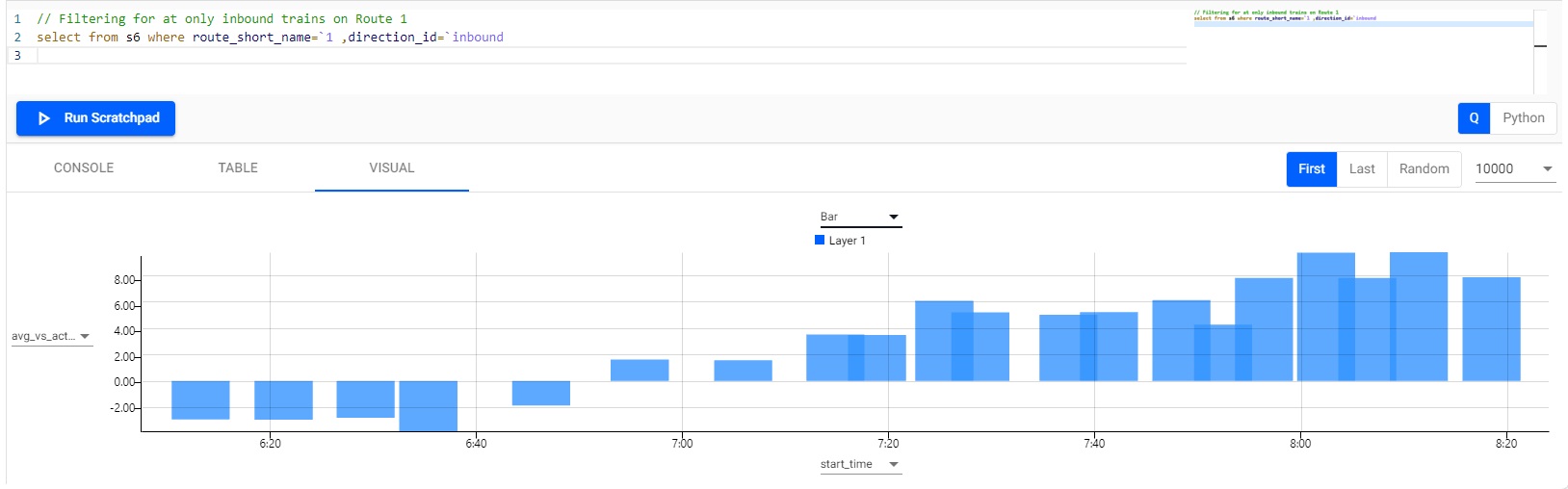

Visualizing the differential between actual and average journey time for a selected route.

Distribution of journey times between stations

Clear the previous code block in scratchpad and run:

{count each group 1 xbar x} 1e-9*"j"$raze exec 1_deltas arrival_time by trip_id from s

From the histogram, the most common journey time between stations is 90 seconds.

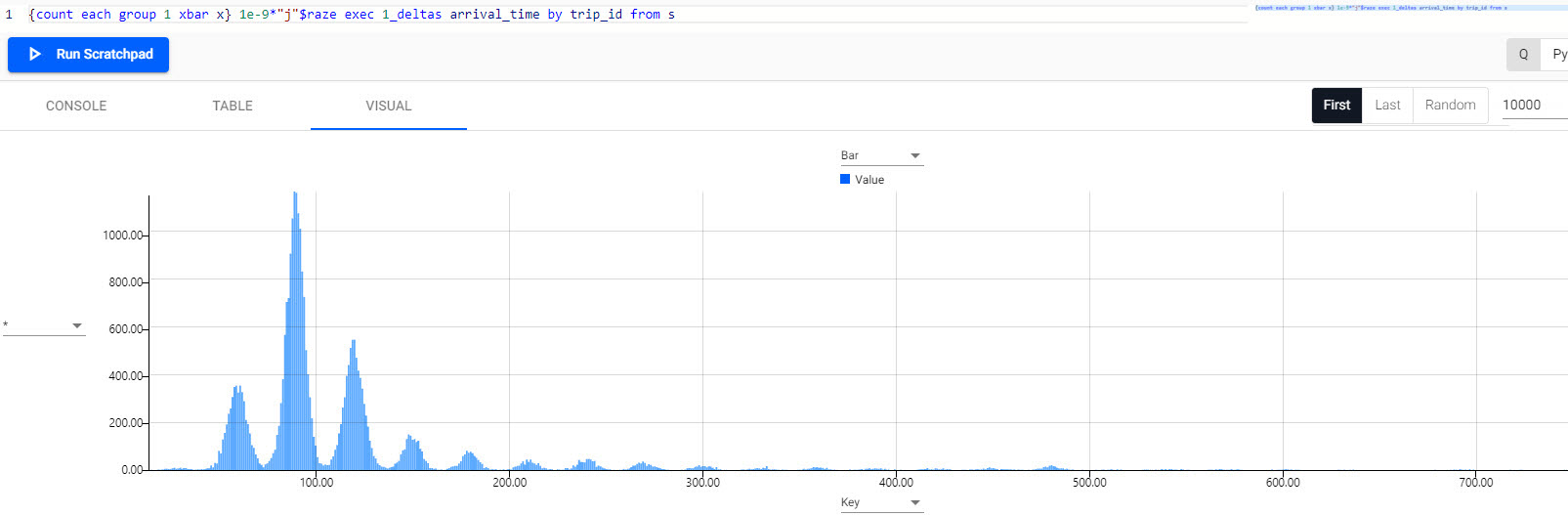

Distribution of journey time between stations. Note peaks at 60, 90, 120, and 150 seconds, with 90 seconds the most common journey time.
