Get Data - Object Storage

The purpose of this walkthrough is to demonstrate how to ingest data from object storage into a database.

We have provided a weather dataset, hosted on each of the major cloud providers, for use in this walkthrough.

No kdb+ knowledge required

No prior experience with q/kdb+ is required to build this pipeline.

Before you import data you must ensure the insights-demo database is created, as described here.

Import Data

The import process creates a Pipeline which is a collection of nodes:

  • Readers - read data from its source
  • Decoders - define the type of data imported
  • Writers - write the data to a kdb Insights Enterprise database

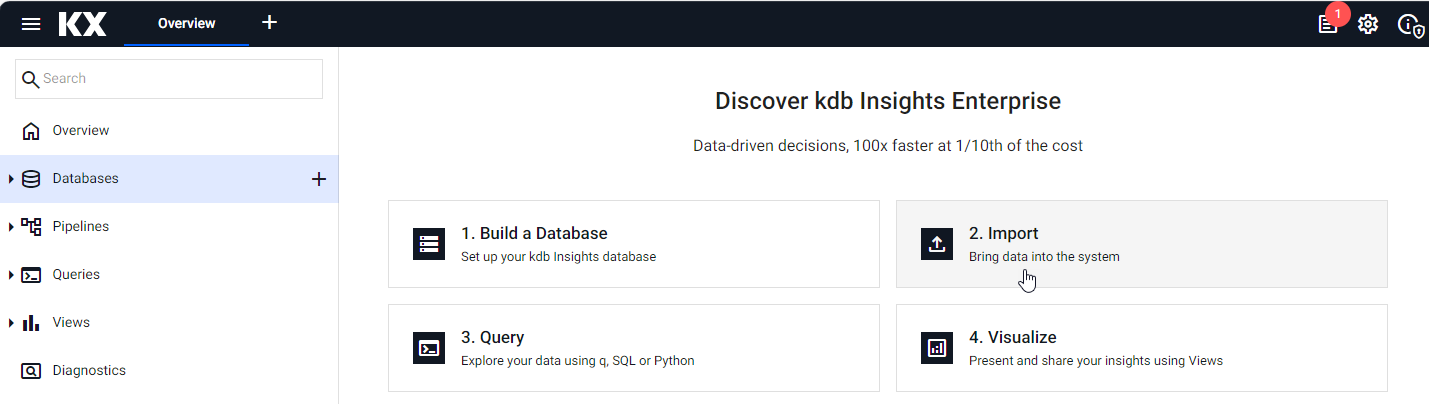

Open the import wizard by selecting 2. Import from the Overview page, as shown below.

Overview

Next, you are prompted to select a reader node.

Select a Reader

A reader node stores details of data to import, including any required authentication. Select a cloud providers from one of the following tabs, for settings specific to the reader for each: Google, Microsoft, and AWS.

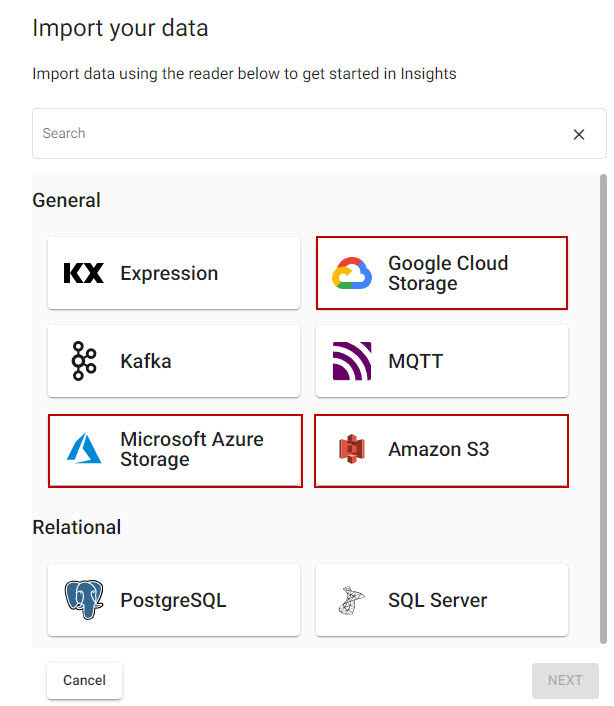

  1. Select from one of the Cloud providers listed:

    Select from one of the Cloud providers.

  2. Complete the reader properties for the selected cloud provider.

    Properties

    setting value
    GS URI* gs://kxevg/weather/temp.csv
    Project ID kx-evangelism
    Tenant Not applicable
    File Mode* Binary
    Offset* 0
    Chunking* Auto
    Chunk Size* 1MB
    Use Watching No
    Use Authentication No

    Properties

    setting value
    MS URI* ms://kxevg/temp.csv
    Account* kxevg
    Tenant Not applicable
    File Mode* Binary
    Offset* 0
    Chunking* Auto
    Chunk Size* 1MB
    Use Watching Unchecked
    Use Authentication Unchecked

    Properties

    setting value
    S3 URI* s3://kx-ft-public-share/temp.csv
    Region* us-east-1
    File Mode* Binary
    Tenant kxinsights
    Offset* 0
    Chunking* Auto
    Chunk Size 1MB
    Use Watching No
    Use Authentication No

  3. Click Next.

Select a Decoder

The Decoder node defines the type of data imported.

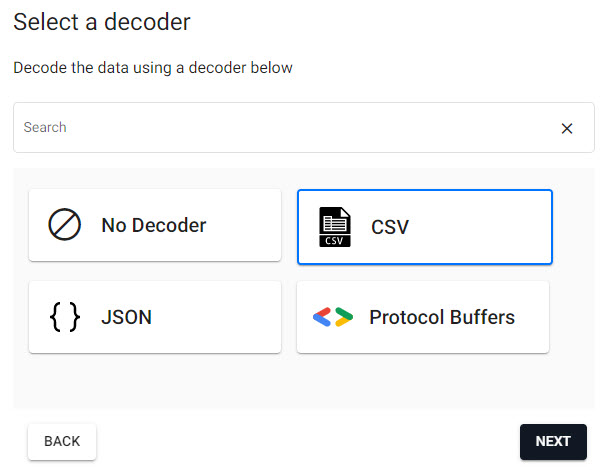

  1. Select CSV, as shown below, as the weather data is a csv file.

    Select the csv decoder for the weather data set.

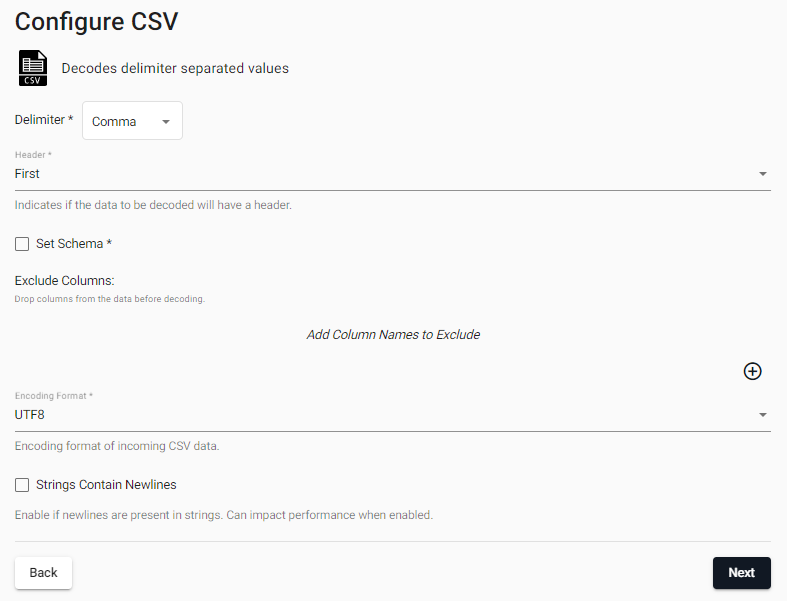

  2. Keep the default CSV decoder settings.

    Keep the default CSV decoder settings.

  3. Click Next to open the Configure Schema screen.

Apply the Schema

Next you must configure the schema which converts data to a type compatible with a kdb+ database. Every imported data table requires a schema; and every data table must have a timestamp key to be compatible with kdb's time series columnar database. insights-demo has a predefined schema for weather data.

  1. Complete the Configure Schema properties as follows:

    setting value
    Apply a Schema Checked
    Data Format Any

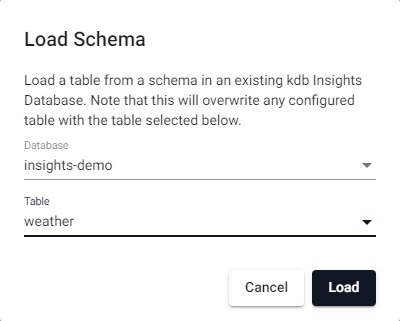

  2. Click the Load Schema icon and select the insights-demo schema from the Database dropdown and weather from the Table dropdown, as shown below.

    Select the weather table from the insights-demo schema.

  3. Click Load and then Next to open the Configure Writer screen.

Configure the Writer

The last step in creating this pipeline is to add a Writer which writes transformed data to the kdb Insights Enterprise database.

  1. Configure the writer settings as follows:

    setting value
    Database insights-demo
    Table weather
    Write Direct to HDB No
    Deduplicate Stream Yes
    Set Timeout Value No

  2. Click Open Pipeline to review the pipeline in the pipeline viewer.

Review Pipeline

You can now review the Pipeline that you created to; read in, transform and write the weather data to your insights-demo database. This is shown below.

A completed weather pipeline following the import steps.

Save the Pipeline

You now need to save and deploy your Pipeline.

  1. Enter a unique name in the top left of the workspace. For example, weather-1.

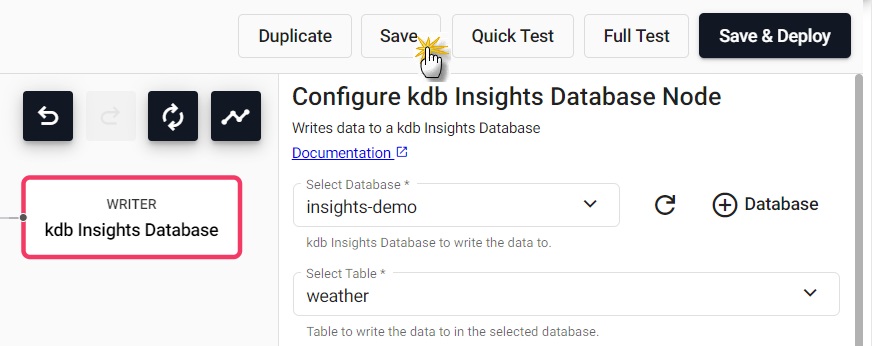

  2. Click Save.

    Save the pipeline as weather-1.

  3. The weather-1 pipeline is available under Pipelines in the left-hand menu.

The list of available pipelines for deployment in the left-hand menu.

Test Deploy

Before you deploy your pipeline you can run a test deploy which previews your pipeline prior to deployment. The test deploy returns a picture of the data at each step along the pipeline but does not write the data to the database.

  1. Click Quick Test. Note that it may take several minutes to run.

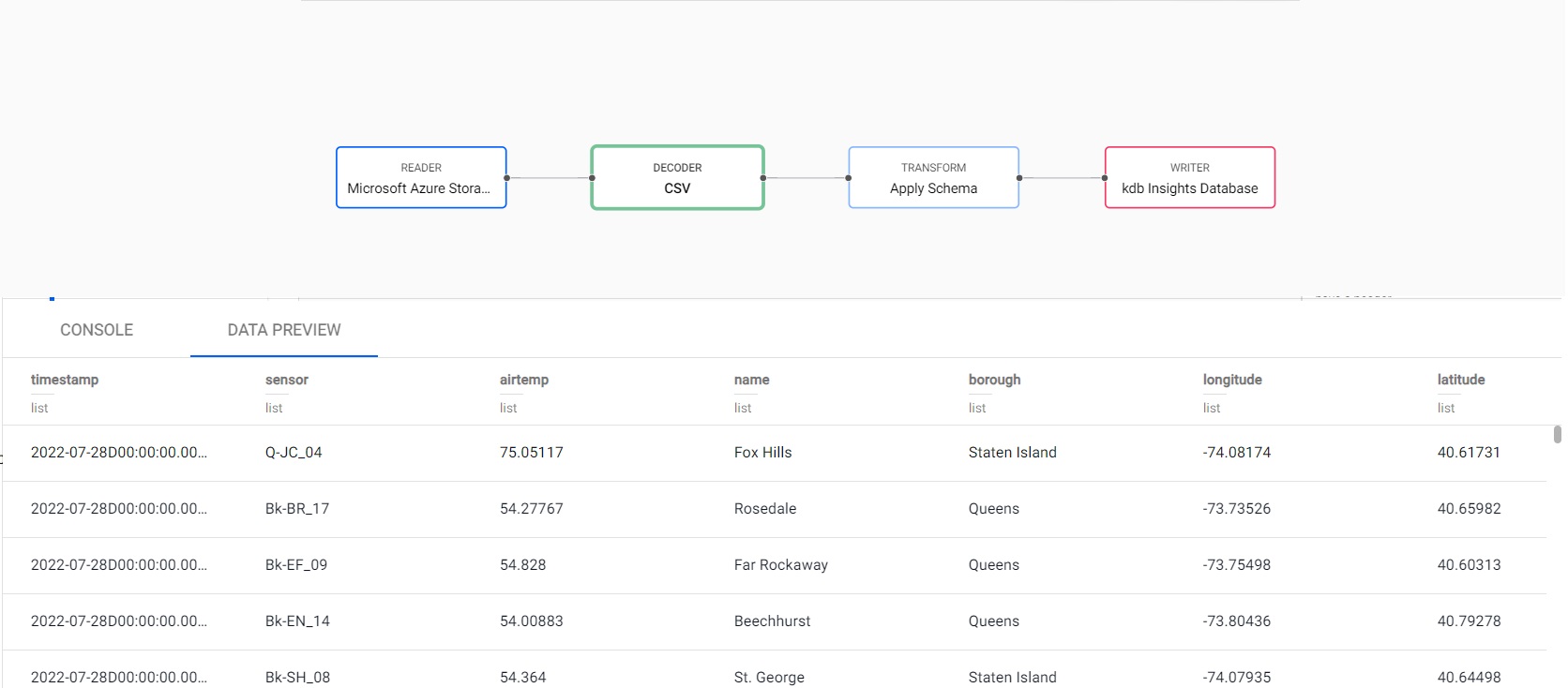

  2. Select a Node in the pipeline and choose the Data Preview tab, in the lower part of the screen, to view the data output from the step.

Test deploy results display in lower panel of pipeline template view.

Deploy the Pipeline

You are now ready to deploy your pipeline. Deploying the pipeline reads the data from its source, transforms it to a kdb+ compatible format, and writes it to a kdb Insights Enterprise database.

  1. Click on Save & Deploy, in the top panel, as shown below.

    Save and deploy the pipeline

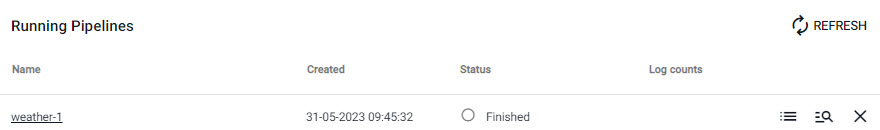

  2. Check the progress of the pipeline under the Running Pipelines panel of the Overview tab. The data is ready to query when Status=Finished. Note it may take several minutes for the pipeline to reach a running state.

    A running weather pipeline available for querying.

Pipeline warnings

Once the pipeline is running some warnings may be displayed in the Running Pipelines panel of the Overview tab, these are expected and can be ignored.

Pipeline Teardown

Once the CSV file has been ingested the weather pipeline can be torn down. Ingesting this data is a batch ingest operation, rather than an ongoing stream, so it is ok to teardown the pipeline once the data is ingested. Tearing down a pipeline returns resources so is a good practice when it is no longer needed.

  1. Click on the X in Running Pipelines on the Overview tab to teardown a pipeline.

    Click X to teardown a pipeline.

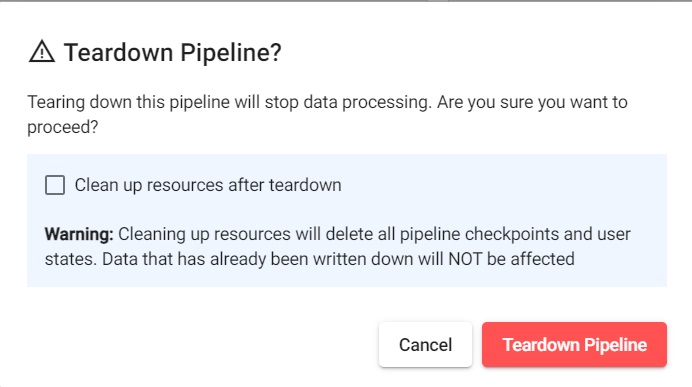

  2. Check Clean up resources after teardown as these are no longer required now that the CSV file has been ingested.

    Teardown a pipeline to free up resources.

Troubleshoot Pipelines

If any errors are reported they can be checked against the logs of the deployment process. Click View diagnostics in the Running Pipelines section of the Overview tab to review the status of a deployment.

Click *View Diagnostics* in **Running Pipelines** of **Overview** to view the status of a pipeline deployment.

Next Steps

Now that data has been ingested into the weather table you can:
