Licensing for self-managed deployments

The self-service licensing model previously in use for KX products has been deprecated. Contact your sales representative if you have questions about this, and wish to discuss moving to the new model.

The methods for auditing RAM capacity are described in the following sections:

Self-managed customers are required to run the reporting to gather max RAM capacity every hour, on the hour for the 10 day reporting period prior to the report submission date for submission to KX.

To assist in this reporting, guidance below describes how to extract the RAM capacity for the target environment.

The scripts provided below are examples, and may need adaptation for your deployment environment, including where cgroups have been set up outside of the context of full orchestration.

Please refer to the links in this page for guidance and raise a ticket on the support portal for assistance in setting this up, if required.

Obligations for self-reporting customers on existing arrangements remain unchanged.

Physical Hosts/ Named VMs

The method used to extract your provisioned RAM depends on the operating system as described in the following examples.

Unix

Run free -m in a shell session and review the output. For example:

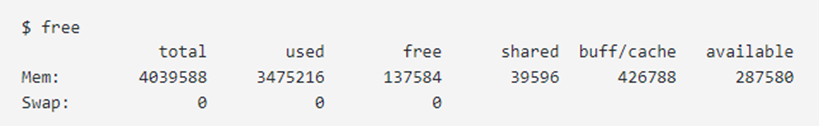

Unix Provisioned RAM

Record total as the provisioned RAM.

Windows

Access - Control Panel | System & Security | System | Installed RAM

Record Installed RAM as the provisioned RAM.

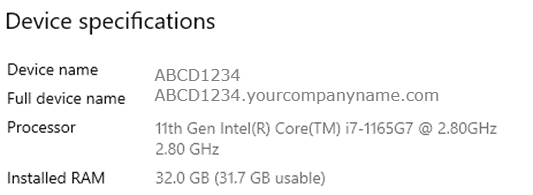

Windows Provisioned RAM

MacOS

Access - Activity Monitor | Memory | Physical Memory

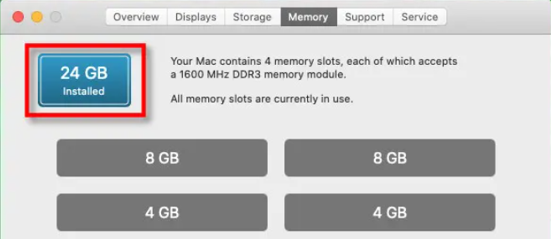

MacOS Provisioned RAM

Record the RAM displayed as the provisioned RAM, in this example, 24GB.

Orchestrated environments

Overview

For Kubernetes and Docker orchestrated environments, the required information may be extracted using the sample script described below.

These are the prerequisites:

  • jq and bc need to be installed
  • uuidgen needs to be installed, to create a unique UUID for each run
  • The running user must be able to run kubectl and/or docker exec, as this mode is used to access the RAM information

Orchestration method

RAM Capacity

  • Max RAM usage (in bytes) is extracted from the pod’s cgroup metric memory.max_usage_in_bytes in the case of cgroups version 1, and memory.peak in the case of cgroups version 2.

Kubernetes

Using the example script below, the following information is gathered:

  • RunId
  • Date/Time
  • Namespace
  • Pod
  • Container
  • Max RAM (GiB)

Script

The owner of the cgroup must not be root in control group v2 implementations. The memory.peak value is not available if it is owned by root. Control Group v2.

The following script can be saved as extract-max-RAM-k8s-namespace.sh

#!/bin/bash
set -ue
NS=$(kubectl config view --minify -o jsonpath='{..namespace}')
SCALE=3
RUNID=$(uuidgen)
echo "RunId,Date/Time,Namespace,Pod,Container,Max RAM (GiB)"
for POD in $(kubectl get pods -n $NS --no-headers | grep "Running" | awk '{print $1}'); do
        for CONTAINER_IMAGE in $(kubectl get pods $POD -n $NS -o json | jq -r '.spec.containers[] | "\(.name)|\(.image)"'); do
                DATETIME=$(date '+%Y-%m-%d %H:%M:%S')
                CONTAINER="$(echo $CONTAINER_IMAGE | cut -d\| -f1)"
                if [[ "$(kubectl exec -it $POD -n $NS -c $CONTAINER -- stat -fc %T /sys/fs/cgroup/)" != "cgroup2fs" ]]; then
                   MAX_RAM_CGROUP="/sys/fs/cgroup/memory/memory.max_usage_in_bytes"
                else
                   MAX_RAM_CGROUP="/sys/fs/cgroup/memory.peak"
                fi
                RAM_MAX_USAGE_B="$(kubectl exec -it $POD -n $NS -c $CONTAINER -- cat $MAX_RAM_CGROUP | tr -d '\r')"
                RAM_MAX_USAGE_MiB=$(bc <<< "scale=$SCALE;($RAM_MAX_USAGE_B/(1024 * 1024))")
                RAM_MAX_USAGE_GiB=$(bc <<< "scale=$SCALE;($RAM_MAX_USAGE_MiB/1024)")
                echo "$RUNID,$DATETIME,$NS,$POD,$CONTAINER,$RAM_MAX_USAGE_GiB"
        done
done

Output

The output produced is as follows:

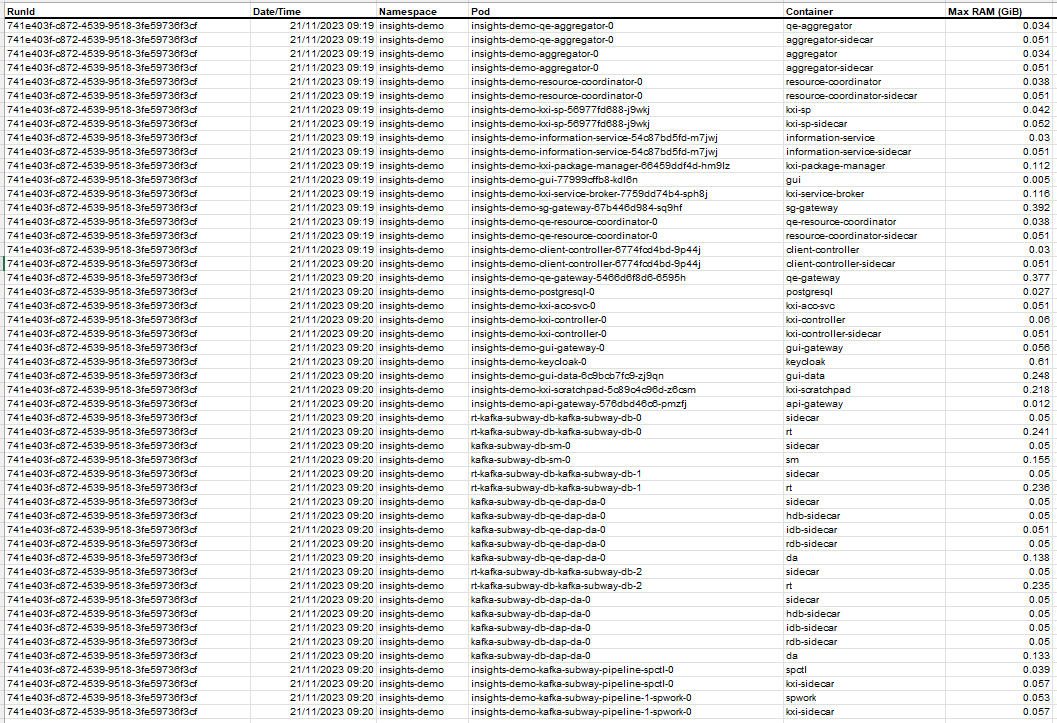

Kubernetes RAM Capacity

Docker

Using the script below the following information is gathered:

  • RunId
  • Date/Time
  • Container
  • Max RAM (GiB)

Script

The following script can be saved as extract-max-RAM-docker.sh

#!/bin/bash
set -eu
SCALE=3
RUNID=$(uuidgen)
echo "RunId,Date/Time,Container,RAM Max Usage (GiB)"
for CONTAINER in $(docker ps --format '{{.Names}}'); do
    DATETIME=$(date '+%Y-%m-%d %H:%M:%S')
    if [[ "$(docker exec -it $CONTAINER stat -fc %T /sys/fs/cgroup/)" != "cgroup2fs" ]]; then
        MAX_RAM_CGROUP="/sys/fs/cgroup/memory/memory.max_usage_in_bytes"
    else
        MAX_RAM_CGROUP="/sys/fs/cgroup/memory.peak"
    fi
    RAM_MAX_USAGE_B="$(docker exec -it $CONTAINER cat $MAX_RAM_CGROUP | tr -d '\r')"
    RAM_MAX_USAGE_MiB=$(bc <<< "scale=$SCALE;($RAM_MAX_USAGE_B/(1024 * 1024))")
    RAM_MAX_USAGE_GiB=$(bc <<< "scale=$SCALE;($RAM_MAX_USAGE_MiB/1024)")
    echo "$RUNID,$DATETIME,$CONTAINER,$RAM_MAX_USAGE_GiB"
done

Output

The output produced is as follows:

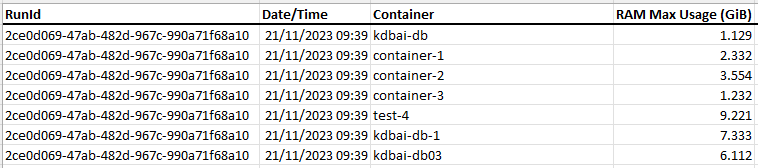

Docker RAM Capacity
