Graph

The Graph component presents an interactive display that can show the relationships between nodes. A node is an element in the graph that represents an object, such as a noun. An edge shows the relationship between two nodes in the graph. The Graph component can present these details as labelled nodes with connections or organized in hierarchical form.

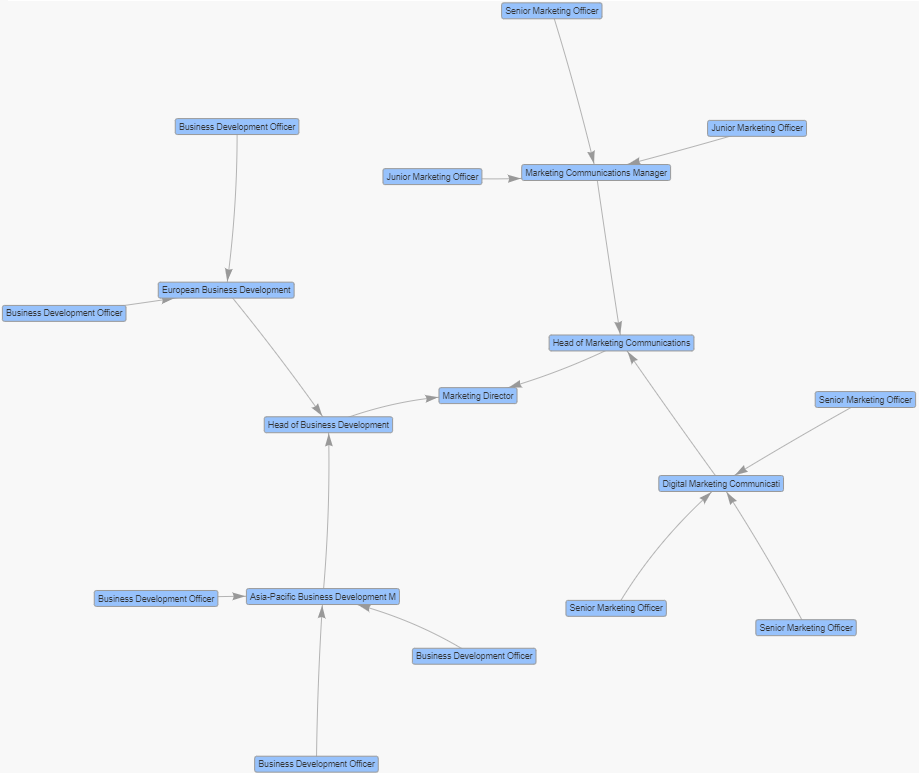

The following screenshot provides an example graph using physics to show to whom different positions in a company report to.

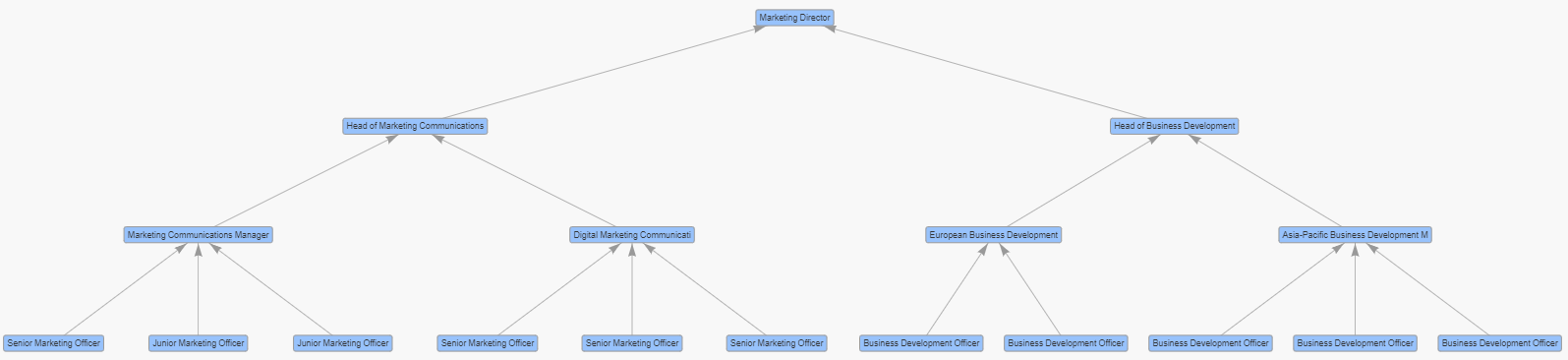

The next example shows a hierarchical graph showing direct managers for positions within a company.

This page provides information on the following:

• Basic properties
• Applying a Data Source to the graph
• Default Styling for the Nodes
• Default Styling for the Edges
• User Interaction
• Physics
• Tooltips
• Actions
• Layout
• Style, Margins & Format
• Setting up a Graph component

Basic

The Basic properties, shown in the following image, are described below.

Property	Description
Name	A name for the component provided by the user.
Selected Node	Specify a View State Parameter to store the unique identifier of the selected node(s). Use of Selected Node is optional. Selecting a node: In Preview mode or the End-User version of the Dashboard, click on a node to assign a value to the Selected Node view state parameter. Use the Control key to make multiple selections.
Selected Edge	Specify a View State Parameter to store the unique identifier of the selected edge(s). Use of Selected Edge is optional. Selecting an edge: In Preview mode or the End-User version of the Dashboard, click on an edge to assign a value to the Selected Edge view state parameter. Use the Control key to make multiple selections.

Data

This section identifies data source attributes that are used to define the nodes and edges. The following image shows the Graph's property section for Data:

Nodes

Property	Description
Source	The Data Source must have at least two columns to define the node's unique identifier (ID) and text label. Each row in the data source is used to define a node. Data source results with the node ID and label
Label	Data source column containing the text to be used for the nodes.
ID (must be unique)	Data source column containing the unique ID for the nodes.
Level (optional)	Data source column containing a numerical value that is used to specify the hierarchical position of the node. A hierarchical layout oriented from left to right, with an added illustration to show the levels in pink
Group (optional)	Data source column containing a group name to be associated with the node. As many as 21 superseding color sets are used to identify nodes in the same group. Graph showing nodes belonging to 1 of 4 groups

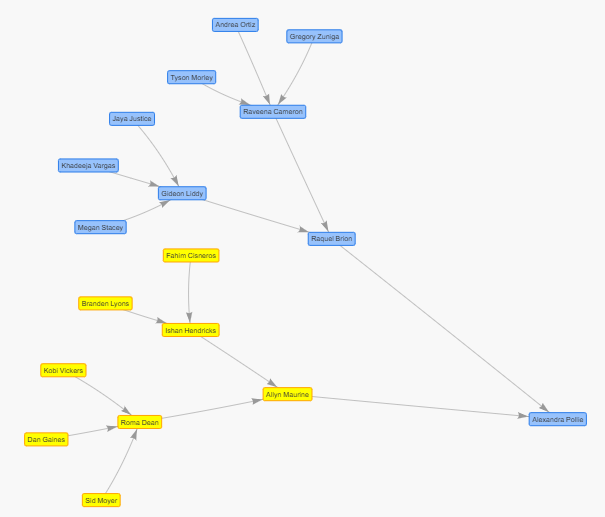

Mass (optional)	Data source column used to specify the mass of the individual nodes. If no value is specified or the value is non-numeric, the minimum value of 1 is used. Larger values increase the repulsion effect for that specific node. NOTE: To see the effect, this property requires Physics to be enabled. In the graph above, the node labeled 'Alexandra Pollie' has more mass and therefore, the repulsion effect is greater for that specific node, resulting in its further distance.

Node Color Sources

The data source for Nodes can specify the color attributes for each node. This method overrides the colors defined in the Default Node Style section.

Property	Description
Background Color	Data source column containing the background color of the nodes.
Border Color	Data source column containing the border color of nodes.

Selected Node Color

Property	Description
Background Color	Data source column containing the background color of the selected nodes.
Border Color	Data source column containing the border color of the selected nodes.

Node Hover Color

Property	Description
Background Color	Data source column containing the background color of the nodes when the user mouses over them.
Border Color	Data source column containing the border color of the nodes when the user mouses over them.

Shape

Property	Description
Custom Shape	Data source column containing the form the nodes will take, e.g. circle, database, diamond, square, hexagon, triangle

Edges

The edges show connections between nodes.

Property	Description
Source	This Data Source must return the columns to define the edge endpoints for the connection drawn between the From and To nodes. Data source results with To and From columns
From	Data source column containing the node ID for the start of the edge.
To	Data source column containing the node ID for the end of the edge.
ID (optional)	Data source column containing the unique ID for the edges.

Default Node Style

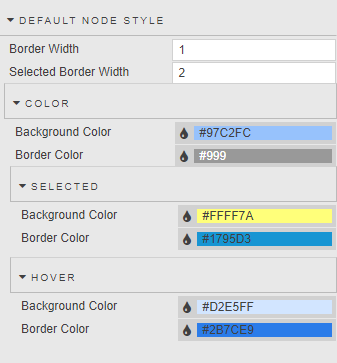

The following properties, shown in the image below, are used to style the nodes.

The border properties are described in the following table.

Property	Description
Border Width	Specifies the thickness of the node border.
Selected Border Width	Specifies the thickness of the selected node border.

Color

The following are the color properties of a node. Any of these color properties can be overridden if a data source column is used to define that color property in the Node Color Sources section.

Property	Description
Background Color	Specifies the background color of the nodes.
Border Color	Specifies the border color of the nodes.

Selected color

Property	Description
Background Color	The background color of a node when it is selected.
Border Color	The border color of a node when it is selected.

Hover color

Property	Description
Background Color	The background color of the nodes when the user mouses over them.
Border Color	The border color of the nodes when the user mouses over them.

Default Edge Style

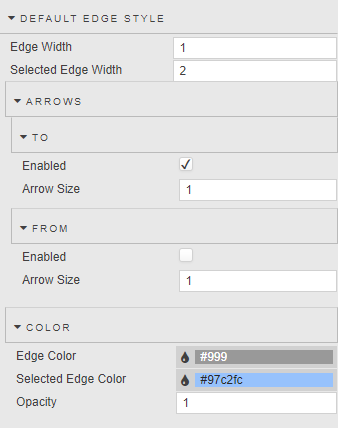

The following properties, shown in the image below, are used to style the edges.

The edge width properties are described in the following table.

Property	Description
Edge Width	Specifies the thickness of the edge.
Selected Edge Width	Specifies the thickness of the selected edge.

Arrows

Arrowheads can be added to the edge endpoints. The properties are described below.

To

Property	Description
Enabled	When checked, an arrowhead is added to the To side of the edge.
Arrow Size	Specifies the size of the To arrowhead.

From

Property	Description
Enabled	When checked, an arrowhead is added to the From side of the edge.
Arrow Size	Specifies the size of the From arrowhead.

Color

The following properties are used to configure the color of the edges.

Property	Description
Edge Color	Specifies the color of the edge.
Selected Edge Color	Specifies the color of the selected edge.
Opacity	Defines the opacity of the edge with a value between 0 (transparent) and 1 (opaque).

User Interaction

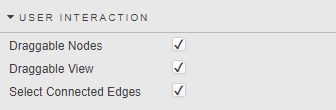

The User Interaction properties define how the user can interact with the graph. The properties are described in the table below.

Property	Description
Draggable Nodes	Allows the user to reposition nodes via click and drag.
Draggable View	Allows the user to pan the graph image in different directions by clicking and dragging on an empty space in the graph.
Select Connected Edges	Selects all edges for the selected node(s).

Physics

The Physics section contains properties used to influence and define the physical behavior of objects in the graph.

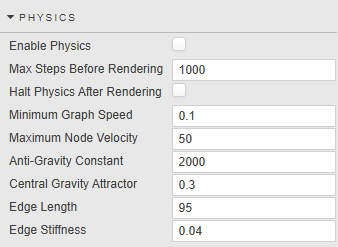

The Physics properties are described in the following table.

Property	Description

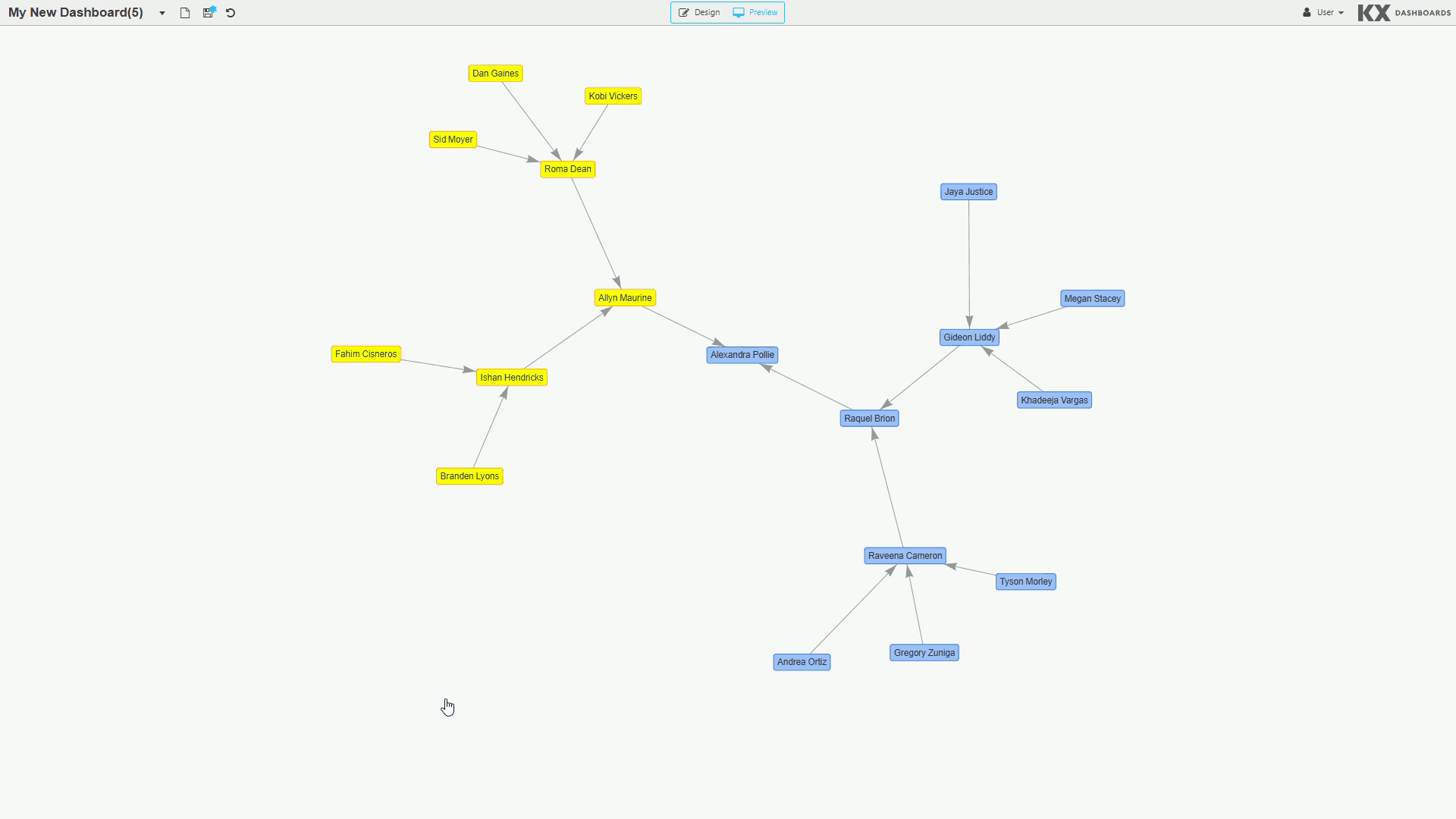

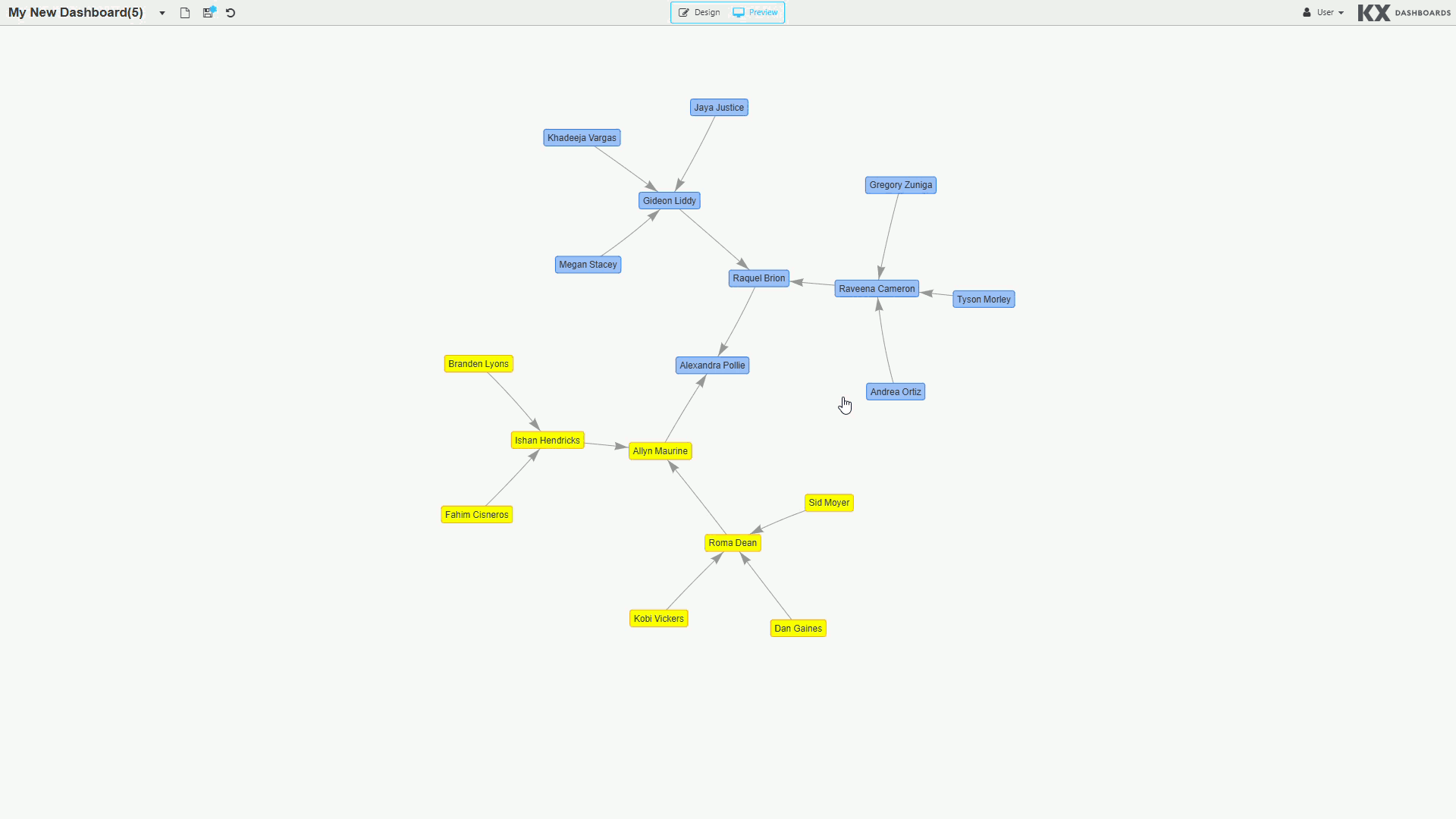

Enable Physics	When enabled, a physics algorithm is used to create the graph by simulating the physical properties of nodes and edges while also being affected by gravity. The image above shows graph behavior without physics, and the image below shows the graph with physics enabled.
Max Steps Before Rendering	A step refers to a time duration where the position of one or more nodes may be affected by various forces (for example, gravity, edge stiffness) and potentially traveling some distance given its velocity. This property value refers to the maximum number of simulated steps taken before the graph is visible.
Halt Physics After Rendering	This property determines whether physics will continue after the graph has been rendered. When checked, after the initial rendering of the graph, the physics simulation is paused. When unchecked, physics will continue to affect the layout of the graph until the Minimum Graph Speed has been reached for all nodes. When unchecked, nodes repositioned by the user will cause the physics simulation to continue until the Minimum Graph Speed has been reached for all nodes.
Minimum Graph Speed	Once the speed of all the nodes is less than or equal to the minimum graph speed no further steps are taken to affect the position of the nodes.
Maximum Node Velocity	The maximum speed at which the nodes are allowed to move. This is a speed limit for the nodes.
Anti-Gravity Constant	This value is used in a formula to quantify the effect of gravity for the nodes as if it were a repelling force. It represents the gravitational constant as a negative value. Higher values increase the repulsion effect and lower values approaching zero will reduce it.
Central Gravity Attractor	A force pulling the entire network towards the center of the graph. The higher the value, the stronger the pull towards the center. The lower the value, the weaker the attraction towards the center.
Edge Length	The edges of the graph are modelled as springs and this value determines their length at rest.
Edge Stiffness	The edges of the graph are modelled as springs. A larger value increases the minimum force required to affect the length of the edge.

Enabling Physics with Hierarchical Layout

When Physics and Hierarchical Layout are both enabled, the node behavior associated with the hierarchical layout overrides the physics simulation.

Tooltips

The nodes in the graph can have tooltips. These properties are shown in the image below.

The Tooltips Property section is described in the following table.

Property	Description
Show Tooltip	When checked, a tooltip is presented to the user when the mouse hovers over a node.
Template	See Templates for full details.

Actions

See Actions for full details.

Layout

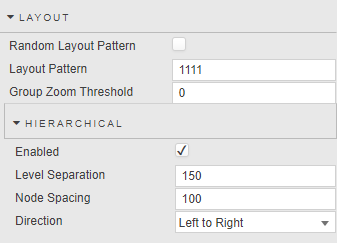

The Layout properties, shown in the image below, are used to affect the arrangement of nodes and edges in the graph.

Property	Description

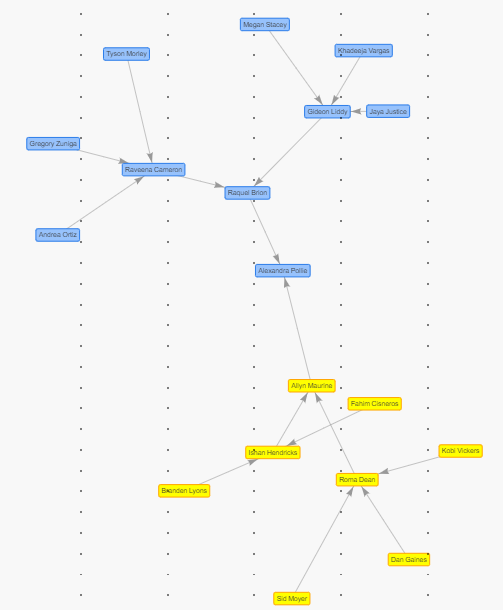

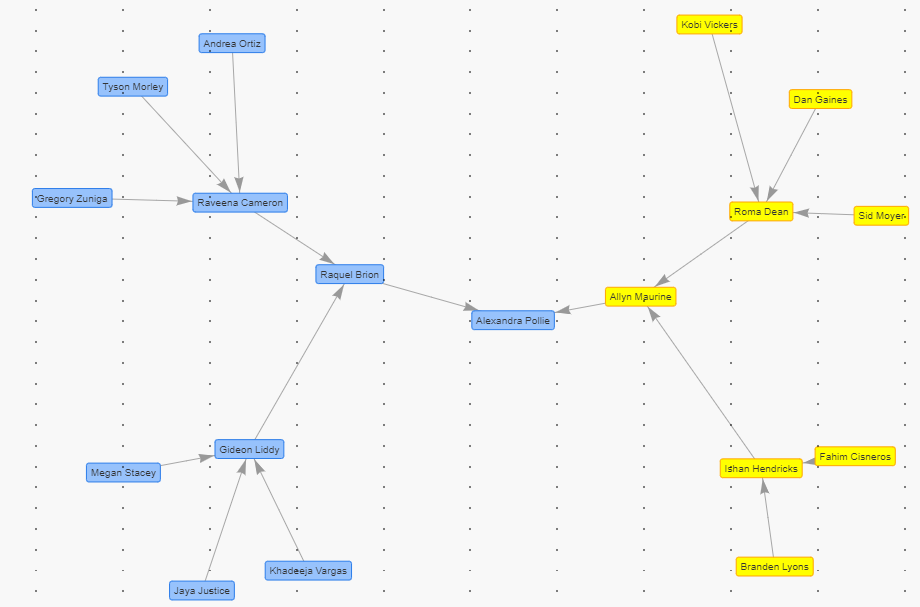

Random Layout Pattern	When checked, the initial position of the nodes and edges are different each time a new start position is required. Hierarchical layouts are not affected by this setting. The images above and below are for separate occurrences of the same data being used to render a graph with the Random Layout Pattern property checked.
Layout Pattern	This numerical value is used to determine the initial layout of the graph. The results will be consistent provided the data is unchanged. This does not apply to hierarchical layouts.
Group Zoom Threshold	The graph component will automatically zoom in/out when the window is resized and during the initial rendering so that all graph elements are within the visible boundary. The user can also manually zoom in/out by using the mouse wheel or the touchpad pinch-zoom input method. Zooming in increases the zoom level, and zooming out decreases it. The Group Zoom Threshold is a number between 0 and 100 and it is used to identify a point for when the graph will automatically transition between showing individual nodes versus the individual groups for those nodes (groups will appear as a circle shape). The graph's current zoom level is compared to the Group Zoom Threshold so that: If the graph's zoom level is greater than this value, the graph will change to show individual nodes. If the graph's zoom level is less than this value, the graph will change to show individual groups. For example, for a given zoom level, if groups are displayed but the preference is to see individual nodes instead, the value of the Group Zoom Threshold should be reduced. NOTE: Use of the Group Zoom Threshold requires the Group property to be defined.

Hierarchical

The following properties can be configured when using a hierarchical layout.

Property	Description
Enabled	When enabled, the nodes are arranged to show a parent-child relationship based on the node's Level attribute.
Level Separation	Defines the height in pixels between levels.
Node Spacing	Defines the width in pixels between nodes.
Direction	This property is used to indicate the direction of the hierarchy as they will appear starting from the Top level to the Bottom level. The options are: Left to Right, Right to Left, Up to Down, and Down to Up.

Style, Margins, Format

See Style for full details of common settings.

Set up

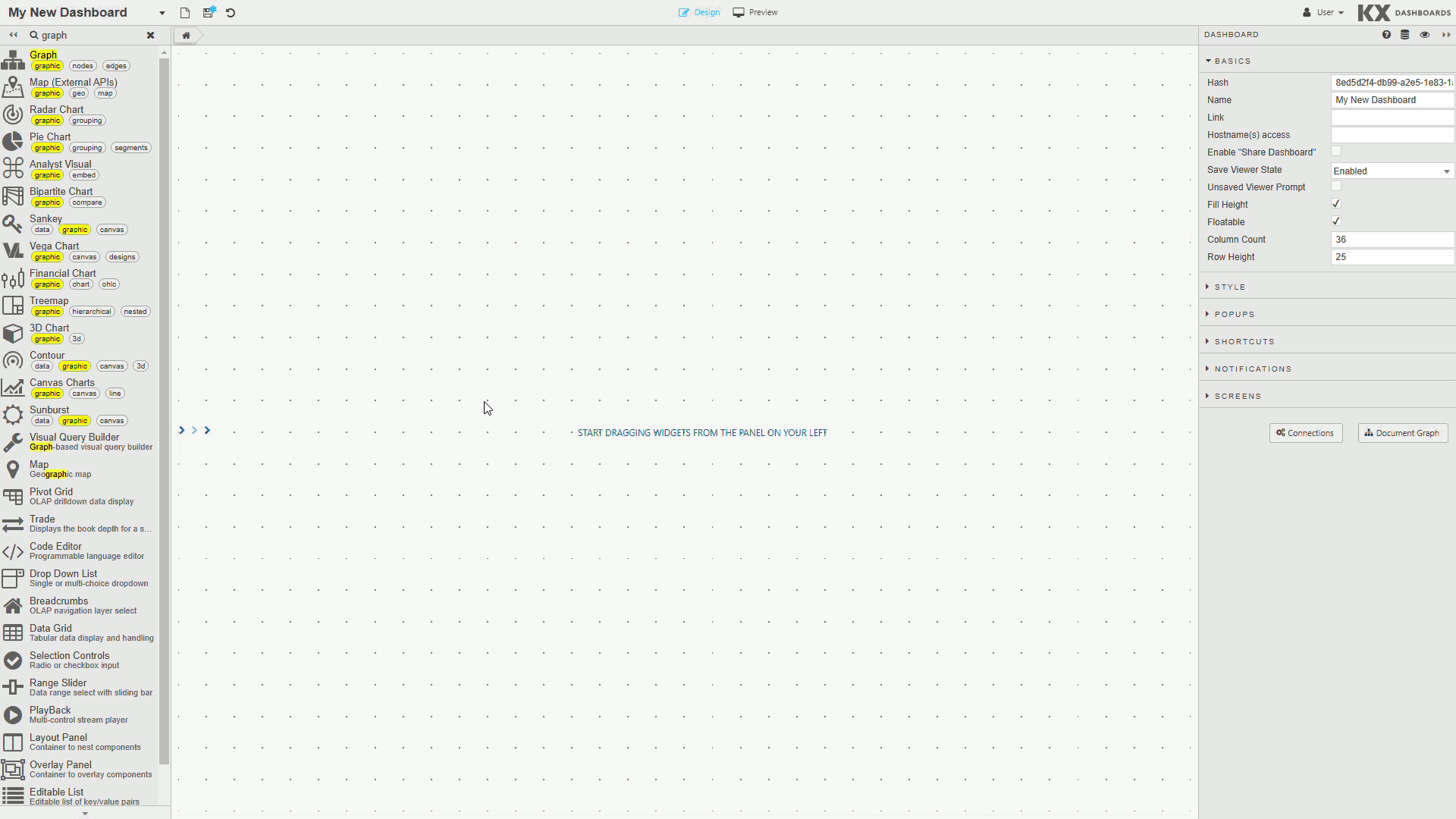

1. In the Design View, click and drag the Graph component onto the workspace.



2. Within the Graph component, click on the label "Click to populate Nodes Data Source" or from the Properties Panel, expand the Data section, and click on the Source input field from the Nodes section to open the Data dialog.

3. Create or select a data source. This data source must have at least two columns to identify the node's text label and unique identifier. Optional properties, such as Level, Group, Mass or Custom Shape can be defined for each node.

4. Assign a column from the Nodes data source to the Label property.

5. Assign a column from the Nodes data source to the ID property.

6. Within the Graph component, click on the label "Click to populate Edges Data Source" or from the Properties Panel, expand the Data section, and click on the Source input field from the Edges section to open the Data dialog.

7. Create or select a data source. This data source is used to specify a connection between a pair of nodes using their unique identifier values. Each endpoint for a connection (edge) comes from a data source column. A unique identifier for each edge can be optionally specified.

8. Assign a column from the Edges data source to the From property.

9. Assign a column from the Edges data source to the To property.
