Get Data - Weather (Object Storage)

To use data on kdb Insights Enterprise it has to be imported to an active database. Object storage is the storage of the cloud; a weather dataset is hosted on each of the major cloud providers for use by kdb Insights Enterprise.

No kdb+ knowledge required

This example assumes no prior experience with q/kdb+; replace the url provided with any other Object Storage url to gain similar results.

1. Create and deploy a database

A database stores data on kdb Insights Enterprise. Available databases are listed under Databases of the Overview home page. If not available, create a database, insights-demo, to store your data.

To use a pipeline, your database must be deployed and active.

2. Import Data

Open the import wizard by selecting 2. Import from the Overview page. Next, you will be prompted to select a reader node. The import process creates a pipeline; a pipeline is a connection of nodes to read data from source, transform to a kdb+ compatible format, then write to a kdb Insights Enterprise database.

I want to learn more about the import wizard.

3. Select a Reader

A reader stores details of data to import, including any required authentication. Select one of the major cloud providers: Amazon, Google and Microsoft.

Select from one of the Cloud providers.
Select from one of the Cloud providers.

Complete the reader properties for the selected cloud provider. Additional Paths can be added by clicking the black plus icon.. Properties marked with an * are required.

Properties

setting value
Path* gs://kxevg/weather/temp.csv
Project ID kx-evangelism
File Mode* Binary
Tenant Not applicable
Offset* 0
Chunking* Auto
Chunk Size* 1MB
Use Watching No
Use Authentication No

Properties

setting value
Path* ms://kxevg/temp.csv
Account* kxevg
File Mode* Binary
Tenant Not applicable
Offset* 0
Chunking* Auto
Chunk Size* 1MB
Use Watching No
Use Authentication No

Properties

setting value
Path* s3://kx-ft-public-share/temp.csv
Region* us-east-1
File Mode* Binary
Tenant kxinsights
Offset* 0
Chunking* Auto
Chunk Size 1MB
Use Watching No
Use Authentication No

Click Next when done.

I want to learn more about reader nodes.

4. Select a Decoder

The decoder node defines the type of data imported. The weather data is a csv file, select the csv decoder and complete the settings.

Select the csv decoder for the weather data set.
Select the csv decoder for the weather data set.

setting value
Delimiter ,
Header First
Encoding Format UTF8
Set Schema No
Exclude Columns
Encoding Format UTF8

Click Next when done.

I want to learn more about decoder nodes.

5. Define the Schema

The schema converts data to a type compatible with a kdb+ database. Every imported data table requires a schema; and every data table must have a timestamp key to be compatible with kdb's time series columnar database. insights-demo has a predefined schema for weather data.

setting value
Apply a Schema Checked
Data Format Any
  1. Click Schema icon

  2. Select insights-demo schema from the dropdown

    Select the insights-demo schema.
    Select the insights-demo schema.

  3. Choose the weather table

    Select the weather table from the insights-demo schema.
    Select the weather table from the insights-demo schema.

    weather **Parse Strings** is set to auto for all fields.
    weather Parse Strings is set to auto for all fields.

Manual entry weather schema

If not adding a schema with a table from a database, add the following columns with the add row button instead. Column descriptions are optional and not required here:

column type
timestamp timestamp
sensor symbol
airtemp float
name symbol
borough symbol
longitude float
latitude float
color symbol

I want to learn more about schema kdb+ types

Parse Strings

Determines the requirement to parse input string data to other datatypes. Generally, parse strings is enabled for all time, timestamp, string fields unless your input is IPC or RT; retain the Auto default if unsure.

Click Next when done.

I want to learn more about transform nodes.

6. Configure the Writer

Write transformed data to the kdb Insights Enterprise database.

setting value
Database insights-demo
Table weather
Write Direct to HDB No
Deduplicate Stream Yes
Set Timeout Value No

Click writer to review the pipeline in the pipeline viewer.

A pipeline created by the import wizard, reads data from its source, transforms to a kdb+ compatible format, and writes it to a kdb Insights Enterprise database.

Writer Node

The Writer - KX Insights Database node is essential for exploring data in a pipeline. The node defines the database to write too that must be active to receive data. Stream data uses its own writer node, Writer - KX Insights Stream.

I want to learn more about writer nodes.

7. Review Pipeline

The pipeline is a linked set of nodes derived from each step of the import process.

A completed weather pipeline following the import steps.
A completed weather pipeline following the import steps.

I want to learn more about pipelines.

8. Save the Pipeline

Save and name the pipeline. This name should be unique to the pipeline; for example, weather-1.

Save the pipeline as weather-1.
Save the pipeline as weather-1.

Pipeline weather-1 is listed under Pipelines in the left-hand menu.

The list of available pipelines for deployment in the left-hand menu.
The list of available pipelines for deployment in the left-hand menu.

Test Deploy

A test deploy previews your pipeline prior to deployment by returning a picture of the data at each step along the pipeline. It does not write to the database.

Click on a node to view the data state at the selected step.

  1. Click Full Test

  2. Select a Node in the pipeline to view the data output from the step in the lower panel.

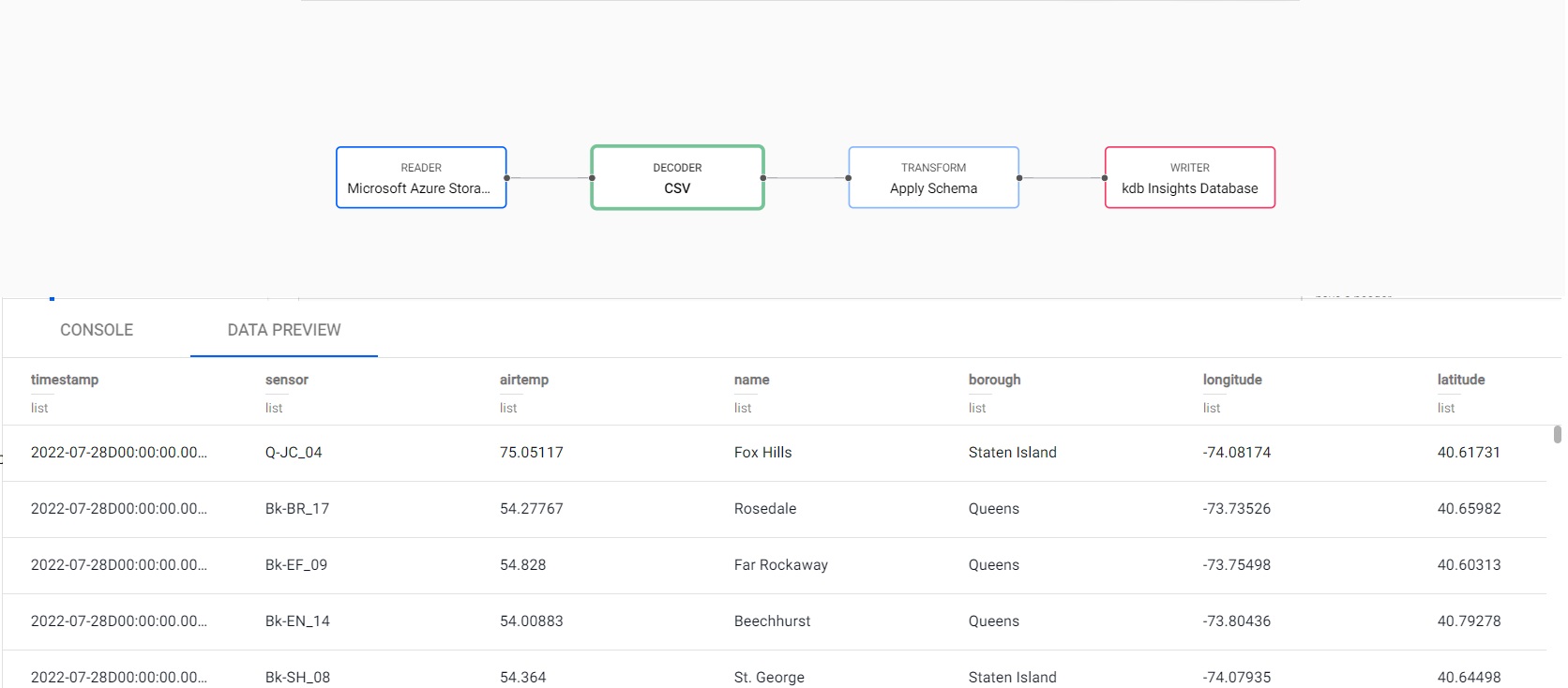

Test deploy results display in lower panel of pipeline template view.
Test deploy results display in lower panel of pipeline template view.

A full deploy is required to write data to an active database, and for the pipeline data to be queried. A test deploy is automatically torn down on completion.

9. Deploy the Pipeline

Deploy a pipeline to access its data.

Click Save and Deploy to activate the pipeline and write its data to the database.
Click Deploy to activate the pipeline and write its data to the database.

The pipeline runs through the deployment process and returns a status of Finished under Running Pipelines in the Overview page when successfully deployed.

A successfully deployed pipeline shows as Finished under *Running Pipelines*.
A successfully deployed pipeline shows as Finished under Running Pipelines.

Database Deployment: If not already active, ensure insights-demo, or the database created with the weather schema table, is deployed from Databases in the left-hand menu for it to receive data from the pipeline.

Pipeline Teardown

Teardown an active pipeline when it's no longer required; tearing down a pipeline returns resources. Click on the X in Running Pipelines of Overview to teardown a pipeline.

Click X to teardown a pipeline.
Click X to teardown a pipeline.

Clear Pipeline State removes all data written to the database; leave unchecked to continue working with the data in the current session.

Test deploys are automatically torn down on completion.

Teardown a pipeline to free up resources.
Teardown a pipeline to free up resources.

Troubleshoot

Reported errors can be checked against the logs of the deployment process. Click View diagnostics in Running Pipelines of Overview to review the status of a deployment.

Click *View Diagnostics* in **Running Pipelines** of **Overview** to view the status of a pipeline deployment.
Click View Diagnostics in Running Pipelines of Overview to view the status of a pipeline deployment.

10. Query the Data

Deploy the insights-demo database and weather-1 pipeline if not active or finished.

Query data on a successful deploy to the database.

11. Visualize the Data

Build a visualization from the data.
