Installing kdb Insights Enterprise on Azure

Before starting

Please check the Install prerequisites before starting, to ensure a successful deployment.

Getting started

  1. Sign into your Azure account.

    azure marketplace

  2. Search for Managed kdb Insights Enterprise Deployment in Azure Marketplace and Select Get it now

    It can also be found here.

    Kx Preview

  3. Review the Offer Details.

    1. Overview: product summary.
    2. Plans + Pricing: details each Plan type, description, and its Pricing structure.
    3. Usage Information + Support: useful links to get started, License Agreements, Privacy Policy, and links to our Support site, where you can raise support tickets.
  4. Select the Plan from the dropdown and click Create.

    Offer Overview

You will be taken to the 'Basics' section

KX License Agreement

By clicking through the Marketplace and deploying the Software, you have Accepted the Terms & Conditions in the KX License Agreement.


Basic Image

  1. Select the Subscription in which to install the infrastructure and application.

  2. Create a new resource group, or select an existing empty resource group from the dropdown.

    Existing resource group must be empty

    Do not select an existing resource group which is not empty.

    Create New

    Deploying multiple instances

    If you plan to deploy multiple instances of kdb Insights Enterprise, then each deployment from the Azure Marketplace must have a unique resource group name.

  3. Select the Region where to deploy kdb Insights Enterprise. Remember to select an Azure region that has availability zones.

    No valid VM type available

    If the selected Region in the Subscription does not have valid VM types for the deployment a warning will be displayed and you must select a different Region or Subscription if you want your deployment to succeed.

    No valid VM types

  4. Under the Managed Application Details, provide a name for your managed application and its managed resource group.

  5. Click Next

You will be taken to the 'Client information' section.

Client information

Client Info

  1. Add your First Name
  2. Add your Last Name
  3. Add your Company Name
  4. Add your Country
  5. Add your Phone Number
  6. Add your E-Mail address

  7. Click Next

You will be taken to the 'General configuration' section.

General configuration

General Config

  1. Add a valid email address for license and certificate registration.
  2. Create a username and password to log in to kdb Insights Enterprise User Interface.
  3. Create a password to log in to Keycloak. Your username will be 'user'.

    Passwords must contain the minimum requirements.


    These passwords will be used to log in and administer kdb Insights Enterprise, be sure to store them somewhere safe. Also note some special characters are forbidden.

  4. Select the way you would like to access kdb Insights Enterprise UI and API endpoints.

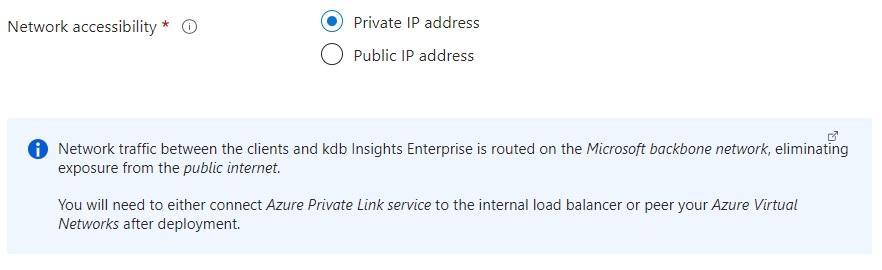

    • Private IP address (default)

      Network traffic between the clients and kdb Insights Enterprise is routed on the Microsoft backbone network, eliminating exposure from the public internet. Follow the instructions here to allow users to connect to the UI or the REST endpoints.

      Private IP address Network Configuration

    • Public IP address

      Allows encrypted client access over the public internet. If you select this option, you can immediately login to the kdb Insights Enterprise UI when the deployment has successfully completed without any additional action.

      Public IP address Network Configuration

  5. If you want to customise your deployment there is an optional Advanced Settings section:


    Tick Show Advanced Settings.

    No valid VM type available

    If the default VM size options for the AKS System or AKS User node pools are not valid in this Subscription and Region, warnings will be displayed. You must tick Show Advanced Settings and choose VM types for the dropdowns if you want your deployment to succeed.

    Advanced option no valid VM types


    1. Data Entitlements is currently a beta feature and is turned off by default, but it can be turned on if required as part of your deployment.

    2. Cluster Virtual Network can be manually set up. This can be used to configure Vnet peering if required.

    3. In-Transit Data Encryption is turned on by default, but can be turned off if not required as part of your deployment.

    4. If desired, check Deploy Rook Ceph and select Rook CephFS in the dropdown for optimum performance results. If not selected, Azure Storage Class will be defaulted to Azure Files NFS for your shared file system.

      Rook Ceph uses local SSD storage

      This type of storage provides higher throughput and lower latency for optimum performance, but it is ephemeral. Your data is stored across 3 nodes for resiliency however if 2 nodes go offline, data stored on the SSDs will be lost. You cannot bring down your nodes to save costs without losing data.

      Rook Ceph

    5. The next two sections cover AKS System and User Node pools. The defaulted values are the minimum needed for a base deployment and general workload purposes.

      • The System Node Pool hosts the Azure tools and services with the kdb Insights Enterprise core system services so we do not recommend changing this unless you have special discounts on other options. If you select a different System Node Pool you must select the same minimum size as the default.

      • The User Node Pool hosts the kdb Insights Enterprise assembly resources and should be sized according to your use case, workloads and performance needs.


        KX advises you to adjust the User Node Pool to a bigger size ONLY if you have specific workload requirements. Please refer to the guidance section if changing the node pool VM size.


      We do not support smaller sized node pools than the default settings.

      Filtering of node pool VM size dropdowns

      Both the AKS System node pool VM size and the User System node pool VM size dropdowns will only include valid VM types in the chosen Subscription and Region.

    6. Storage Class selectors allows you to specify the storage class for both ReadWrite once and ReadWrite many pods. The default settings are recommended unless you have specific performance requirements.

      If you choose to deploy rook-ceph, and have high performance requirements, then we recommend selecting Rook CephFS under the ReadWriteMany dropdown for your shared file system.

      Data Encryption

      Azure Storage protects your data by automatically encrypting it before persisting it to the cloud. If this is important to you then we do not recommend selecting rook-ceph. You should use the default Azure Files NFS shared storage option.

      You can learn more here.

    7. There are 3 fields where you can choose to change the log retention policy, depending on your company policy, or cost considerations. This can be changed post-deployment so you can leave the defaults, and change at a later date if needed.

    8. E-mail notifications are optional, you can enable them by selecting Turn on client alert notifications and adding an email address.

      KX have pre-packaged some useful Alert logic which will trigger email notifications to the Insights Managed Service (IMS) operational team to assist with monitoring the health of the application.

      This field is optional and only needs to be populated if you want to add your own email distribution list in addition to the KX IMS Support team. Please refer to the following documentation.


  6. Click Next

Review + Create

At this stage you should have a Validation Passed message which brings you to 'Review + Create' final page.

You must agree to the Terms and Conditions in order to proceed. This is required in order to provide the Managed Services.

Managed App


Do not select 'Download a template for automation'. There is no 'Back' button available if you select this option and you will need to start the workflow again. It is possible to download a template post deployment but KX does not recommend this because we only support the Marketplace deployment method on Azure in this scenario.

  1. Click Create to deploy.

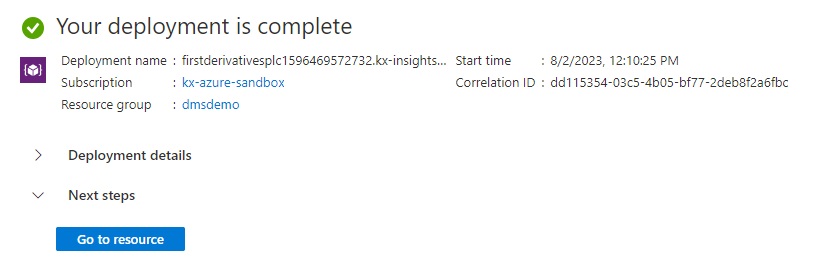

  2. On completion of a successful deployment, the details are viewable as shown below:

    Managed App

    Deployment Failures

    See potential deployment issues for resolutions to errors that may arise if a deployment fails. Do not try the 'Redeploy' button.

  3. Click on Go to resources to go to the deployment.

  4. The output of the deployment is available in the Parameters and Outputs tab.

    Managed deployment output

  5. Follow these steps to give users access to the application.
