Views

Build rich views in kdb Insights Enterprise. With over 40 components available, including tables, maps, charts and more, visualizing your data has never been easier; click the [+] in the ribbon or left-hand menu, or select 4. Visulize from the Overview page.

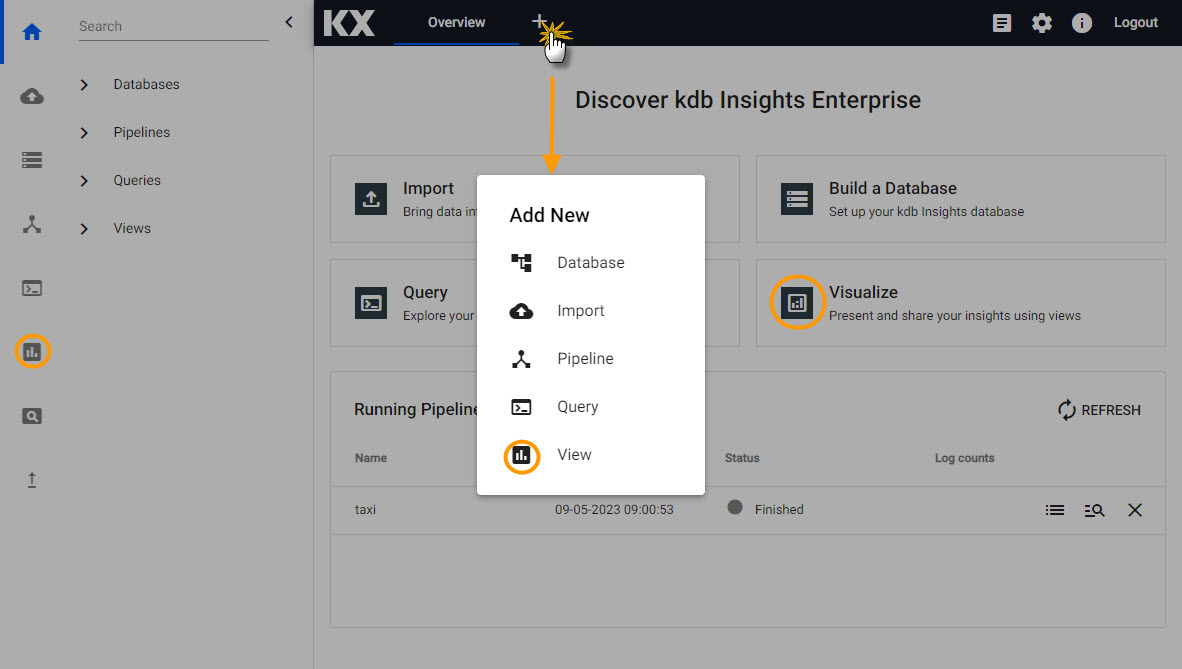

Select View from the menu to build a visualization.

Click-and-drag a component; e.g. a Data Grid (first component on the list), from the icon menu into the central workspace.

Select View from the menu to build a visualization.

In the component, "Click to populate Data Source", then select New for a data source. Follow the steps in Data Grid to customize tables for weather, crime, subway or health data sets.

Create a data source by clicking "Click to populate Data Source".

I want to learn more about View (Dashboards) components

Data Grid

Data Grids tabulate data and offer a range of formatting options for tables including highlight rules and custom templates.

Data grids required a data source - accessed by the "Click to populate Data Source" in the workspace, or selecting Data Source in Basics properties. Note, a selected component in the workspace will show a light-blue border.

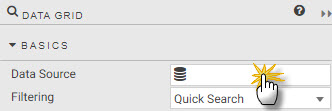

Select a data source from component properties.

Defining table in the query editor

When creating a new data source, the table is the name of the data table as hosted on the database, it's not the Output variable as defined when exploring the data.

From the tab menu, select the data set to configure:

weathersubwayhealthcrime

Add Data Source

• Create a new data source and name it weather
• Select API from the editor
• Define API properties:

value	setting
table	weather
startTS	2022-07-28T00:00:00.000000000
endTS	2022-07-28T23:59:00.000000000

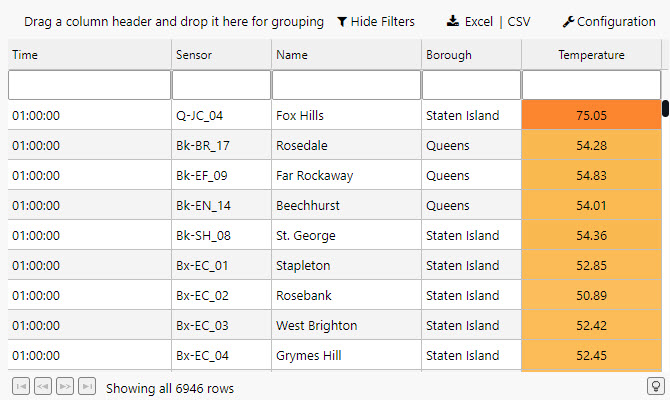

• Execute, Apply then Select Item to apply the data to the Data Grid. This step will close the query editor.

Basics

With 7,000 rows of data, enable column filters:

value	setting
Filtering	Column Filters

Enable Custom Layout for end-user control of columns to display.

Custom Filters

Add greater level of filter control with custom filters:

name	type
timestamp	DateTime
sensor	Selection
airtemp	Number
name	Selection
borough	Selection

I want to learn more about filtering

Columns

Column configurations style content and widths for the display of data in the table.

column	Display Name	Min Width	Text Align	Format	Precision	Date Format	Time Format	Range Color	Template	Hidden
timestamp	Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
sensor	Sensor	100	Left	General	-	-	-	-	-	-
airtemp	Temperature	100	Center	Formatted Number	2	-	-	-	-	-
name	Name	150	Left	General	-	-	-	-	-	-
borough	Borough	150	Left	General	-	-	-	-	-	-
longitude	longitude	-	-	-	-	-	-	-	-	Yes
latitude	latitude	-	-	-	-	-	-	-	-	Yes
color	color	-	-	-	-	-	-	-	-	Yes

Re-arrange column order with a click-and-drag to move columns; select the Temperature column and reposition it below the Borough Column in the Data Grid Columns properties.

Hightlight Rules

Use a highlight rule to create a color gradient for temperature; use a Gradient highlight rule to give temperature definition in the table.

value	setting
Name	Temperature Gradient
Target	airtemp
Rule Min	-120
Rule Max	120
Apply Palette To	background
COLOR PALETTE	#2bc2f0, #c2e3ed, #ffffff, #fab23f, #ff0000

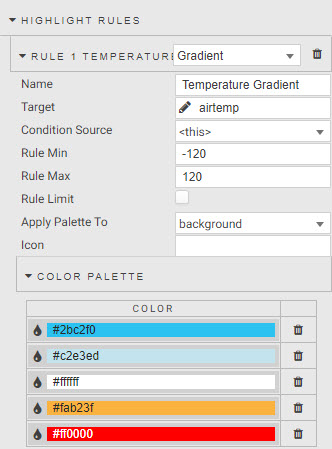

Set a color gradient for a highlight rule.

I want to learn more about highlight rules

Selection & Routing

Selection & Routing is used to pull value(s) from a table and set it to a view state parameter; a view state parameter is stored value accessible to all components and queries.

Change Selection Mode to Single Row to enable the selection control. Actions are used to map cell values from columns to view state parameters - enabled by a click inside the data grid - set the Trigger Column to use wildcard, *.

Create a view state inside a View..

Create actions to map:

source column	view state parameter	type	default	value
sensor	sensor	symbol	Q-JC_04	Q-JC_04
borough	borough	symbol	-	-
name	name	symbol	-	-

I want to learn more about actions

Select View from the menu to build a visualization.

Add Data Source

• Create a new data source and name it subway
• Select API from the editor
• Define API properties:

value	setting
table	subway
startTS	yyyy-mm-dd 00:00:00.000000000
endTS	yyyy-mm-dd 23:59:00.000000000

startTS and endTS

Set startTS as 00:00 and endTS as 23:59 of the deployment date; use a SQL query to find the deployment date. Ensure both the subway pipeline and insights-demo database are running and active to access data in your View.

• Execute, Apply then Select Item to apply the data to the Data Grid. This step will close the query editor.

Basics

Subway is an informational data set so use a simpler Data Grid - remove the grouping behavior, but enable column filters:

value	setting
Filtering	Column Filters
Enable Grouping	Uncheck

Custom Filters

Custom filters help find additional information for given routes. Columns with no custom filter use default text search.

name	type
route_short_name	Selection
trip_headsign	Selection
route_long_name	Selection
direction_id	Selection
arrival_time	DateTime

I want to learn more about filtering

Columns

Column configurations style content and widths for the display of data in the table.

column	Display Name	Min Width	Text Align	Format	Precision	Date Format	Time Format	Range Color	Template	Hidden
trip_id	Trip	-	-	-	-	-	-	-	-	Yes
arrival_time	Arrival Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
stop_id	Stop	100	Left	General	-	-	-	-	-	-
stop_sequence	Sequence	100	Left	General	-	-	-	-	-	-
stop_name	Stop Name	250	Left	General	-	-	-	-	-	-
stop_lat	Stop longitude	-	-	-	-	-	-	-	-	Yes
stop_lon	Stop latitude	-	-	-	-	-	-	-	-	Yes
route_id	Route ID	-	-	-	-	-	-	-	-	Yes
trip_headsign	Route Header	200		General	-	-	-	-	-	-
direction_id	Direction	100	-	General	-	-	-	-	-	-
route_short_name	Route Number	100	-	Number	-	-	-	-	see below	-
route_long_name	Route Name	200	-	General	-	-	-	-	-	-
route_desc	Description	-	-	-	-	-	-	-	-	Yes
route_type	Type	-	-	-	-	-	-	-	-	Yes
route_url	Route URL link	-	-	-	-	-	-	-	-	Yes
route_color	Route color	-	-	-	-	-	-	-	-	Yes

A feature of COLUMNS is custom Template. Template adds custom styling to the data grid, but requires a little coding to get the most out of it. Template uses Handlebars to apply column formats. For subway, use the route_color column to apply color to the text of the route_short_name column; add to the Advanced mode of Template:

<font color="{{route_color}}">{{route_short_name}}</font>

Add a custom template to a Data Grid; Advanced Mode.

I want to learn more about custom templating

File Export

Uncheck Show Export CSV button and Show Export Excel Button to hide unnessecary file export.

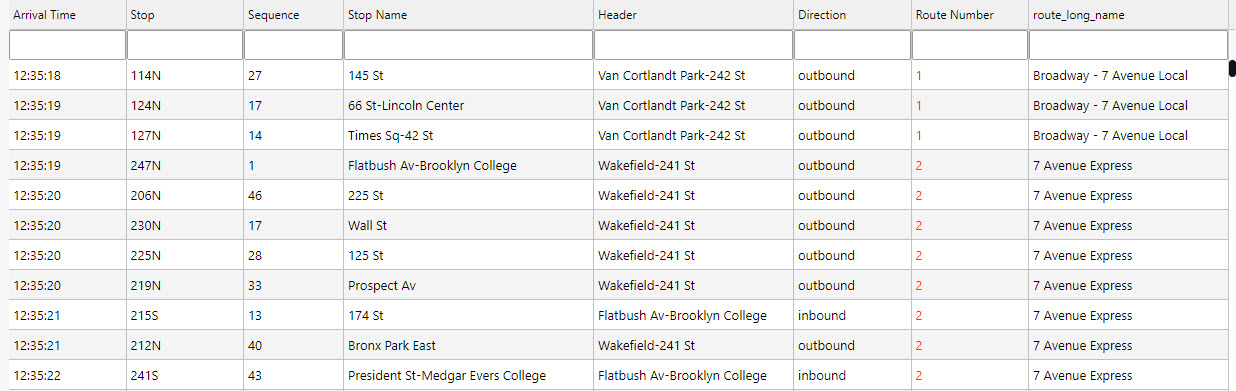

The subway Data Grid.

Add Data Source

• Create a new data source and name it health
• Select API from the editor
• Define API properties:

value	setting
table	health
startTS	yyyy-mm-dd 00:00:00.000000000
endTS	yyyy-mm-dd 23:59:00.000000000

startTS and endTS

Set startTS as 00:00 and endTS as 23:59 of the deployment date; use a SQL query to find the deployment date. Ensure both the health pipeline and insights-demo database are running and active to access data in your View.

• Execute, Apply then Select Item to apply the data to the Data Grid. This step will close the query editor.

Basics

Enable column filtering as standard, but with one independent variable disable grouping.

value	setting
Filtering	Column Filters
Enable Grouping	Uncheck

Custom Filters

Numeric columns filter with >, < or > < for a range.

name	type
timestamp	DateTime
name	Selection
airquality	Number
trafficcongestion	Number
bikeacccnt	Number
caracccnt	Number

Health column filter settings.

I want to learn more about filtering

Columns

Column configurations style content and widths for the display of data in the table. Use Range Color to add color gradients to numeric columns; check Invert Range Color to give high values a darker shade.

column	Display Name	Min Width	Text Align	Format	Precision	Date Format	Time Format	Range Color	Template	Hidden
name	Name	250	Left	General	-	-	-	-	-	-
lat	Latitude	-	-	Number	-	-	-	-	-	Yes
long	Longitude	-	-	Number	-	-	-	-	-	Yes
neighborhood	Neighborhood	250	Left	General	-	-	-	-	-	Yes
airquality	Air Quality	250	Left	Number	2	-	-	#d1e3ff	-	-
trafficcongestion	Traffic Congestion	100	Left	Number	2	-	-	#ffe999	-	-
bikeacccnt	Bike Accidents	100	Left	Number	0	-	-	-	-	-
caracccnt	Car Accidents	100	Left	Number	0	-	-	-	-	-
timestamp	Time	100	Left	Time	-	-	HH:mm:ss	-	-	-

Change the column order to re-position the Timestamp column as the first column.

Click-and-drag a column to re-arrange its position in the Data Grid.

Highlight Rules

Add a color highlight for number of bike and car accidents.

value	bikeacccnt	caracccnt
Name	Bike Accidents	Car Accidents
Target	bikeacccnt	caracccnt
Rule Min	0	0
Rule Max	120	12
Apply Palette To	background	background
COLOR PALETTE	#ffffff, #b71c1c	#ffffff, #b71c1c

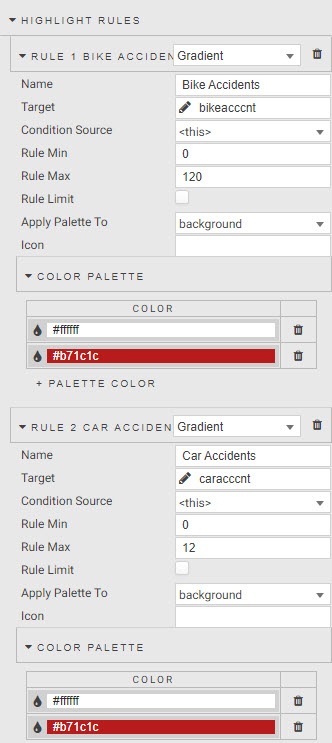

Highlight rule to apply red shading to the number of car accidents.

I want to learn more about highlight rules

Selection & Routing

Selection & Routing is used to pull value(s) from a table and set it to a view state parameter; a view state parameter is stored value accessible to all components and queries. Create a view state for neighborhood to use in other (optional) queries, e.g. a chart of accidents, congestion and air quality.

Change Selection Mode to a Single Row. Define an action to map the neighborhood name to a view state parameter. This action occurs on a click inside the Data Grid; set the Trigger Column to use the wildcard, *.

value	setting
Selection Mode	Single Row

ACTIONS

value	setting
Trigger Column	*
Trigger Action	Click
Source Column	name
>	view state parameter: name

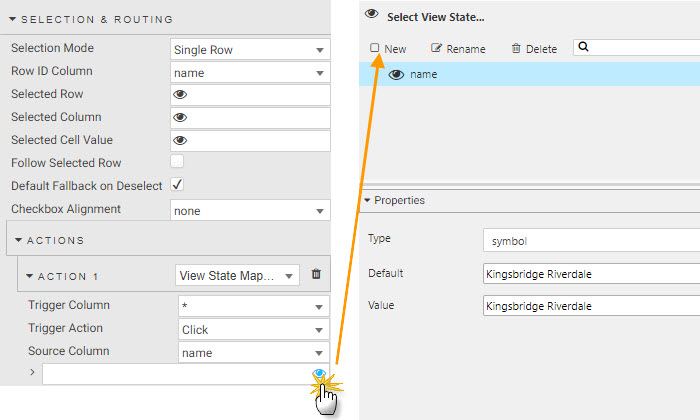

Create a neighborhood name view state.

I want to learn more about actions

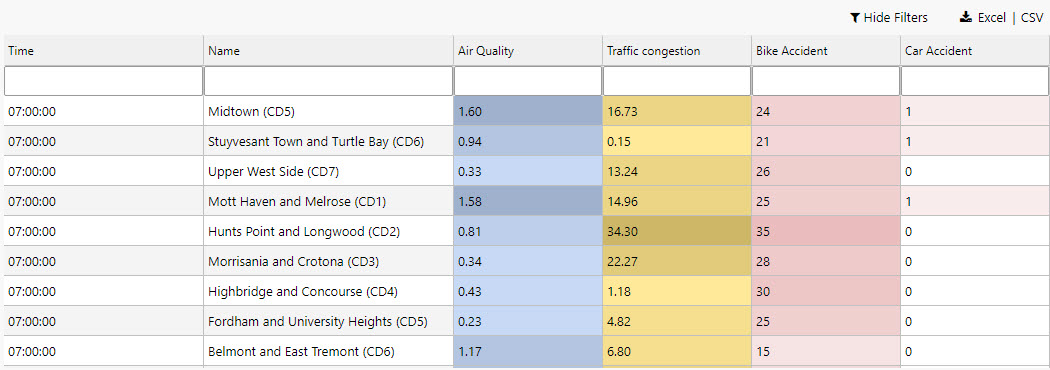

Completed health Data Grid with color highlighting for number of accidents.

Add Data Source

• Create a new data source and name it crime
• Select API from the editor
• Define API properties; note, the data set is for March 31^st 2022:

value	setting
table	crime
startTS	2022-03-31 00:00:00.000000000
endTS	2022-03-31 23:59:00.000000000

• Execute, Apply then Select Item to apply the data to the Data Grid. This step will close the query editor.

Requires an active database and running pipeline

To build a view, the crime pipeline must be running and the insights-demo is active.

Basics

Keep grouping enabled and add column filters

value	setting
Filtering	Column Filters
Enable Grouping	Check
Custom Layout	Check

Custom Filters

Use Selection filters for descriptive columns and DateTime for timestamps.

value	setting
incident_time	DateTime
nypd_precinct	Selection
borough	Selection
patrol_borough	Selection
radio_code	Selection
crime_in_progress	Selection
call_timestamp	DateTime
displatch_timestamp	DateTime
arrival_timestamp	DateTime
closing_timestamp	DateTime

I want to learn more about filtering

Columns

Ensure descriptive columns have sufficient width to display their information

column	Display Name	Min Width	Text Align	Format	Precision	Date Format	Time Format	Range Color	Template	Hidden
event_id	Event	80	Left	General	-	-	-	-	-	-
incident_time	Time of Incident	100	Left	Time	-	-	`HHss	-	-	-
nypd_precinct	Precinct	60	Left	Number	0	-	-	-	-	-
borough	Borough	100	Left	General	-	-	-	-	-	-
patrol_borough	Patrol Borough	200	Left	Number	-	-	-	-	-	-
call_x_geo	Call x-cord.	-	-	Number	-	-		-	-	Yes
call_y_geo	Call y-cord.	-	-	Number	-	-	-	-	-	Yes
radio_code	Radio Code	80	Left	Number	-	-	-	-	-	-
description	Crime Description	300	Left	General	-	-	-	-	-	-
crime_in_progress	Crime in Progress?	100	Left	General	-	-		-	-	-
call_timestamp	Call Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
dispatch_timestamp	Displatch Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
arrival_timestamp	Arrival Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
closing_timestamp	Close Time	100	Left	Time	-	-	HH:mm:ss	-	-	-
latitude	Latitude	-	-	Number	-	-	-	-	-	Yes
longitude	Longitude	-	-	Number	-	-	-	-	-	Yes

Highlight Rules

Add color highlights to give context to the seriousness of reported crime. Use wildcard, * to apply a highlight to the entire row.

value	critical	serious	non-critical
Name	Critical	Serious	Non Critical
Target	*	*	*
Condition Source	crime_in_progress	crime_in_progress	crime_in_progress
Condition Operator	==	==	==
Condition Value	Critical	Serious	Non Critical
Background Color	#ffa1a1	#ffd27d	#fcefd6

I want to learn more about highlight rules

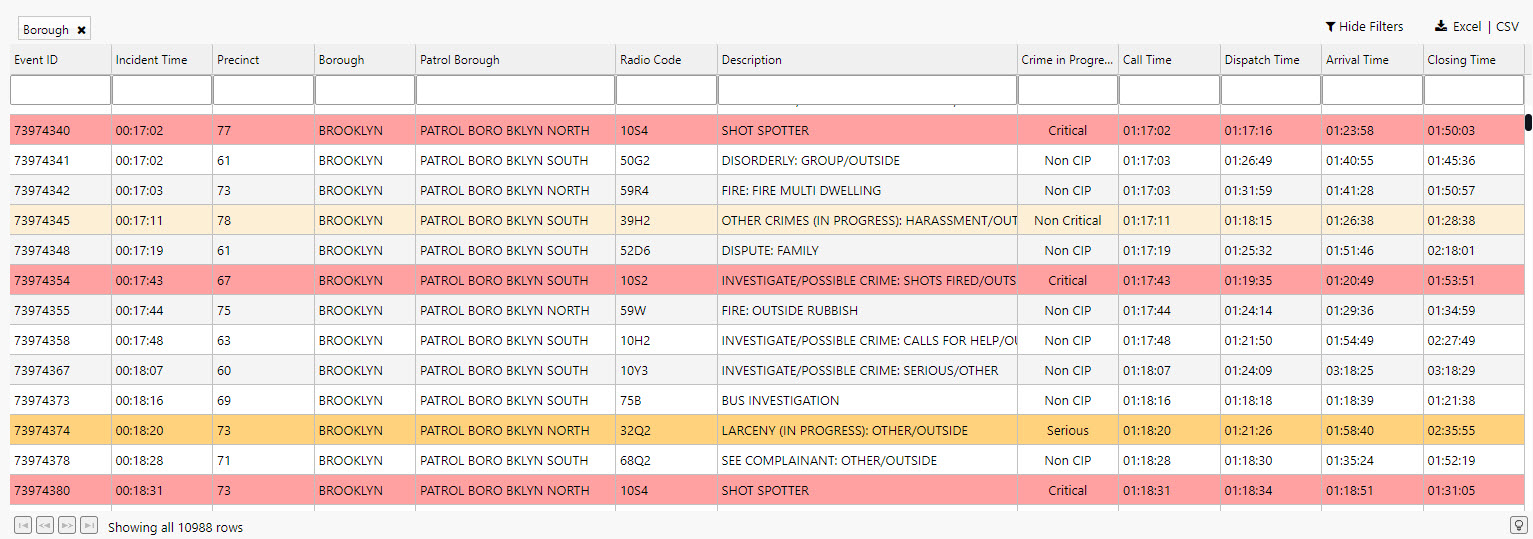

Reported crime in NY precincts; serious crimes highlighted in red.

I want to learn more about Data Grids

Data Form

Create custom queries with Data Form; Data Form exposes view state parameters to change in the View; for example, startTS and endTS parameters.

Click-and-drag a Data Form into the Report.

Viewstate Parameters

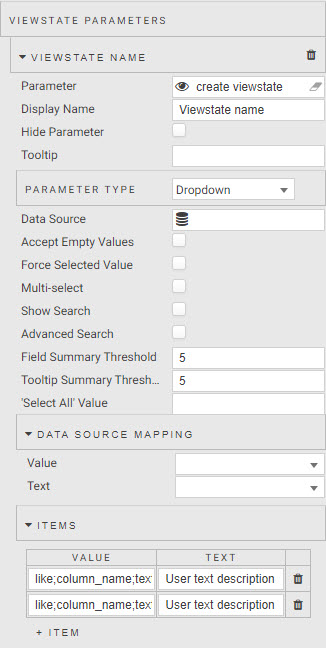

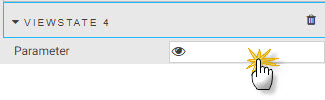

To create a view state parameter, click on the Parameter property under Viewstate Parameters to open the view state parameter dialog.

A view state property of Data Form.

Create view states for:

startTS and endTS

Click New to create view states for Start Time and End Time. Set time to type timestamp. Use the deployment date for default startTS and endTS; use a SQL query to find the deployment date for weather, subway or health data sets.

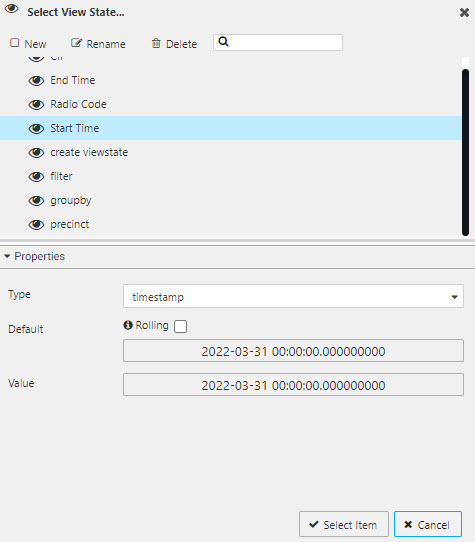

'Start Time' view state parameter.

Start Time

weather, subway and healthcrime

value	setting
Type	timestamp
Default	2022-07-28T00:00:00.000000000
Value	2022-07-28T23:59:00.000000000

Use the deployment date for Default and Value yyyy-mm-dd.

value	setting
Type	timestamp
Default	2022-03-31 00:00:00.000000000
Value	2022-03-31 00:00:00.000000000

End Time

weather, subway and healthcrime

value	setting
Type	timestamp
Default	yyyy-mm-dd 23:59:00.000000000
Value	yyyy-mm-dd 23:59:00.000000000

Use the deployment date for Default and Value yyyy-mm-dd.

value	setting
Type	timestamp
Default	2022-03-31 23:59:00.000000000
Value	2022-03-31 23:59:00.000000000

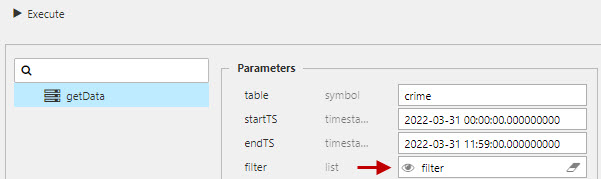

Use View State Parameters in Data Source

Replace startTS and endTS values with their corresponding view state parameters in the data editor:

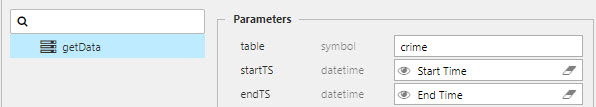

Use Start Time and End Time view states for startTS and endTS in the Data Grid data editor.

Date Picker

Date Picker is a time-specific input; map Start Time or End Time view states to the Selected Date property under the list of Basics options.

Date Picker setup for date view states.

[I want to learn more about Date Pickers] (https://code.kx.com/dashboards/datepicker.html)

Filter

Use the filter property of the data editor.

• Create a view state of type List (named "filter") and assign to the filter property of data editor in Data Grid.

Assign a view state of type List to the filter property of the data editor.

• Add a Data Form
• Map the created "filter" view state to Viewstate Parameter of Data Form.
• Switch Parameter Type to Dropdown
• Add Items corresponding to the selected values.

There is a special case for defining the Value for Items which uses the following structure as determined by the getData API.

=;column_name;value

item	setting
=	matches numeric values, use like for text values.
column_name	data column name referenced in the database.
value	filter value; numeric for =, text for like.

Data Form setup for a dropdown filter.

Filter values by data set:

subwaycrimehealth

value	settings
Parameter	Direction view state parameter
Display Name	Direction

ITEMS

value	text
like;direction_id;inbound	Inbound
like;direction_id;outbound	Outbound

value	settings
Parameter	CIP view state parameter
Display Name	Crime In Progress

ITEMS

value	text
like;crime_in_progress;Critical	Critical
like;crime_in_progress;Non CIP	Not in Progress
like;crime_in_progress;Non Critical	Not Critical
like;crime_in_progress;Serious	Serious

value	settings
Parameter	Car Accident view state parameter
Display Name	Number of Car Accidents

ITEMS

value	text
=;caracccnt;0	None
=;caracccnt;1	One
=;caracccnt;2	Two
=;caracccnt;3	Three
=;caracccnt;4	Four
=;caracccnt;5	Five

Drop Down List

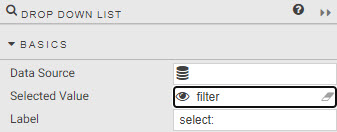

Drop Down List is a self-contained dropdown compoent. Assign the filter view state parameter to Selected Value property listed under Basics. Define Items as for data form.

A Drop Down List for filter.

I want to learn more about drop downs

I want to learn more about Data Forms
