Routing configuration

Query routing is managed by two primary components, the Service Gateway, and the Resource Coordinator. Queries are broken into partials and distributed across query instances and collected into a final result in the Aggregator.

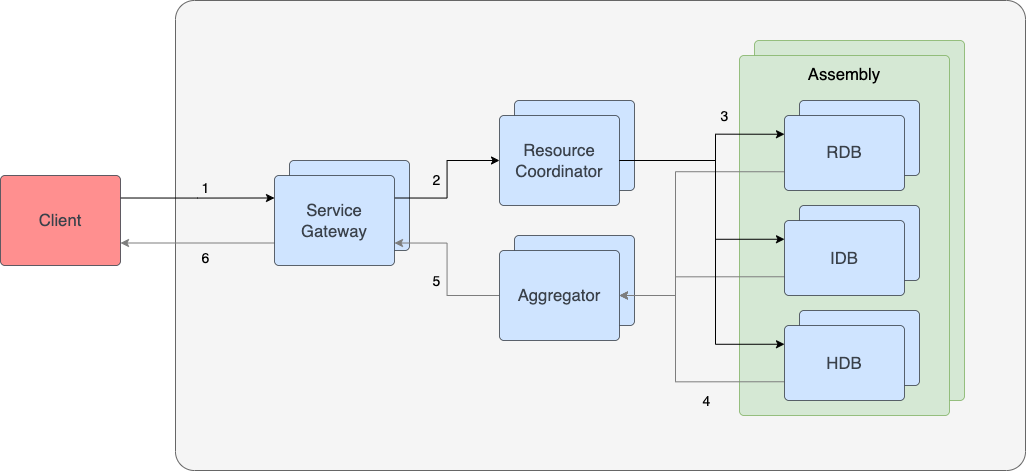

process diagram

Unless otherwise specified, the arrows in the diagram represent asynchronous q IPC communication between processes. Query flow is as follows.

arrow description
1 Client makes API request to a Service Gateway replica. This can be synchronous or asynchronous.
2 The Service Gateway forwards the request to the Resource Coordinator.
3 The Resource Coordinator sends partial requests to each DAP relevant to the query based on purview.
4 DAPs forward their responses to a single Aggregator for aggregation.
5 The Aggregator sends the response to the same Service Gateway the client connected to.
6 The Service Gateway sends response back to client.

These components route queries across one or more assemblies and are installed as part of a base deployment. These components are generally configured using environment variables or a values file if using a Kubernetes based deployment. In both environment, environment variables can be used to change configuration.

Environment Variables

Configuration can be supplied to the Service Gateway or the Resource Coordinator using environment variables. Environment variables are configured differently depending on the method of deployment. In all cases, the variables are always string values.

In Docker, environment variables are supplied under an environment key for the target service as a list of key-value pairs.

services:
  sg:
    environment:
      - KXI_NAME=sg

In a Kubernetes deployment, environment variables are passed to components using a values file. For the Service Gateway, these values are supplied under an sg-gateway key. For the Resource Coordinator, these are supplied under a resource-coordaintor key.

kdb Insights Enterprise

When running in an enterprise deployment, values are nested under either a service-gateway or qe-gateway key in the values file. See enterprise deployment configuration for more details.

service-gateway:
  sg-gateway:
    env:
      KXI_SG_TIMEOUT: "50000"
  resource-coordinator:
    env:
      KXI_SG_TIMEOUT: "50000"

Service Gateway

name description
GATEWAY_QIPC_PORT Gateway port for QIPC traffic.
GATEWAY_HTTP_PORT Gateway port for HTTP traffic.
SM_CONTAINER_NAMES Comma separated list of SM container names the GW should connect to. You should not need to touch this unless you've customized your SM container names. (default:"sm").
DISCOVERY_PROXY Discovery proxy address (not required if not using discovery).
KXI_SG_RC_ADDR host:port of RC process to connect to.
KXI_SG_TIMEOUT Default request timeout in milliseconds (default: 60000).
KXI_SG_TIMEOUT_MARGIN Controls the amount of time to wait for the RC to complete a request in milliseconds. The service gateway waits this many milliseconds after a request has timeout out for the RC to issue a timeout request. (default: 30000)
KXI_RC_SERVICE_NAME The key that the Service Gateway looks for to find Resource Coordinators within the discovery registry. (default: KXI-SG-RC).
KXI_RC_LABEL_SELECTOR Allow the gateway to find Resource Coordinators by label selector. Required for Kubernetes-based discovery.
KXI_DA_LABEL_SELECTOR Allow the gateway to find data-access pods by label selector.
KXI_SM_LABEL_SELECTOR Allow the gateway to find storage-manager pods by label selector.
KXI_RC_CONTAINER_NAME Specifies the Resource Coordinator container name when using Kubernetes-based discovery. If unspecified, we choose the last container in the pod whose name does not contain "sidecar".
KXI_DA_CONTAINER_NAME Specifies the Data Access container name when using Kubernetes-based discovery. If unspecified, we choose the last container in the pod whose name does not contain "sidecar".
KXI_SM_CONTAINER_NAME Specifies the Storage Manager container name when using Kubernetes-based discovery. If unspecified, we choose the last container in the pod whose name does not contain "sidecar".
KXI_SG_BUFFER_INITIAL Initial size in bytes to allocate per connected aggregator (default: 5Mb as 5000000).
KXI_SG_BUFFER_RETAIN Maximum size in bytes to hold on to per connected aggregator (default: 5Mb as 5000000).
KXI_AUTH_DISABLED Set KXI_AUTH_DISABLED=0 to use the gateway with Keycloak.
KXI_OIDC_JSON_PATH OIDC JSON used for mapping Keycloak authentication endpoints.
KXI_SCOPE_AFFINITY Scope affinity. Either "hard" or "soft", see scope (default: "hard").
KXI_ASSEMBLY_KEY Specifies the Kubernetes label key that identifies a pod's assembly (default: "insights.kx.com/app").

Streaming message buffers

For streaming messages back to clients, the gateway will stream up to KXI_SG_BUFFER_INITIAL per write operation. Total payloads can be any size, and this setting controls the chunk sizes. The default is based empherically on a "moderate" network speed of 4Mb/s. For configurations with higher performing network speeds, this setting should be increased.

Set KXI_SG_STREAM_THRESHOLD on the resource-coordinator and aggregator to control when they will decide to use streaming. Also defaults to 5Mb in bytes.

For non-streaming messages, messages can be up to 2Gb, and KXI_SG_BUFFER_RETAIN is how much heap space in bytes maximum will be shrunk back down after a message is sent. This allows tuning the application so "average" messages do not pay an overhead of memory re-allocation. KXI_SG_BUFFER_INITIAL is the how much space is reserved without any messages having come across, and is the minimum size in bytes that will be retained.

Resource Coordinator

name description
KXI_NAME Process name.
KXI_PORT Port.
KXI_GC_FREQ Frequency in milliseconds to run garbage collect in a timer (default: 600000, set to 0 to disable).
KXI_SG_TIMEOUT Default request timeout in milliseconds (default: 60000).
KXI_DISC Multi-RC discovery mode: "kubernetes" or "".
KXI_RC_LABEL_SELECTOR Label selector to discover other RCs via Kubernetes-based discovery (default: app.kubernetes.io/name=resource-coordinator).
KXI_RC_CONTAINER_NAME RC container name for Kubernetes-based discovery (default: resource-coordinator).
KXI_SG_CONN_TIMEOUT Timeout on connection open.
KXI_SG_MAX_RETRY Maximum number of retries the RC is willing to do for retry-able errors.
KXI_ALLOWED_SBX_APIS Comma-delimited list of sandbox APIs to allow in non-sandbox RCs (e.g. .kxi.sql,.kxi.qsql).
KXI_SG_REQ_DEL_FREQ Time in milliseconds to run the request table delete routine (default: 10000).
KXI_SG_QUEUE_DEL_FREQ Time in milliseconds to run the queue table delete routine (default: 10000).
KXI_SAPI_HB_FREQ Time in milliseconds to run the heartbeat to connected processes (default: 30000).
KXI_SAPI_HB_TOL Number of heartbeat intervals a process can miss before being disconnected (default: 2).
KXI_SG_MULTI_RC_TO_MAX_WAIT On a timeout of a multi-RC request, number of 10 second iterations to wait for timeout details from all RCs (default: 1).
KXI_ENABLE_FLUSH Set to true to enable async flush on messages from RC to DA/Agg and from Agg to GW (default false).
KXI_SG_STREAM_THRESHOLD Threshold in bytes for the RC to use streaming APIs of the Service Gateway (default: 5Mb as 5000000).
ALLOW_OLD_LABEL_STYLE Allows queries and APIs to continue to use the old label style prior to 1.5. See upgrading to 1.5 for details. (default: "true")
KXI_RC_STS_SIZE Number of RCs in the stateful set when using Kubernetes-based discovery with DAPs and Aggs. See ordinal connections.
KXI_ASSEMBLY_NAME Set in order for the RC to self-identify as an assembly RC. See routing.
KXI_WARN_FREQ Frequency, in milliseconds, at which the RC issues a warning message if no DAPs or no aggregators are connected (default: 60000, i.e. 1 minute).
KXI_WARN_THRESHOLD If no DAPs or aggregators are connected, the RC begins generating error messages after this many warnings (default: 10).
