Readers

This page explains how to set up reader operators, for kdb Insights Enterprise pipelines, using the Web Interface.

Reader operators enables both streaming and batch data to be ingested into kdb Insights Enterprise.

Refer to the following APIs for more details

Both q and Python interfaces can be used to build pipelines programmatically. See the q and Python APIs for details.

The pipeline builder uses a drag-and-drop interface to link together operators within a pipeline. For details refer to the Building a pipeline guide.

The following readers are available:

Callback

Use this reader to receives data from a callback from the local process or over IPC.

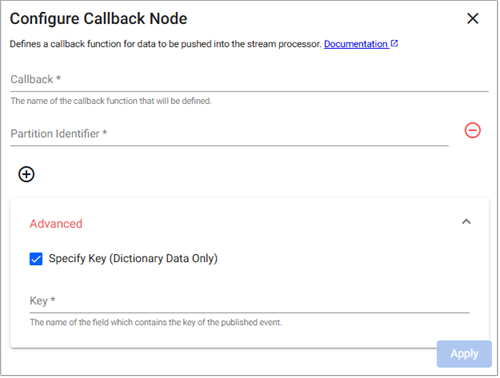

Callback reader properties

Note

Refer to the following q and Python APIs for more details: Callback

Name Description Default Required
Callback The name of the callback function where data is received. None Y
Add Partition Identifiers Click + to add a Partition Identifier field. None N
Enable Message Replay (Beta Feature) If enabled messages that arrived after the last checkpoint are replayed on recovery. This is off by default for performance reasons. N N
Specify Key This is used to specify a key field for the event, and can only be checked for dictionary events. When checked the Key field is displayed. Unchecked N
Key Name of the field which contains the key of the published event. Only available when Specify Key is checked. None N

Example: Publishing from a tickerplant

A tickerplant is a message bus that typically sends data to subscribers in the form of (table; data). In this example, we subscribe to a tickerplant with a trades and a quotes table with independent callback readers.

  1. Drag out a callback reader and set the name to be Callback name to trade.
  2. Drag out a second callback reader and set the name to be Callback name to quote.

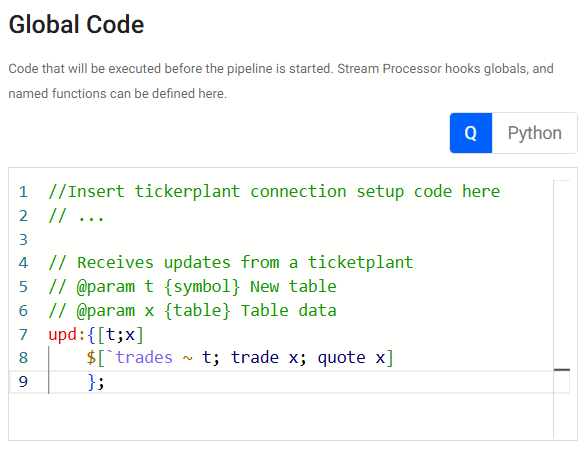

  3. Setup the following global code, for establishing a connection to the tickerplant and dispatching to the appropriate callback function based on the table name.

        //Insert tickerplant connection setup code here
    // ...

    // Receives updates from a ticketplant
    // @param t {symbol} New table
    // @param x {table} Table data
    upd:{[t;x]
        $[`trades ~ t; trade x; quote x]
        };

    Callback reader global code

Expression

This reader runs a kdb+ expression.

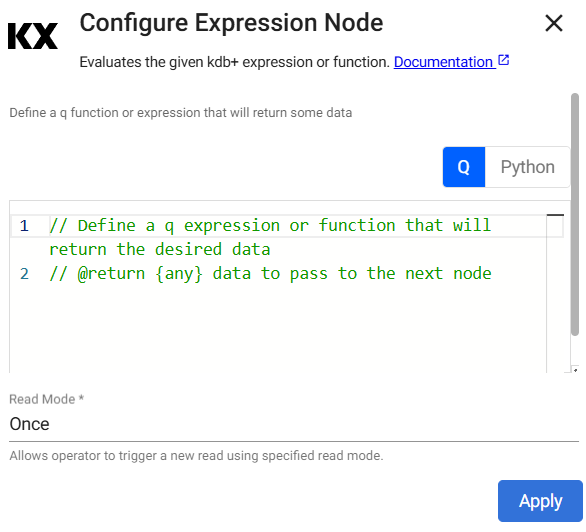

Expression reader properties

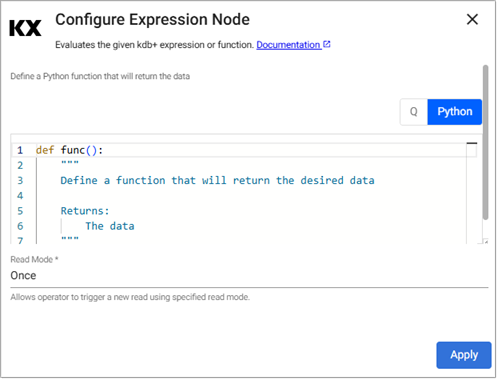

Python expression properties

Note

Refer to the following q and Python APIs for more details: Expression

The expression reader executes a snippet of kdb+ code and passes the result into the pipeline. This operator is mostly used for testing pipelines with mock data.

Import Wizard

This reader is also available in the import wizard.

Required Parameters:

Name Description Default
Expression A snippet of kdb+ code or a Python function to be evaluated. The last statement in this code snippet is treated as the data source.

Optional Parameters:

Name Description Default
Read Mode Configures how the node is triggered. This can be one of Once, API, Timer Once
Period This field, displayed when the Read Mode is set to Timer, specifies the period to trigger the read on. 1D00:00:00
Set Start Time This field, displayed when the Read Mode is set to Timer, sets the time of the initial read. When unchecked the read triggers on execution. When checked a Start Time parameter is displayed. Unchecked
Start Time The time the initial read is triggered. Today

Trigger URL

The Trigger URL is displayed when Read Mode is set to API or Timer. This specifies the Trigger URL for the selected operator in the pipeline. This field is not editable. The PREFIX is the package name if deployed as part of a package or the helm release name if deployed standalone.

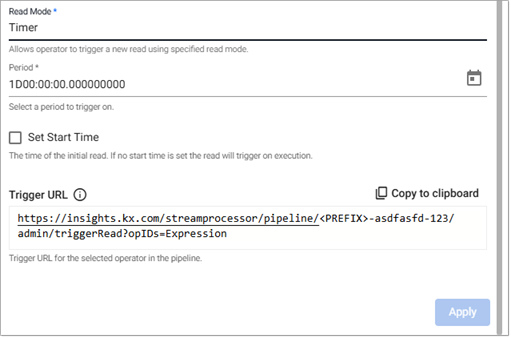

The following screenshot shows the Trigger Read properties displayed when Trigger Mode is set to Timer.

Trigger Read properties

Refer to Pull Trigger Read Options for more details.

Example: Generating data

The code snippet below generates a sample table with 2000 rows for testing:

n:2000;
([] date:n?(reverse .z.d-1+til 10);
  instance:n?`inst1`inst2`inst3`inst4;
  sym:n?`USD`EUR`GBP`JPY;
  num:n?10)

import pandas as pd
import numpy as np
from datetime import datetime,timedelta

def gen():
    n=2000
    dates = [datetime.today().date() - timedelta(10-i,0,0) for i in range(10)]
    return pd.DataFrame({'date' : np.random.choice(dates,n),
              'instance' : np.random.choice(["inst1","inst2","inst3","inst4"],n),
              'sym' : np.random.choice(["EUR","USD","GBP","JPY"],n),
              'num' : np.random.randint(0,10,n)})

Google Cloud Storage

This reads an object from Google Cloud Storage.

There are two versions of the reader:

  • Version 1: The original and default version.
  • Version 2: Supports parallel file downloads, significantly increasing throughput during processing. This is the recommended option.

To change the operator version, click Select Version and select either Version 1 or Version 2.

Changing versions overwrites operator configuration

Pipelines built using Version 1 of this operator continue to use that version unless you explicitly switch to Version 2.

If you change operator versions, the configuration fields specific to Version 2 are blank and must be set up manually. The existing Version 1 configuration is overwritten. The new configuration is applied only after you click Apply.

Note

Refer to the following q and Python APIs for more details: Google Cloud Storage

Import Wizard

This reader is also available in the import wizard.

Click the Version 2 or Version 1 tab below to view the operator configuration options available for each version.

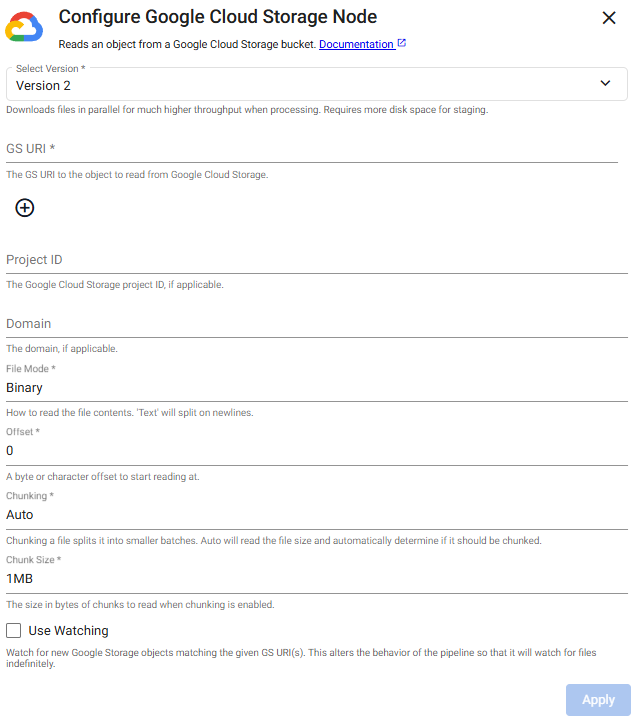

Google Cloud Storage reader properties

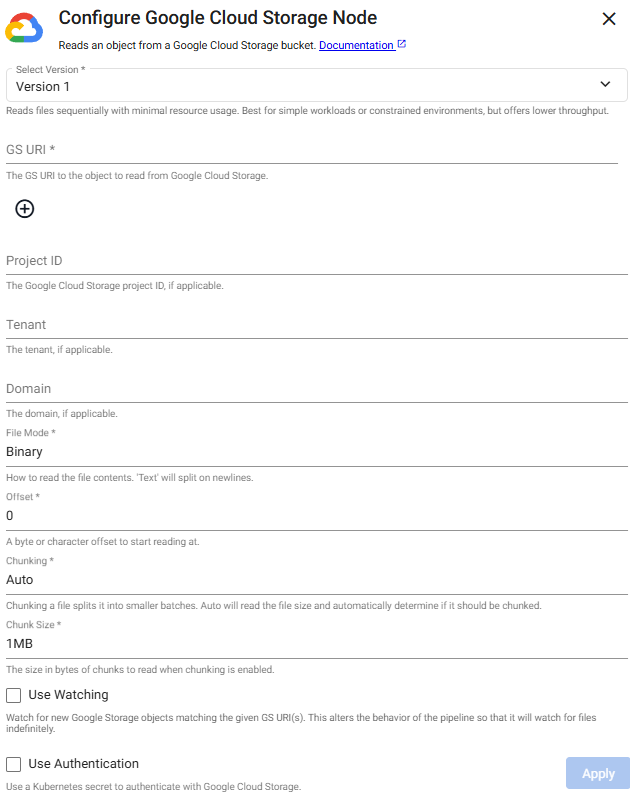

Google Cloud Storage reader properties

Watching

Pair this with a glob pattern for the Path, otherwise new files are not detected when watching. The pipeline polls by the selected method at the selected frequency and reads the matching files once they become available. The reader continually watches for new files, matching the file path provided using the watch method.

When using Watching, the pipeline continues watching until there is manual intervention to finish the pipeline.

Watching should not to be used with a Database Writer using the direct write option

When using Watching, it is not possible to pair this with a Database Writer using direct write since direct write relies on a definitive finish point, which is not guaranteed when using this option.

Required Parameters:

Name |Description | V1 | V2 | -----|-------------------------------------------------------------------| ------ | ------ | ------ Path | Click the "+" button to add one or more Cloud Storage URIs to read from a Google cloud storage bucket. Glob patterns are supported. | ✔️ | ✔️ |

Optional Parameters:

Name Description Default V1 V2
Project ID Google Cloud Storage Project ID, if applicable. ✔️ ✔️
Tenant The authentication tenant, if applicable. ✔️ ❌
File Mode The file read mode. Setting the file mode to Binary reads the content as a byte vector. When reading a file as text, data is read as strings and split on new lines. Each string vector represents a single line. Note that reading as Binary works for both text and binary data, but reading as Text only work for text data. Binary ✔️ ✔️
Offset A byte or character offset to start reading at. 0 ✔️ ✔️
Chunking Splits file into smaller batches. Auto reads file size and determine if it should be chunked. Auto ✔️ ✔️
Chunk Size File size of chunks when chunking is enabled. 1MB ✔️ ✔️
Use Watching Watch for new Google Storage objects matching the given Cloud Storage URI(s). No ✔️ ✔️
Method Method used to watch for new files. Only available if Use Watching is checked. Timer ✔️ ✔️
Frequency Frequency of timer polling. Only available if Use Watching is checked and Timer is the selected method. 0D00:00:05.000000000 ✔️ ✔️
Use Authentication Enable Kubernetes secret authentication. No ✔️ ❌
Kubernetes Secret The name of a Kubernetes secret to authenticate with Google Cloud Storage. Only available if Use Authentication is checked. No ✔️ ❌

Google Cloud Storage Authentication

Google Cloud Storage Authentication uses Kurl for credential validation.

Environment variable authentication

To setup authentication using an environment variable, set GOOGLE_STORAGE_TOKEN in Google's gcloud CLI

gcloud auth print-access-token

Kubernetes secrets for authentication

A Kubernetes secret may be used to authenticate files. This secret needs to be created in the same namespace as the kdb Insights Enterprise install. The name of that secret is then used in the Kubernetes Secret field when configuring the reader.

To create a Kubernetes secret with Google Cloud credentials:

kubectl create secret generic SECRET_NAME DATA

Note

SECRET_NAME is the name of the secret used in the reader. DATA is the data to add to the secret; for example, a path to a directory containing one or more configuration files using --from-file or -from-env-file flag, or key-value pairs each specified using --from-literal flags.

Kubernetes Secrets

HTTP

This reader requests data from an HTTP(S) endpoint.

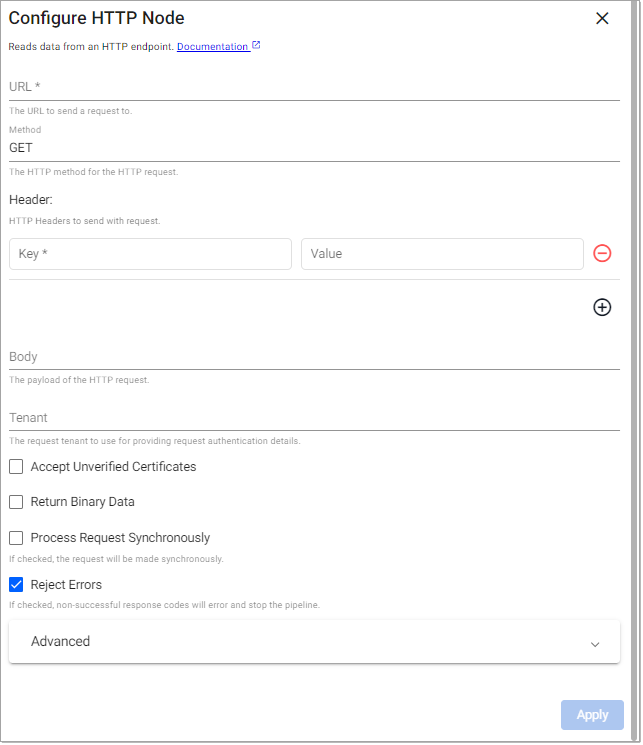

HTTP reader properties

Note

Refer to the following q and Python APIs for more details: HTTP

Required Parameters:

Name Description Default
URL The URL to send the request to. The URL must include the protocol (http or https), the domain name (example.com) and port if necessary (example.com:8080) as well as the request path. For example: http://code.kx.com/q/ref.
Method The method to use for sending the HTTP request. This must be one of GET, POST PUT, HEAD or DELETE. GET

Optional Parameters:

Name Description Default
Body The payload of the HTTP request. The body of the request is any content that needs to be included when sending the request to the server.
Header A map of header fields to send as part of the request.
Tenant The request tenant to use for providing request authentication details.
Accept Unverified Certificates When checked, any unverified server SSL/TLS certificates is considered trustworthy No
Return Binary Data When checked, payload is returned as binary data, otherwise payload is treated as text data. No
Process Request Synchronously When checked, a synchronous request blocks the process until the request is completed. Default is an asynchronous request. No
Reject Errors When checked, a non-successful response generates an error and stop the pipeline. Yes
Read Mode Configures how the node is triggered. This can be one of Once, API, Timer Once
Period This field, displayed when the Read Mode is set to Timer, specifies the period to trigger the read on. 1D00:00:00
Set Start Time This field, displayed when the Read Mode is set to Timer, sets the time of the initial read. When unchecked the read triggers on execution. When checked a Start Time parameter is displayed. Unchecked
Start Time The time the initial read is triggered. Today

Trigger URL

The Trigger URL is displayed when Read Mode is set to API or Timer. This specifies the Trigger URL for the selected operator in the pipeline. This field is not editable. The PREFIX is the package name if deployed as part of a package or the helm release name if deployed standalone.

Refer to Pull Trigger Read Options for more details.

Advanced Parameters:

Name Description Default
Follow Redirects When checked, any redirects are automatically followed up to the Max Redirects value. Yes
Max Redirects The maximum number of redirects to follow before reporting an error. 5
Max Retry Attempts The maximum number of times to retry a request that fails due to a timeout. 10
Timeout The duration in milliseconds to wait for a request to complete before reporting an error. 5000

Kafka

This reader consumes data from a Kafka topic.

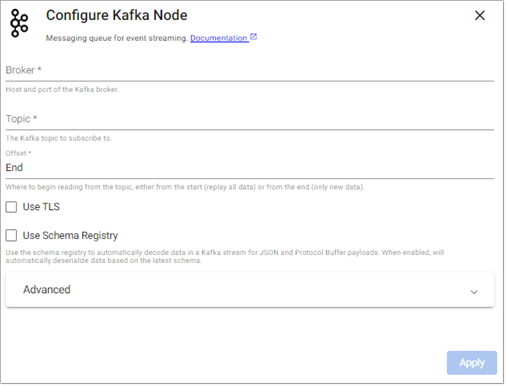

Kafka reader properties

Note

Refer to the following q and Python APIs for more details: Kafka

Kafka is a scalable streaming message queue for processing streaming data. Refer to the Kafka ingestion example for details about setting ingesting from Kafka.

Import Wizard

This reader is also available in the import wizard.

Required Parameters:

Name Description Default
Broker Location of the Kafka broker as host:port. If multiple brokers are available, they can be entered as a comma separated list.
Topic The name of the Kafka topic to subscribe to.

Optional Parameters:

Name Description Default
Offset Read data from the Start of the Topic; i.e. all data, or the End; i.e. new data only. End
Use TLS Enable TLS for encrypting the Kafka connection. When selected, certificate details must be provided with a Kubernetes TLS Secret No
Kubernetes Secret The name of a Kubernetes secret that is already available in the cluster and contains your TLS certificates. Only available if Use TLS is selected.
Certificate Password TLS certificate password, if required. Only available if Use TLS is selected.
Use Schema Registry Use the schema registry to automatically decode data in a Kafka stream for JSON, Avro and Protocol Buffer payloads. When enabled, automatically deserializes data based on the latest schema. No
Registry Kafka Schema Registry URL. Only available if Use Schema Registry is selected.
As List Set to true for Kafka Schema Registry messages to omit field names when decoding Protocol Buffer schemas, and instead return only the list of values. Only available if Use Schema Registry is selected. No

Note

Refer to this guide from Kubernetes for more details on setting up TLS Secrets.

Advanced Parameters:

Name Description Default
Retry Attempts The maximum number of retry attempts allowed. 10
Retry Wait Time The amount of time to wait between retry attempts. 2s
Poll Limit Maximum number of records to process in a single poll loop. 1000
Use Advanced Kafka Options Set to true and click the "+" button to add one or more key-value pairs, where the keys are Kafka configuration properties defined by librdkafka. No
Consumer Group ID Sets the Consumer Group ID field.

Note

Use Advanced Kafka Options allows more flexible options for security protocol configuration or changes to fetch intervals, as seen when subscribing to an Azure Event Hub Kafka connector.

Offset Committing and Group Permissions

The Kafka reader automatically commits offsets when reading from a broker. This is essential for exactly once semantics and fault tolerance. The error Local: Waiting for coordinator occur when attempting to commit offsets if you do not have sufficient group permissions. The broker should be configured so that the user has group Describe permissions. Since The Kafka Reader generates a random group ID, ensure the user is permissioned for all group names on the broker.

kdb Insights Database

Use this reader to read from a kdb Insights Database.

Note

Refer to the following q and Python APIs for more details: kdb Insights Database

The configuration options vary depending on the Query Mode you select.

The SQL option is not available

Get Data API

The settings for reading from kdb Insights Database using Get Data API are described below.

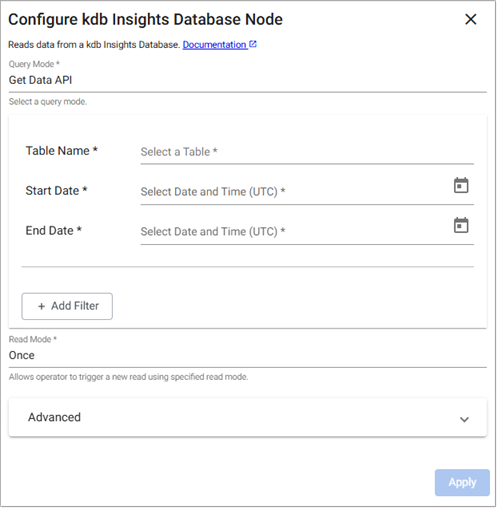

kdb Insights Database reader properties - Get Data

Warning

If entitlements are enabled, but you don’t have entitlements to a database, any pipeline you deploy that tries to read from that database will fail.

Before deploying a pipeline, ensure you have entitlements to all the databases that pipeline needs to access, especially if you're using a Database Reader.

  1. Enter values for the following required parameters.

    Parameter Description
    Table Name The name of the table data is to be retrieved from.
    Start Date The inclusive start time of the period of interest.
    End Date The exclusive end time of the period of interest.

  2. To add optional filters, click + Add Filter and click Add Function to select one of the filter options. Additional options are displayed depending on the filter option selected.

    Filter option Description
    filter A function that returns true for rows to include.
    filter by label When multiple databases each have a table matching the table name, filtering by label can select a subset of those.
    sort A column to sort by (ascending).
    define aggregation Apply an aggregation over a column for the rows matching the query, assigning the result to a new column.
    group aggregation by Group the result of the query by the specified column before running the aggregation.

  3. Optional Parameters:

    Name Description Default
    Read Mode Configures how the node is triggered. This can be one of Once, API, Timer Once
    Period This field, displayed when the Read Mode is set to Timer, specifies the period to trigger the read on. 1D00:00:00
    Set Start Time This field, displayed when the Read Mode is set to Timer, sets the time of the initial read. When unchecked the read triggers on execution. When checked a Start Time parameter is displayed. Unchecked
    Start Time The time the initial read is triggered. Today

    Trigger URL

    The Trigger URL is displayed when Read Mode is set to API or Timer. This specifies the Trigger URL for the selected operator in the pipeline. This field is not editable. The PREFIX is the package name if deployed as part of a package or the helm release name if deployed standalone.

    Refer to Pull Trigger Read Options for more details.

  4. Click Advanced to optionally enter values for the following.

    Advanced Parameter Description Default
    Retry Attempts Maximum number of retry attempts allowed. 5
    Retry Wait Time Wait time between retry attempts. 2 seconds

UDA

The settings for reading from kdb Insights Database using UDAs are described below. See UDAs for details on how these analytics are created and loaded to kdb Insights Enterprise.

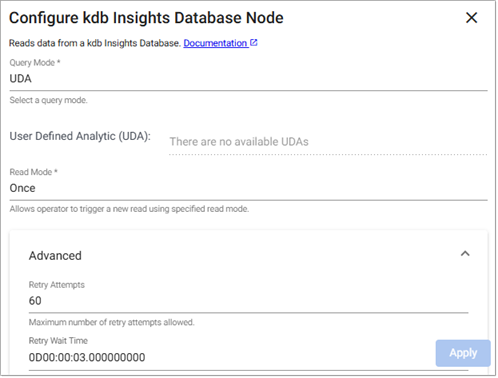

kdb Insights Database reader properties - UDA

  1. Select a User Defined Analytic (UDA) from the list of available UDAs.

  2. Optional Parameters:

    Name Description Default
    Read Mode Configures how the node is triggered. This can be one of Once, API, Timer Once
    Period This field, displayed when the Read Mode is set to Timer, specifies the period to trigger the read on. 1D00:00:00
    Set Start Time This field, displayed when the Read Mode is set to Timer, sets the time of the initial read. When unchecked the read triggers on execution. When checked a Start Time parameter is displayed. Unchecked
    Start Time The time the initial read is triggered. Today

    Trigger URL

    The Trigger URL is displayed when Read Mode is set to API or Timer. This specifies the Trigger URL for the selected operator in the pipeline. This field is not editable. The PREFIX is the package name if deployed as part of a package or the helm release name if deployed standalone.

    Refer to Pull Trigger Read Options for more details.

  3. Click Advanced to optionally enter values for the following.

    Advanced Parameter Description Default
    Retry Attempts Maximum number of retry attempts allowed. 5
    Retry Wait Time Wait time between retry attempts. 2 seconds

MQTT

Use this reader to subscribe to an MQTT topic.

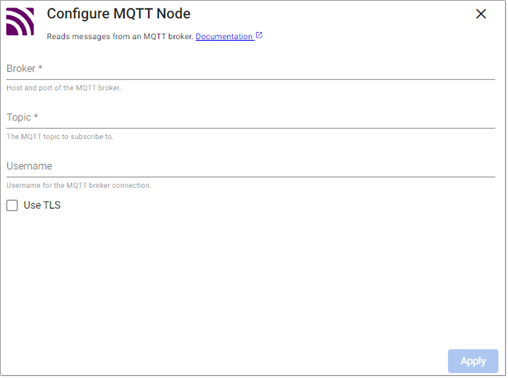

MQTT reader properties

Note

Refer to the following q and Python APIs for more details: MQTT

Read messages from an MQTT broker. MQTT is a lightweight, publish-subscribe, machine to machine network protocol for message queuing service. It is designed for connections with remote locations that have devices with resource constraints or limited network bandwidth.

Import Wizard

This reader is also available in the import wizard.

Required Parameters:

Name Description Default
Broker Location of the MQTT broker as protocol://host:port.
Topic The name of the MQTT topic to subscribe to.

Optional Parameters:

Name Description Default
Username Username for the MQTT broker connection.
Use TLS Enable TLS for encrypting the Kafka connection. When selected, certificate details must be provided with a Kubernetes TLS Secret No
Kubernetes Secret The name of a Kubernetes secret that is already available in the cluster and contains your TLS certificates. Only available if Use TLS is selected.
Certificate Password TLS certificate password, if required. Only available if Use TLS is selected.

Refer to this guide from Kubernetes for more details on setting up TLS Secrets

Determinism

This reader is non-deterministic, and the environmental variable KXI_ALLOW_NONDETERMINISM must be set to "true" to use this reader.

If the pipeline also contains a stream writer or database writer then deduplication must be deactivated since it requires determinism.

Microsoft Azure Storage

This reads an object from Microsoft Azure Storage.

There are two versions of the reader:

  • Version 1: The original and default version.
  • Version 2: Supports parallel file downloads, significantly increasing throughput during processing. This is the recommended version

To change the operator version, click Select Version and select either Version 1 or Version 2.

Changing versions overwrites operator configuration

Pipelines built using Version 1 of this operator retain this version unless you change it. If you change operator versions, the fields of the Version 2 screen are blank and the Version 2 fields have to be configured. The Version 1 current configuration is overwritten and the new configuration is applied when you click Apply. You are notified and asked to confirm this action.

Note

Refer to the following q and Python APIs for more details: Microsoft Azure Storage

Import Wizard

This reader is also available in the import wizard.

Click the Version 2 or Version 1 tab below to view the operator configuration options available for each version.

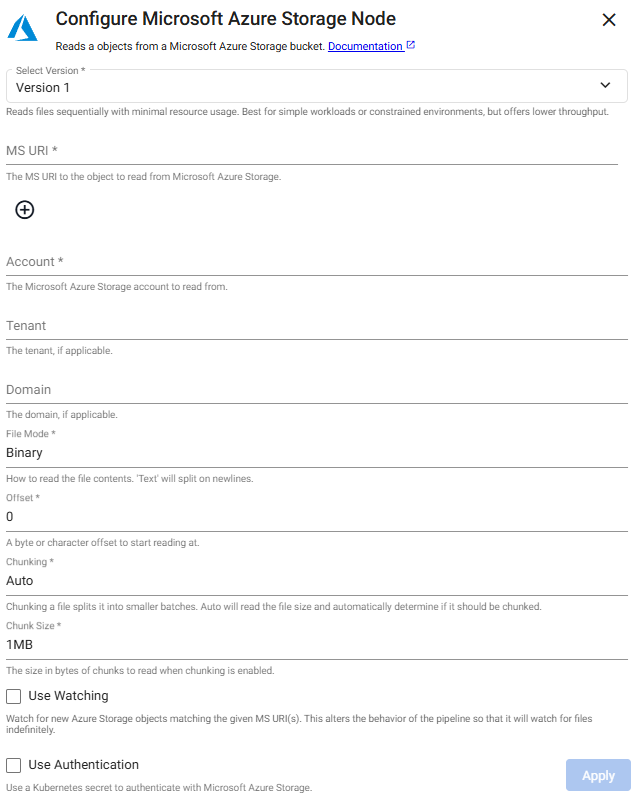

Microsoft Azure Storage reader properties

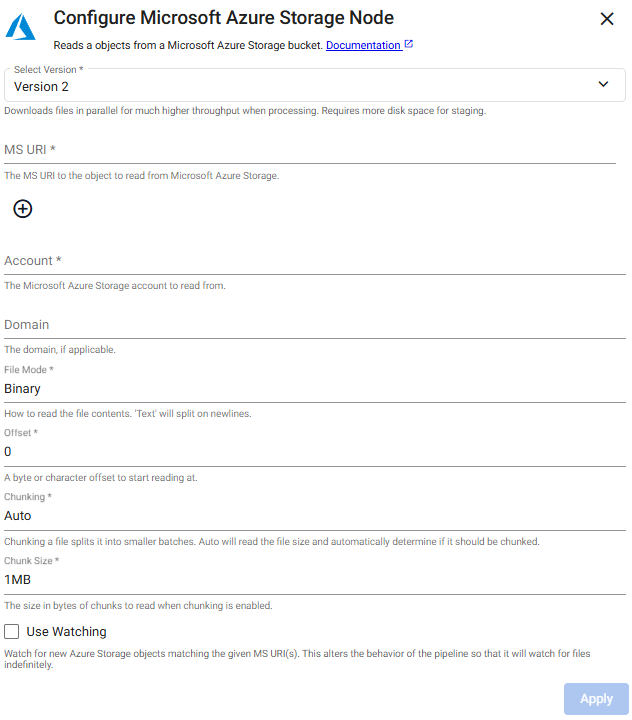

Microsoft Azure Storage reader properties

Watching

Pair this with a glob pattern for the Path or else new files are not detected when watching. The pipeline polls by the selected method at the selected frequency and reads matching files once they become available. The reader continually watches for new files matching the file path provided using the watch method.

When using watching the pipeline continues watching until there is manual intervention to finish the pipeline.

Watching should not to be used with a Database Writer using the direct write option

When using the Watching option it is not possible to pair this with a Database Writer using direct write since direct write relies on a definitive finish point which is not guaranteed when using this option.

Required Parameters:

Name Description V1 V2
Path Click the "+" button to add one or more Blob Storage URIs to read from an Azure cloud storage bucket. Glob patterns are supported. ✔️ ✔️
Account The name of the Azure Storage Account hosting the data. $AZURE_STORAGE_ACCOUNT

Optional Parameters:

Name Description Default V1 V2
Tenant The authentication tenant, if applicable. ✔️ ❌
File Mode The file read mode. Setting the file mode to Binary reads content as a byte vector. When reading a file as text, data is read as strings and is split on new lines. Each string vector represents a single line. Note that reading as Binary works for both text and binary data, but reading as Text only works for text data. Binary ✔️ ✔️
Offset A byte or character offset to start reading at. 0 ✔️ ✔️
Chunking Splits a file into smaller batches. Auto reads the file size and determines if it should be chunked. Auto ✔️ ✔️
Chunk Size File size of chunks when chunking is enabled. 1MB ✔️ ✔️
Use Watching Watch for new Azure Storage objects matching the given URI(s). No ✔️ ✔️
Method Method used to watch for new files. Only available if Use Watching is checked. Timer ✔️ ✔️
Frequency Frequency of timer polling. Only available if Use Watching is checked and Timer is the selected method. 0D00:00:05.000000000 ✔️ ✔️
Use Authentication Enable Kubernetes secret authentication. No ✔️ ❌
Kubernetes Secret The name of a Kubernetes secret to authenticate with Google Cloud Storage. Only available if Use Authentication is checked. ✔️ ❌

Microsoft Azure Authentication

Microsoft Azure Storage Authentication uses Kurl for credential validation.

Environment variable Authentication

To set up authentication with an environment variable, set AZURE_STORAGE_ACCOUNT to the name of the storage account to read from, and AZURE_STORAGE_SHARED_KEY to the one of the keys of the account. Additional details on shared keys usage available here.

Learn more about Shared Keys.

Kubernetes secrets for authentication

A Kubernetes secret may be used to authenticate files. This secret needs to be created in the same namespace as the kdb Insights Enterprise install. The name of that secret is then used in the Kubernetes Secret field when configuring the reader.

To create a Kubernetes secret with Azure credentials:

kubectl create secret generic --from-literal=token="$AZURE_STORAGE_TOKEN" ms-creds

Learn more about Kubernetes Secrets.

kdb Insights Stream

Reads data using a kdb Insights Stream. You can optionally supply topic filters to consume a subset of the data in the stream. By default it will subscribe to all topics.

There are two versions of the reader. Version 2 is recommended.

  • Version 1: The original and default version.
  • Version 2: Improved performance and lower resource consumption over the v1. It uses server-side topic filtering on the stream as opposed to the client-side filtering used in the v1. In addition it does not replicate stream logs to the pipeline meaning it requires less CPU and disk.

To change the operator version, click Select Version to select either Version 1 or Version 2.

Changing versions overwrites operator configuration

Pipelines built using Version 1 of this operator retain this version unless you change it. If you change operator versions, the fields of the Version 2 screen are blank and the Version 2 fields have to be configured. The Version 1 current configuration is overwritten and the new configuration is applied when you click Apply. You are notified and asked to confirm this action.

Note

Refer to the following q and Python APIs for more details: kdb Insights Stream

Click the Version 2 or Version 1 tab below to view the operator configuration options available for each version.

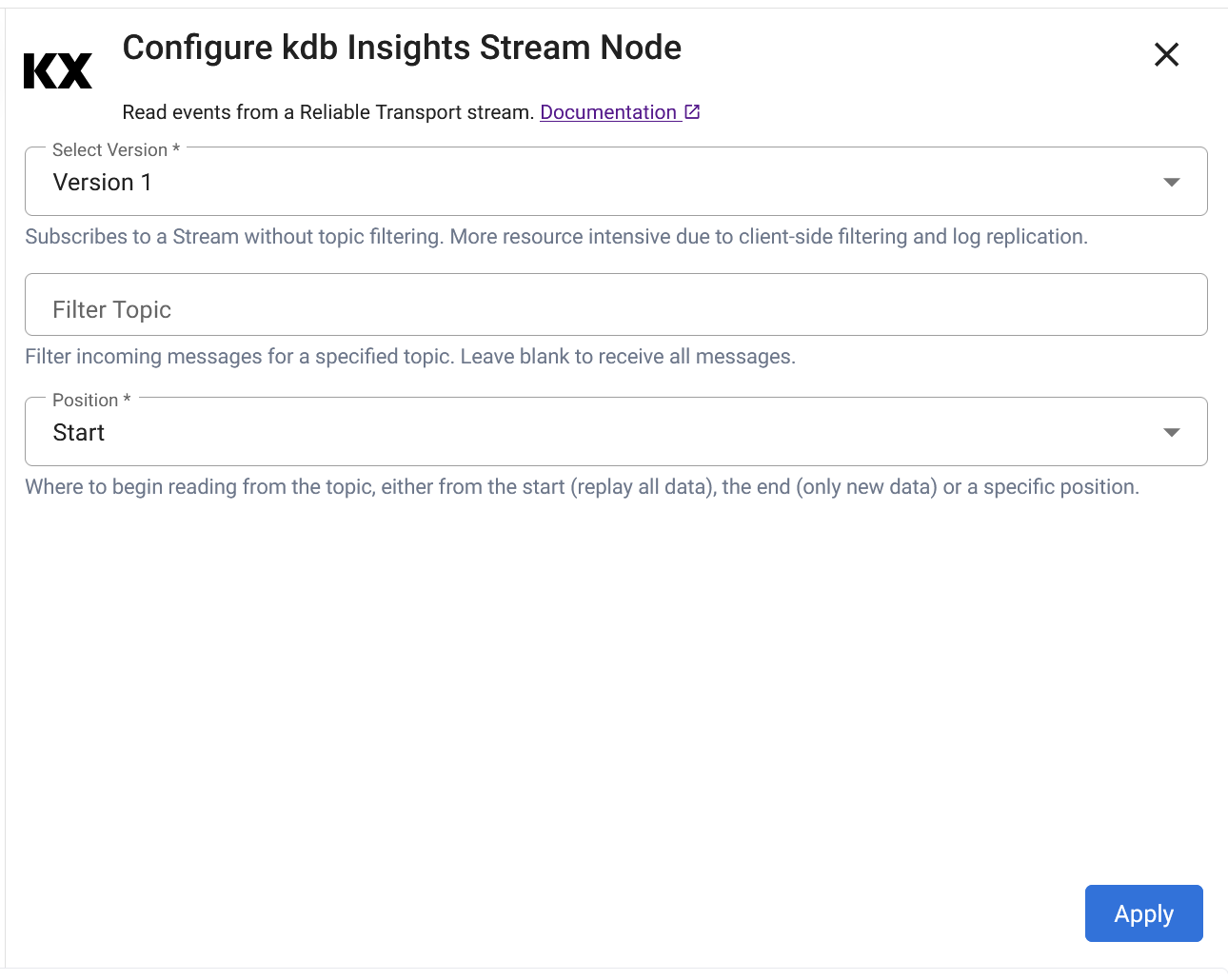

Stream reader properties

Stream reader properties

To read data from a stream, you must provide an Assembly Subscription Topic value. Configure this in the Settings tab under the Assembly Integration section. The format used should be <package name>-<stream name>

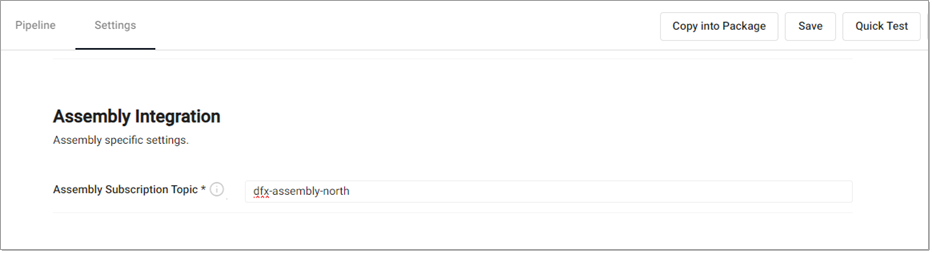

Deploy dialog assembly integration

Required Parameters

Name Description Default V1 V2
Stream The stream to read from, using the format <package name>-<stream name>. This field is only present when using v2. ❌ ✔️

Optional Parameters:

Name Description Default V1 V2
Filter Topics Topics to be consumed from the stream Consume all topics from the stream ✔️ ✔️
Position Position in the stream to replay from. Options are Start, End for V2 or Start, End or a Specific Position for V1. Start ✔️ ✔️
Replay Position When Specific Position is selected for V1, this is used to set the integer stream position 0 ✔️ ❌

Amazon S3

This reads an object from Amazon S3.

There are two versions of the reader:

  • Version 1: The original and default version.
  • Version 2: Supports parallel file downloads, significantly increasing throughput during processing. This is the recommended version.

To change the operator version, click Select Version to select either Version 1 or Version 2.

Changing versions overwrites operator configuration

Pipelines built using Version 1 of this operator retain this version unless you change it. If you change operator versions, the fields of the Version 2 screen are blank and the Version 2 fields have to be configured. The Version 1 current configuration is overwritten and the new configuration is applied when you click Apply. You are notified and asked to confirm this action.

Note

Refer to the following q and Python APIs for more details: Amazon S3

Import Wizard

This readers are also available in the import wizard.

Click the Version 2 or Version 1 tab below to view the operator configuration options available for each version.

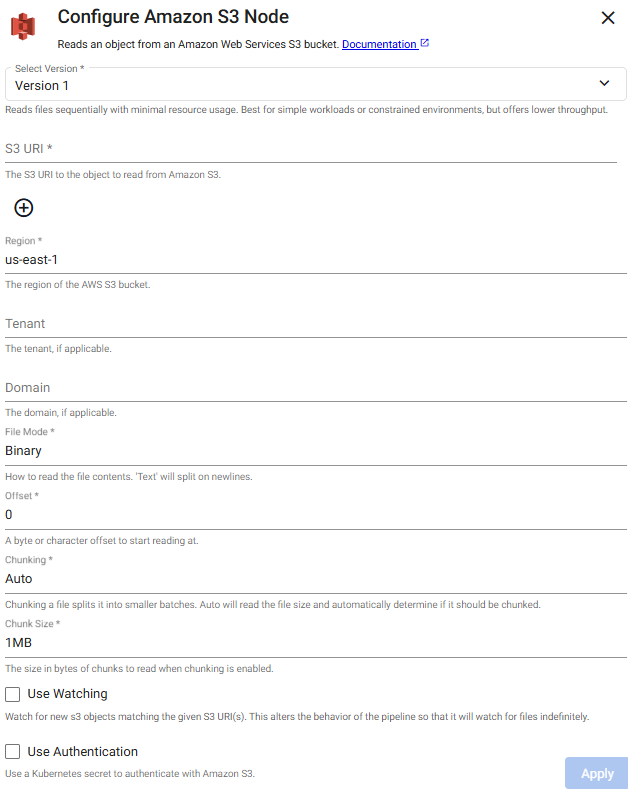

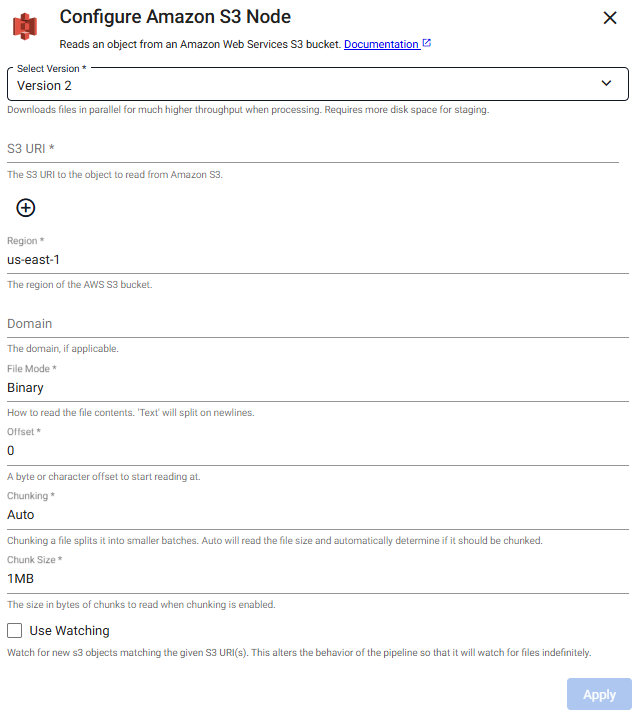

Amazon S3 reader properties

Amazon S3 reader properties

Watching

Pair this with a glob pattern for the Path or else new files are not detected when watching. The pipeline polls by the selected method at the selected frequency and reads matching files once they become available. The reader continually watches for new files matching the file path provided using the watch method.

When using watching the pipeline continues watching until there is manual intervention to finish the pipeline.

Watching should not to be used with a Database Writer using the direct write option

When using the Watching option it is not possible to pair this with a Database Writer using direct write since direct write relies on a definitive finish point which is not guaranteed when using this option.

Required Parameters:

Name Description Default V1 V2
Path Add one or more S3 URIs to read from an Amazons S3 Cloud Storage bucket ✔️ ✔️

Optional Parameters:

Name Description Default V1 V2
Region The AWS region of the bucket to authenticate against ✔️ ✔️
Tenant The authentication tenant, if applicable. ✔️ ❌
File Mode The file read mode. Setting the file mode to Binary read content as a byte vector. When reading a file as text, data is read as strings and is split on new lines. Each string vector represents a single line. Note that reading as Binary works for both text and binary data, but reading as Text only works for text data. Binary ✔️ ✔️
Offset A byte or character offset to start reading at. 0 ✔️ ✔️
Chunking Splits a file into smaller batches. Auto reads the file size and determine if it should be chunked. Auto ✔️ ✔️
Chunk Size File size of chunks when chunking is enabled. 1MB
Use Watching Watch for new S3 objects matching the given S3 URI(s). No ✔️ ✔️
Method Method used to watch for new files. Only available if Use Watching is checked. Timer ✔️ ✔️
Frequency Frequency of timer polling. Only available if Use Watching is checked and Timer is the selected method. 0D00:00:05.000000000 ✔️ ✔️
Use Authentication Enable Kubernetes secret authentication. No ✔️ ❌
Kubernetes Secret The name of a Kubernetes secret to authenticate with Google Cloud Storage. Only available if Use Authentication is checked. ✔️ ❌

Amazon S3 authentication

To access private buckets or files, a Kubernetes secret needs to be created that contains valid AWS credentials. This secret needs to be created in the same namespace as the kdb Insights Enterprise install. The name of that secret is then used in the Kubernetes Secret field when configuring the reader.

To create a Kubernetes secret containing AWS credentials:

kubectl create secret generic --from-file=credentials=<path/to/.aws/credentials> <secret-name>

Where <path/to/.aws/credentials> is the path to an AWS credentials file, and <secret-name> is the name of the Kubernetes secret to create.

Note that this only needs to be done once, and each subsequent usage of the Amazon S3 reader can re-use the same Kubernetes secret.

Note

This reader is also available in the import wizard.

Parquet

This reads a parquet file.

There are two versions of the reader:

  • Version 1: The original and default version.
  • Version 2: This is the recommended option. Identical if the parquet files are already local. Otherwise uses version 2 of the appropriate cloud reader to download the parquet file.

To change the operator version, click Select Version and select either Version 1 or Version 2.

Changing versions overwrites operator configuration

Pipelines built using Version 1 of this operator continue to use that version unless you explicitly switch to Version 2. If you change operator versions, the configuration fields specific to Version 2 are blank and must be set up manually. The existing Version 1 configuration is overwritten. The new configuration is applied only after you click Apply.

Click the Version 2 or Version 1 tab below to view the operator configuration options available for each version.

Note

Refer to the following q and Python APIs for more details: Parquet

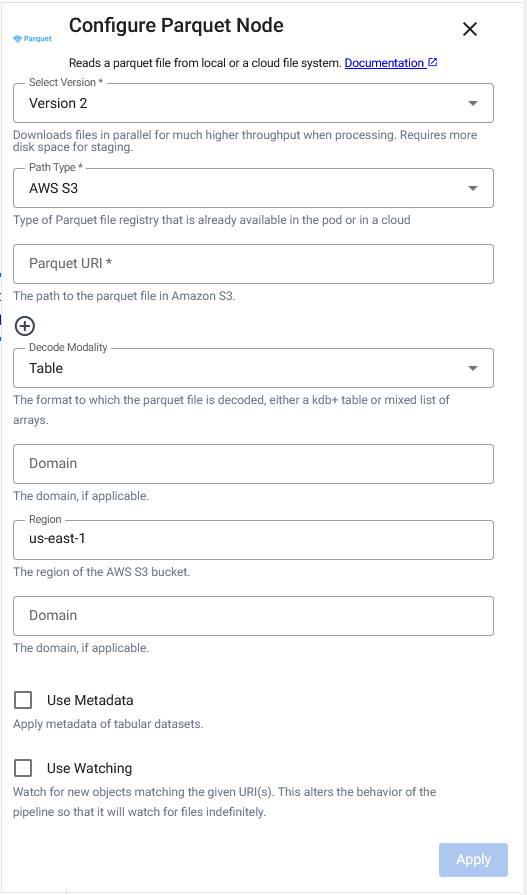

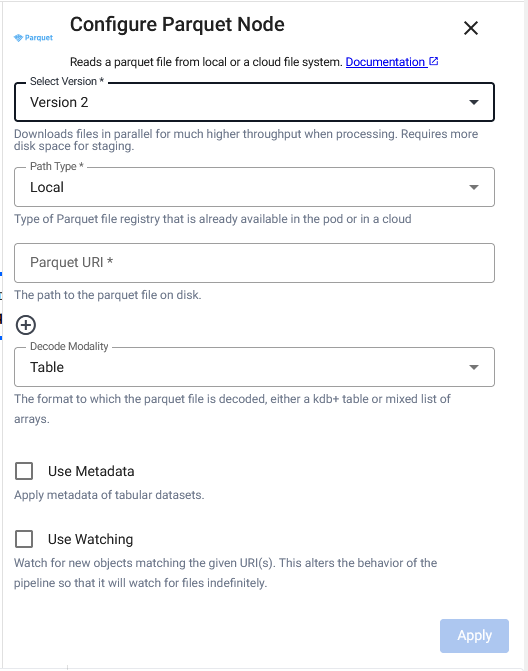

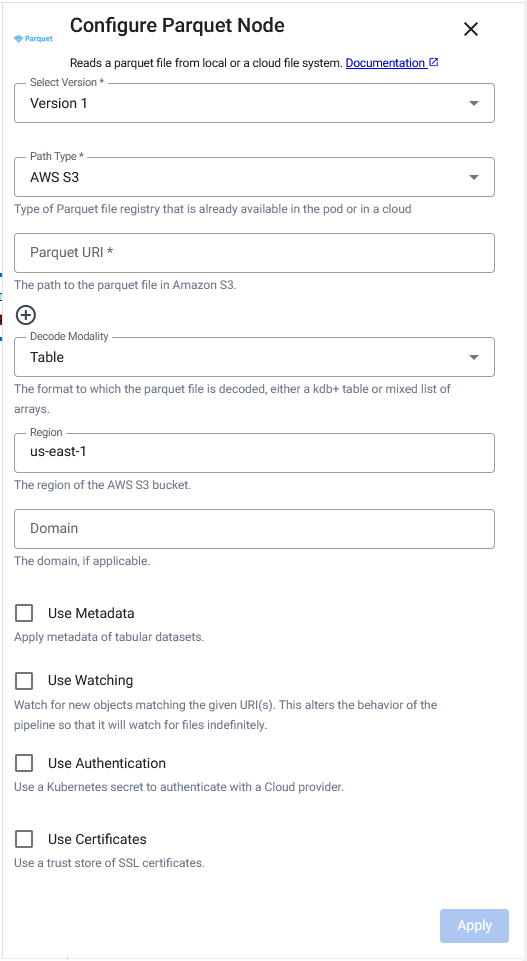

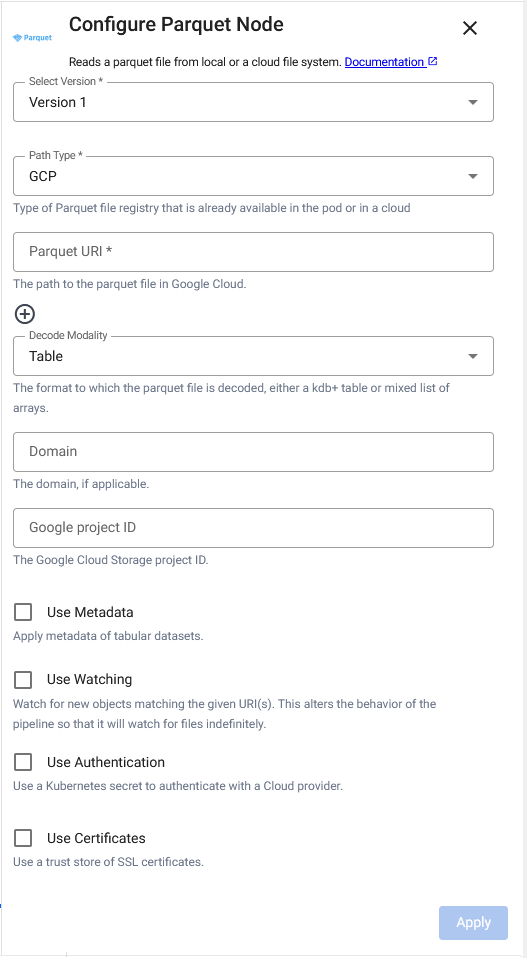

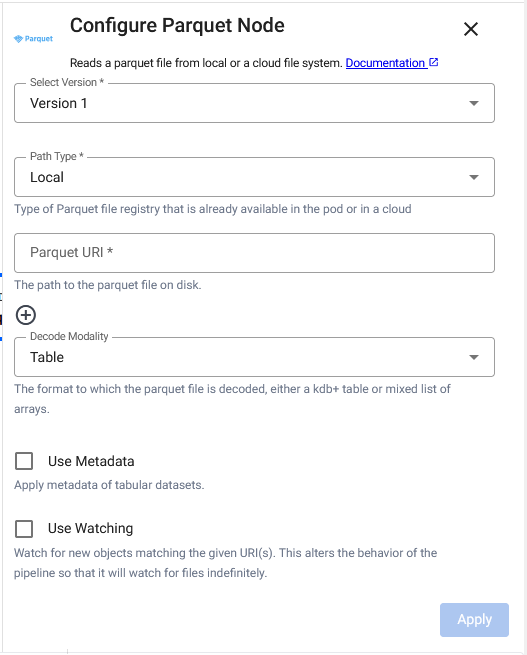

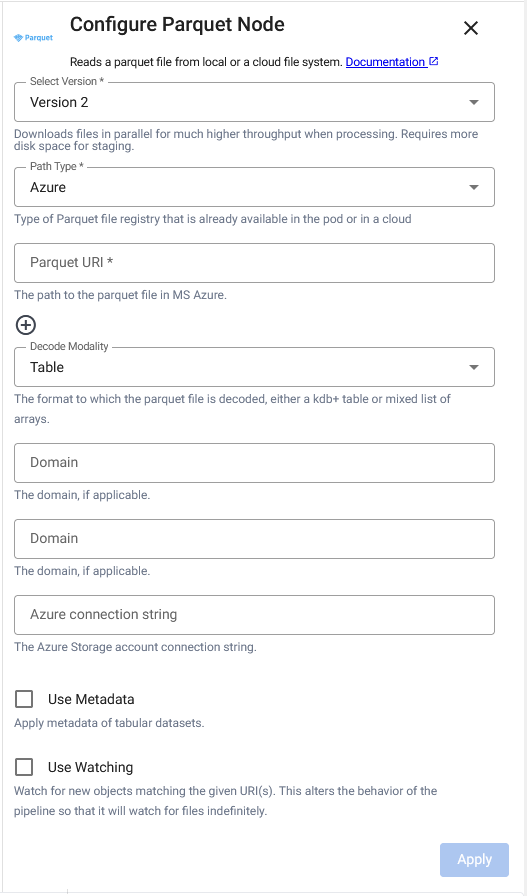

Parquet properties

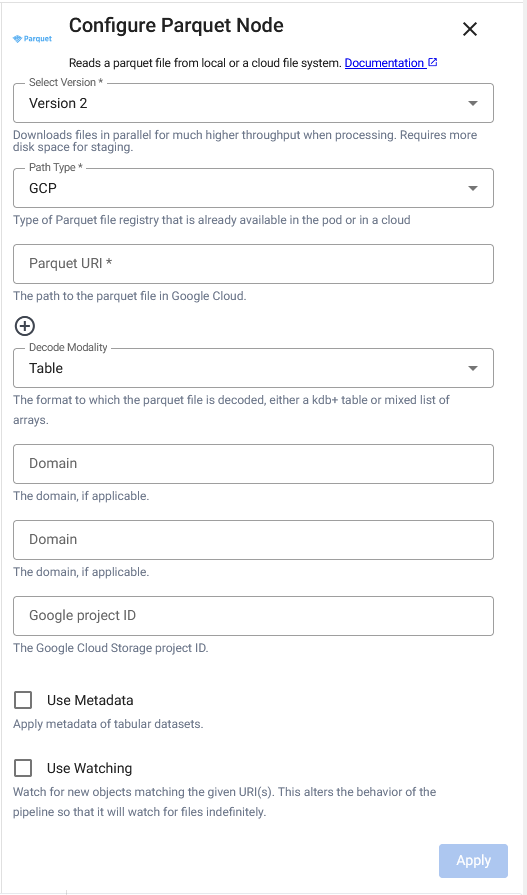

Parquet properties

Parquet properties

Parquet properties

For details on additional parameters required to access parquet files in cloud storage see documentation for Amazon S3 Authentication, Microsoft Azure Authentication, and Google Cloud Storage Authentication

Parquet properties

Parquet properties

Parquet properties

Parquet properties

Limitations

The reader may not handle parquet files which are larger then the total amount of memory or the size of the temporary Storage Directory. To handle such files, you can partition them into separate tabular datasets.

For details on configuring Amazon S3 Authentication, refer to Amazon S3 Authentication.

For details on configuring Azure Authentication, refer to Microsoft Azure Authentication.

For details on configuring Google Cloud Storage, refer to Google Cloud Storage Authentication.

Required Parameters:

Name Description Default V1 V2
Path Type Type of Parquet file registry in the cluster or in a cloud the file read from, either Local, AWS S3, AZURE or GCS. Local ✔️ ✔️
Path Path to one or more parquet file(s) being read from disk or Amazon S3/MS Azure/Google Cloud. ✔️ ✔️

Optional Parameters:

Name Description Default V1 V2
Decode Modality Either Table or List. Table ✔️ ✔️
Region The AWS region to authenticate against, if Path Type is AWS S3. us-east-1 ✔️ ✔️
Domain A custom domain to access the storage bucket. https://example.org ✔️ ✔️
Azure Connection String The Azure Storage account connection string, if Path Type is Azure. ✔️ ❌
Google project ID The Google Cloud Storage project ID, if Path Type is GCP. ✔️ ❌
Use Watching Watch for new Cloud Storage objects matching the given path. Only available if Path Type is not Local. No ✔️ ✔️
Use Authentication Enable Kubernetes secret authentication. No ✔️ ✔️
Kubernetes Secret The name of a Kubernetes secret to authenticate with a Cloud Storage. Only available if Use Authentication is enabled. ✔️ ✔️
Use Certificates Use a trust store of SSL certificates. No ✔️ ✔️
Trust Store Location of default trust store of SSL certificates. Only available if Use Certificates is enabled. /opt/kx/ca-bundle.crt ✔️ ✔️
Use Tenant Use tenant for Kurl authentication, if Use Watching is enabled. No ✔️ ❌
Tenant The authentication tenant, if applicable. Only available if Use Tenant is enabled. No ✔️ ❌

Upload

This reads data supplied through an HTTP endpoint.

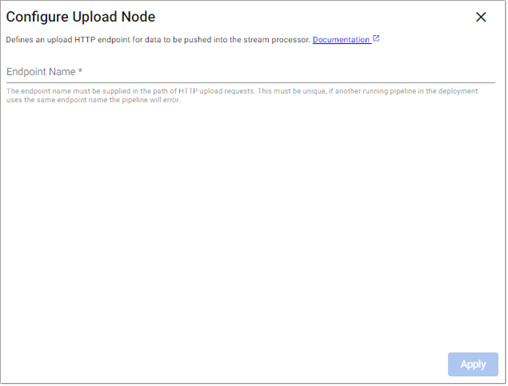

Upload reader properties

Note

Refer to the following q and Python APIs for more details: Upload

Required Parameters:

Name Description Default
Endpoint Name Unique name for this Upload node. This must be supplied in the path of HTTP upload requests. The fully qualified request path is displayed once this is entered. For example, https://insights.example.com/streamprocessor/upload/<Endpoint Name>. Required

Example

Once the pipeline is deployed you can upload files using HTTP by editing the template curl command:

curl -X POST "https://insights.kx.com/streamprocessor/upload/{Endpoint Name}?table=z&finish=true" \
   --header "Content-Type: application/octet-stream" \
   --header "Authorization: Bearer $INSIGHTS_TOKEN" \
   --data-binary "@my/file.csv"

PostgreSQL

This executes a query on a PostgreSQL database.

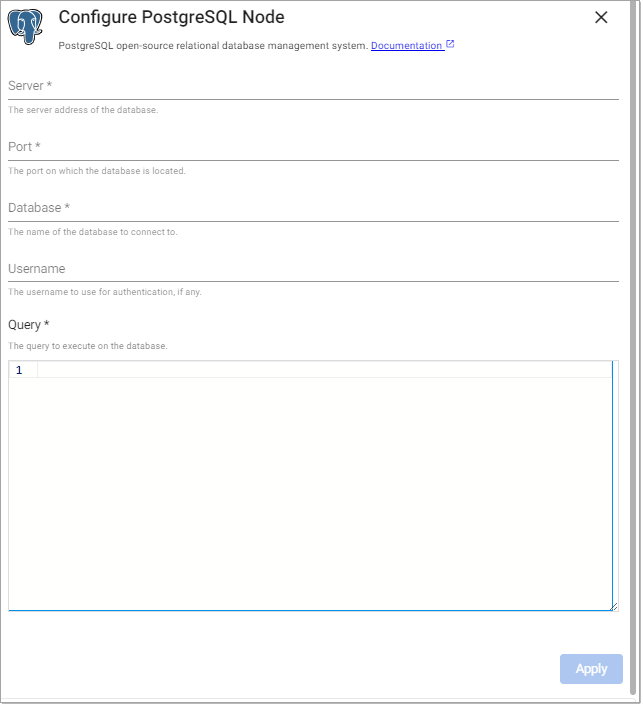

PostgreSQL reader properties

Note

Refer to the following APIs for more details: PostgreSQL

Import Wizard

This reader is also available in the import wizard.

Required Parameters:

Name Description Default
Server The hostname of the database to issue a query against.
Port The port to use for connecting to the database server.
Database The name of the database to issue a query against in the target server.
Query An SQL query to issue against the target database for pulling data into the pipeline.

Optional Parameters:

Name Description Default
Username The user account to use when establishing a connection to a PostgreSQL server. Note that if the username is provided, a password prompt appears during deploy time.
Read Mode Configures how the node is triggered. This can be one of Once, API, Timer Once
Period This field, displayed when the Read Mode is set to Timer, specifies the period to trigger the read on. 1D00:00:00
Set Start Time This field, displayed when the Read Mode is set to Timer, sets the time of the initial read. When unchecked the read triggers on execution. When checked a Start Time parameter is displayed. Unchecked
Start Time The time the initial read is triggered. Today

Trigger URL

The Trigger URL is displayed when Read Mode is set to API or Timer. This specifies the Trigger URL for the selected operator in the pipeline. This field is not editable. The PREFIX is the package name if deployed as part of a package or the helm release name if deployed standalone.

Refer to Pull Trigger Read Options for more details.

SQL Server

This executes a query on a SQL Server database.

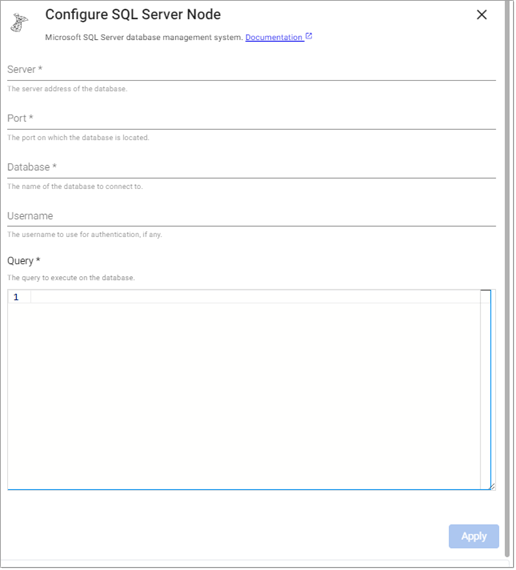

SQL Server reader properties

Note

Refer to the following q and Python APIs for more details: SQL Server

Import Wizard

This reader is also available in the import wizard.

Required Parameters:

Name Description Default
Server The hostname of the database to issue a query against.
Port The port to use for connecting to the database server.
Database The name of the database to issue a query against in the target server.
Query An SQL query to issue against the target database for pulling data into the pipeline.

Optional Parameters:

Name Description Default
Username The user account to use when establishing a connection to a SQL server. Note that if the username is provided, a password prompt appears during deploy time.
Read Mode Configures how the node is triggered. This can be one of Once, API, Timer Once
Period This field, displayed when the Read Mode is set to Timer, specifies the period to trigger the read on. 1D00:00:00
Set Start Time This field, displayed when the Read Mode is set to Timer, sets the time of the initial read. When unchecked the read triggers on execution. When checked a Start Time parameter is displayed. Unchecked
Start Time The time the initial read is triggered. Today

Trigger URL

The Trigger URL is displayed when Read Mode is set to API or Timer. This specifies the Trigger URL for the selected operator in the pipeline. This field is not editable. The PREFIX is the package name if deployed as part of a package or the helm release name if deployed standalone.

Refer to Pull Trigger Read Options for more details.

Further reading
