Encoders

This page explains how to set up encoder operators for kdb Insights Enterprise pipelines using the Web Interface.

Encoding allows data to be converted into a format that can be passed to an external system either by writing the content to a static file or by streaming the data to a different system.

See APIs for more details

Both q and Python interfaces can be used to build pipelines programmatically. See the q and Python APIs for details.

The pipeline builder uses a drag-and-drop interface to link together operations within a pipeline. For details on how to wire together a transformation, see the building a pipeline guide.

Arrow

(Beta Feature) The Arrow operator encodes kdb Arrow data.

Beta - For evaluation and trial use only

This feature is currently in beta.

  • Beta feature are included for early feedback and for specific use cases. They are intended to work but have not been marked ready for production use. To learn more and enable beta features, see enabling beta features.
  • We invite you to use this beta feature and to provide feedback using the Ideas portal.
  • During deployment, the entitlements feature is disabled by default, meaning no restrictions are applied and you can manage all databases, pipelines, and views as well as query all data in a kdb Insights Enterprise deployment.
  • When you enable the feature, you do not have access to query data in a database unless you have been given a data entitlement to query the database in question.

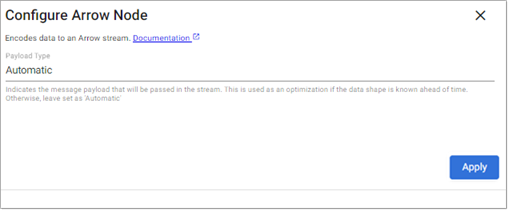

Arrow encoder node properties

Note

See q and Python APIs for more details: Arrow

Optional Parameters:

Name Description Default
Payload Type Indicates the message payload that will be passed in the stream. This is used as an optimization if the data shape is known ahead of time. Otherwise, leave set as 'Automatic' Automatic

Avro

(Beta Feature) The Avro operator encodes kdb Arrow data.

Beta - For evaluation and trial use only

This feature is currently in beta.

  • Beta feature are included for early feedback and for specific use cases. They are intended to work but have not been marked ready for production use. To learn more and enable beta features, see enabling beta features.
  • We invite you to use this beta feature and to provide feedback using the Ideas portal.
  • During deployment, the entitlements feature is disabled by default, meaning no restrictions are applied and you can manage all databases, pipelines, and views as well as query all data in a kdb Insights Enterprise deployment.
  • When you enable the feature, you do not have access to query data in a database unless you have been given a data entitlement to query the database in question.

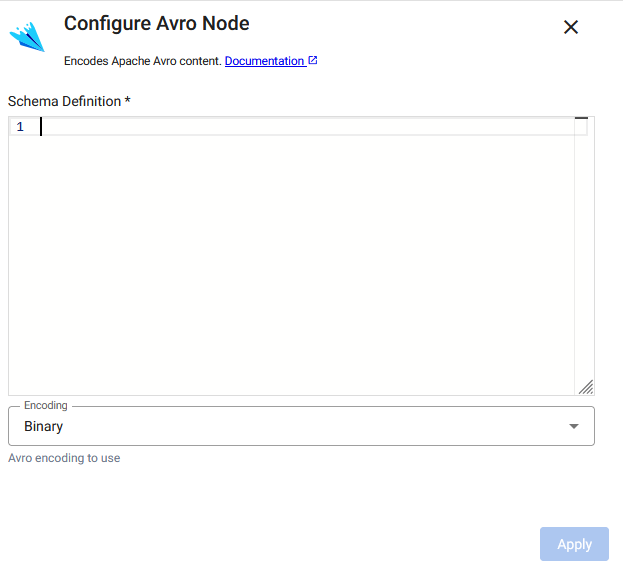

Avro encoder node properties

Note

See q and Python APIs for more details: Avro

Required Parameters:

Name Description Default
Schema A schema definition indicating the Avro message format to be encoded

Optional Parameters:

Name Description Default
Encoding Indicates whether to encode data as Avro binary or JSON Binary

CSV

This operator converts data into CSV format.

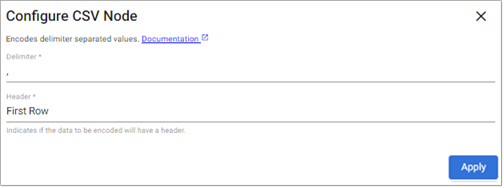

CSV encoder node properties

Note

See q and Python APIs for more details:CSV

Required Parameters:

Name Description Default
Delimiter Field separator for the records in the encoded data ,

Optional Parameters:

Name Description Default
Header Indicates whether encoded data should start with a header row. Options are Never, First Row, or Always. First Row

JSON

The JSON operator serializes data into JSON format.

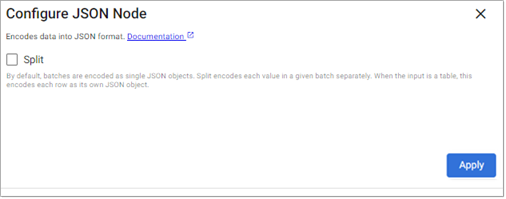

JSON Encoder properties

Note

See q and Python APIs for more details: JSON

Optional Parameters:

Name Description Default
Split By default, batches are encoded as single JSON objects. Split encodes each value in a given batch separately. When the input is a table, this encodes each row as its own JSON object. No

Protocol Buffers

The Protocol Buffers operator serializes data into Protocol Buffers.

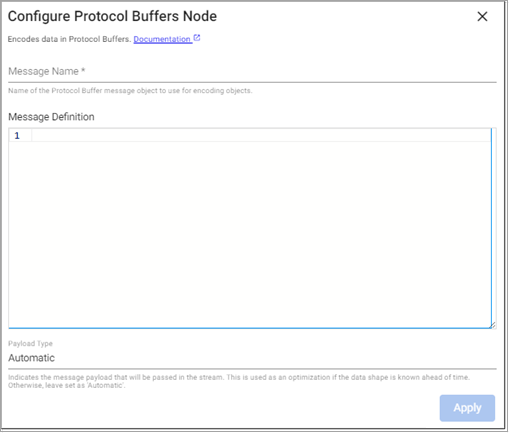

Protocol buffers encoder node properties

Note

See q and Python APIs for more details: Protocol Buffer

Required Parameters:

Name Description Default
Message Name The name of the Protocol Buffer message type to decode
Message Definition A .proto definition containing the expected schema of the data to decode. This definition must include a definition of the Message Name referenced above.

Optional Parameters:

Name Description Default
Payload Type Indicates the message payload that will be passed in the stream. This is used as an optimization if the data shape is known ahead of time. Otherwise, leave set as Automatic. Automatic
