Workspaces

In Analyst, you use workspaces to manage your artifacts. A workspace contains work-in-progress versions of artifacts in a remote Git repository (e.g. modules/sheets, functions, files, etc). Artifacts can be loaded from and saved to the repository. Modules are used to package a set of functions, small files, and initialization scripts.

When creating a process from the Analyst launch screen, you can choose from the existing workspaces, or create a new one. There will also be a workspace created when attaching to a process using "workspace" mode. All of the entities in the user workspace are version-controlled in a remote Git repository.

Within your workspace you can perform a variety of operations:

  • Upload files from your computer to the workspace using the upload facility
  • Add, edit, rename and delete entities in your workspace
  • Revert to, or compare, previous versions
  • Publish entities to the repository in order to share them with colleagues
  • Pull updates from a Git repository to obtain updates from your colleagues

Exploring

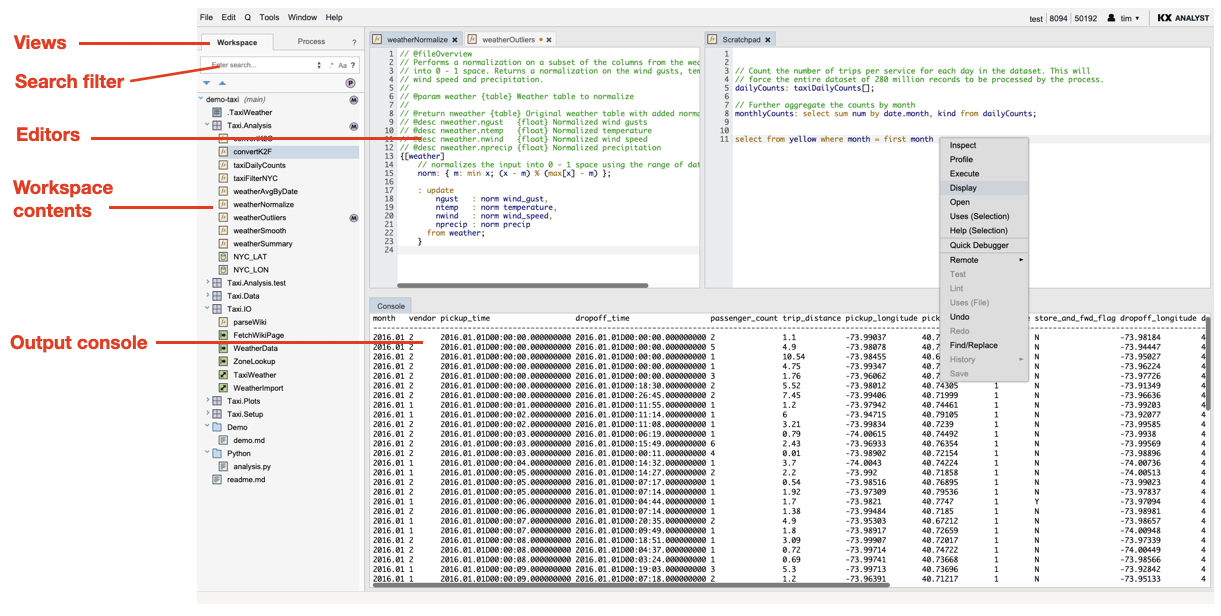

The diagram below identifies the various regions of the Explorer.

The Workspace view, shown here, is one of the three views shown by the search area. The Remotes tab shows other repositories available on the server, and Process shows variables defined in the current process.

Search area

The Search area is on the left side of the display.


Its contents vary with the view chosen: Workspace, Remote or Process. In Lite Mode, the sidebar will show only the Process view.

Workspace view

The user workspace is shown in the Workspace view. It contains a list of artifacts that are stored and managed locally, organized by module and repository. Here you can create, edit, test, and manage artifacts.

Given the following workspace:


Any modules whose name matches the search term entered in the Search Bar (e.g. .q) will be returned in their entirety, along with any matching child artifacts. By default, a case-insensitive search is performed. Case sensitive queries and regex queries can be enabled with the buttons below the search bar.


A blue outline will appear around the artifact list when some artifacts are hidden by the search term or filters.

Advanced searches can are written as keyword and value pairs where:

  • The keyword and value are separated by a colon
  • Pairs are separated by spaces

An example query could be name: math type: fn content: haversine, which would search for all occurrences of the term haversine in any functions containing math in their name, or the name of their parent. To include commas, spaces or colons in a search term, wrap the search term in quotes, such as content: "parse list". To execute a search, press Enter with the cursor in the search bar.

keyword description
name or n Searches the whole name of the artifact
type or t Matches the following types and shorthand names: function, fn, data, file, spreadsheet, mod, and module
content or c Searching on contents returns both the matching artifacts, and the lines that match. The matching term is shown in bold, and the line number is shown to the left
uses Accepts a complete qualified or unqualified variable name as a value, and searches for all functions, data initializers and test files that reference that name as a non-local variable.


Search history

Click the arrow at the right end of the query bar to show the search history. A separate search history is kept for the workspace, remote, and process views.


The fuzzy search dialog can be opened on the main page with Ctrl+P on Windows/Linux or ⌘P on a macOS. It lets you type in a ‘fuzzy’ query, and shows any artifacts whose name contains the characters in the query, in the correct order, though not necessarily consecutively. It allows you to omit characters, so mlibdeg would match .mathLib.degToRad and .mathLib.radToDeg.


Filtering by state

The icons below allow you to see all artifacts or only changed artifacts:

states description
published.png View all published artifacts
notPublished.png View only changed artifacts

Search display area

The search display area shows results of the search. Artifacts are grouped by repository. The artifacts have the following appearance.

icon artifact description
Folder A folder can contain files and other folders
Module A module is used to package a set of q functions. It defines a set of functions, how to initialize them in memory via data and on disk via files. It can contain functions, data, files, transformations, and visuals.
Function A function artifact contains a single q function. Functions provide a means to name, parameterize and reuse scripts.
Data A data artifact contains a q expression that is executed when a module is loaded and is typically used to initialize variables or datasets.
File A file artifact can be created or uploaded to the workspace (e.g. Excel files, Word files, text files). File content is version controlled, however the file is also saved to the server file system.
Spreadsheet A spreadsheet artifact allows users to organize lines of q script using a familiar spreadsheet interface.
Visual Inspector Data A visual inspector artifact is a saved visual inspection.
Transformer Data (Kx Analyst only) A transformer artifact is a saved transformation.

Collapse/expand tree items

Repositories, folders, and modules can be collapsed or expanded by double-clicking them, or by clicking the arrow to the left of their name. All artifacts can be collapsed or expanded by clicking the blue up- and down-arrows above the display area.

states description
collapseAll.png Click once to collapse all child artifacts, or twice to collapse all repositories
expandAll.png Click once to expand all repositories, or twice to expand all modules

Context menu

The context menu is a convenient means to access some common commands. See the File and Edit menu commands for explanations of commands not described here. The commands not found in the File and Edit menus are:

Git menu command description
Push Commit and push the current changes.
Pull Opens a dialog listing all branches. Pick the current branch to pull the latest changes, or pick another branch to switch branches.
Branch Create a new branch of the repository.
Merge Select a branch to merge into the current branch.
Resolve Enabled when there are merge conflicts. This opens the resolution tool for the selected artifact, letting you pick changes from the incoming, current and ancestor versions.

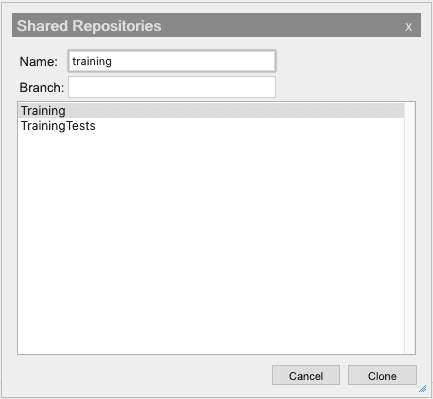

Clone Clone an existing repository into the workspace.
Stash Stash the current changes.
Apply Stash View the list of stashed changes that can be applied.
History View the history for the repository, with the option to compare against other branches
Reset Reset the repository to the last commit.
Settings Change repository properties such as origin, username, git author and email, and SSH key.
Code menu commands Description
Inspect Opens the artifact in the visual inspector.
Execute For artifacts such as saved inspections, import configurations and transformations, this runs the artifact without opening the editor.
Uses Searches for artifacts in the workspace which reference the selected artifact
Lint > Lint Runs the linter on the selected artifacts
Lint > Config Creates a configuration of which linter rules and priorities are used
Run Tests Runs the selected tests, or tests associated with the selected functions. Tests are associated if they follow the naming convention where .myModule.test/myFunc.quke contains the tests for .myModule.myFunc
Open Test(s) Opens the test files associated with the selected functions. Tests are associated if they follow the naming convention where .myModule.test/myFunc.quke contains the tests for .myModule.myFunc
Generate Doc Generates Markdown documentation from the QDoc of the artifacts in the selected module or repository.
Render Markdown Displays a Markdown file as rendered HTML
Dependency List Opens dialog allowing you to specify the dependencies of a module, which will affect the order modules are loaded in.
Export Export the selected artifact as a q script

Which commands are visible at any given time depends on the currently selected artifact or artifacts.

Remote view

Repositories created using the New > Repository… command show up here. A repository shown here can be loaded into the workspace by picking Load from its context menu.

Repositories can be searched for using the Search Bar at the top of the Remote view. Searches can be made case-sensitive by toggling the Case Sensitive button below the Search Bar.

Process view

The Process view shows all items loaded into the memory of the current kdb+ process. The view is broken down by namespace and organized by item type. You can find any dictionary, function, namespace, variable, table, table column, or view loaded into memory here.

Items that are not part of a namespace are part of the global context. These items can be found under the . (Global) node, at the very top of the tree. The Process view can be refreshed by clicking the refresh (↻) button.

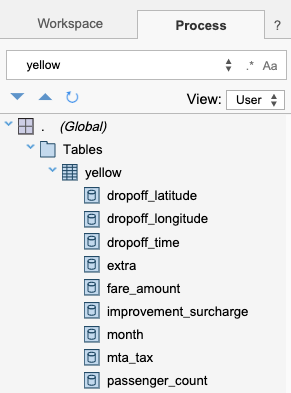

Items can be searched for using the Search Bar at the top of the Process view. Searches can be made case-sensitive by toggling the Case Sensitive button below the Search Bar. Searches will search the full name of all items in the tree. For example, searching for purchase will return all items with purchase in their names, as well as all items under the .purchase namespace.

Items in the Process view can be inspected, displayed, or opened from the context menu if they are not locked functions.

command description
Open Open the artifact in an editor. (Available only for unlocked code.)
Display Display the artifact in the console.
Inspect Open the artifact in the Visual Inspector.

The icons shown in the Process view represent q datatypes.

icon item
Namespace
Dictionary
Function
Table
Table Column
Variable
View
