Readers

Read data from an external or internal data source into the Stream Processor

Reading data allows for both streaming and batch data to be ingested into kdb Insights Enterprise.

See APIs for more details

A q interface can be used to build pipelines programatically. See the q API for API details.

A Python interface is included along side the q interface and can be used if PyKX is enabled. See the Python API for API details.

The pipeline builder uses a drag-and-drop interface to link together operations within a pipeline. For details on how to wire together a transformation, see the building a pipeline guide.

Callback

Receives data from a callback from the local process or over IPC

See APIs for more details

q API: .qsp.read.fromCallback • Python API: kxi.sp.read.from_callback

Required Parameters:

name	description	default
Callback	The name of the callback function where data will be received.

Optional Parameters:

name	description	default
Specify Key	Whether to specify a key field for the event. Can only be checked for dictionary events.	No
Key	Name of the field which contains the key of the published event. Only available when Specify Key is checked.

Example: Publishing from a tickerplant

A tickerplant is a message bus that typically sends data to subscribers in the form of (table; data). In this example, we will subscribe to a tickerplant with a trades and a quotes table with independent callback readers.

First, drag out a callback reader and set the name to be callback name to trade.

Second, drag out a callback reader and set the name to be callback name to quote.

Finally, setup some global code for establishing a connection to the tickerplant and dispatching to the appropriate callback function based on the table name.

Expression

Runs a kdb+ expression

q Expression NodePython Expression Node

See APIs for more details

q API: .qsp.read.fromExpr • Python API: kxi.sp.read.from_expr

The expression reader executes a snippet of kdb+ code and passes the result into the pipeline. This operator is mostly used for testing pipelines with mock data.

Required Parameters:

name	description	default
Expression	A snippet of kdb+ code or a Python function to be evaluated. The last statement in this code snippet will be treated as the data source.

Example: Generating data

The code snippet below will generate a sample table with 2000 rows for testing.

qPython

n:2000;
([] date:n?(reverse .z.d-1+til 10);
  instance:n?`inst1`inst2`inst3`inst4;
  sym:n?`USD`EUR`GBP`JPY;
  num:n?10)

import pandas as pd
import numpy as np
from datetime import datetime,timedelta

def gen():
    n=2000
    dates = [datetime.today().date() - timedelta(10-i,0,0) for i in range(10)]
    return pd.DataFrame({'date' : np.random.choice(dates,n),
              'instance' : np.random.choice(["inst1","inst2","inst3","inst4"],n),
              'sym' : np.random.choice(["EUR","USD","GBP","JPY"],n),
              'num' : np.random.randint(0,10,n)})

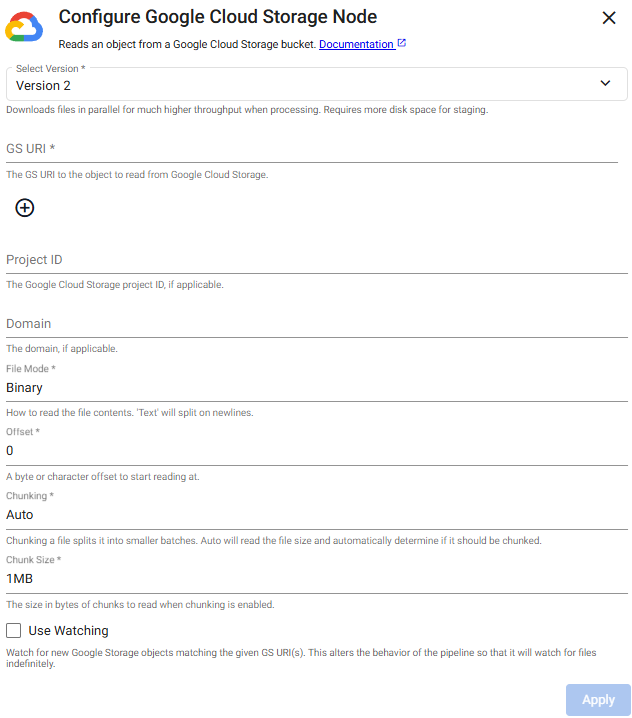

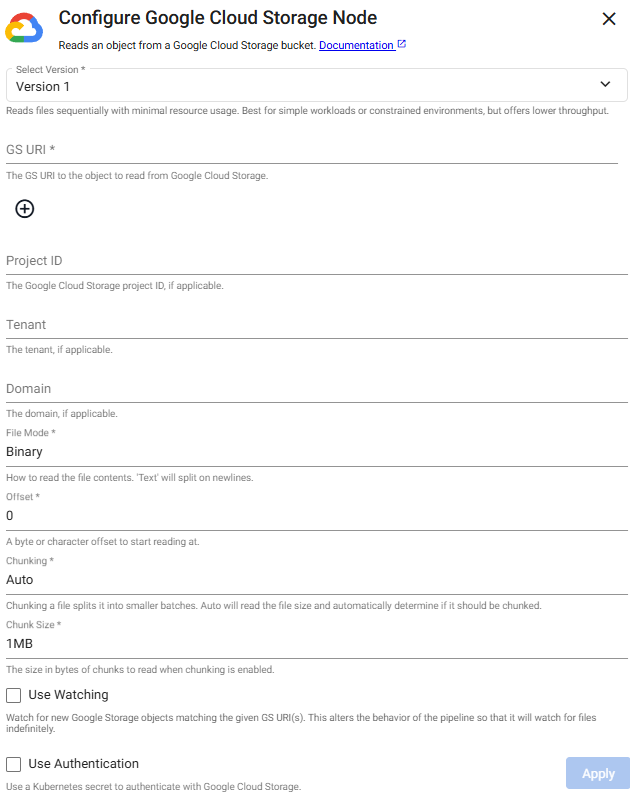

Google Cloud Storage

Reads an object from Google Cloud Storage

See APIs for more details

q API: .qsp.read.fromGoogleStorage • Python API: kxi.sp.read.from_google_storage

Required Parameters:

name	description	default
Path	Click the "+" button to add one or more Cloud Storage URIs to read from a Google cloud storage bucket. Glob patterns are supported.

Optional Parameters:

name	description	default
Project ID	Google Cloud Storage Project ID, if applicable.
Tenant	The authentication tenant, if applicable.
File Mode	The file read mode. Setting the file mode to Binary will read content as a byte vector. When reading a file as text, data will be read as strings and be split on newlines. Each string vector represents a single line. Note that reading as Binary will work for both text and binary data, but reading as Text will only work for text data.	Binary
Offset	A byte or character offset to start reading at.	0
Chunking	Splits file into smaller batches. Auto will read file size and determine if it should be chunked.	Auto
Chunk Size	File size of chunks when chunking is enabled.	1MB
Use Watching	Watch for new Google Storage objects matching the given Cloud Storage URI(s).	No
Use Authentication	Enable Kubernetes secret authentication.	No
Kubernetes Secret	The name of a Kubernetes secret to authenticate with Google Cloud Storage. Only available if Use Authentication is checked.	No

Watching

Usually this will be paired with a glob pattern for the Path. The pipeline will poll every 5 seconds and read matching files once they become available. The reader will continually watch for new files matching the file path provided using the watch method.

When using watching the pipeline will continue watching until there is manual intervention to finish the pipeline.

Watching should not to be used with a Database Writer using the direct write option

When using the Watching option it is not possible to pair this with a Database Writer using direct write since direct write relies on a definitive finish point which is not guaranteed when using this option.

Google Cloud Storage Authentication

Google Cloud Storage Authentication uses kurl for credential validation.

Kurl

Environment variable authentication

To setup authentication using an environment variable, set GOOGLE_STORAGE_TOKEN in Google's gcloud CLI

gcloud auth print-access token

Kubernetes secrets for authentication

A Kubernetes secret may be used to authenticate files. This secret needs to be created in the same namespace as the kdb Insights Enterprise install. The name of that secret is then used in the Kubernetes Secret field when configuring the reader.

To create a Kubernetes secret with Google Cloud credentials:

kubectl create secret generic SECRET_NAME DATA

SECRET_NAME is the name of the secret used in the reader. DATA is the data to add to the secret; for example, a path to a directory containing one or more configuration files using --from-file or -from-env-file flag, or key-value pairs each specified using --from-literal flags.

Kubernetes Secrets

HTTP

Requests data from an HTTP(S) endpoint

See APIs for more details

q API: .qsp.read.fromHTTP • Python API: kxi.sp.read.from_http

Required Parameters:

name	description	default
URL	The URL to send the request to. The URL must include the protocol (http or https), the domain name (example.com) and port if necessary (example.com:8080) as well as the request path. For example: http://code.kx.com/q/ref.
Method	The method to use for sending the HTTP request. This must be one of GET, POST PUT, HEAD or DELETE.	GET

Optional Parameters:

name	description	default
Body	The payload of the HTTP request. The body of the request is any content that needs to be included when sending the request to the server.
Header	A map of header fields to send as part of the request.
Tenant	The request tenant to use for providing request authentication details.
Accept Unverified Certificates	When checked, any unverified server SSL/TLS certificates will be considered trustworthy	No
Return Binary Data	When checked, payload will be returned as binary data, otherwise payload is treated as text data.	No
Process Request Synchronously	When checked, a synchronous request will block the process until the request is completed. Default is an asynchronous request.	No
Reject Errors	When checked, a non-successful response will generate an error and stop the pipeline.	Yes

Advanced Parameters:

name	description	default
Follow Redirects	When checked, any redirects will automatically be followed up to the Max Redirects value.	Yes
Max Redirects	The maximum number of redirects to follow before reporting an error.	5
Max Retry Attempts	The maximum number of times to retry a request that fails due to a timeout.	10
Timeout	The duration in milliseconds to wait for a request to complete before reporting an error.	5000

Kafka

Consume data from a Kafka topic

See APIs for more details

q API: .qsp.read.fromKafka • Python API: kxi.sp.read.from_kafka

Kafka is a scalable streaming message queue for processing streaming data. See this tutorial for details about getting setup with a Kafka broker and ingesting data.

Required Parameters:

name	description	default
Broker	Location of the Kafka broker as host:port. If multiple brokers are available, they can be entered as a comma separated list.
Topic	The name of the Kafka topic to subscribe to.

Optional Parameters:

name	description	default
Offset	Read data from the Start of the Topic; i.e. all data, or the End; i.e. new data only.	End
Use TLS	Enable TLS for encrypting the Kafka connection. When selected, certificate details must be provided with a Kubernetes TLS Secret	No
Kubernetes Secret	The name of a Kubernetes secret that is already available in the cluster and contains your TLS certificates. Only available if Use TLS is selected.
Certificate Password	TLS certificate password, if required. Only available if Use TLS is selected.
Use Schema Registry	Use the schema registry to automatically decode data in a Kafka stream for JSON and Protocol Buffer payloads. When enabled, will automatically deserialize data based on the latest schema.	No
Registry	Kafka Schema Registry URL. Only available if Use Schema Registry is selected.
As List	Set to true for Kafka Schema Registry messages to omit field names when decoding Protocol Buffer schemas, and instead return only the list of values. Only available if Use Schema Registry is selected.	No

See this guide for more details on setting up TLS Secrets

Advanced Parameters:

name	description	default
Retry Attempts	The maximum number of retry attempts allowed.	10
Retry Wait Time	The amount of time to wait between retry attempts.	2s
Poll Limit	Maximum number of records to process in a single poll loop.	1000
Use Advanced Kafka Options	Set to true and click the "+" button to add one or more key-value pairs, where the keys are Kafka configuration properties defined by librdkafka.	No

Use Advanced Kafka Options

Allows more flexible options for security protocol configuration or changes to fetch intervals, as seen when subscribing to an Azure Event Hub Kafka connector.

Offset Committing and Group Permissions

The Kafka reader will automatically commit offsets when reading from a broker. This is essential for exactly once semantics and fault tolerance. The error "Local: Waiting for coordinator" will occur when attempting to commit offsets if you do not have sufficient group permissions. The broker should be configured so that the user has group Describe permissions. Since The Kafka Reader will generate a random group ID, ensure the user is permissioned for all group names on the broker.

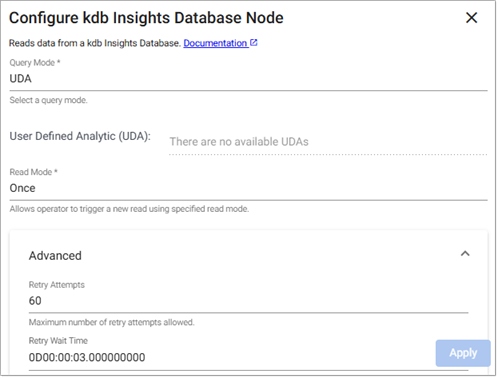

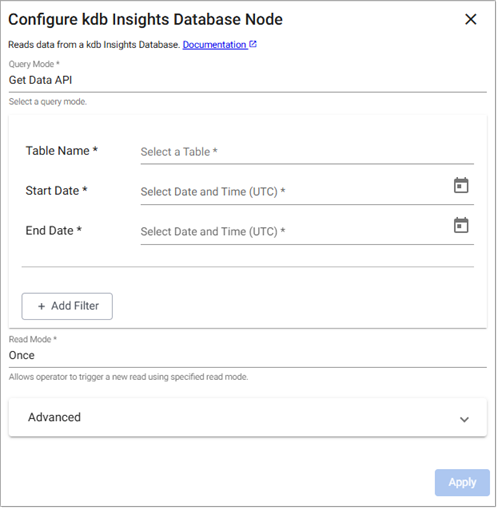

kdb Insights Database

Read from a kdb Insights Database

See APIs for more details

q API: .qsp.read.fromDatabase •

Required Parameters:

name	description	default
Table Name	The name of the table to retrieve data from.
Start Date	The inclusive start time of the period of interest.
End Date	The exclusive end time of the period of interest.

Optional Parameters Location

To view the Optional Parmeters listed below, click Add filter to reveal a drop-down of these options. The drop-down then refreshes to reveal futher options specific to your choice.

Optional Parameters:

name	description	default
filter	A function that returns true for rows to include.
filter by label	When multiple databases each have a table matching the table name, filtering by label can select a subset of those.
sort	A column to sort by (ascending).
define aggregation	Apply an aggregation over a column for the rows matching the query, assigning the result to a new column.
group aggregation by	Group the result of the query by the specified column before running the aggregation.
Retry Attempts	Maximum number of retry attempts allowed.	5
Retry Wait Time	Wait time between retry attempts.	2 seconds

Run a query, optionally including aggregations, against a table.

MQTT

Subscribe to an MQTT topic

See APIs for more details

q API: .qsp.read.fromMQTT • Python API: kxi.sp.read.from_mqtt

Read messages from an MQTT broker. MQTT is a lightweight, publish-subscribe, machine to machine network protocol for message queuing service. It is designed for connections with remote locations that have devices with resource constraints or limited network bandwidth.

Required Parameters:

name	description	default
Broker	Location of the MQTT broker as protocol://host:port.
Topic	The name of the MQTT topic to subscribe to.

Optional Parameters:

name	description	default
Username	Username for the MQTT broker connection.
Use TLS	Enable TLS for encrypting the Kafka connection. When selected, certificate details must be provided with a Kubernetes TLS Secret	No
Kubernetes Secret	The name of a Kubernetes secret that is already available in the cluster and contains your TLS certificates. Only available if Use TLS is selected.
Certificate Password	TLS certificate password, if required. Only available if Use TLS is selected.

See this guide for more details on setting up TLS Secrets

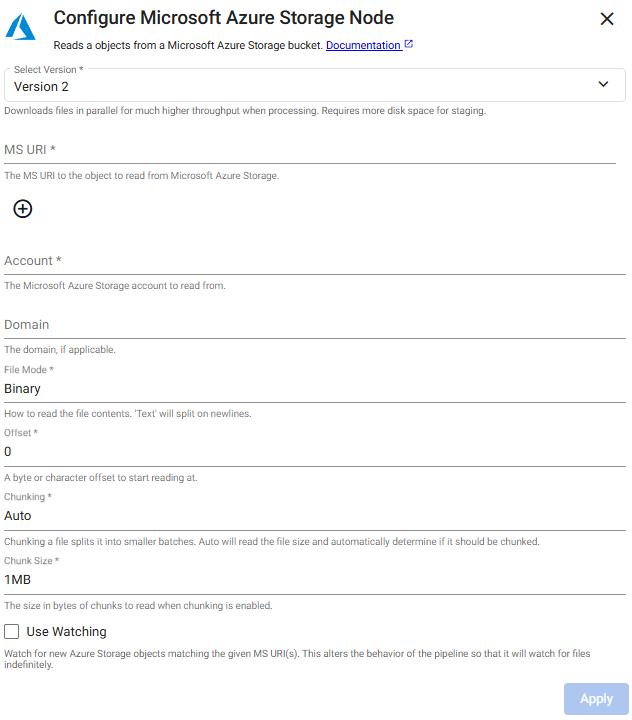

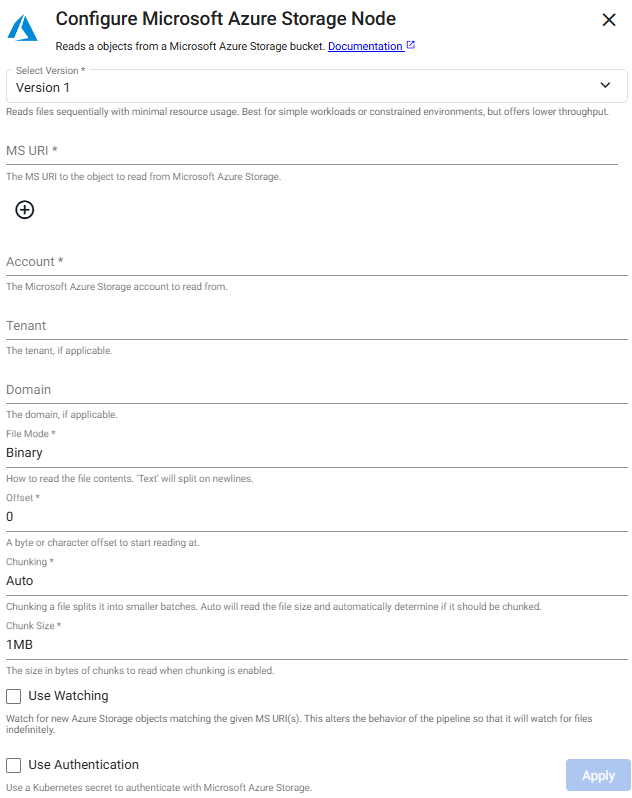

Microsoft Azure Storage

Reads an object from Microsoft Azure Storage

See APIs for more details

q API: .qsp.read.fromAzureStorage • Python API: kxi.sp.read.from_azure_storage

Required Parameters:

name	description	default
Path	Click the "+" button to add one or more Blob Storage URIs to read from an Azure cloud storage bucket. Glob patterns are supported.
Account	The name of the Azure Storage Account hosting the data.	$AZURE_STORAGE_ACCOUNT

Optional Parameters:

name	description	default
Tenant	The authentication tenant, if applicable.
File Mode	The file read mode. Setting the file mode to Binary will read content as a byte vector. When reading a file as text, data will be read as strings and be split on newlines. Each string vector represents a single line. Note that reading as Binary will work for both text and binary data, but reading as Text will only work for text data.	Binary
Offset	A byte or character offset to start reading at.	0
Chunking	Splits file into smaller batches. Auto will read file size and determine if it should be chunked.	Auto
Chunk Size	File size of chunks when chunking is enabled.	1MB
Use Watching	Watch for new Azure Storage objects matching the given URI(s).	No
Use Authentication	Enable Kubernetes secret authentication.	No
Kubernetes Secret	The name of a Kubernetes secret to authenticate with Google Cloud Storage. Only available if Use Authentication is checked.

Watching

Usually this will be paired with a glob pattern for the Path. The pipeline will poll every 5 seconds and read matching files once they become available. The reader will continually watch for new files matching the file path provided using the watch method.

When using watching the pipeline will continue watching until there is manual intervention to finish the pipeline.

Watching should not to be used with a Database Writer using the direct write option

When using the Watching option it is not possible to pair this with a Database Writer using direct write since direct write relies on a definitive finish point which is not guaranteed when using this option.

Microsoft Azure Authentication

Microsoft Azure Storage Authentication uses kurl for credential validation.

Kurl

Environment variable Authentication

To set up authentication with an environment variable, set AZURE_STORAGE_ACCOUNT to the name of the storage account to read from, and AZURE_STORAGE_SHARED_KEY to the one of the keys of the account. Additional details on shared keys usage available here.

Shared Keys

Kubernetes secrets for authentication

A Kubernetes secret may be used to authenticate files. This secret needs to be created in the same namespace as the kdb Insights Enterprise install. The name of that secret is then used in the Kubernetes Secret field when configuring the reader.

To create a Kubernetes secret with Azure credentials:

kubectl create secret generic --from-literal=token="$AZURE_STORAGE_TOKEN" ms-creds

For further information about Kubernetes Secrets.

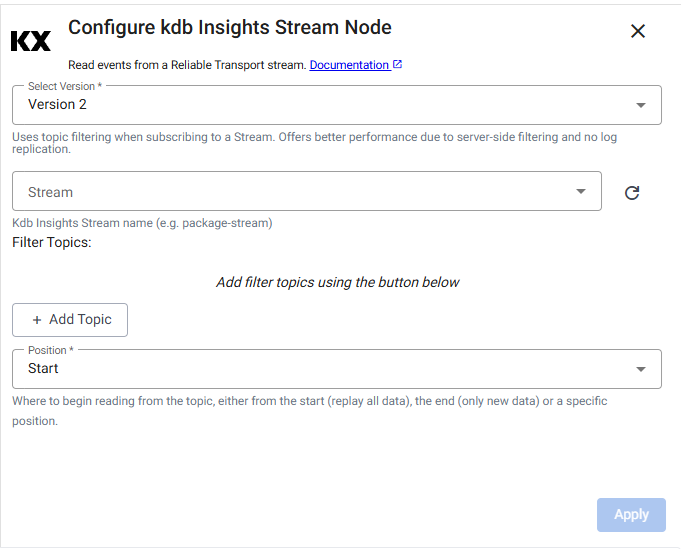

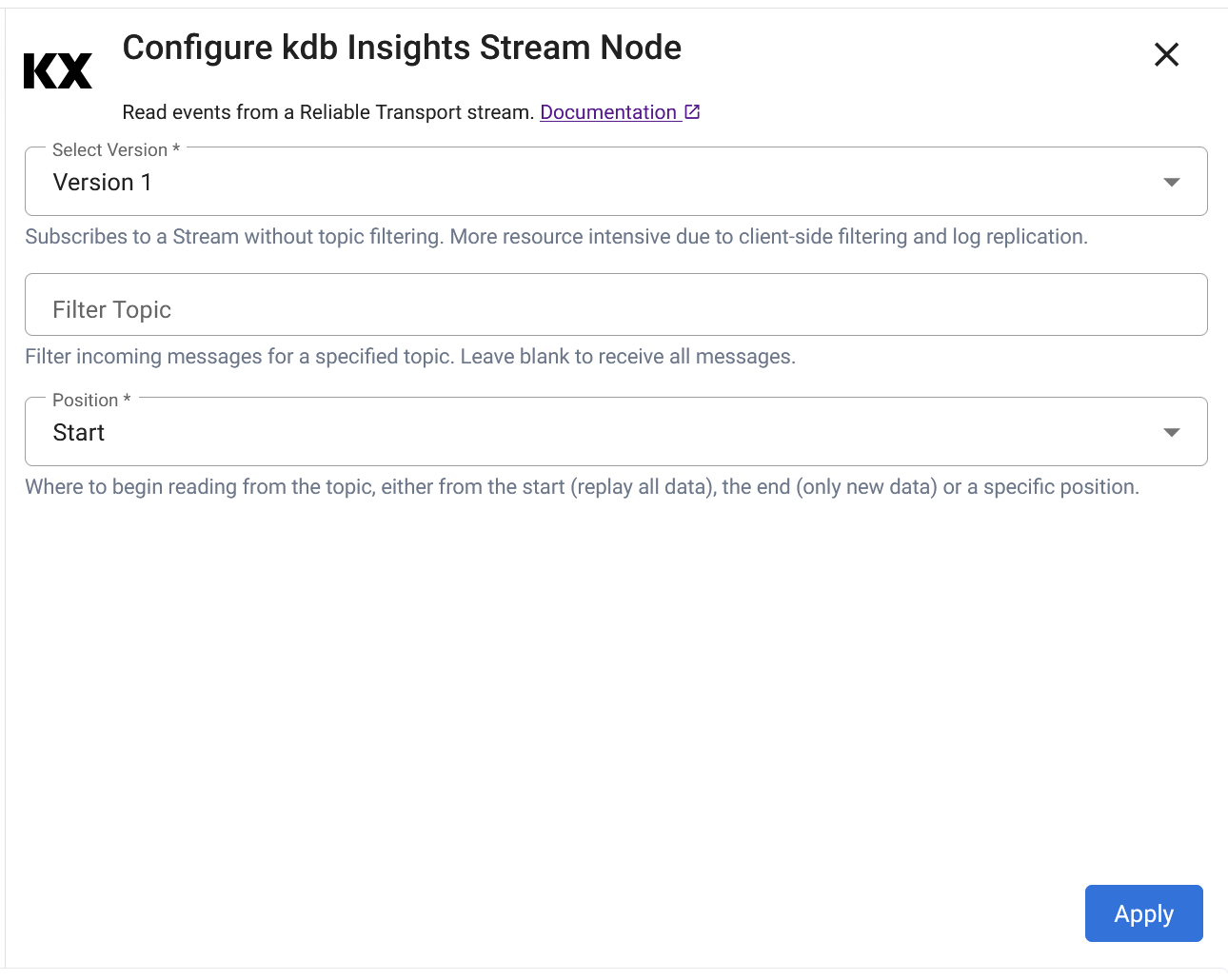

kdb Insights Stream

Reads data from a kdb Insights Stream

See APIs for more details

q API: .qsp.read.fromStream • Python API: kxi.sp.read.from_stream

Insights streams

Required Parameters:

name	description	default
Table	Filter incoming messages to show only messages for the specified table. If no filter is provided, all messages in the stream are consumed.

Optional Parameters:

name	description	default
Replay Index	The position in the stream to replay from.	0

To read data from a stream, an assembly must be provided. This is done prior to pipeline deploy time. Visit the Settings tab in the pipeline editor and fill in the Assembly Integration field with the assembly name and topic name.

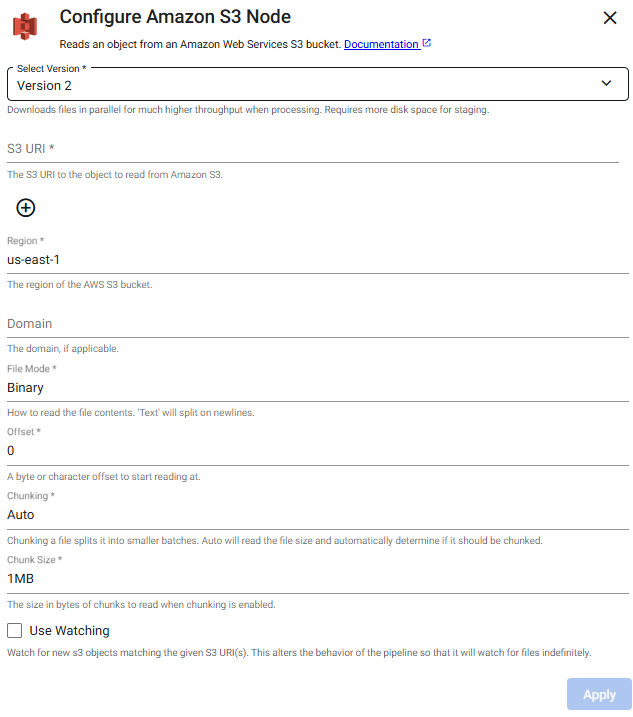

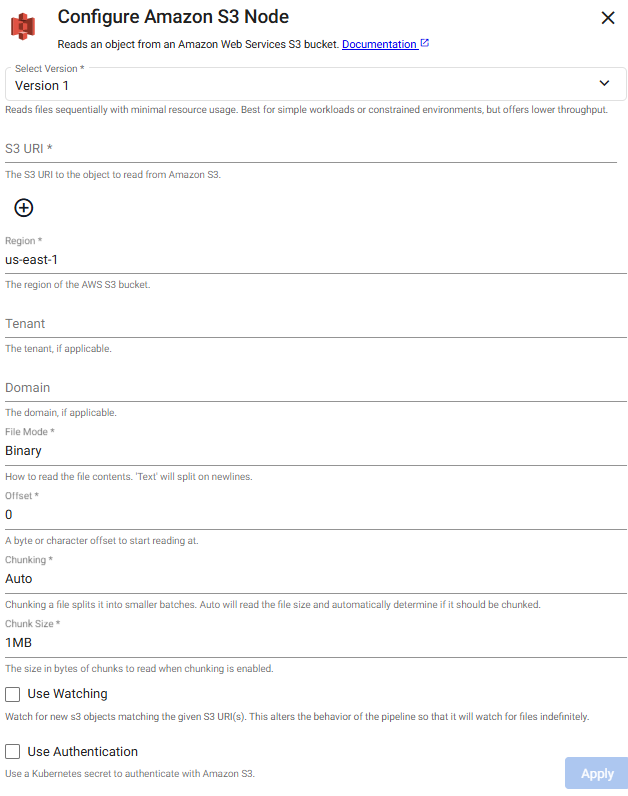

Amazon S3

Reads an object from Amazon S3

See APIs for more details

q API: .qsp.read.fromAmazonS3 • Python API: kxi.sp.read.from_amazon_s3

Required Parameters:

name	description	default
Path	Add one or more S3 URIs to read from an Amazons S3 Cloud Storage bucket

Optional Parameters:

name	description	default
Region	The AWS region of the bucket to authenticate against	us-east-1
Tenant	The authentication tenant, if applicable.
File Mode	The file read mode. Setting the file mode to Binary will read content as a byte vector. When reading a file as text, data will be read as strings and be split on newlines. Each string vector represents a single line. Note that reading as Binary will work for both text and binary data, but reading as Text will only work for text data.	Binary
Offset	A byte or character offset to start reading at.	0
Chunking	Splits file into smaller batches. Auto will read file size and determine if it should be chunked.	Auto
Chunk Size	File size of chunks when chunking is enabled.	1MB
Use Watching	Watch for new S3 objects matching the given S3 URI(s).	No
Use Authentication	Enable Kubernetes secret authentication.	No
Kubernetes Secret	The name of a Kubernetes secret to authenticate with Google Cloud Storage. Only available if Use Authentication is checked.

Watching

Usually this will be paired with a glob pattern for the Path. The pipeline will poll every 5 seconds and read matching files once they become available. The reader will continually watch for new files matching the file path provided using the watch method.

When using watching the pipeline will continue watching until there is manual intervention to finish the pipeline.

Watching should not to be used with a Database Writer using the direct write option

When using the Watching option it is not possible to pair this with a Database Writer using direct write since direct write relies on a definitive finish point which is not guaranteed when using this option.

Amazon S3 Authentication

To access private buckets or files, a Kubernetes secret needs to be created that contains valid AWS credentials. This secret needs to be created in the same namespace as the kdb Insights Enterprise install. The name of that secret is then used in the Kubernetes Secret field when configuring the reader.

To create a Kubernetes secret containing AWS credentials:

kubectl create secret generic --from-file=credentials=<path/to/.aws/credentials> <secret-name>

Where <path/to/.aws/credentials> is the path to an AWS credentials file, and <secret-name> is the name of the Kubernetes secret to create.

Note that this only needs to be done once, and each subsequent usage of the Amazon S3 reader can re-use the same Kubernetes secret.

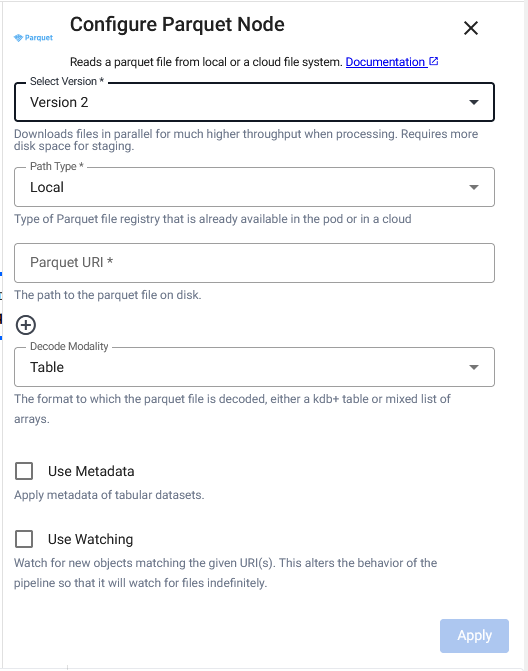

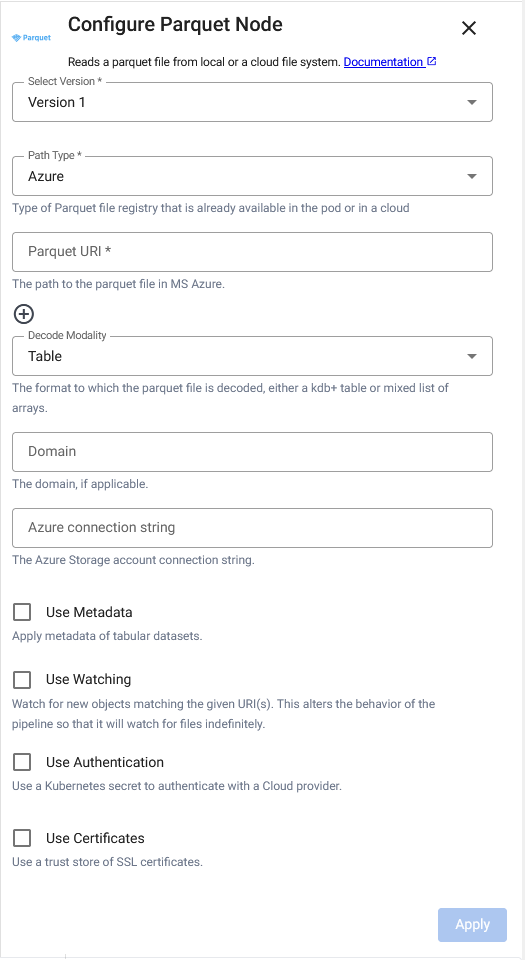

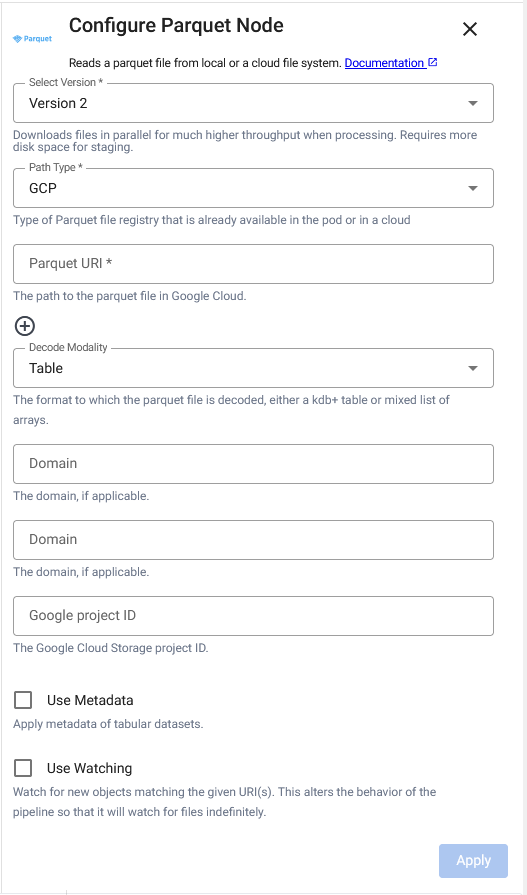

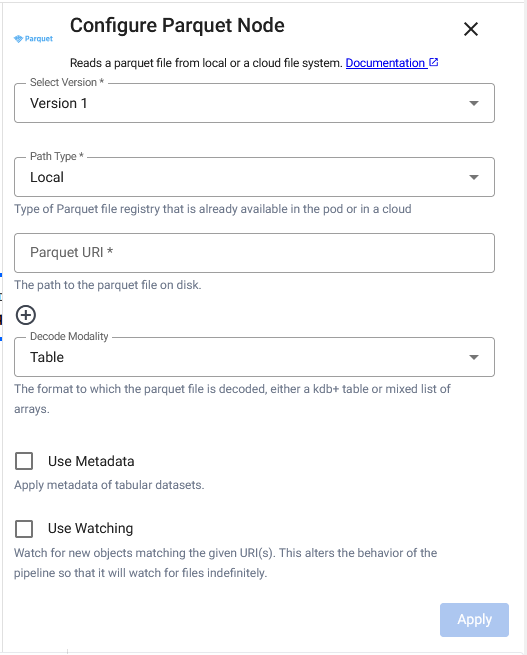

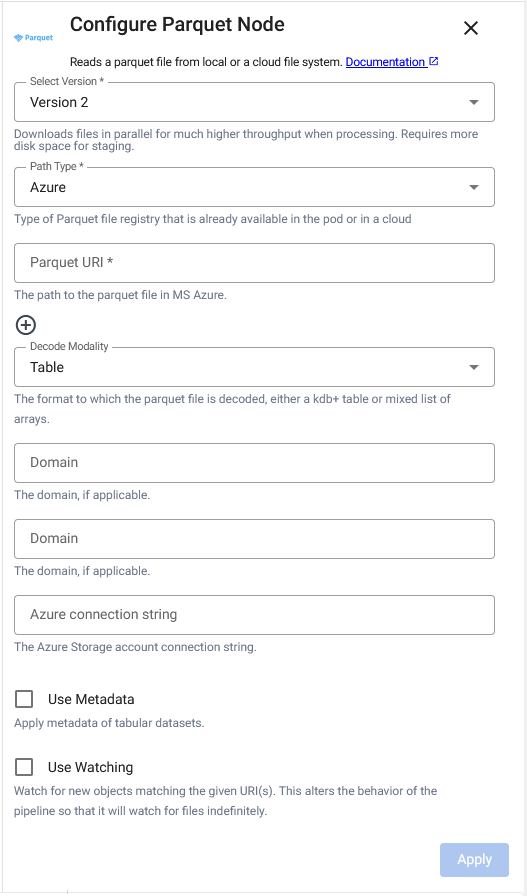

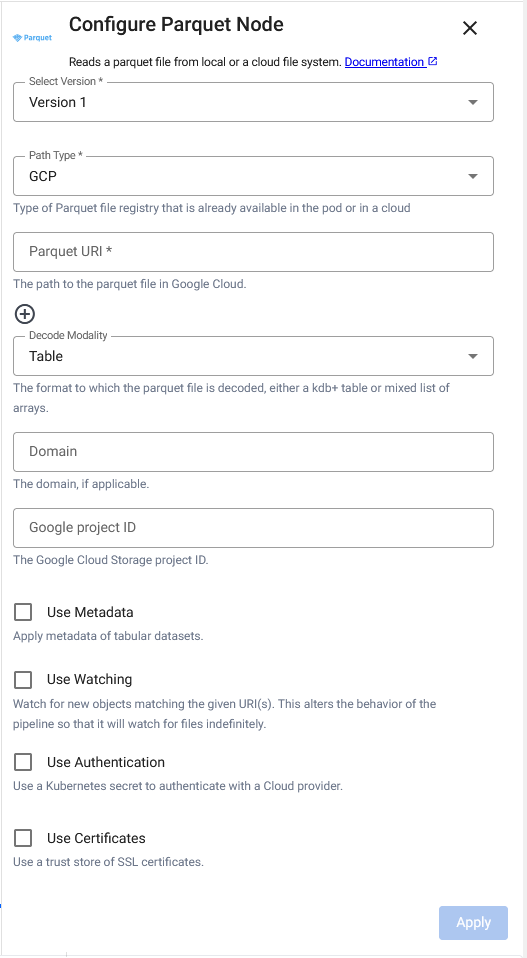

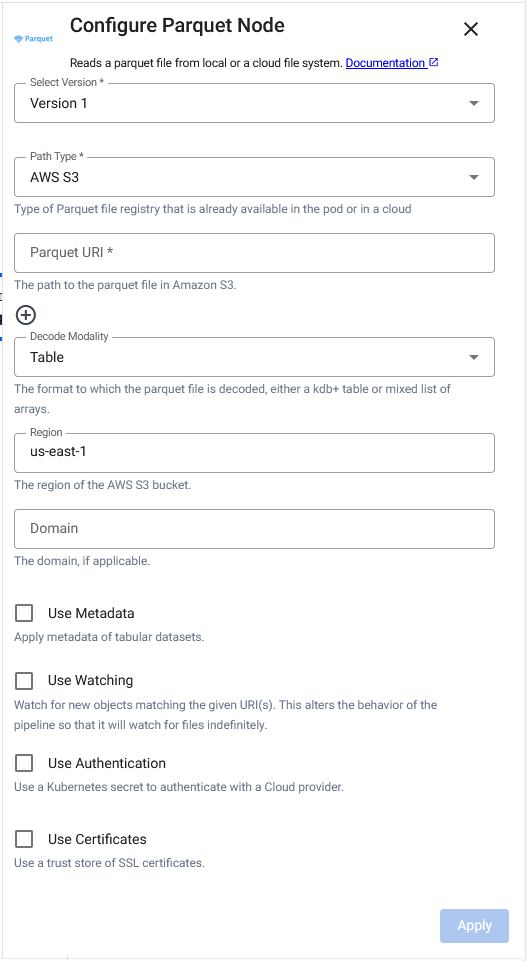

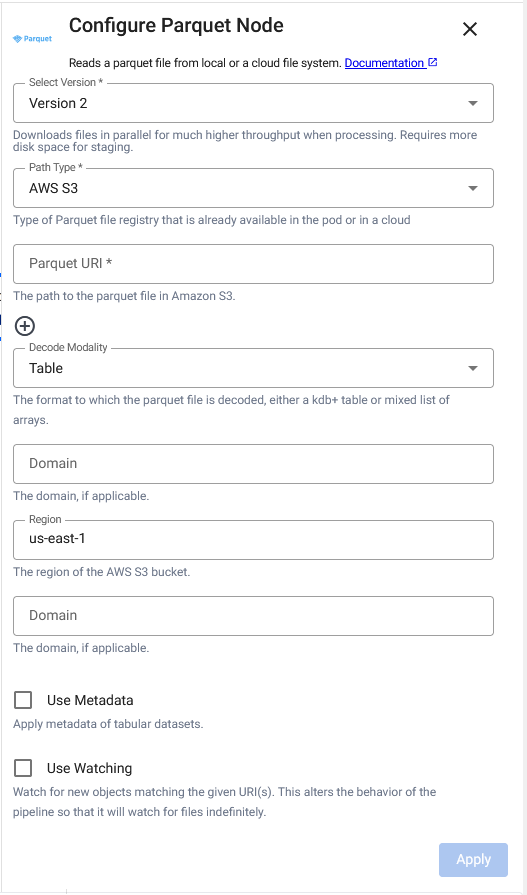

Parquet

Reads a parquet file

Local StorageAmazon S3AzureGoogle Cloud

See APIs for more details

q API: .qsp.read.fromParquet • Python API: kxi.sp.read.from_parquet

Required Parameters:

name	description	default
Path Type	Type of Parquet file registry in the cluster or in a cloud the file will be read from, either Local, AWS S3, AZURE or GCS.	Local
Path	Path to one or more parquet file(s) being read from disk or Amazon S3/MS Azure/Google Cloud.

Optional Parameters:

name	description	default
Decode Modality	Either Table or List.	Table
Region	The AWS region to authenticate against, if Path Type is AWS S3.	us-east-1
Azure Connection String	The Azure Storage account connection string, if Path Type is Azure.
Google project ID	The Google Cloud Storage project ID, if Path Type is GCP.
Use Watching	Watch for new Cloud Storage objects matching the given path. Only available if Path Type is not Local.	No
Use Authentication	Enable Kubernetes secret authentication.	No
Kubernetes Secret	The name of a Kubernetes secret to authenticate with a Cloud Storage. Only available if Use Authentication is enabled.
Use Certificates	Use a trust store of SSL certificates.	No
Trust Store	Location of default trust store of SSL certificates. Only available if Use Certificates is enabled.	/opt/kx/ca-bundle.crt
Use Tenant	Use tenant for Kurl authentication, if Use Watching is enabled.	No
Tenant	The authentication tenant, if applicable. Only available if Use Tenant is enabled.	No

Limitations

The reader may not handle parquet files which are larger then the total amount of memory or the size of the temporary Storage Directory. To handle such files, you can partition them into separate tabular datasets.

For details on configuring the Amazon S3 Authentication see the details here.

For details on configuring the Azure Authentication see the details here.

For details on configuring the Google Cloud Storage see the details here.

Upload

Reads data supplied through an HTTP endpoint

See APIs for more details

q API: .qsp.read.fromUpload • Python API: kxi.sp.read.from_upload

Required Parameters:

name	description	default
Endpoint Name	Unique name for this Upload node. This must be supplied in the path of HTTP upload requests. The fully qualified request path will be displayed once this is entered, e.g. https://insights.example.com/streamprocessor/upload/<Endpoint Name>.	Required

Example

Once the pipeline is deployed you can upload files using HTTP by editing the template curl command:

curl -X POST "https://insights.kx.com/streamprocessor/upload/{Endpoint Name}?table=z&finish=true" \
   --header "Content-Type: application/octet-stream" \
   --header "Authorization: Bearer $INSIGHTS_TOKEN" \
   --data-binary "@my/file.csv"

PostgreSQL

Execute a query on a PostgreSQL database

See APIs for more details

q API: .qsp.read.fromPostgres • Python API: kxi.sp.read.from_postgres

Required Parameters:

name	description	default
Server	The hostname of the database to issue a query against.
Port	The port to use for connecting to the database server.
Database	The name of the database to issue a query against in the target server.
Query	An SQL query to issue against the target database for pulling data into the pipeline.

Optional Parameters:

name	description	default
Username	The user account to use when establishing a connection to a PostgreSQL server. Note that if the username is provided, a password prompt will appear during deploy time.

SQL Server

Execute a query on a SQL Server database

See APIs for more details

q API: .qsp.read.fromSQLServer • Python API: kxi.sp.read.from_sql_server

Required Parameters:

name	description	default
Server	The hostname of the database to issue a query against.
Port	The port to use for connecting to the database server.
Database	The name of the database to issue a query against in the target server.
Query	An SQL query to issue against the target database for pulling data into the pipeline.

Optional Parameters:

name	description	default
Username	The user account to use when establishing a connection to a SQL server. Note that if the username is provided, a password prompt will appear during deploy time.
