SQL Database (Health)

No kdb+ knowledge required

This example assumes no prior experience with q/kdb+ and you can replace the details provided with any other PostgreSQL connection details to gain similar results.

SQL database is a relational database, managed using SQL programming language. In this example, the health data set has information relating to air quality, traffic congestion, car and bike accidents in New York. If you are interested in viewing the data using a PostgreSQL client, instructions are given in the note below - but this step is not required for the Free Trial tutorial.

Creating the Pipeline

First select the import wizard; the import wizard can be accessed from the [+] menu of the Document bar or by clicking import from the left-hand icon menu or Overview page. All created pipelines, irrespective of source, are listed under Pipelines in the left-hand entity tree menu.

Import Menu

Import Menu

Optional: Accessing health data using a local PostgreSQL client install


$ psql "sslmode=disable dbname=postgres user=postgres hostaddr=34.132.151.134"
Password for user postgres: dxrHvgtjHHvsOH7B
psql (14.1, server 13.4)
Type "help" for help.

postgres=> \connect health
psql (14.1, server 13.4)
You are now connected to database "health" as user "postgres".
health=> \dt

                List of relations
schema |         name         | type  |  owner
-------+----------------------+-------+----------
public | health               | table | postgres
(5 rows)

Select a Reader

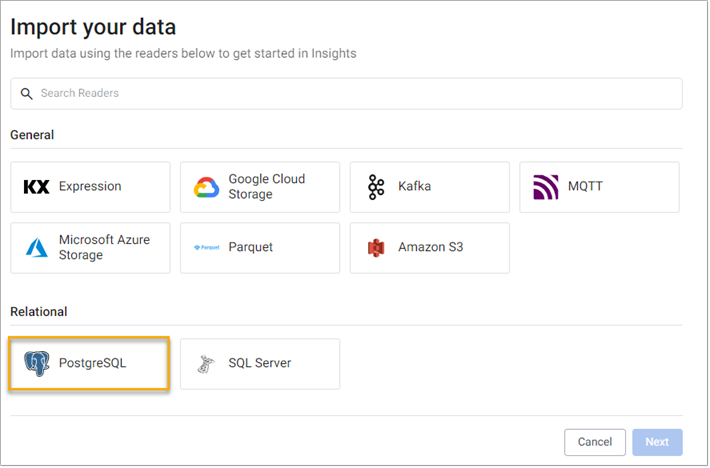

For Free Trial we start by selecting PostgreSQL from the Relational database import options

Import Menu

Configure PostgreSQL

Complete the form of the server details

setting value
Server 34.132.151.134
Port 5432
Database health
Username postgres
Query select * from health

Click Next when done.

Configure Schema

Imported data requires a schema compatible with the KX Insights Platform. The insights-demo has a predefined set of schemas for each of the data sets available in Free Trial, referenced in the schema table. The configure schema step applies the kdb+ datatypes used by the destination database and required for exploring the data in Insights, to the data we are importing.

The next step applies a schema to the imported data.

setting value
Apply a Schema Checked
Data Format Table

To attach the schema to the data set:

  1. Leave the Data Format as the default value of Any

  2. Click Schema icon

  3. Select the insights-demo Schema from the dropdown

    Schema load

  4. Choose the Table health

    Schema load

  5. check Parse Strings for the timestamp column. This is an essential step, and may cause issues during pipeline deployment if incorrectly set.

    Parse Strings

    This indicates whether parsing of input string data into other datatypes is required. Generally for all time, timestamp, and string fields, Parse Strings should be ticked unless your input is IPC or RT.

Schema load

Click Next when done.

Configure Writer

The final step in pipeline creation is to write the imported data to a table in the database. With Free Trial we will use the insights-demo database and assign the imported data to the health table.

setting value
Database insights-demo
Table health
Deduplicate Stream Yes

Click writer when done. This will complete the import and open the pipeline in the pipeline viewer

Writer - KX Insights Database

The Writer - KX Insights Database node is essential for exploring data in a pipeline. This node defines which assembly and table to write the data too. As part of this, the assembly must also be deployed; deployments of an assembly or pipeline can de done individually, or a pipeline can be associated with an assembly and all pipelines associated with that assembly will be deployed when the latter is deployed.

Pipeline view

The pipeline view allows you to review and edit your pipeline by selecting any of the nodes. However, this is not required as part of our Free Trial tutorial.

Writer

Click Save and give the pipeline a name. This name should be unique to the pipeline; for Free Trial, there is a pipeline already named health, so give this new pipeline a name like health-1.

writerschema

The newly created pipeline will now feature in the list of pipelines in the left-hand-entity tree.

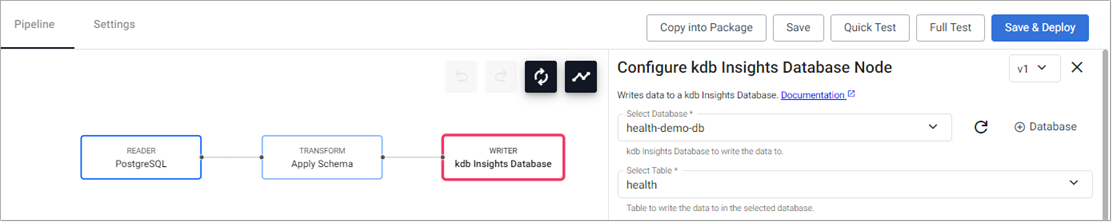

Deploying

The next step is to deploy your pipeline that has been created in the above Importing stage; for Free Trial, there is a pipeline already named health, so give this new pipeline a name like health-1.

  • Save your pipeline giving it a name that is indicative of what you are trying to do.

  • Select Deploy.

  • You will be asked for the password for the PostgreSQL database:

    setting value
    password dxrHvgtjHHvsOH7B

    password

  • Once deployed you can check on the progress of your pipeline back in the Overview pane where you started.

  • When it reaches Status=Running then it is done and your data is loaded.

I want to learn more about Pipelines

Exploring

Select Explore from the Overview panel to start the process of exploring your loaded data. See here for an overview of the Explore Window.

In the Explore tab there are a few different options available to you, Query, SQL and q. Let's look at SQL.

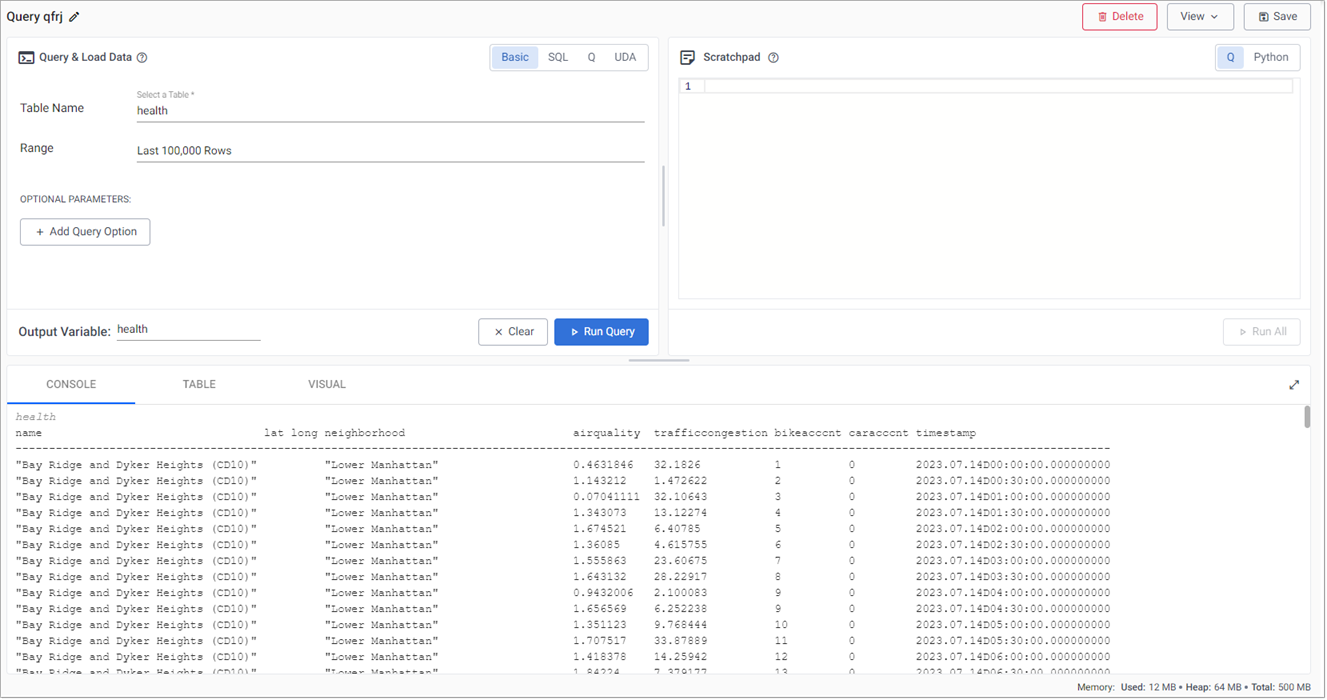

You can run the following SQL to retrieve from the health table.

SELECT * FROM health

Note that you will need to define an Output Variable and then select Get Data to execute the query. You should see the output below.

Expression

Refresh Browser

If the tables are not appearing in the Explore tab as expected - it is a good idea to refresh your browser and retry.

Troubleshooting

If the tables are still not outputting after refreshing your browser, try our Troubleshooting page.

Let's ingest some more data! Try next with Protocol Buffer on Crime Data.
