The Workspace is comprised of three sections:

  • on the left is a component listing
  • in the center is the canvas where components are added and arranged
  • to the right are the properties associated with the selected component or dashboard

The user menu displays your user name in the top right. Here you can pick a theme, timezone, log level and the base language for the dashboard: English, German or Japanese.

Dashboard theme

The Dashboard Builder theme is independent of the dashboard style. Pick the dashboard theme from the dashboard’s Style menu.

Document List

A list of available dashboards. Draft dashboards are marked as 'Draft' and are not available to users in Viewer.


Dashboard Manager

Dashboard Manager is available at the end of the Document List:


Clicking the Manage icon will open the Manage menu.


Select a dashboard, then choose from:

Opens a Dashboard for editing.
View on web
Opens the Viewer (end-user) version of your dashboard.
Deletes selected dashboard.
Rename Dashboards

To rename a dashboard, click on the dashboard name in the manager listing to activate renaming.


Importing and exporting dashboards

Dashboards can be exported and imported in a file format.


Manager Icons
icon description
:fontawesome-solid-check-circle: Uncheck to make a draft dashboard; draft dashboards do not appear in the Viewer dashboard listing.
:fontawesome-solid-home: Click the Home icon to select the dashboard to open when dashboards starts.
Click the star icon to make a dashboard a favorite; favorite dashboards are prioritized in the dashboard listing.


A set of buttons are found to the right of the dashboard dropdown selector in the header bar:

button function
New icon New dashboard
Save icon Save dashboard.
Undo Icon Undo Icon
Redo Icon Redo Icon
Share icon Share Dashboard Link; available in quickview
PDF icon Export as PDF
button function
New icon New dashboard
Save icon Save dashboard.
Undo Icon Undo Icon
Redo Icon Redo Icon
Share icon Share Dashboard Link; available in quickview

To export a dashboard as a file, long click on the Save icon


Long click on the Undo Icon to reverse actions beyond the most recent event.


Preview Toggle

When building dashboards, use the Preview button Screenshot to interact with your dashboard. Preview Mode offers the same level of interactivity as would be experienced by the end user, allowing you to test the functionality of your dashboard.


User Menu

Configuration options for the Dashboard Editor


Editor Theme
Switch between Light and Dark theme for the Editor. This does not change the theme for the dashboard which is defined in the Style menu.
Switch the display of kdb+ type datetime and timestamp to selected Timezone. This doesn't change display of time duration, e.g. kdb+ type time.
Log Level
Switch between None, Errors, Handled/Warnings, Logs & Debugs, or All.
Show Selection Breadcrumb

Display root structure for components, including nested components on selection. Components can be selected from the Breadcrumb.


Open Viewer
Open the dashboard in a new tab as it would appear and function to the end user.
Display copyright information and version of dashboards installed.
Opens online help documentation.

Component listing

Add components by click-and-drag into the workspace, e.g. Data Grid.


Central canvas

Arrange and resize components on the central canvas by dragging the resize handles on the edges.

A simple dashboard

Component properties

Selecting a dashboard component displays its properties on the right.

A new Data Grid, with its properties displayed

Properties vary from component to component, but almost all have a Data Source.

Dashboard properties


Search for a property within a selected component.



The hash used in the dashboard url.

Changing url hash

  1. Update the hash in the property editor.

  2. Click on the dashboard save button.

This will reload the page with the new hash in the dashboard url.

A name for the dashboard.
The URL for sharing access to the dashboard. (The link is not editable. Clicking on it will open the dashboard in a new browser tab.)
Hostname(s) access
Restrict access to the dashboard to the specified hostname. Multiple hostnames can be added by separating with a comma. If blank then all hostnames will have access to the dashboard.
Enable "Share Dashboard"
Adds a share icon to generate a link which stores the viewed states (e.g. pivot drill down position) which can be shared with others.
Save Viewer State
Defines how view states are used.
view state description
Enabled When a User saves their dashboard, the current value of any view states in the dashboard are saved and used the next time the dashboard is loaded.
Disabled User defined view state values are not stored on dashboard save. Each load of a dashboard is treated as a new instance with respect to view states; default values are used
Enabled (Autosave) Changes in view state values are automatically saved on change. Values are stored and used the next time the dashboard is loaded.
Unsaved Viewer Prompt

When checked, user will be prompted on any unsaved changes before switching to another dashboard.


Fill height
When checked, the dashboard fills the height of the browser. (Dashboards always fill the browser width.)

Row height

If Fill Height is disabled, Row Count becomes Row Height; Row Height is the height, in pixels, between each grid row. The number of grid rows used is defined by the prior Row Count value; e.g. if Row Count is 30 and Row Height is set to 30; then the distance from top to bottom - in the absence of Fill Height is 900 pixels. If the pixel height is greater than the browser height, a scroll bar will appear. In addition, some components may be positioned off-screen.

Save your dashboard frequently

To prevent loss of work from server time outs, save your dashboard on a regular basis.


Column Count
Row Count / Row Height
See Layout Panel for further details

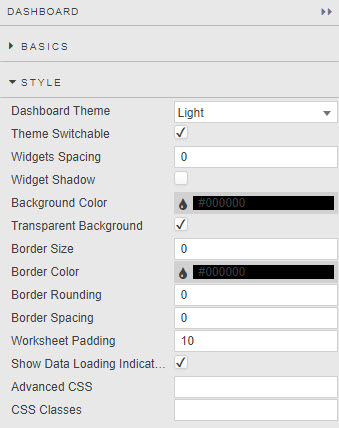

Dashboard Theme
Theme Switchable
Sets Light or Dark theme for dashboard and define if theme can be switched. This should be disabled (theme-locked) if the dashboard uses custom styling which would not update on global theme switch.
Widgets Spacing
Widget Shadow
Define distance in pixels between components and add optional shadow.
Background Color
Transparent Background
Define background color of components.
Border Size
Border Color
Border Rounding
Border Spacing
Define border criteria of components.
Show Loading Indicators
When checked, indicates when dashboard is loading data. If your dashboard uses streaming, managed or polling data, leave this unchecked.

Style for common style properties



Create a popup then edit to add content into the popup element.



Assign a boolean viewstate. The viewstate can be triggered by an Action. If no view state assigned and box checked, popup will appear when the dashboard loads.
Dialog Title
Header name of popup.
Dialog Height
Dialog Width
Dimension area of popup in pixels.
Make Popup modal.
Dialog Top
Diallog Left
The position of the popup is measured in pixels from top and/or left of screen. If not set, popup will appear in the middle of the screen.
Allow user resizing of popup window.

Actions on Close

A series of view state parameters values can be mapped when the pop-up dialog is closed.

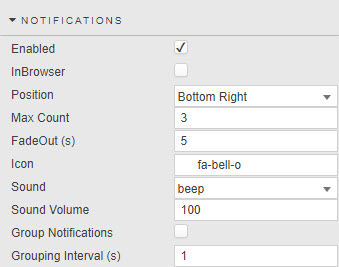

Notification messages, e.g. a failed login attempt, will appear on screen.
In Browser

When enabled, notification will be forced to display in the browser, location set by Position. Native notifications will trigger when disabled.

Screenshot native notification

Screenshot browser notification

Location of notification message, select from: Top Left, Top Center, Top Right, Center Left, Center Right, Bottom Left, Bottom Center, Bottom Right.
Max Count
Maximum number of messages displayed at any one time.
FadeOut (s)
Length of time in seconds notification remains on screen.
Select from bell-o, flag-o, bullhorn, clock-o, comment-o, commenting-o, exclamation-circle, exclamation-triangle, none if an icon is required as part of the notification.
Select from beep, beepbeep, none if an aural notification is required.
Enable Group Notifications for notifications to be grouped as a single message within an interval defined by Grouping Interval defined in seconds.

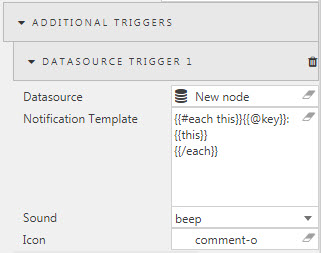

Set Trigger


Defines the conditions for the trigger. The data source has to use streaming, managed or polling data.
An example query for notifications; set Subscription to polling and keyed to time for every 20 seconds.
share: `AAPL`GOOG;

t: `time xasc ([] time:.z.Z ; sym:1000?`AAPL`GOOG; price:50+ (floor (1000?100.99)*100)%100)

Enable Browser Notifications

If prompted, enable browser notifications for the pop-up to appear.

Notification Template
This determines the information displayed in the notification popup.
What sound to associate with the defined trigger.
What icon to associate with defined trigger.

Configure browser to allow popups

For popups to appear in the browser it may be necessary to change browser settings to allow popups in addition to building the required configurations in your dashboard. A valid SSL certificate is required for in browser notifications.



Data Source

Data sources


A keyboard key that will assigned to the data source and execute when pressed.

Screenshot Screenshot Screenshot

Browser Shortcuts

The key map component does not override any of the browser shortcuts in the browser being used. This means other keys must be used for the key map component.

Some of the existing browsers shortcuts can be found below.

shortcut result
Ctrl + N New window
Ctrl + T New tab
Ctrl + H Open history
Ctrl + J Open downloads
Ctrl + G Next match in Find Bar search
Ctrl + P Print options
Ctrl + S Save options
Ctrl + U Display uneditable HTML source code
Ctrl + D Bookmark current page
Ctrl + I Page info

Key Shortcut Override

Dashboard key maps do not change existing browser shortcuts


Each dashboard has a main screen; other screens can be added and linked using the Button component.


button action
Delete screen Delete screen
Duplicate screen Duplicate screen
Set as default Set screen as default on dashboard load
Edit screen Edit screen
Screen snapshot Take snapshot image of screen: used by Navigation Component tooltip

Document Graph



Display relationships between components, data sources and view states for the underlying dashboard. Selecting a data source or view state in the Document Graph will open the appropriate editor.

Clean up removes redundant data sources and view states.

Searching for a data source or view state will show all related interactions for the searched item in the Document graph.


Linking components

Components with a common Data Source can be linked so that changes to one are reflected in the other.

Queries using input variables can have values passed to them using Data Form or Drop Down List components.

Keyboard shortcuts

Dashboards support keyboard shortcuts

shortcut result
Ctrl + C Copy component
Ctrl + V Paste component
Ctrl + O Open manage dashboard dialog
Ctrl + S Save dashboard
Ctrl + X Cut component
Ctrl + Z Undo feature
Ctrl + Y Redo feature
F1 Show help documentation for selected component

Custom component

This is for Dashboards component developers, who will need the Software Development Kit and documentation of the API; contact your First Derivatives representative for more information.

Once your Javascript component is built, add it into Dashboards:
