Database configuration

A database configuration is a description of the structure of a data set, its life cycle, and the services that operate upon it. This description is used by kdb Insights services to self-configure and coordinate among themselves, and also provides room for user extension.

Database configuration is organized in a package, a collection of YAML configuration files for describing a logical shard of a database. The package contains a shard file with the following top-level elements:

field	description
`name`	short name for this package (required)
`labels`	user defined keys and values used for representing the purview of the package
`mounts`	mount points for stored data (dictionary)
`sequencers`	configuration of the message bus used for coordination between elements (dictionary)
`sm`	Storage Manager configuration
`daps`	Data Access Process configuration
`dbSettings`	global database properties (e.g. encryption)

The package also contains a tables directory at the top level. This contains the table schemas, each in its own YAML file.

For details on packages, see package components.

User interface configuration

This guide discusses configuration using YAML files. If you are using kdb Insights Enterprise, you can configure your system using the kdb Insights Enterprise UI.

Packages in kdb Insights Enterprise

When deploying a package in kdb Insights Enterprise, the package is part of a Kubernetes custom resource definition and the content is split up between multiple files. Deploying the package can be done using the kdb Insights CLI.

Example configuration

databases/xxx/shards/xxx-shard.yaml:

labels:
  region: amer
  assetClass: fx

sequencers:
  stream:
    external: false

mounts:
  rdb:
    type: stream
    partition: none
    baseURI: none
    dependency:
    - idb
  idb:
    type: local
    partition: ordinal
    baseURI: file:///data/db/idb
  hdb:
    type: local
    partition: date
    baseURI: file:///data/db/hdb
    dependency:
    - idb

daps:
  instances:
    rdb:
      mountName: rdb
    idb:
      mountName: idb
    hdb:
      mountName: hdb

sm:
  source: stream
  tiers:
    - name: rdb
      mount: rdb
    - name: idb
      mount: idb
      schedule:
        freq: 0D00:10:00 # every 10 minutes
    - name: hdb
      mount: hdb
      schedule:
        freq: 1D00:00:00 # every day
        snap:   01:35:00 # at 1:35 AM
      retain:
        time: 2 days

tables/trade.yaml:

name: trade
description: Trade data
type: partitioned
shards: 11
blockSize: 10000
prtnCol: realTime
primaryKeys: [sym, realTime]
sortColsOrd: sym
sortColsDisk: sym
columns:
  - name: time
    type: timespan
  - name: sym
    description: Symbol name
    type: symbol
    attrMem: grouped
    attrDisk: parted
    attrOrd: parted
  - name: realTime
    type: timestamp
  - name: price
    description: Trade price
    type: float
  - name: size
    description: Trade size
    type: long

tables/quote.yaml:

name: quote
description: Quote data
type: partitioned
shards: 11
blockSize: 10000
prtnCol: realTime
sortColsOrd: sym
sortColsDisk: sym
columns:
  - name: time
    type: timespan
  - name: sym
    description: Symbol name
    type: symbol
    attrMem: grouped
    attrDisk: parted
    attrOrd: parted
  - name: realTime
    type: timestamp
  - name: bid
    description: Bid price
    type: float
  - name: ask
    description: Ask price
    type: float
  - name: bidSize
    description: Big size
    type: long
  - name: askSize
    description: Ask size
    type: long

Labels

Database labels are metadata that are used to define correlations between different data split across multiple packages (shards). Labels are used during query routing to select specific subsets of a logical database. Labels appear in database tables as virtual columns

A database must have at least one label associated with it. Additionally, the combination of all assigned labels must be a unique set of values. Individual label values can be repeated, but the combination of all of them must be unique to the particular package.

Labels example

This example illustrates the power of labels by splitting data across four packages, paring a region and a sector criteria across them.

# a-db-shard.yaml
labels:
  region: US
  sector: Finance

# b-db-shard.yaml
labels:
  region: US
  sector: Automotive

# c-db-shard.yaml
labels:
  region: EU
  sector: Finance

# d-db-shard.yaml
labels:
  region: EU
  sector: Automotive

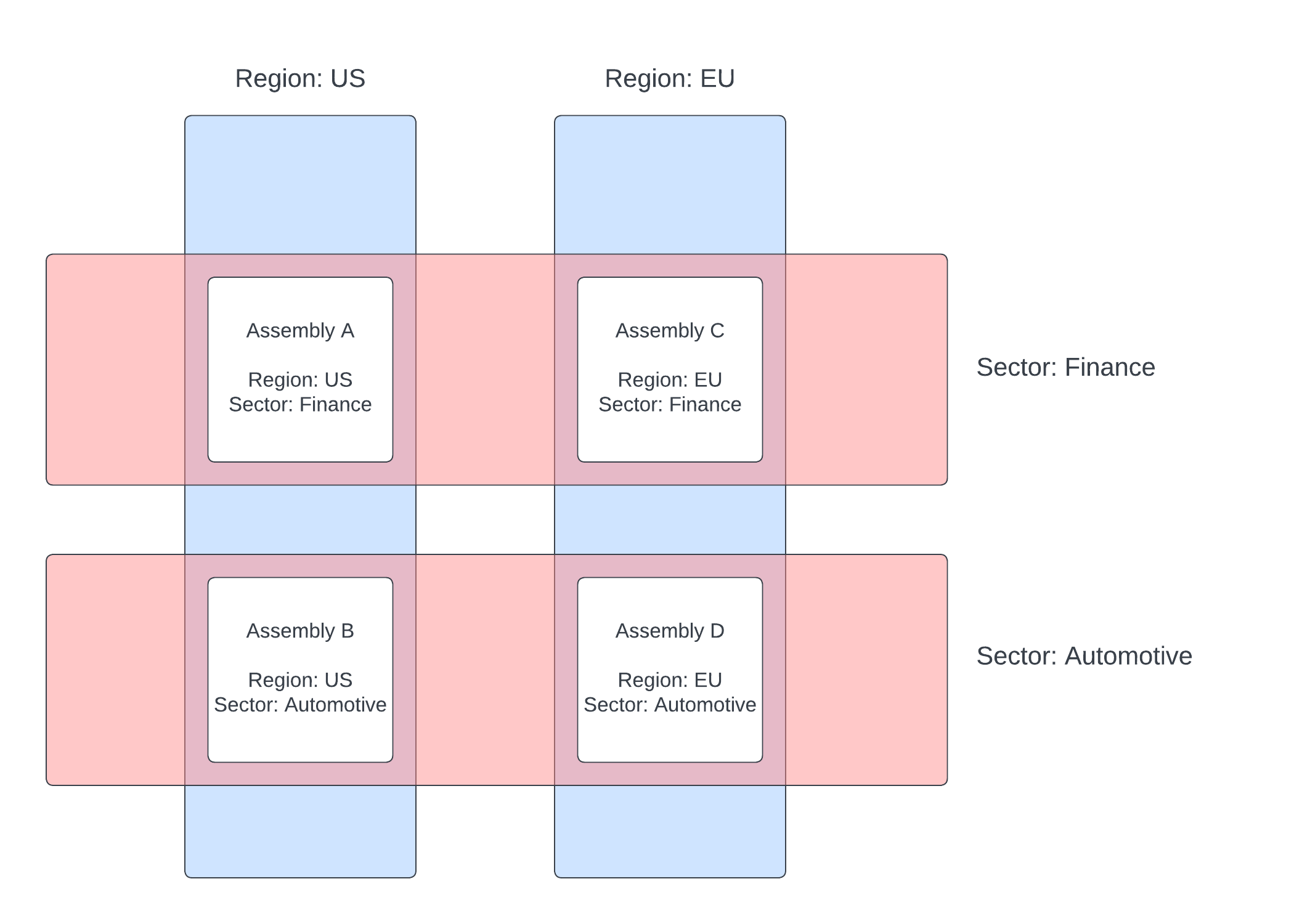

These four packages make up one logical database. Queries can be issued across the packages using the sector or region label. An individual package can also be directly queried using a combination of labels. You can query across all packages by omitting labels from the query.

Labels in SQL

When issuing an SQL query, labels should be referenced with a label_ prefix. For example, the label region would be referenced as label_region in the query.

Shard slicing with labels

Database settings

Global settings found under the dbSettings key.

Encryption

dbSettings:
  encryption:
    encryptAll: true|false
    auth:
      existingSecret: kxi-encryption-secret

Encryption settings are under an encryption key.

Setting encryptAll: true causes all tables in the database to be encrypted. To use encryption, a key must be created (see Data At Rest Encryption). The default for this value is false - note that if the value is set to true and then subsequently changed to false or removed altogether, it causes the database to be decrypted.

The auth key specifies how to find the encryption key. It must have an existingSecret property that contains the name of an existing Kubernetes secret.

kdb Insights Enterprise creates the encryption secret when you run the kxi install setup command. You can also create a secret manually using the following commands:

# Create key
openssl rand 32 | openssl aes-256-cbc -md SHA256 -salt -pbkdf2 -iter 50000 -out database1.key # Prompts for the new password

# Create secret
kubectl create secret generic kxi-encryption-secret --from-file=key=database1.key --from-literal=password=******* --namespace=insights

Make sure that the password in the --from-literal=password= parameter is the same one you used to create the encryption key. If the passwords don't match, the Storage Manager fails with the following error message:

Unable to load encryption key: Invalid password for ...

Encryption applies to all storage tiers. Encryption settings apply orthogonally to compression settings.

Tables

Table schemas describe the metadata and columns of tables within a given package. In order to distribute data across multiple packages, the tables in those packages must have a matching schema.

Mismatched schemas

If you have multiple packages with a table of the same name and you issue a query without labels selecting one or the other, you will get a mismatch error on your query. Table names are global to your install. Therefore, tables with the same name in different packages must all have the same schema.

See how to configure a schema and tables

Mounts

Packages store data in multiple places. The Storage Manager (SM) component migrates data between a hierarchy of tiers, each with its own locality, segmentation format, and rollover configuration. Other components might use entries in this section to coordinate other forms of data storage and access. The mounts section define the locations where data will be stored.

mounts:
  rdb:
    type: stream
    partition: none
    baseURI: none
  idb:
    type: local
    partition: ordinal
    baseURI: file:///data/db/idb
  hdb:
    type: local
    partition: date
    baseURI: file:///data/db/hdb

For each mount, the following fields can be configured.

name	type	required	description
`type`	string	Yes	Indicates the type of this mount as one of `stream`, or `local`. See mount types below for more details.
`partition`	string	Yes	Indicates the partitioning scheme for this mount. This can be one of `none`, `ordinal` or `date`. See mount partitioning below for details.
`baseURI`	string	Yes	The location to store data on this mount. For `stream` mounts, this value must be set to `none`. For `local` mounts, this value should point to a file location where data for this mount will be stored. Each mount must have a unique `baseURI` for writing data. All directories under the `baseURI` path will be managed by the Storage Manager and are subject to change. The URI should be in the form of `file://` followed by an absolute path to the data location. For example, `file:///data/db/hdb`. Note that the prefix is `file://` and the path is `/data/db/hdb` leading to a triple `///`.
`dependency`	string[]	No	Indicates if a given mount has a dependency on another mount. When a mount is associated with a tier that depends on another mount, the dependent mount will also be added. Typical configuration requires the `rdb` and `hdb` mounts to depend on the `idb` mount to support late data.
`volume`	object	No	A mount volume specification for the given mount.

Mount volume

If a mount needs to store data on disk, it needs a volume associated with it. Under a mount, you can add a volume key to declare the what type and size of volume to use.

A pre-existing PVC may be used by using the claimName field. Alternatively, populating the additional fields will create a new volume.

mounts:
  idb:
    type: local
    baseURI: file:///data/db/idb
    partition: date
    volume:
      claimName: data-db-rook-cephfs
  hdb:
    type: local
    baseURI: file:///data/db/hdb
    partition: date
    dependency:
    - idb
    volume:
      storageClass: "rook-cephfs"
      size: "20Gi"
      accessModes:
      - ReadWriteMany

name	type	required	description
`claimName`	string	No	The name of an existing persistent volume claim to use for the mount. This is useful when performing an initial import into a database tier.
`storageClass`	string	No	Indicates the storage class to use for this volume which configure what file system to provision. See more about supported file systems below.
`size`	string	No	The capacity to provision for this volume (default: `"20Gi"`).
`accessModes`	string[]	No	Indicates what access mode is required for this volume.

Mount types

Mounts can either be a stream mount or a local mount. Stream mounts are used for data in-flight and are always associated with a real-time tier. Stream tiers must have a partition and baseURI of none.

Local mounts are data that are co-located with the database and are available as part of a local file system. Local file systems must have a partition of either ordinal or date. The baseURI must point to a <mount_path>/<path> that is accessible by the database for writing. The location on this path will be managed by the Storage Manager. The same <mount_path> can be used by multiple mounts, but each mount must have a unique <path> within that mount for writing data.

Mount partitioning

Data on disk is organized into partitions to optimize for writedown or for querying. For local mounts, the method of partitioning can be configured to use a specific value of the data or can simply use the order that the data arrives. The table below outlines the possible partition configuration options.

name	description
`none`	Disables partitioning and stores data in arrival order.
`ordinal`	This configuration stores data using a virtual numeric column that increments according to the tier's schedule. It is recommended that this partitioning mode is used for an IDB tier. Ordinal partitions are reset when data is rolled to the next tier. See below for an example of how ordinal partitioning is laid out on disk.
`date`	Date partitioning uses the timestamp column set in the schema's `prtnCol` setting to lay out data on disk by date. It is recommended that this partitioning mode is used for an HDB tier. See below for an example of date partitioning is laid out on disk.

Partition example

To illustrate how data is laid out on disk, this example uses the configuration below to partition an IDB tier as ordinal partitioned and the HDB tier as date partitioned.

tables/trade.yaml:

name: trade
type: partitioned
prtnCol: time
columns:
  - name: time
    type: timestamp
  - name: sym
    type: symbol
  - name: price
    type: float
  - name: size
    type: long

databases/xxx/shards/xxx-shard.yaml:

mounts:
  rdb:
    type: stream
    partition: none
  idb:
    type: local
    partition: ordinal
    baseURI: file:///data/db/idb
  hdb:
    type: local
    partition: date
    baseURI: file:///data/db/hdb

sm:
  source: stream
  tiers:
    - name: rdb
      mount: rdb
    - name: idb
      mount: idb
      schedule:
        freq: 0D00:10:00
    - name: hdb
      mount: hdb
      schedule:
        freq: 1D00:00:00
        snap:   01:00:00

Ordinal partition example:

As data is migrated into the IDB, it will be partitioned on disk using an ordinal number until an EOD occurs. Each ordinal is an interval of data set by the tier's schedule value. Each time the interval triggers an EOI, a new ordinal is created and the data from the previous tier (typically RDB) will be migrated into a single ordinal.

In our example, we have a table called trade. After 3 EOIs, the IDB would have the following layout on disk. Each ordinal will have a 10 minute window of data because the IDB schedule is set to 10 minutes.

/data/db/idb
├── 0
│   └── trade
│       ├── price
│       ├── size
│       ├── sym
│       └── time
├── 1
│   └── trade
│       ├── price
│       ├── size
│       ├── sym
│       └── time
├── 2
│   └── trade
│       ├── price
│       ├── size
│       ├── sym
│       └── time
└── sym

Date partition example:

At the end of the day, data will migrate from the IDB to the HDB and change partitioning schemes. In this example, data will change from being ordinal partitioned to being date partitioned using the time column of our trade table. This will remove the data from the IDB and reset its ordinal partitioning. Data will now be in the HDB in the following format.

/data/db/hdb
├── 2023.01.01
│   └── trade
│       ├── price
│       ├── size
│       ├── sym
│       └── time
├── 2023.01.02
│   └── trade
│       ├── price
│       ├── size
│       ├── sym
│       └── time
├── 2023.01.03
│   └── trade
│       ├── price
│       ├── size
│       ├── sym
│       └── time
└── sym

Supported file systems

A mount points to a physical disk location that will hold the data in your database. This data is written by the Storage Manager and read by Data Access Processes. To facilitate high availability of data, data must be replicated between multiple nodes for redundancy. This requires a read-write-many configuration for the disk. There are a number of options for network-based file systems that facilitate this requirement.

Single node installs

For an install that is running on a single node, any file system that supports concurrent reads and writes can be used.

Network File Systems

Each of the supported cloud vendors have a version of a Network File System (NFS). This provides an easy-to-use option for getting a mount up and running. For more performance-critical workloads, it is recommended that a more tunable file system be selected.

Amazon EFS
Google Filestore
Microsoft Azure Files

Rook Ceph

Rook is an open source, distributed storage system with a native Kubernetes operator for Ceph. kdb Insights Database supports the following Rook Ceph configurations with a replication of 3 requiring at least three worker nodes.

Host Storage Cluster

When using a host storage cluster configuration, Rook configures Ceph to store data directly on the host. This requires nodes with locally-attached SSD volumes.

This configuration provides the best performance. In order to achieve a higher level of resiliency, it is preferable to separate Rook nodes from application nodes. This can be done using labels, taints and tolerations. See Segregating Ceph from user applications.

Zapping devices

Some cloud service providers present locally attached SSDs with a pre-existing file system. In order to use these SSDs with Rook, the file system must be removed by zapping the device

PVC Cluster

When using a PVC cluster configuration, Ceph persistent data is stored on volumes requested from a storage class of your choice. The storage can be external to the nodes, providing increased volume resiliency at the cost of reduced performance.

Lustre

Lustre is another open source, distributed storage system. Unlike Rook Ceph, Lustre does not provide a default cloud storage class provisioner. Instead, vendor-specific options, such as AWS FSx for Lustre are available.

Using an FSx for Lustre storage provisioner creates new volumes with a root owner. Services in kdb Insights run as a nobody user by default, which will prevent components such as the kdb Insights Database from being able to write to the top-level directory of a mounted volume.

To use a Lustre volume, the k8sPolicy on the sm element in your package must be modified to include the following security contexts.

sm:
  k8sPolicy:
    podSecurityContext:
      runAsNonRoot: false
    securityContext:
      runAsUser: 0

This will allow the Storage Manager to have sufficient permissions to write data to disk under any Lustre provisioned mounts.

Root Squash

To limit access to operations of a pod running as root, it is recommended that root squash is enabled on the storage provisioner. To allow access for the nobody user, ensure that RootSquash users include 65534.

Bus

A data bus is a communication medium for data and control events to be processed by the database. Data buses are generally referred to as streams, but the terms stream and bus can be used interchangeably. In kdb Insights Enterprise, the only supported bus is kdb Insights Reliable Transport. See the stream configuration page to configure the details of a bus.

The Storage Manager element must have a source stream configured for bi-directional communication. The database will use the configured bus for sending control events to issue EOIs, EODs, etc. The RDB tier will also use a stream parameter as its source for receiving data. These values must be configured to point at the same stream to have a deterministic sequence of events.

Elements

Packages compose a number of elements together to deploy a logical workload with streams, pipelines and databases. The shard file breaks down the configuration for Storage Manager and Data Access Processes. Other elements are found in different files of the package.

rc: {}
  # ..
agg: {}
  # ..
sm: {}
  # ..
daps: {}
  # ..

Routing configuration is under the rc and agg keys. Storage configuration is located under an sm key. Query configuration is located under a daps key. Pipeline configuration is in the pipelines directory at the top level of the package. Stream configuration is in the router directory at the top level of the package.
